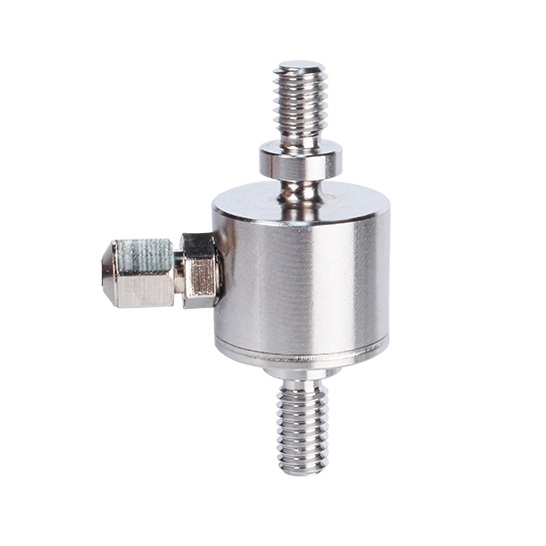

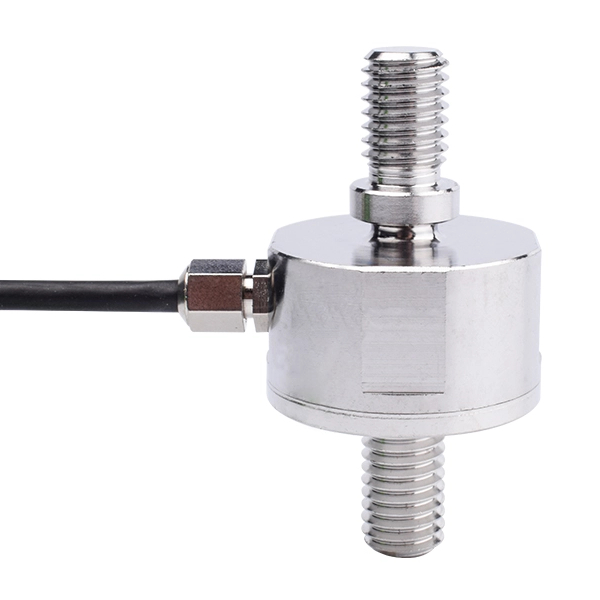

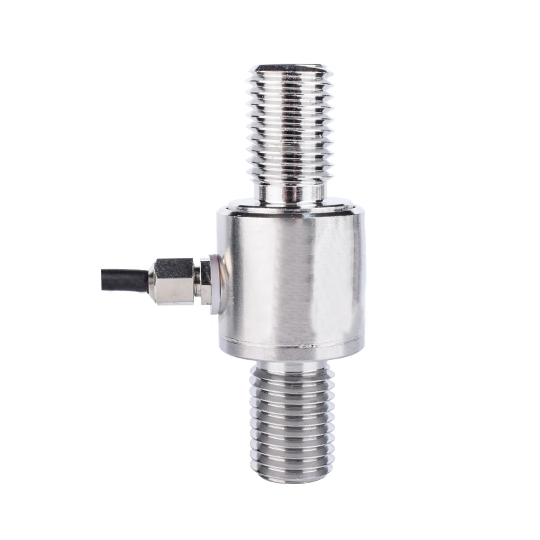

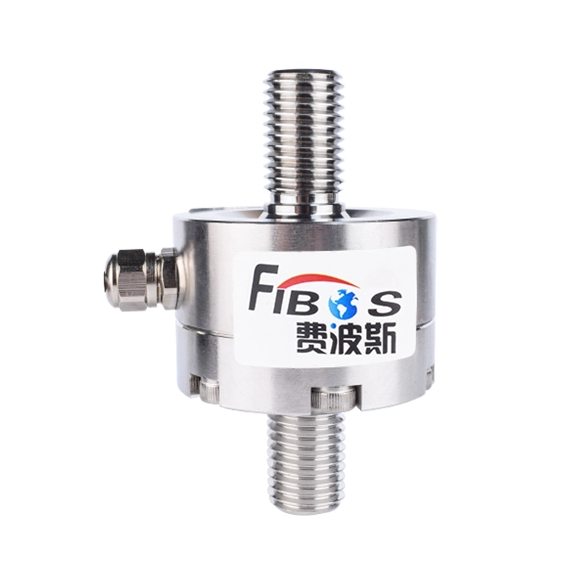

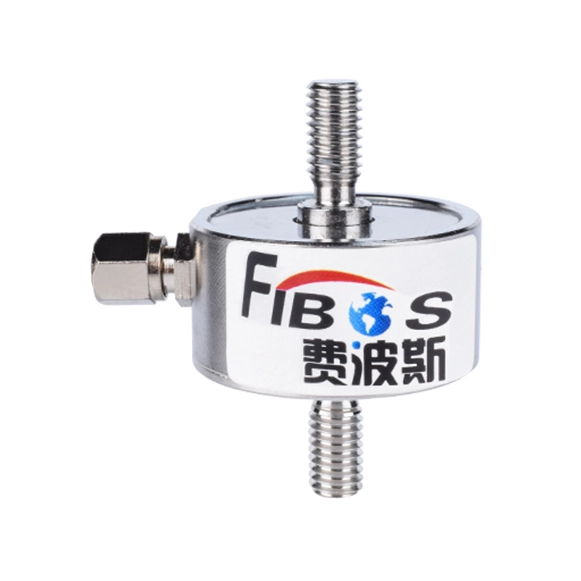

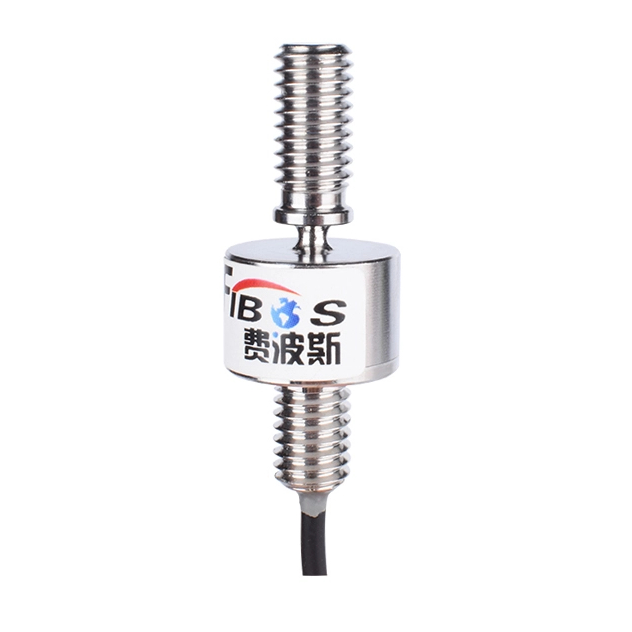

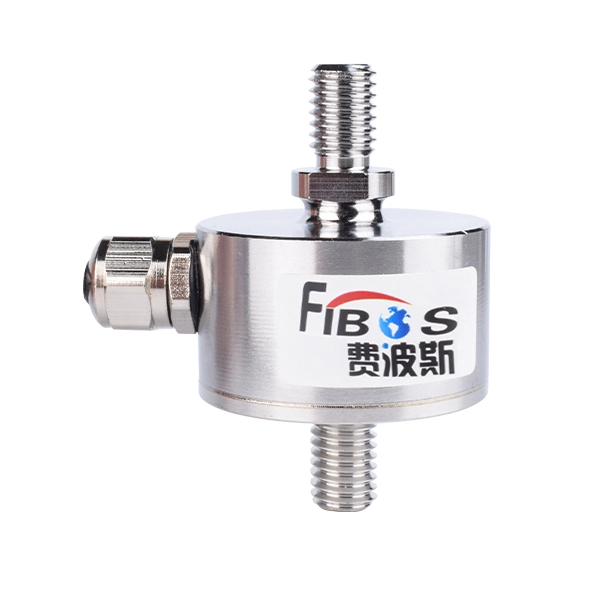

Rod-end Load Cell

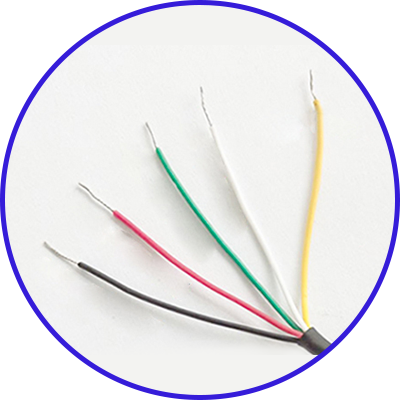

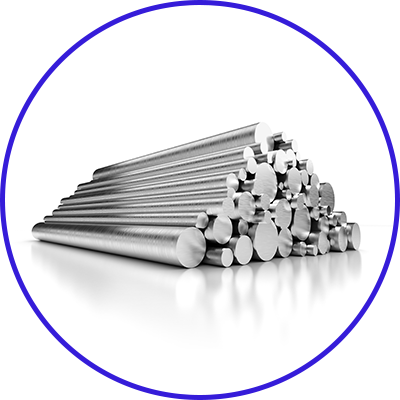

The rod-end load cell independently developed and produced by Fibos adopts the principle of resistance strain type, combined with high-precision cross parallel beam strain structure and circular diaphragm box structure, the measurement range covers 5kg~2t, and the measurement accuracy is better than 0.5%F.S.; the resistance strain gauge is evenly pasted on the strain beam of the sensor to measure the strain during the force process and output the mv-level voltage signal through the full bridge to linearly feedback the pressure change process; the fixing method of the two screws makes it convenient for the sensor to measure axial pressure and tension; the sensor body is made of high-strength alloy steel and stainless steel, the surface is rust-proof, the material has high yield strength, good anti-interference and safety performance, the response frequency is higher than 5KHZ, the service life can reach more than 3 million times, the safe overload is 150%, and the limit overload can reach 200%; the upper and lower connections are laser welded, and the protection level can reach IP65~68. The sensor can work normally between -20~80℃; the sensor output signal cable adopts high-quality drag chain line, which has a long bending service life; the rod end force sensors produced by our company are now widely used in automated assembly, medical testing, robotics and other measurement work experiments

Our engineers can deeply understand your project requirements and product specifications and provide corresponding technical solutions.

Products include weighing, force measurement, torque, piezoelectric sensors, etc.
More than 80% of the projects we undertake are customized. Our customization services include size, internal structure, technical parameters and other customized accessories.

Our engineering team organizes training courses regularly to keep the technical team at the forefront of the industry and proficient in dealing with various technical challenges.

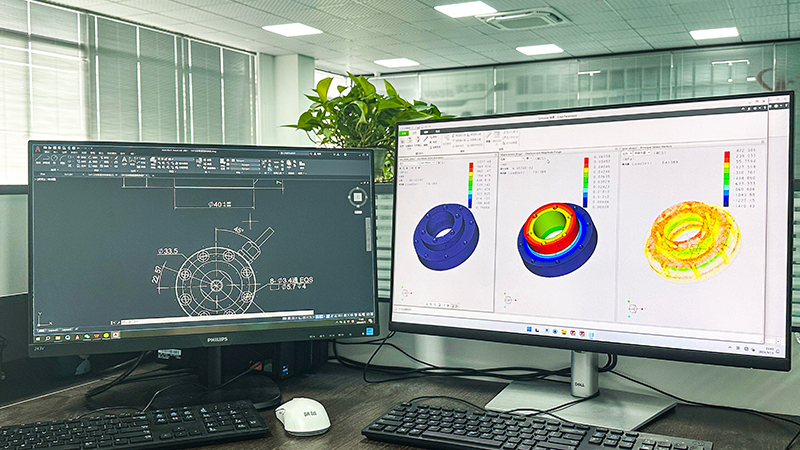

We provide detailed technical documents and information, such as specifications, force installation drawings, 3D drawings, etc.

Production on Demand Order
FIBOS Sensor focuses on customer demands and flexibly adjusts the production process and schedule to ensure the timely delivery of high-quality customized products. Regardless of the bigger or smaller order, we respond quickly and provide solutions that meet our customers' requirements.

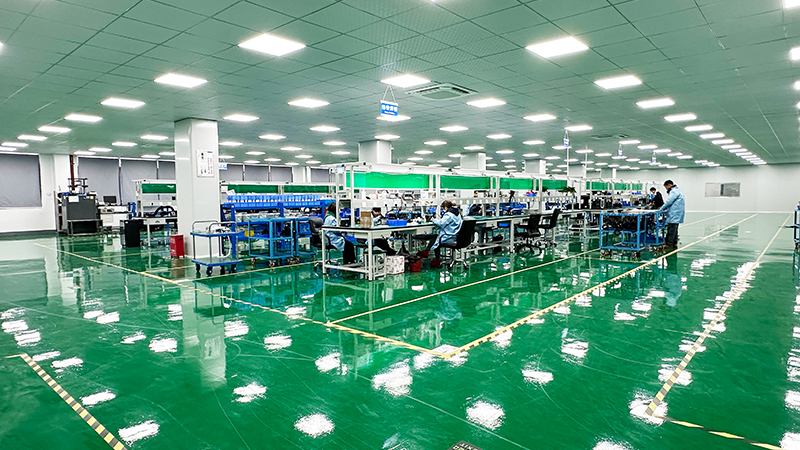

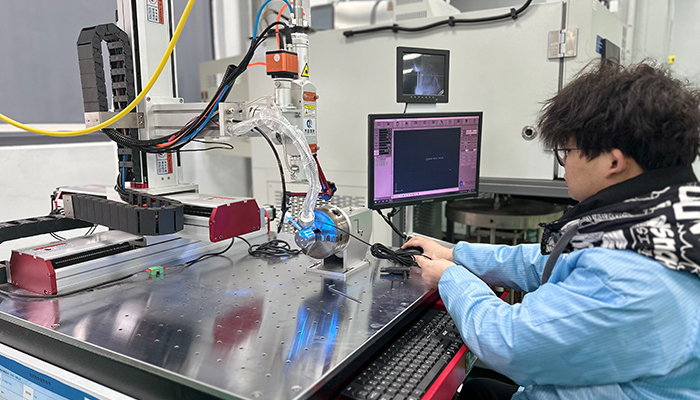

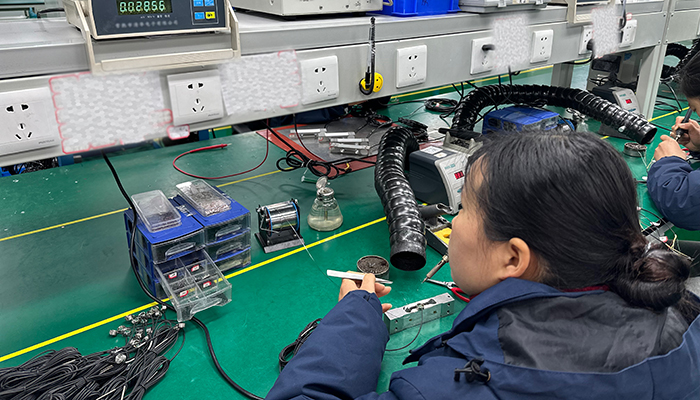

Core Parts Manufacturing and Assembly
We have advanced force sensor processing equipment and skilled technical workers, who can accurately process all kinds of high-precision force sensor, in strict accordance with the assembly process for sensor assembly, to ensure stable and reliable product quality, and to provide customers with excellent performance and experience.

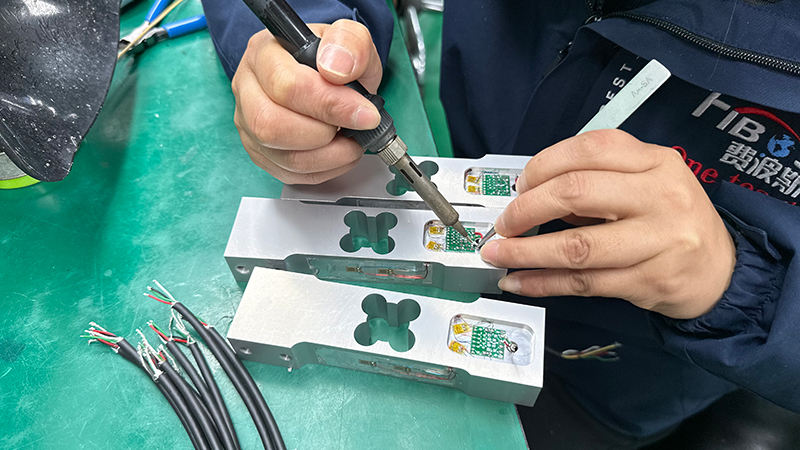

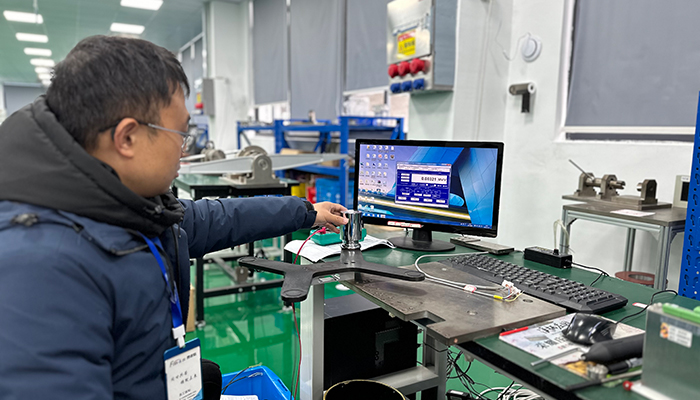

Force Sensor Production and Control

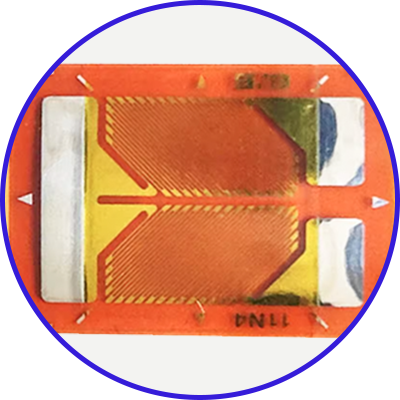

Perform organization and a series of inspections on force sensor components such as strain gauges, resistor bridge, connector, and end cables. Each force sensor is rigorously tested and evaluated to ensure its quality is up to industry-leading levels, enhancing product performance and reliability.

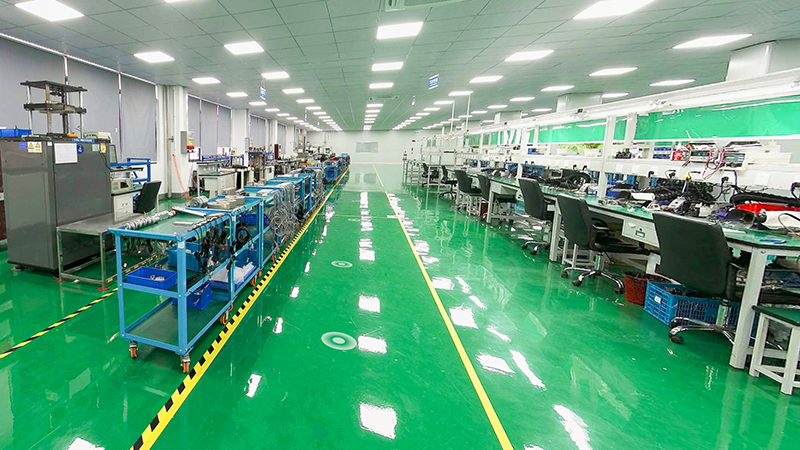

Automated Manufacturing Capacity and Continuous Optimization

We continue to invest in research and development and the introduction of advanced automated production equipment. With an automation rate of 60%, and continuous optimization of production processes, to ensure that we are always at the forefront of the industry and meet the changing needs of our customers.

   Product one-time pass rate ≥98%

   Customer satisfaction ≥98%

   First Acceptance Yield (PQC→OQC): ≥98%

   Finished Products (OQC): 100% inspection

For over a decade, FIBOS has been engaged in manufacturing micro force sensor and load cells. We are proud to support all of our customers, regardless of their size.

 Load cell capacity range from 100g to 1000ton
 Reduction delivery time by 40%.
