Load cells are crucial components in modern weighing and force measurement systems. These versatile devices have revolutionized various industries by providing accurate and reliable measurements of weight, force, and pressure. In this comprehensive guide, we will explore the world of load cells, their types, applications, and the underlying principles that make them indispensable in today's technological landscape.
A load cell is an electromechanical sensor designed to convert a mechanical force into a measurable electrical signal. This conversion allows for precise quantification of weight or force applied to the device. Load cells are the backbone of many weighing systems and force measurement applications, ranging from simple bathroom scales to complex industrial processes.
The principle behind load cells is based on the concept of strain. When a force is applied to a load cell, it causes a minute deformation in the cell's structure. This deformation is then measured and converted into an electrical signal proportional to the applied force.

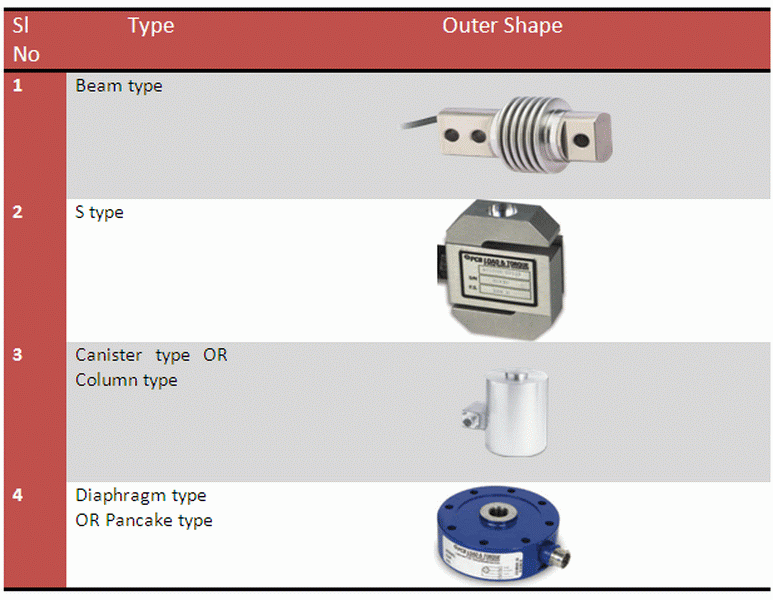

There are several types of load cells, each designed for specific applications and environments. Let's explore some of the most common types:
1.Strain Gauge Load Cells
Strain gauge load cells are the most widely used type. They utilize strain gauges attached to a metal body. When force is applied, the metal deforms slightly, causing the strain gauges to change their electrical resistance. This change is measured and converted into a weight or force reading.
2.Hydraulic Load Cells
These load cells use fluid pressure to measure force. When a load is applied, it increases the pressure of the fluid within the cell, which is then measured by a pressure gauge.
3.Pneumatic Load Cells
Similar to hydraulic cells, pneumatic load cells use air pressure instead of fluid. They are often used in environments where cleanliness is crucial, such as food processing plants.
4.Capacitive Load Cells
These cells measure changes in electrical capacitance to determine the applied force. They are known for their high accuracy and stability.
Within these types, load cells come in various designs to suit different applications:
1.S-Beam Load Cells
Shaped like an "S," these versatile cells can measure both tension and compression forces.
2.Single Point Load Cells
Ideal for small platform scales, these cells can accurately measure off-center loads.
3.Compression Load Cells
Designed specifically for measuring compressive forces, often used in industrial weighing applications.
4.Tension Load Cells
Used for measuring pulling forces, commonly found in crane scales and material testing.
5.Button Load Cells
Compact and low-profile, these cells are perfect for applications with space constraints.
The working principle of a load cell, particularly a strain gauge load cell, can be broken down into several steps:
1.Force Application
When a force is applied to the load cell, it causes a slight deformation in the cell's structure.
2.Strain Measurement
This deformation is detected by strain gauges attached to the load cell body.
3.Resistance Change
As the strain gauges deform, their electrical resistance changes proportionally to the applied force.
4.Signal Generation
The change in resistance is converted into an electrical signal, typically in the millivolt range.
5.Signal Amplification
The weak electrical signal is then amplified and processed by associated electronics.
6.Output
The processed signal is converted into a readable measurement of weight or force.
Load cells find applications across a wide range of industries and scenarios:
1.Industrial Weighing
Used in truck scales, conveyor belt scales, and tank weighing systems.
2.Aerospace and Automotive
Critical in testing the strength of materials and components.
3.Medical Equipment
Found in patient lifts, hospital beds, and pharmaceutical manufacturing.
4.Agriculture
Used in grain silos, livestock scales, and yield monitoring systems.
5.Retail
Essential components in point-of-sale scales and self-checkout systems.
6.Construction
Used in crane scales and material testing equipment.
7.Research and Development
Crucial for force measurement in various scientific experiments.
Load cells offer several advantages over traditional mechanical weighing systems:
1.High Accuracy
Modern load cells can provide extremely precise measurements.
2.Durability
Designed to withstand harsh industrial environments and repeated use.
3.Versatility
Available in various sizes and capacities to suit different applications.
4.Digital Integration
Easily integrated with digital systems for data logging and analysis.
5.Low Maintenance
Require minimal maintenance compared to mechanical scales.
While load cells are highly effective, there are some challenges to consider:
1.Environmental Factors
Temperature changes and humidity can affect accuracy.
2.Overloading
Exceeding the rated capacity can damage the load cell.
3.Calibration
Regular calibration is necessary to maintain accuracy.
4.Electrical Interference
Shielding may be required to protect against electromagnetic interference.
The field of load cell technology continues to evolve, with several exciting developments on the horizon:
1.Wireless Load Cells
Eliminating the need for complex wiring in large-scale systems.
2.Smart Load Cells
Incorporating advanced diagnostics and self-calibration features.
3.Miniaturization
Development of smaller, more sensitive load cells for specialized applications.
4.Integration with IoT
Connecting load cells to the Internet of Things for real-time monitoring and data analysis.
Load cells have become an integral part of modern weighing and force measurement systems. Their ability to provide accurate, reliable, and easily digitized measurements has made them indispensable across various industries. As technology continues to advance, we can expect load cells to become even more sophisticated, opening up new possibilities for precise force measurement and control.
To further illustrate the concepts discussed in this article, here's a video that explains different types of load cells and their applications:
A1: The main difference lies in their operating principle. Strain gauge load cells use electrical resistance changes in strain gauges to measure force, while hydraulic load cells use fluid pressure changes. Strain gauge load cells are more common and versatile, while hydraulic load cells are often used in harsh environments where electrical components might be at risk.
A2: The frequency of calibration depends on the application, usage, and environmental conditions. Generally, it's recommended to calibrate load cells at least once a year. However, in critical applications or harsh environments, more frequent calibration may be necessary. Always follow the manufacturer's recommendations and industry standards for your specific application.
A3: Some load cells, such as S-beam load cells, can measure both tension and compression forces. However, many load cells are designed specifically for either tension or compression. It's important to choose the right type of load cell for your specific application.
A4: Several factors can affect load cell accuracy, including:
- Temperature fluctuations
- Humidity
- Electromagnetic interference
- Mechanical shock or vibration
- Improper installation or mounting
- Overloading
- Aging of the load cellProper installation, regular calibration, and environmental control can help maintain load cell accuracy.
A5: The lifespan of a load cell can vary greatly depending on its quality, usage, and environmental conditions. With proper care and maintenance, a high-quality load cell can last 10 years or more. However, factors such as overloading, harsh environments, and frequent use can significantly reduce a load cell's lifespan. Regular inspections and calibrations can help identify when a load cell needs to be replaced.
