Amplifiers are essential components in various electronic devices, playing a crucial role in enhancing signal strength for audio, video, and communication systems. This article delves into the workings of amplifiers, explaining how they amplify signals, the different types of amplifiers, and their applications.

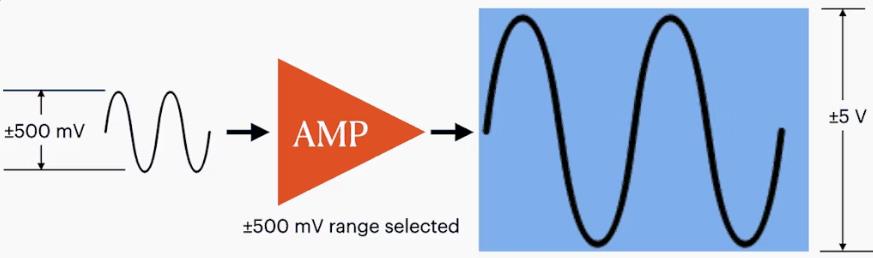

An amplifier is an electronic device that increases the amplitude of a signal. It takes a weak input signal and produces a stronger output signal, which is essential for driving speakers, transmitting radio waves, or processing audio and video signals. Amplifiers are characterized by their gain, which is the ratio of output to input signal strength[1].
The image shows a classic common emitter amplifier circuit with these essential components[1]:
- Input Stage: Receives the weak input signal through C1 (coupling capacitor)
- Amplifying Element: Transistor Q1 that boosts the signal
- Biasing Network: R1 and R2 resistors
- Output Stage: C2 coupling capacitor and output terminal
The circuit operates through several key mechanisms[1]:
- Input Coupling: C1 blocks DC while allowing AC signals to pass
- Voltage Divider: R1 and R2 form a voltage divider for proper transistor biasing
- Active Element: Q1 transistor provides the actual signal amplification
- Output Coupling: C2 transfers the amplified signal while blocking DC
- Power Supply: VCC provides the necessary operating voltage
The amplification process follows these steps:
1. The input signal enters through C1
2. Q1 transistor amplifies the signal based on the biasing provided by R1 and R2
3. The amplified signal passes through C2 to the output
4. The ground connections complete the circuit path
Common amplifier configurations include:
| Configuration | Characteristics | Applications |
|---|---|---|
| Common Emitter | High voltage gain | General purpose |
| Common Collector | Unity voltage gain | Buffer stages |
| Common Base | High current gain | High-frequency |
- Coupling Capacitors: Must be sized for desired frequency response
- Bias Resistors: Selected for proper DC operating point
- Transistor: Chosen based on gain and frequency requirements
- Gain: Determined by circuit component values
- Bandwidth: Affected by parasitic capacitances

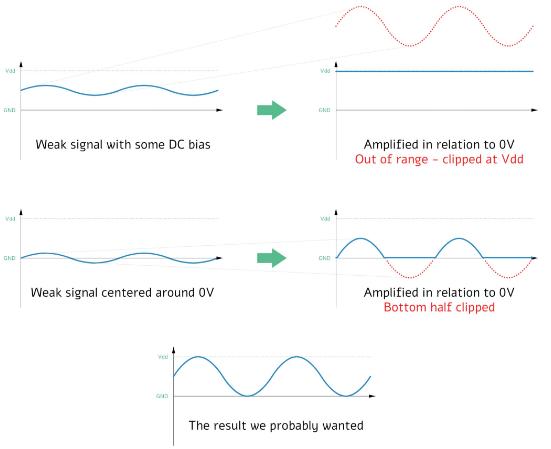

- Distortion: Minimized through proper biasing
- Noise: Reduced through careful component selection
Modern applications include:
- Audio amplification
- Radio frequency circuits
- Instrumentation
- Sensor interfaces
- Communication systems
The amplifier's response varies with frequency due to:
- Coupling capacitor effects
- Transistor characteristics
- Stray capacitances
- Input impedance affects signal loading
- Output impedance determines drive capability
- Proper matching maximizes power transfer
Common issues and solutions:
- DC bias problems
- AC signal distortion
- Frequency response limitations
- Thermal considerations
Understanding amplifier operation is crucial for electronic design. The common emitter configuration shown in the circuit diagram demonstrates fundamental amplification principles that form the basis for more complex designs. Modern applications continue to rely on these basic concepts while incorporating new technologies for improved performance.
The gain is primarily determined by the transistor characteristics and the values of R1 and R2 in the circuit.
Coupling capacitors (C1 and C2) block DC voltages while allowing AC signals to pass, preventing DC interference between stages.
The transistor controls a larger collector current based on a smaller base current, providing current and voltage gain.
R1 and R2 form a voltage divider that establishes the proper DC operating point (bias) for the transistor.
Performance can be improved by optimizing component values, improving thermal management, and reducing noise through proper layout.
