Adding an audio signal indicator to your mixer is a practical enhancement that helps you visually monitor audio levels, avoid distortion, and ensure optimal sound quality during live performances or recordings. This comprehensive guide will walk you through the process of adding an audio signal indicator to your mixer, covering the theory, components, circuit design, installation, and troubleshooting. Along the way, you will find detailed explanations and step-by-step instructions to help you understand each step clearly.

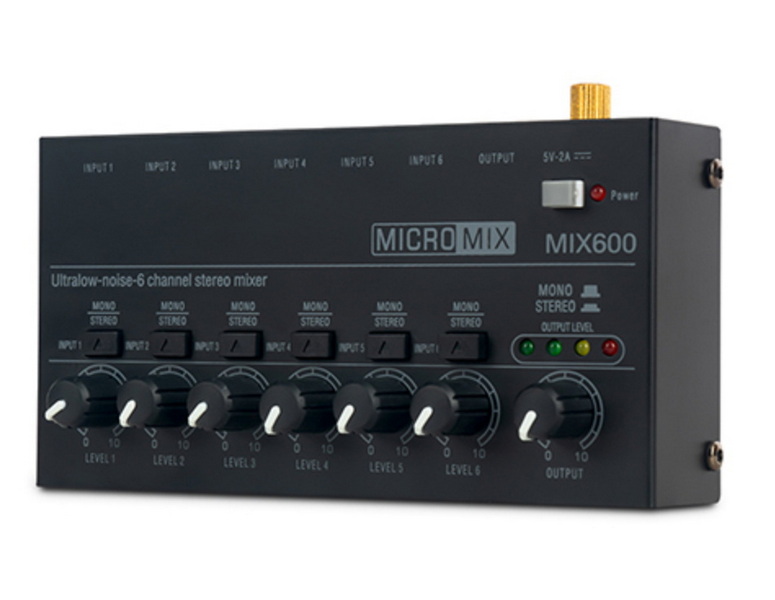

An audio signal indicator is a visual device, often consisting of LEDs or a meter, that shows the presence and level of an audio signal in a mixer channel or output. It helps the user:
- Detect when an audio signal is present.
- Monitor signal strength to avoid clipping or distortion.
- Adjust gain and levels accurately.
Typically, these indicators use LEDs that light up or change color based on the signal amplitude, providing real-time feedback. Some advanced indicators use bar graphs or VU meters to give a more detailed representation of the audio signal level.
- Prevent Clipping: By monitoring signal peaks, you can avoid distortion caused by overdriving the input.
- Optimize Gain Staging: Helps set the correct gain level for each channel.
- Troubleshooting: Quickly identify if a channel is receiving a signal.
- Professionalism: Adds a visual cue for live sound engineers and performers.
- Improved Workflow: Visual feedback speeds up mixing and sound checks.
Adding an audio signal indicator is especially useful in live sound environments where quick decisions are necessary, and in recording studios where precise level control is critical.
To build a simple and effective audio signal indicator, you will need:
- LEDs: Usually green for signal presence and red for peak/clipping.
- Resistors: To limit current to LEDs.
- Operational Amplifier (Op-Amp): For buffering and signal conditioning.
- Diodes: For peak detection.
- Transistors: To drive LEDs based on signal level.
- Power Supply: Usually 9V or 12V DC.
- Miscellaneous: Breadboard or PCB, wires, soldering tools.
Each component plays a vital role in ensuring the indicator accurately reflects the audio signal without interfering with the mixer's operation.
The audio signal from the mixer channel is first buffered using an op-amp to prevent loading the audio path. This ensures the indicator circuit does not affect the original audio signal quality.
A diode and capacitor circuit detects the peak voltage of the audio signal. The diode allows current to flow only in one direction, charging the capacitor to the peak voltage level, which is then used to drive the LED.
The detected peak voltage controls a transistor that switches the LED on or off depending on the signal level. When the signal exceeds a certain threshold, the transistor activates the LED.
A potentiometer or fixed resistor sets the threshold level at which the LED lights up, allowing customization for sensitivity. This lets you adjust the indicator to light up at the desired signal strength.
Identify where you want to add the indicator — typically at the output of each channel or the main mix output. This is where the audio signal is accessible for monitoring. Consult your mixer's schematic or manual to find suitable test points or insert jacks.
You can either build the circuit yourself using the components above or purchase a ready-made LED level indicator module. Ready-made modules often come with multiple LEDs arranged in a bar graph for more detailed level monitoring.
- For DIY circuits, connect the input of the indicator to the mixer channel output or main output.
- Ensure the ground of the indicator circuit is connected to the mixer ground to avoid noise.
- Use shielded cables if possible to minimize interference.
Provide the required DC voltage to power the op-amp and LEDs. This can be from an external power supply or the mixer's internal power rails if accessible and compatible.
Play audio through the mixer channel and adjust the threshold potentiometer so the LED lights up at the desired signal level. Test with different audio sources and volume levels to ensure reliable operation.
For more professional setups, consider:

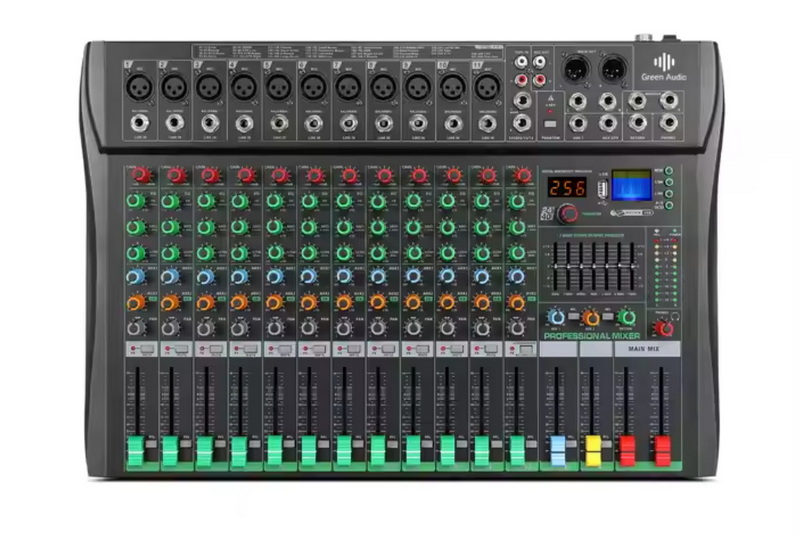

- LED Bar Graph Meters: Show multiple levels of signal strength, giving a more detailed visual representation of the audio signal dynamics.
- VU Meters: Provide a more accurate representation of perceived loudness, useful for broadcast and studio applications.
- Digital Meters: Use microcontrollers and ADCs for precise level monitoring, often with LCD or OLED displays and software integration.
These advanced indicators can be integrated into mixers or external racks, providing comprehensive monitoring capabilities.
- Place the indicator LEDs on the mixer's front panel for easy visibility.
- Use dual-color LEDs (green/yellow/red) to indicate signal presence, caution, and clipping.
- Ensure the indicator circuit does not introduce noise or affect the audio signal quality.
- Use shielded cables for connections to minimize interference.
- Consider adding a mute or bypass switch for the indicator circuit to isolate it during troubleshooting.
| Issue | Possible Cause | Solution |
|---|---|---|
| LED does not light up | No signal or wrong connection | Check wiring and signal source |
| LED always on | Threshold too low or circuit fault | Adjust threshold or check components |
| Noise or hum in indicator | Ground loop or interference | Use proper grounding and shielding |
| LED flickers erratically | Signal instability or loose connection | Secure connections and stabilize signal |
If you experience persistent issues, verify component values, solder joints, and power supply stability.
Audio signals can be balanced or unbalanced, and line-level or mic-level. When adding an audio signal indicator, ensure the circuit is compatible with the signal type:
- Mic-level signals are very low voltage and may require pre-amplification before detection.
- Line-level signals are higher voltage and easier to detect directly.
- Balanced signals use differential pairs; you may need to convert to single-ended for the indicator.
To protect your mixer and indicator circuit:
- Use coupling capacitors to block DC offset.
- Include resistors to limit current and prevent damage.
- Consider opto-isolators or transformers for galvanic isolation in professional setups.
You can expand your audio signal indicator system by:
- Adding multiple LEDs per channel for a more detailed level display.
- Integrating with microcontrollers for digital readouts and logging.
- Using wireless modules to transmit signal levels remotely.
Adding an audio signal indicator to your mixer is a valuable upgrade that enhances your ability to monitor and control audio signals effectively. Whether you build a simple LED indicator or install a sophisticated meter, the visual feedback will help you maintain sound quality and prevent distortion. By following the steps outlined above, you can successfully integrate an audio signal indicator into your mixer setup, improving your audio mixing experience and ensuring professional results every time.
A signal present LED lights up when any audio signal is detected, while a peak LED lights only when the signal reaches a high level close to clipping, helping prevent distortion.
Yes, most mixers have accessible outputs or channel inserts where you can tap the signal to feed an indicator circuit.
Use a potentiometer in the circuit to adjust the voltage level at which the LED lights, calibrating it with actual audio signals to suit your needs.
If designed and connected properly, the indicator circuit should have minimal to no impact on audio quality, especially if buffered by an op-amp.
Yes, digital meters using microcontrollers and ADCs can provide precise level readings and can be integrated with software for advanced monitoring.
