Understanding how an amplifier can catch a radio signal involves delving into the principles of radio wave reception and amplification. This phenomenon often occurs in guitar amplifiers and other audio equipment due to their sensitivity to radio frequency interference (RFI). In this article, we will explore the mechanisms behind radio signal reception, the role of amplifiers in this process, and methods to mitigate unwanted radio signal pickup.

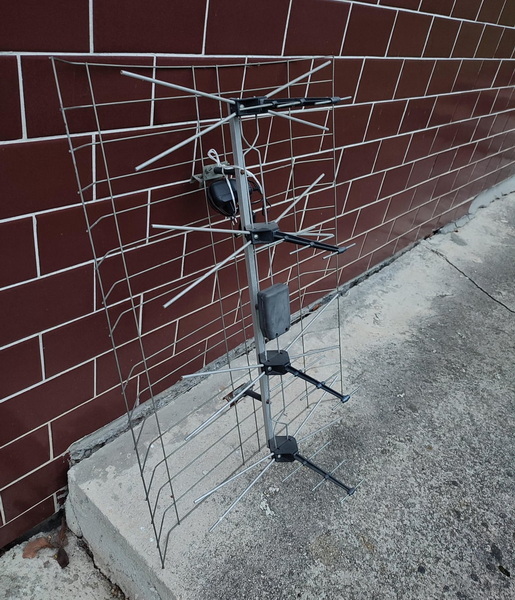

Radio signals are a form of electromagnetic wave used for communication. They consist of a carrier wave modulated by information such as audio or data. These signals are transmitted through the air and can be received by antennas, which convert them back into electrical signals. The strength of radio signals decreases with distance from the transmitter, and they can be affected by obstacles and interference.
Radio signals are transmitted using antennas, which convert electrical signals into electromagnetic waves. The process involves modulating a carrier wave with the information to be transmitted. There are several types of modulation, including amplitude modulation (AM) and frequency modulation (FM), each with its advantages and limitations.
AM vs. FM Radio Signals:
- AM Radio Signals: These signals are more susceptible to interference and have a longer range due to their lower frequency. They can travel as ground waves, allowing them to follow the Earth's surface and be received at greater distances.
- FM Radio Signals: FM signals have a higher frequency and are less prone to interference, resulting in better sound quality. However, their range is limited by line of sight, typically around 40 miles (64 km) from the transmitter.
Amplifiers, particularly those in audio equipment like guitar amps, can inadvertently pick up radio signals due to their high gain and sensitivity. This occurs when the amplifier acts as a makeshift antenna, capturing radio waves and amplifying them along with the intended audio signal.
1. Antenna Effect: Any conductor can act as an antenna, capturing radio waves and converting them into electrical signals. In the case of a guitar amp, the guitar cord or internal components can serve as an antenna.
2. Amplification: The amplifier's job is to increase the amplitude of the input signal. If radio signals are present, they are amplified along with the audio, resulting in audible radio broadcasts.
3. Non-linear Effects: In some cases, non-linear components within the amplifier circuit can demodulate the radio signal, making it audible as audio.
Guitar amps often pick up AM radio signals due to their sensitivity and the proximity to powerful AM transmitters. This can be mitigated by using shielded cables, ensuring proper grounding, and applying shielding techniques to the amp's electronics.

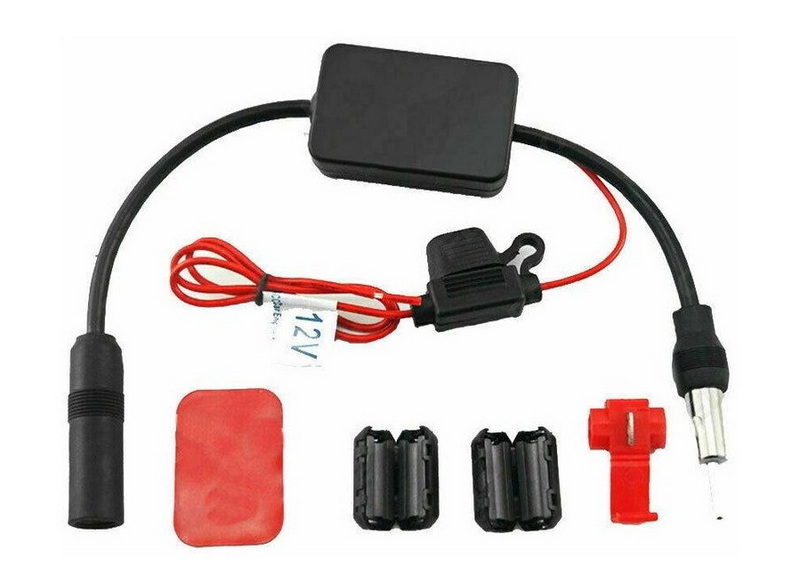

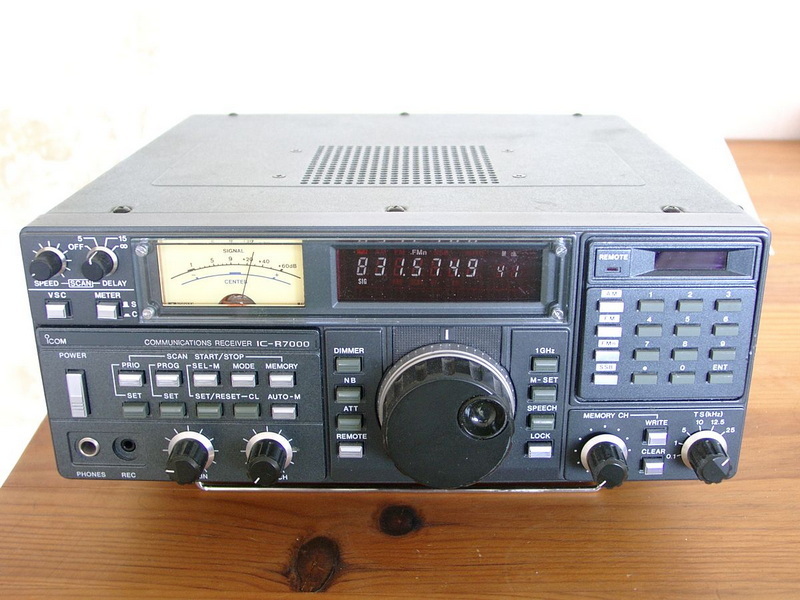

In radio communication systems, amplifiers play a crucial role in boosting weak signals received by antennas. These amplifiers are specifically designed to handle radio frequencies (RF) and are essential for improving signal quality and range.
RF amplifiers are designed to operate at radio frequencies, amplifying weak RF signals to higher power levels. This allows the signals to travel longer distances and cover larger areas. They are critical in wireless communication systems, including radio broadcasting and mobile networks.
- Low Noise Amplifiers (LNAs): Used to amplify weak signals while minimizing noise.
- Power Amplifiers (PAs): Increase the power of RF signals for transmission.
- Gain Block Amplifiers: Provide a fixed gain to amplify RF signals.
The amplification process involves using electrical power to increase the amplitude of the input signal. This is essential for ensuring that the signal is strong enough to be received clearly by the radio receiver.
A basic amplifier circuit consists of components like transistors, capacitors, and resistors. The input signal is applied to the base of a transistor, which controls a larger voltage or current at the output.
Input Signal → Transistor (Amplification) → Output Signal
To prevent unwanted radio signal pickup in amplifiers, several methods can be employed:
1. Shielding: Use conductive materials like aluminum or copper tape to shield the amplifier's electronics.
2. Shielded Cables: Employ shielded cables for connections to reduce RFI.
3. Proper Grounding: Ensure that the amplifier and associated equipment are properly grounded.
4. Decoupling Capacitors: Use capacitors to shunt RF signals to ground.
Shielding involves enclosing the amplifier's electronics in a conductive material to prevent radio waves from entering. This can be achieved using conductive paint, aluminum foil, or copper tape.
Conductive paint, such as graphite-based paint, can be applied to the inside of the amplifier's case to create a shield. This method is effective but may not be as robust as using metal shielding.
Aluminum or copper tape can be used to cover openings and seams in the amplifier's case, creating a continuous shield.
In conclusion, amplifiers can catch radio signals due to their sensitivity and the ability of conductors to act as antennas. Understanding the principles of radio signal reception and amplification is crucial for both designing effective radio communication systems and mitigating unwanted interference in audio equipment.
Amplifiers pick up radio signals because any conductor can act as an antenna, capturing radio waves and converting them into electrical signals. The amplifier then amplifies these signals along with the intended audio.
Guitar amps often pick up AM radio signals due to their sensitivity and proximity to powerful AM transmitters. AM signals have a longer range and can be more easily captured by conductors in the amp.
To prevent unwanted radio signal pickup, use shielded cables, ensure proper grounding, apply shielding techniques to the amplifier's electronics, and consider using decoupling capacitors.
RF amplifiers are crucial in radio communication systems as they amplify weak RF signals to higher power levels, allowing them to travel longer distances and cover larger areas.
Not all amplifiers are designed to catch radio signals. However, high-gain audio amplifiers can inadvertently pick up radio signals due to their sensitivity. Specialized RF amplifiers are designed specifically for amplifying radio frequency signals.
