The manifold pressure sensor, commonly referred to as the MAP sensor, is a critical component in modern internal combustion engines. It plays an essential role in ensuring optimal engine performance by measuring the pressure inside the intake manifold and relaying this information to the Engine Control Module (ECM). This data helps the ECM determine the correct air-fuel mixture, ignition timing, and other parameters necessary for efficient engine operation. In this article, we will explore how a manifold pressure sensor works, why it is important, its types, common issues, and troubleshooting methods.

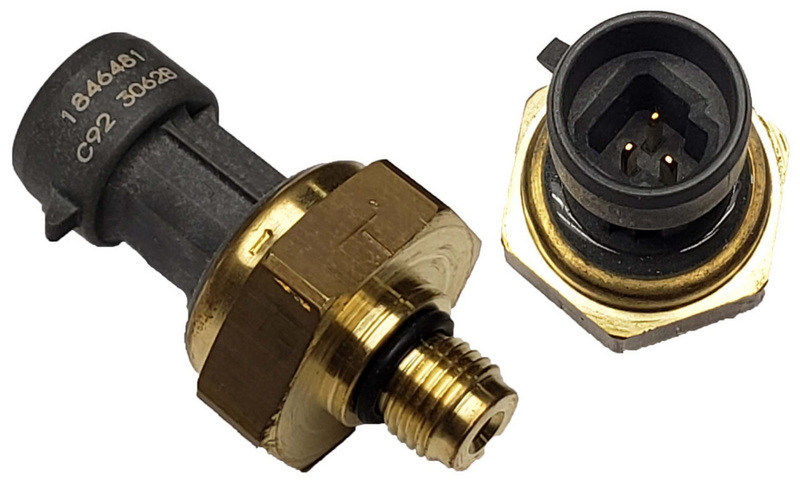

At its core, the MAP sensor measures the absolute pressure within the intake manifold. The intake manifold is responsible for delivering air to the engine cylinders. The pressure inside this manifold varies based on engine load, throttle position, and atmospheric conditions. The MAP sensor uses a diaphragm that flexes under varying pressures. This flexing changes the electrical resistance of a strain gauge attached to the diaphragm, which is then converted into an electrical signal that the ECM can interpret.
To better understand how a MAP sensor functions, it's important to know its key components:
- Diaphragm: A flexible membrane that reacts to changes in pressure.
- Strain Gauge: A device that detects changes in resistance caused by diaphragm movement.
- Amplifier Circuit: Converts resistance changes into voltage signals.
- Signal Output: Sends voltage signals to the ECM.
1. Pressure Detection: The diaphragm inside the sensor flexes based on changes in manifold pressure.
2. Electrical Signal Generation: The strain gauge detects these changes, altering its resistance.
3. Voltage Signal Transmission: The amplifier circuit converts these resistance changes into voltage signals.
4. ECM Interpretation: The ECM uses this data to adjust fuel injection timing, ignition timing, and other engine parameters.
The MAP sensor is vital for ensuring that an engine operates efficiently under varying conditions. By providing accurate pressure readings, it allows the ECM to calculate the correct air-fuel ratio required for combustion. This optimization leads to improved fuel efficiency, smoother acceleration, and reduced emissions.
MAP sensors are particularly important in engines equipped with forced induction systems such as turbochargers or superchargers. These systems increase air pressure in the intake manifold, and the MAP sensor ensures that this additional pressure is accounted for when determining fuel delivery.
Another critical function of the MAP sensor is adjusting for altitude changes. At higher altitudes, atmospheric pressure decreases, which affects air density. The MAP sensor detects these changes and helps the ECM compensate by adjusting fuel delivery accordingly.
Standard MAP sensors measure absolute pressure using a diaphragm and strain gauge setup. These sensors are commonly found in naturally aspirated engines and provide basic functionality necessary for calculating air-fuel ratios.
Integrated MAP sensors combine manifold pressure measurement with intake air temperature sensing. This dual functionality allows for more accurate calculations of air density and mass flow rate, which are crucial for engines with forced induction systems.
Digital MAP sensors use advanced microprocessors to provide more precise readings compared to analog sensors. These sensors are often used in high-performance or modern vehicles where accuracy is paramount.

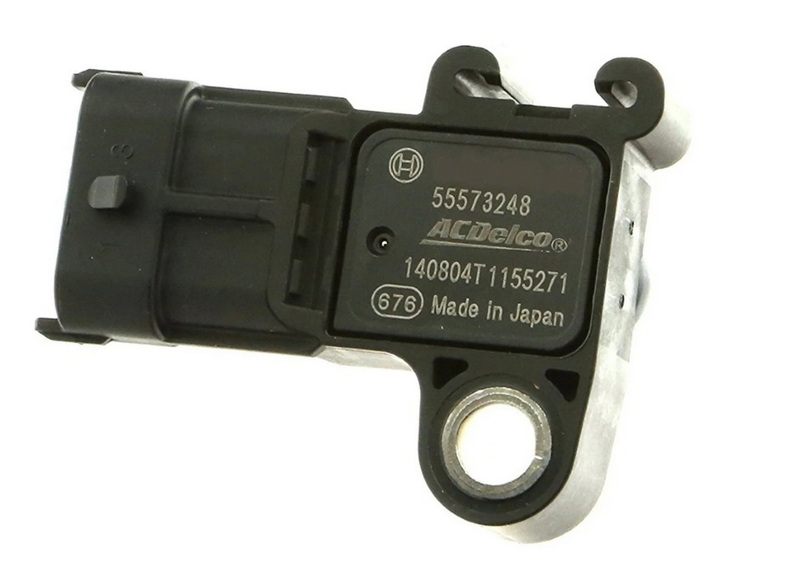

A faulty MAP sensor can lead to a variety of engine problems. Common symptoms include:
1. Rough Idling or Surging: Incorrect pressure readings can cause erratic engine behavior during idle.
2. Decreased Fuel Efficiency: A malfunctioning sensor may lead to an improper air-fuel mixture, increasing fuel consumption.
3. Loss of Power or Acceleration: The ECM may fail to optimize ignition timing or fuel delivery due to inaccurate data.
4. Check Engine Light Activation: Many vehicles will trigger a diagnostic trouble code (DTC) if the MAP sensor fails or provides abnormal readings.
MAP sensors can fail due to several reasons:
- Accumulation of dirt or debris inside the sensor.
- Damage to wiring or connectors.
- Exposure to extreme temperatures or vibrations.
- Internal component wear over time.
If you suspect your vehicle's MAP sensor is faulty, follow these steps:
1. Visual Inspection: Check for damaged wiring or loose connections.
2. Voltage Testing: Use a multimeter to measure voltage output from the sensor at different engine loads.
3. Diagnostic Tools: Utilize an OBD-II scanner to check for error codes related to manifold pressure readings.
4. Replacement: If testing confirms failure, replace the sensor with a compatible unit.
A malfunctioning MAP sensor can significantly impact engine performance by disrupting critical processes such as fuel delivery and ignition timing. Without accurate pressure readings:
- The ECM may inject too much or too little fuel into the cylinders.
- Ignition timing may be advanced or retarded excessively.
- Emissions may increase due to incomplete combustion.
In severe cases, prolonged use of a faulty MAP sensor can lead to engine damage or reduced lifespan.
To ensure your vehicle's MAP sensor remains in good working condition:
1. Regularly inspect wiring and connectors for signs of wear or corrosion.
2. Clean the intake manifold periodically to prevent debris buildup near the sensor.
3. Avoid exposing your vehicle to extreme conditions that could damage sensitive components.
4. Replace your MAP sensor at recommended intervals based on manufacturer guidelines.
The manifold pressure sensor (MAP sensor) is an indispensable component in modern internal combustion engines. By accurately measuring intake manifold pressure and relaying this information to the ECM, it ensures optimal engine performance under varying conditions. Whether you're driving at sea level or climbing high-altitude roads, this small but mighty device adjusts fuel delivery and ignition timing seamlessly.
Regular maintenance and timely replacement of faulty sensors can prevent engine issues such as rough idling, reduced fuel efficiency, and increased emissions. Understanding how this vital component works empowers vehicle owners and enthusiasts alike to troubleshoot problems effectively and maintain their vehicles' peak performance.
A manifold absolute pressure (MAP) sensor measures the pressure inside an engine's intake manifold and sends this data to the ECM for optimizing air-fuel ratios and ignition timing.
The MAP sensor is typically mounted directly on or near the intake manifold or connected via vacuum hoses depending on vehicle design.
While it is possible to drive with a faulty MAP sensor temporarily, doing so can lead to poor engine performance, increased emissions, and potential long-term damage if not addressed promptly.
You can test a MAP sensor using a multimeter by measuring its voltage output at different engine loads or using an OBD-II scanner to check for error codes related to manifold pressure readings.
MAP sensors typically last several years but should be replaced if they show signs of failure or at intervals recommended by your vehicle's manufacturer.
