Signal amplifiers are critical components in modern electronics, playing a vital role in various applications ranging from telecommunications to audio systems. This article delves into the definition, types, working principles, applications, advantages, challenges, and future trends of signal amplifiers in contemporary technology.
A signal amplifier is an electronic device or circuit that increases the amplitude of an incoming signal voltage or current. The primary function of a signal amplifier is to enhance the strength of weak signals without altering their original shape or characteristics. This amplification allows for better transmission and processing of signals in various devices and systems.
Signal amplifiers operate by drawing power from a power supply to boost the input signal's amplitude. The output signal is a larger version of the input signal, ideally maintaining the same waveform characteristics. However, perfect amplification is theoretically impossible due to real-world limitations such as noise and distortion.
The basic operation of an amplifier can be understood through its three main components: the input stage, the gain stage, and the output stage.
1. Input Stage: This stage receives the incoming signal and prepares it for amplification. It often includes filters to remove unwanted noise.
2. Gain Stage: This is where the actual amplification occurs. The gain stage increases the amplitude of the input signal using various methods, including transistors or operational amplifiers.
3. Output Stage: The output stage delivers the amplified signal to the next component in the system. It may also include additional filtering to ensure that only the desired frequencies are passed on.
Signal amplifiers can be classified into several categories based on their application and operational characteristics:
1. Weak-Signal Amplifiers: These are designed to amplify very low-level signals, often found in applications like audio tape players and wireless receivers. They must generate minimal internal noise while significantly boosting the input signal.
2. Power Amplifiers: Used primarily in audio systems and broadcasting, power amplifiers increase the power level of signals to drive speakers or transmit over long distances. They are characterized by their efficiency and power output.

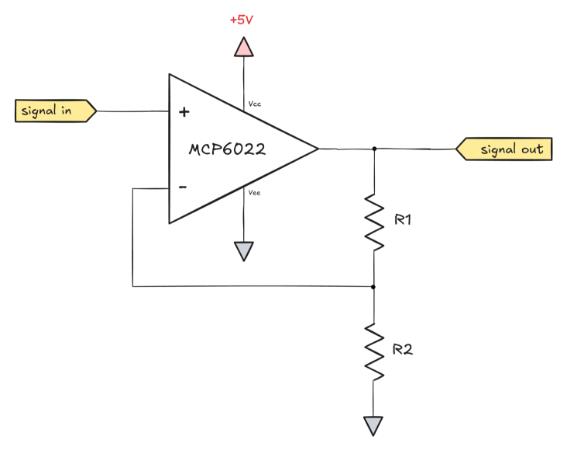

3. Operational Amplifiers (Op-Amps): These versatile components are used in various applications, including filtering, signal conditioning, and mathematical operations on signals. Op-amps can amplify both AC and DC signals.
4. Instrumentation Amplifiers: Designed for precise measurement applications, these amplifiers provide high gain with excellent linearity and low noise levels, making them ideal for sensor signal conditioning.
5. Radio Frequency (RF) Amplifiers: Used in communication systems, RF amplifiers boost radio frequency signals for transmission or reception, ensuring clear communication over distances.
6. Video Amplifiers: These amplifiers are specifically designed to handle video signals, ensuring high fidelity in video transmission for televisions and cameras.
7. Differential Amplifiers: These amplifiers amplify the difference between two input signals while rejecting any common noise or interference present in both inputs.
Signal amplifiers are integral to numerous industries and applications:
- Telecommunications: Enhancing voice and data transmission quality over long distances through cellular towers and satellite communications.
- Audio Systems: Driving speakers in public address systems, home theaters, and musical instruments to produce high-quality sound.
- Medical Devices: Amplifying signals from sensors for accurate monitoring of vital signs in medical instrumentation.

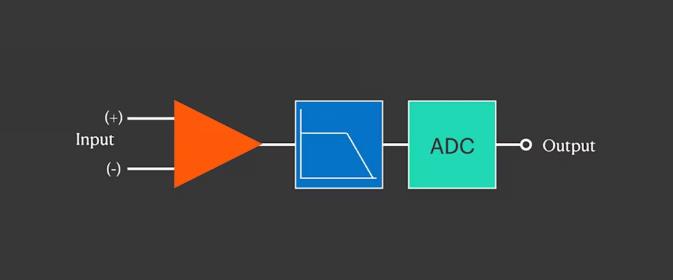

- Data Acquisition Systems (DAQ): Boosting weak signals from sensors to ensure compatibility with analog-to-digital converters (ADCs), crucial for accurate data capture.
- Consumer Electronics: Found in devices such as televisions and radios to improve sound quality and signal clarity.
- Surveillance Systems: In security cameras, amplifiers enhance video signals for clearer images over long distances.
- Automotive Applications: Used in car audio systems to improve sound quality and in vehicle communication systems for better connectivity.
The use of signal amplifiers offers several benefits:
- Improved Signal Quality: By increasing the amplitude of weak signals, amplifiers enhance clarity and reduce noise interference.
- Extended Transmission Range: Amplified signals can travel longer distances without degradation, which is essential for communication systems.
- Versatility: Signal amplifiers can be tailored for various applications across different industries, making them indispensable components in modern technology.
- Increased System Efficiency: By boosting weak signals before processing or transmission, amplifiers help maintain overall system efficiency.
- Enhanced Performance in High-Frequency Applications: RF amplifiers ensure that high-frequency signals remain strong enough for effective transmission without loss of quality.
Despite their advantages, signal amplifiers face certain challenges:
- Noise Introduction: Every amplifier introduces some level of noise into the system, which can affect overall performance. Designers strive to minimize this noise through careful selection of components and circuit design techniques.
- Distortion: Non-linearities in amplification can lead to distortion of the output signal, impacting fidelity especially in audio applications. High-quality components and feedback mechanisms are often employed to mitigate this issue.
- Complex Design Requirements: High-power amplifiers often require sophisticated designs and precise component matching, increasing manufacturing complexity and cost.
- Thermal Management: As amplifiers work harder to boost signals, they generate heat that must be managed effectively to prevent damage or performance degradation.
As technology continues to evolve, so do signal amplifiers:
1. Integration with Digital Technology: The rise of digital communication necessitates more sophisticated amplification techniques that can handle digital signals effectively while minimizing latency.
2. Miniaturization: Advances in semiconductor technology allow for smaller, more efficient amplifiers that can be integrated into compact devices without sacrificing performance.
3. Smart Amplification Solutions: The integration of artificial intelligence (AI) into amplifier design could lead to adaptive amplification techniques that optimize performance based on real-time conditions.
4. Sustainability Focus: As environmental concerns grow, there is a push towards developing energy-efficient amplifiers that consume less power while delivering high performance.
5. Enhanced Connectivity Options: With the advent of 5G technology and beyond, new amplifier designs will focus on supporting higher frequencies and wider bandwidths for improved connectivity.
Signal amplifiers are fundamental components that enhance the performance of various electronic systems by boosting weak signals for improved transmission and processing. Their diverse applications across telecommunications, audio systems, medical devices, consumer electronics, automotive technology, and surveillance underscore their importance in modern technology. While challenges such as noise introduction and distortion persist, advancements in amplifier design continue to mitigate these issues. Looking ahead, innovations driven by digital technology integration and sustainability will shape the future landscape of signal amplification.
The primary function of a signal amplifier is to increase the amplitude of an incoming electrical signal without altering its original shape or characteristics.
The main types include weak-signal amplifiers, power amplifiers, operational amplifiers (op-amps), instrumentation amplifiers, radio frequency (RF) amplifiers, video amplifiers, and differential amplifiers.
Signal amplifiers enhance voice and data transmission quality over long distances by boosting weak signals before they are transmitted through cellular towers or satellite communications systems.
Yes, disadvantages include potential noise introduction into the system, distortion of output signals due to non-linearities during amplification processes, complex design requirements that can increase manufacturing costs, and thermal management challenges due to heat generation during operation.
Signal amplifiers are commonly used across various industries including telecommunications (cellular networks), audio systems (home theaters), medical devices (monitoring equipment), data acquisition systems (sensor data processing), consumer electronics (TVs), automotive applications (car audio), and surveillance systems (security cameras).
