Phantom power is a critical aspect of audio technology, primarily used to power condenser microphones. Understanding whether an amplifier can handle a phantom power signal requires delving into the nature of phantom power, its applications, and the compatibility between microphones and amplifiers. This comprehensive article explores these topics in detail, providing insights into how phantom power works, its implications for amplifiers, and best practices for audio setups.
Phantom power refers to a method of delivering DC electrical power to microphones through the same cable that carries the audio signal. This technology is most commonly associated with condenser microphones, which require external power to operate their internal electronics.
- Voltage Levels: Phantom power typically operates at +48V, though some devices may use lower voltages (like 9V or 12V) depending on the microphone's requirements.
- Balanced Connections: The power is sent equally through both signal wires (pins 2 and 3) of a balanced XLR cable, while the ground (pin 1) serves as a reference point. This design ensures that dynamic microphones, which do not require phantom power, remain unaffected by the voltage present on the lines.
Phantom power operates by sending a DC voltage through the microphone cable. Here's a simplified breakdown of the process:
1. Connection: When a condenser microphone is connected to an audio interface or mixer with phantom power enabled, the device sends +48V through the XLR cable.
2. Internal Circuitry Activation: The voltage powers the microphone's internal preamp and polarizes its diaphragm, allowing it to capture sound effectively.
3. Signal Transmission: The audio signal generated by the microphone travels back through the same cable to the amplifier or mixer.
The short answer is that most amplifiers are not designed to handle phantom power directly at their input stages. Here are some key considerations:
- Input Compatibility: Most guitar amplifiers are designed for high-impedance signals typical of electric guitars and do not accept low-impedance mic-level signals without proper conversion. Connecting a condenser mic directly to an amplifier's input can lead to poor sound quality or potential damage.
- Phantom Power Risks: While phantom power itself does not harm an amplifier when properly implemented, connecting devices that are not designed for it can lead to issues. For example, if phantom power is inadvertently applied to an amplifier's DI output or other sensitive components, it could cause damage.
- Using Isolation Transformers: To safely integrate phantom-powered microphones with amplifiers, using isolation transformers can block DC voltage while allowing audio signals to pass through. This setup helps prevent damage while ensuring sound quality.
When working with phantom power in conjunction with amplifiers, consider these best practices:
- Use Proper Equipment: Ensure you have equipment designed to handle both mic-level signals and phantom power. This often includes dedicated mic preamps or audio interfaces that can manage these connections safely.
- Check Voltage Settings: Before connecting any equipment, verify that phantom power settings are appropriate for your devices. Some interfaces allow you to enable or disable phantom power on specific channels.
- Avoid Direct Connections: Do not connect a condenser microphone directly into a guitar amplifier without proper interfacing equipment such as a DI box or preamp designed for this purpose.
Understanding the technical aspects of phantom power can provide deeper insights into its functionality and applications:

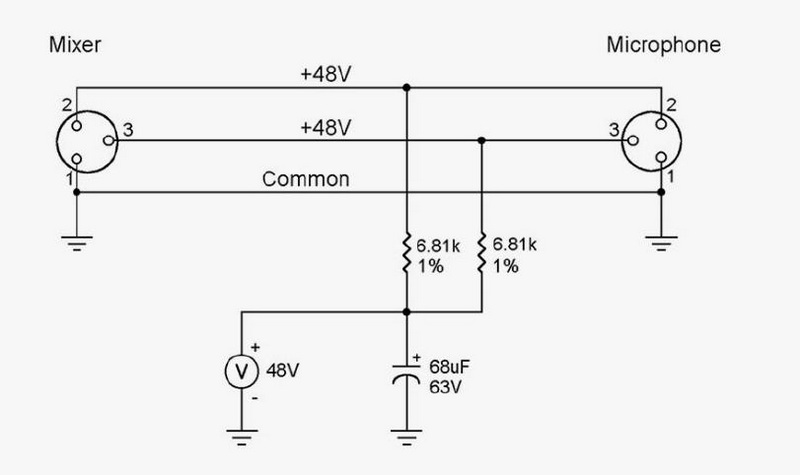

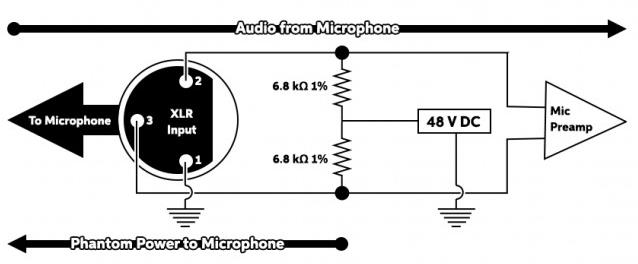

- Circuitry Design: In modern mixing consoles and audio interfaces, phantom power is typically applied through resistors (often around 6.81 kΩ) connected to pins 2 and 3 of an XLR connector. This design ensures that only microphones requiring phantom power are affected while maintaining signal integrity for those that do not use it[1][2].
- Compatibility with Microphones: Most professional-grade condenser microphones require +48V for optimal performance. However, some models may operate effectively at lower voltages (between 9V and 52V). Always consult your microphone's specifications before applying phantom power[8][9].
- Isolation Techniques: To prevent potential damage from incorrect connections, many mixers include blocking capacitors or isolation transformers in their circuitry design. These components ensure that DC voltage does not reach devices that cannot handle it[4][5].
Several misconceptions surround phantom power that can lead to confusion:
- Phantom Power vs. Battery Power: While some microphones have internal batteries for operation, most condenser microphones rely on phantom power supplied through XLR cables. Understanding this distinction helps clarify why certain microphones function differently based on their design[3][10].
- Dynamic Microphones and Phantom Power: It's important to note that while dynamic microphones do not require phantom power, applying it typically does not cause damage. However, caution should be exercised when connecting ribbon microphones, as they can be sensitive to phantom voltage[4][5].
Phantom power finds extensive use in various audio applications:
- Recording Studios: In professional studios, condenser microphones powered by phantom electricity are favored for their sensitivity and ability to capture nuanced sounds across a wide frequency range.
- Live Sound Reinforcement: Many live sound setups utilize mixers with built-in phantom power capabilities to ensure reliable operation of condenser mics during performances.
- Broadcasting: In radio and television broadcasting environments, where high-quality audio is paramount, phantom-powered microphones are commonly employed for interviews and voiceovers[9][10].
Understanding how phantom power works and its implications for amplifiers is crucial for anyone involved in audio production or live sound engineering. While amplifiers themselves typically do not take phantom power signals directly, using proper interfacing equipment can facilitate safe and effective connections between microphones and amplifiers.
By adhering to best practices and understanding your equipment's specifications, you can ensure optimal performance without risking damage to your gear.
Phantom power provides necessary voltage to operate condenser microphones' internal electronics and polarize their diaphragms.
Yes, dynamic microphones are unaffected by phantom power; they will operate normally even when phantom power is engaged.
Connecting a condenser mic directly to an amplifier may result in poor sound quality due to impedance mismatch and could potentially damage the amplifier if phantom power is applied incorrectly.
Use a dedicated mic preamp or DI box that supports phantom power and converts the mic-level signal to line level suitable for your amplifier.
Most modern microphones are designed to handle phantom power safely; however, some ribbon microphones may be sensitive to it and could be damaged if connected improperly.
