Can I Send A Diplexed Signal To An Amplifier?

Views: 222     Author: Leah     Publish Time: 2025-03-04      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Content Menu

Introduction to Diplexers

>> How Diplexers Work

Using Diplexers with Amplifiers

>> Amplifier Design Considerations

Applications of Diplexed Signals in Amplifiers

>> Radio Communication Systems

>> Video and Audio Systems

Designing a Diplexed Amplifier

>> Example: Broadband Diplexed Power Amplifier

Challenges and Limitations

Conclusion

FAQ

>> 1. What is a diplexer?

>> 2. How do diplexers work with amplifiers?

>> 3. What are common applications of diplexed signals in amplifiers?

>> 4. What are the challenges in designing a diplexed amplifier?

>> 5. Can diplexers be used for simultaneous transmission and reception?

Citations:

Sending a diplexed signal to an amplifier involves using a diplexer, a passive device that allows two different frequency bands to be multiplexed onto a single channel without interference. This technique is crucial in various communication systems where multiple signals need to be transmitted or received simultaneously over a shared medium. In this article, we will explore the concept of diplexing, how it works with amplifiers, and its applications.

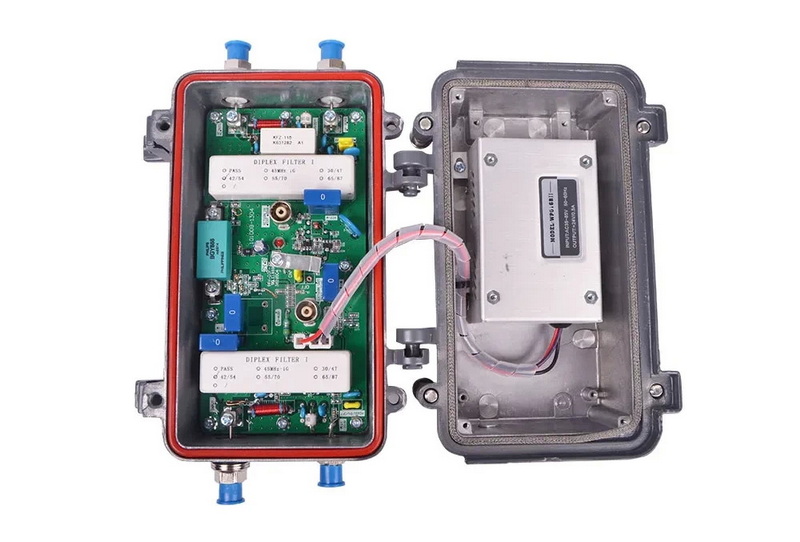

Diplexers with Amplifiers

Introduction to Diplexers

A diplexer is a three-port device that combines two signals from different frequency bands into one signal on a common port. It consists of a low-pass filter and a high-pass filter, ensuring that signals from the low-frequency port (L) and the high-frequency port (H) are transmitted to the common port (S) without interference[4].

How Diplexers Work

1. Frequency Separation: The low-pass filter allows signals below a certain frequency to pass through while blocking higher frequencies. Conversely, the high-pass filter allows signals above a certain frequency to pass through while blocking lower frequencies.

2. Multiplexing: Both filtered signals are then combined onto the common port, allowing them to coexist without interference.

Illustration of a Diplexer

A typical diplexer setup involves connecting a low-pass filter between ports L and S, and a high-pass filter between ports H and S.

graph LR

L[Low Frequency] -->|Low-pass Filter|> S[Common Port]

H[High Frequency] -->|High-pass Filter|> S

Using Diplexers with Amplifiers

When sending a diplexed signal to an amplifier, the goal is to amplify both frequency bands without causing distortion or interference between them. This requires careful design to ensure that the amplifier can handle the combined signal effectively.

Amplifier Design Considerations

1. Bandwidth: The amplifier must have sufficient bandwidth to cover both frequency bands.

2. Linearity: The amplifier should be linear to prevent distortion of the amplified signals.

3. Power Handling: The amplifier must be capable of handling the combined power of both signals.

Example of a Diplexed Amplifier

In a diplexed amplifier, diplexers are placed before and after the amplifier to ensure that the signals are properly separated and combined.

graph LR

L[Low Frequency] -->|Diplexer|> A[Amplifier]

H[High Frequency] -->|Diplexer|> A

A -->|Diplexer|> S[Output]

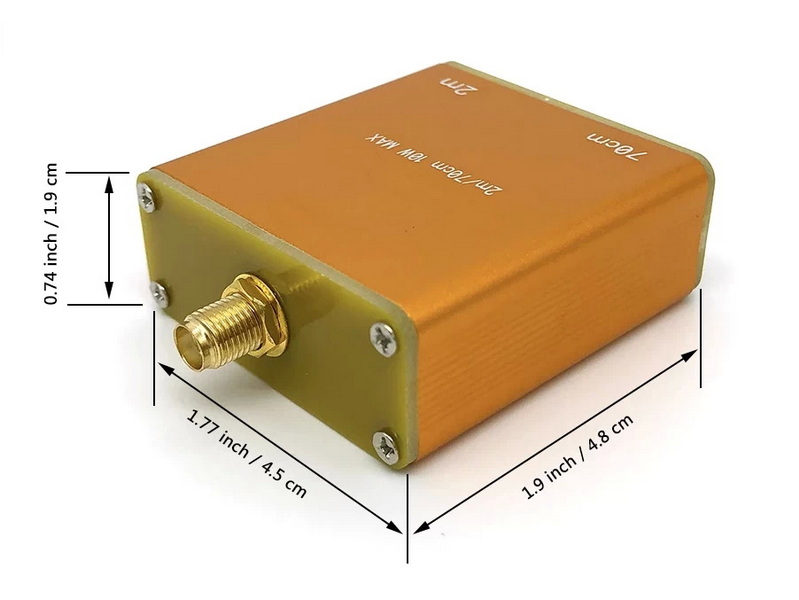

Diplexed Signals in Amplifiers

Applications of Diplexed Signals in Amplifiers

Diplexed signals are used in various applications where multiple frequency bands need to be transmitted or received simultaneously.

Radio Communication Systems

- Police and Fire Department Radios: Diplexers are used to combine signals from different frequency bands onto a single antenna feedline, allowing multiple departments to share the same antenna system.

- Multi-band Antennas: Diplexers enable the use of a single antenna for multiple frequency bands, such as VHF and UHF.

Video and Audio Systems

- TV and FM/DAB Systems: Diplexers are used to combine TV and FM/DAB signals onto a single coaxial cable, reducing the need for multiple cables[7].

Designing a Diplexed Amplifier

Designing a diplexed amplifier involves several steps:

1. Selecting the Frequency Bands: Determine the frequency ranges for the low and high bands.

2. Designing the Diplexers: Use low-pass and high-pass filters to create the diplexers.

3. Choosing the Amplifier: Select an amplifier that can handle the combined signal.

Example: Broadband Diplexed Power Amplifier

A recent design involves using a diplexed power amplifier architecture to achieve more than an octave bandwidth with high efficiency. This amplifier uses two narrowband single-stage PAs connected with a contiguous diplexer-combiner network[1].

Broadband Diplexed Power Amplifier Schematic

The amplifier maintains efficiency by biasing the transistors in class B and using a diplexer to combine the signals.

graph LR

L[1.8-2.7 GHz] -->|Diplexer|> A[Amplifier]

H[3-4 GHz] -->|Diplexer|> A

A -->|Diplexer|> S[Output]

Challenges and Limitations

While diplexed amplifiers offer many benefits, there are challenges to consider:

1. Isolation Between Bands: Ensuring sufficient isolation between the low and high frequency bands to prevent interference.

2. Amplifier Linearity: Maintaining linearity to prevent distortion of the amplified signals.

3. Power Handling: Managing the combined power of both signals without overheating or damaging the amplifier.

Conclusion

Sending a diplexed signal to an amplifier is a viable approach for combining multiple frequency bands into a single channel. By using diplexers to separate and combine signals, systems can efficiently manage multiple communications channels over a shared medium. However, careful design is necessary to ensure that the amplifier can handle the combined signal without distortion or interference.

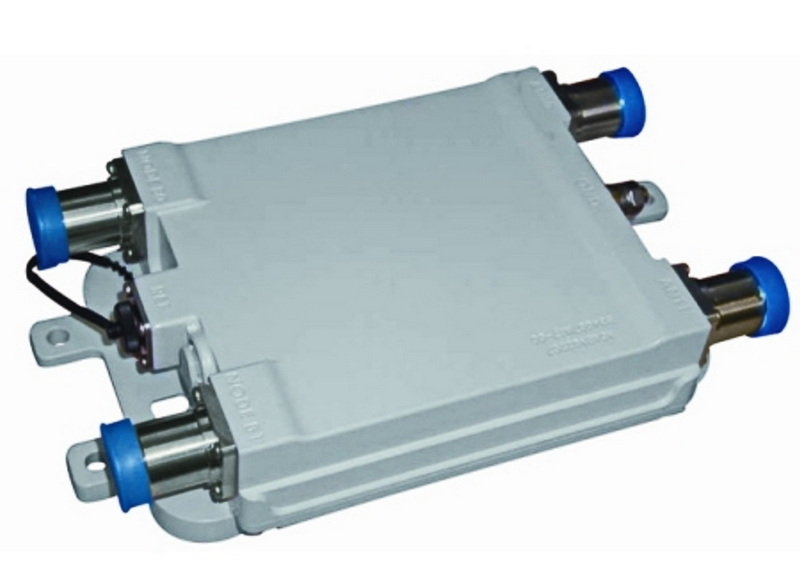

Diplexers

FAQ

1. What is a diplexer?

A diplexer is a passive device that combines two signals from different frequency bands onto a single channel, allowing them to coexist without interference.

2. How do diplexers work with amplifiers?

Diplexers are used before and after amplifiers to ensure that signals from different frequency bands are properly separated and combined, allowing the amplifier to handle both signals without distortion.

3. What are common applications of diplexed signals in amplifiers?

Diplexed signals are commonly used in radio communication systems, such as police and fire department radios, and in video and audio systems like TV and FM/DAB systems.

4. What are the challenges in designing a diplexed amplifier?

Challenges include ensuring sufficient isolation between frequency bands, maintaining amplifier linearity, and managing the combined power of both signals.

5. Can diplexers be used for simultaneous transmission and reception?

While diplexers can be used for multiplexing, they are not typically designed for simultaneous transmission and reception. For such applications, duplexers with higher isolation are required.
