FA9169
FIBOS
1t
±0.5%F.S.
See the detailed dimensions table
Stainless steel

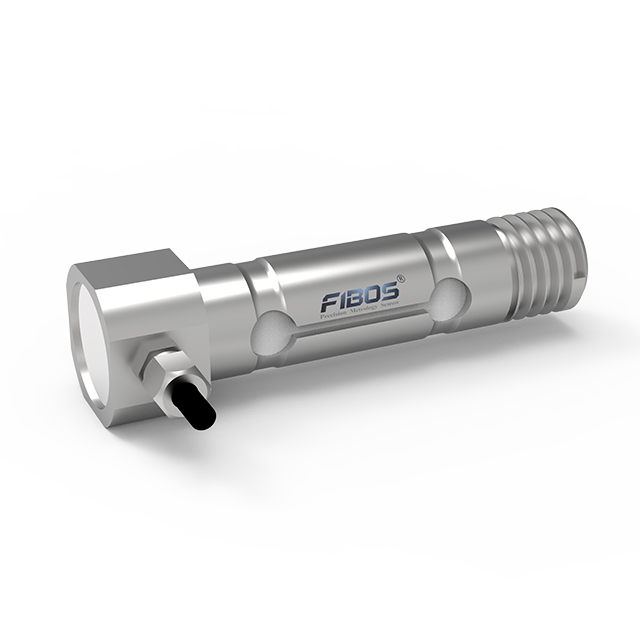

Crane load pin Product Description |
The FA9169 shaft pin sensor is made of 17-4PH stainless steel and offers three length options: 66mm, 81mm, and 92mm. The product features high precision (±0.1%), 120% overload capacity, and IP65 protection level. It is suitable for industrial automation scenarios such as lifting machinery and port terminals. The integrated design ensures torsion and bending resistance, with an output sensitivity of 10% ± 20% mV/V. The operating temperature range is -20 - 80℃.
Crane load pin Function Feature |

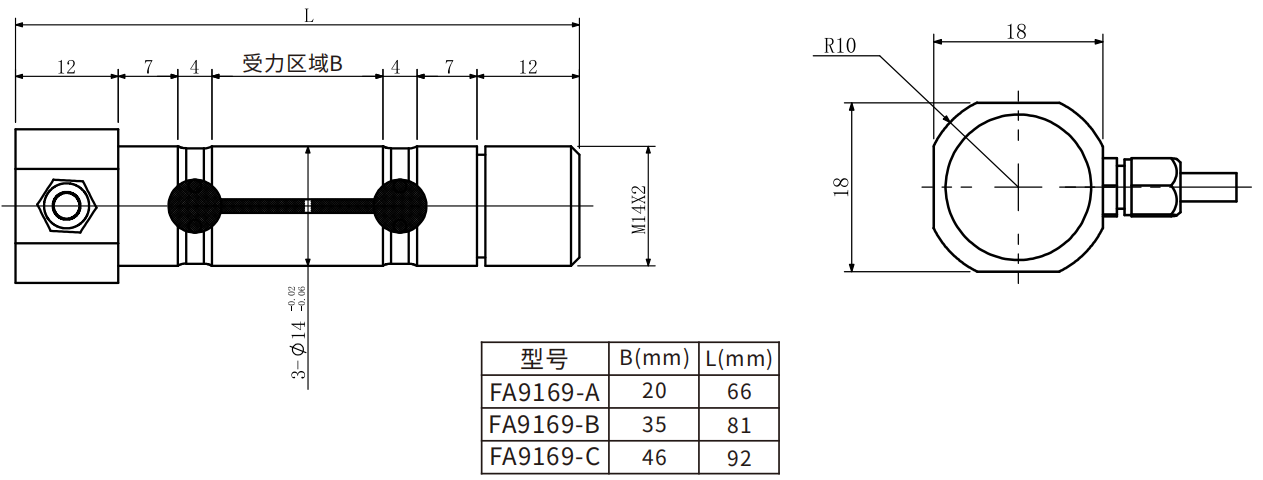

Crane load pin Dimensions（Unit:mm） |
We provide 3D model files of our products.Support |

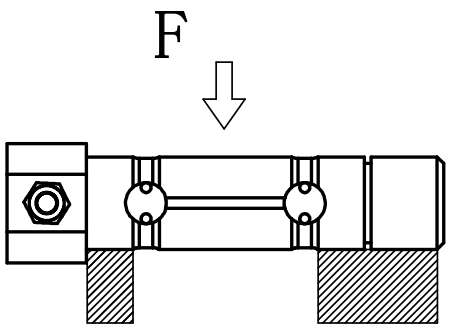

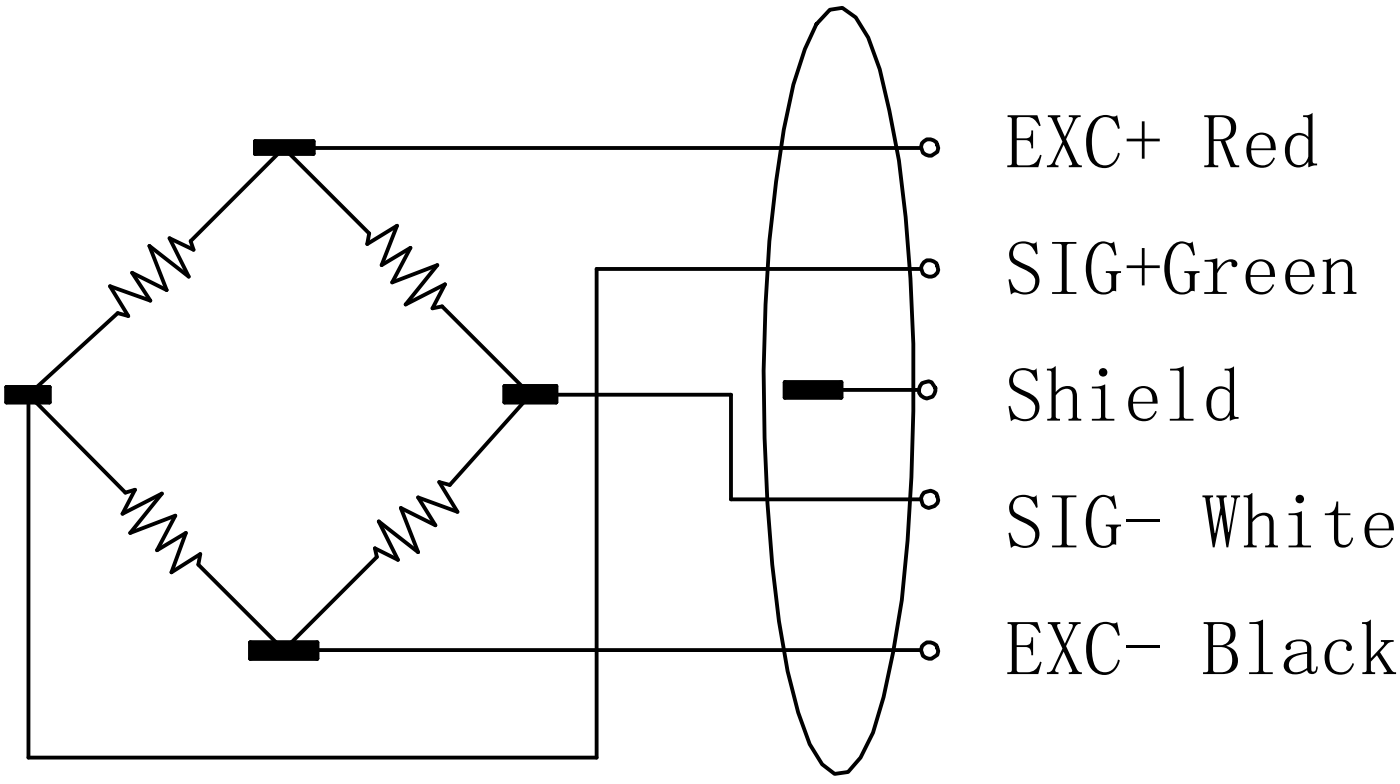

Crane load pin Load Direction | Crane load pin Wiring |
 |  |
Crane load pin Specifications |
Sensor Physical Parameters | |
Nominal Capacity | 1t |
Deflection at Full Scale | - |
Fundamental resonance frequency (f_G) | - |
Safe Overload | 120%F.S. |
Operating Temperature | -20~80℃ |
Ingress Protection (IP) | IP65 |
Cable | φ3x4m |
Spring Element Material | Stainless steel |
weight | - |
Loading Direction | Two-way |
Sensor Accuracy Parameters | |
Combined Error | ≤0.5%F.S. |
Non-linearity | ≤0.5%F.S. |
Hysteresis | ≤0.5%F.S. |
Repeatability | ≤0.3%F.S. |
Creep(30min) | ≤0.1%F.S. |
Temperature Effect on Output | 0.1%F.S./10℃ |
Electrical Parameters | |
Rated Output | 1.0±20%mV/V |
Excitation Voltage | 5~12V DC |
| Insulation Resistance | ≥5000MΩ/100V(DC) |
Sensor Styling Suggestions |
 |
Force sensor manufacturing process |
Sensor Non-standard customisation process |
|
| Fibos possesses a professional technical team capable of developing customized products to meet specific client requirements. Our R&D cycle is seamlessly integrated with our in-house production lines, enabling us to deliver relevant products within a short timeframe. |

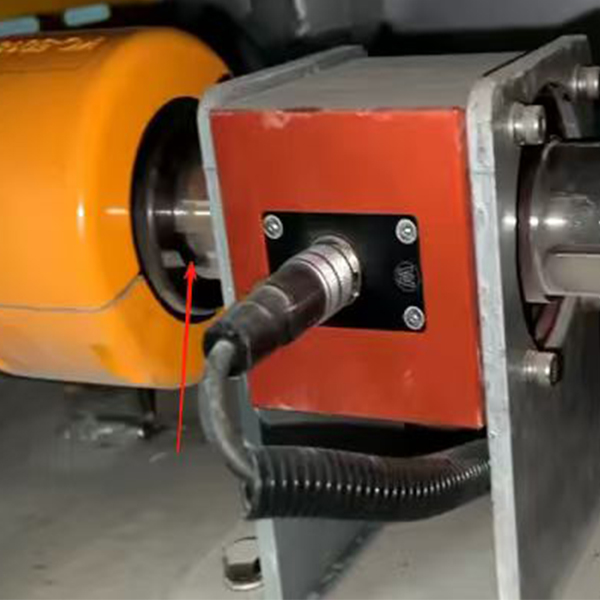

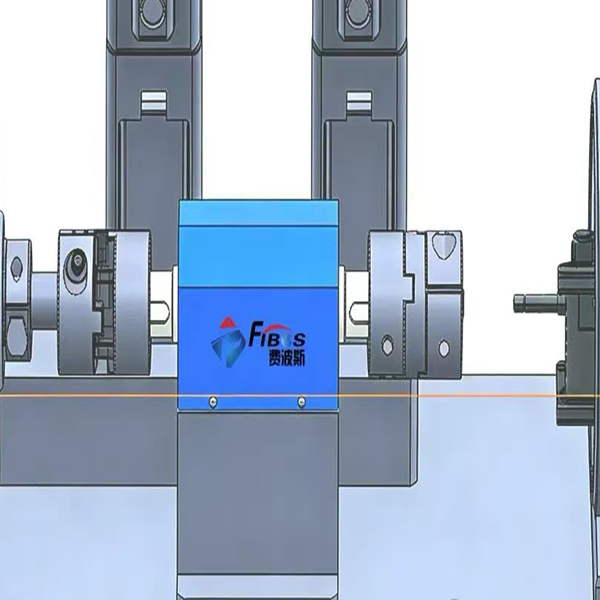

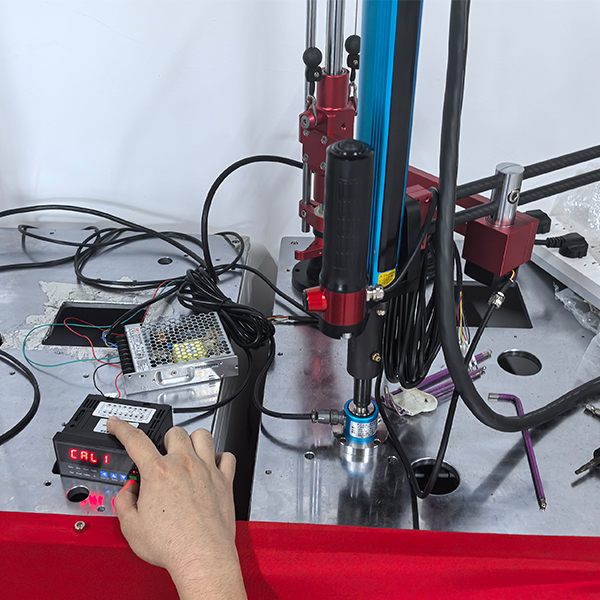

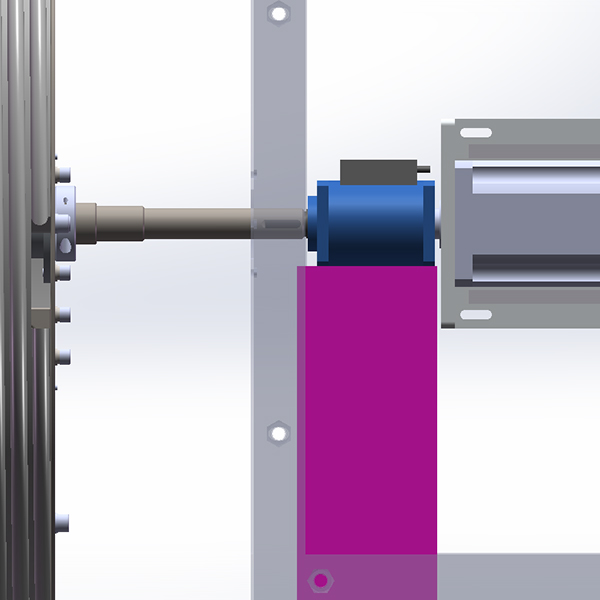

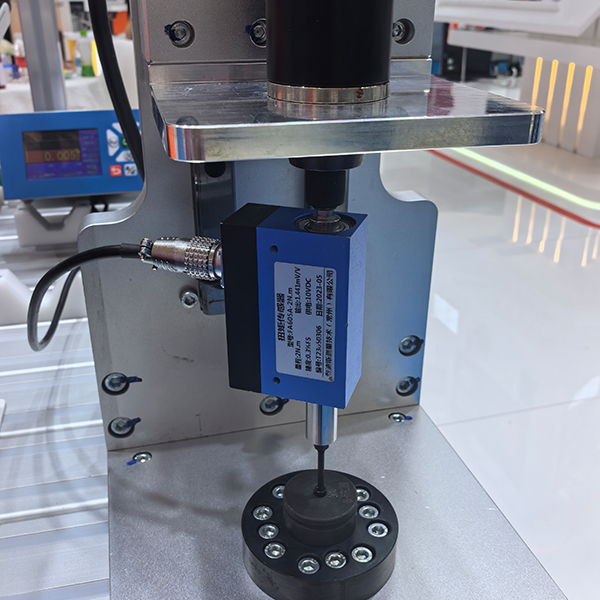

Customer case studies for the Torque series |
Frequently Asked Questions about Force Sensors |
A: A shaft pin sensor replaces traditional pins in mechanical structures to directly measure force. The FA9169 is widely used in cranes, port machinery, industrial automation, marine, and aerospace applications.
A:The FA9169 supports bidirectional force measurement, allowing detection of both tension and compression.
A:The combined accuracy is ≤0.1%, with excellent linearity (≤0.5%), repeatability (≤0.2%), and hysteresis performance.
A: The FA9169 has an IP65 rating and operates reliably in temperatures from -20°C to +80°C, suitable for harsh environments.
A:
Ensure proper alignment with mounting holes
Avoid side loads and impact forces
Install according to load direction
Secure properly to prevent loosening
