Integrator amplifiers, fundamental components in analog electronics, perform mathematical integration of input signals. Built around operational amplifiers (op-amps), these circuits are essential in applications ranging from waveform generation to control systems. A critical characteristic of integrator amplifiers is their inversion of the input signal. This article explores their design, operation, and practical considerations while addressing the question: Does an integrator amplifier invert the signal?
An integrator amplifier modifies the classic inverting op-amp configuration by replacing the feedback resistor with a capacitor. This simple change enables time-dependent signal integration. Key components include:
- Operational Amplifier (Op-Amp): Provides high gain and maintains a virtual ground at its inverting input.
- Input Resistor (R₁): Determines the input current proportional to the input voltage.
- Feedback Capacitor (C₁): Stores charge over time, enabling integration.
The integrator's behavior relies on two principles:
- Virtual Ground: The op-amp's inverting input remains near 0V due to negative feedback.
- Capacitive Feedback: Current through R₁ charges C₁, creating an output voltage proportional to the integral of the input.
The output voltage equation is:
Vout=−1/R1C1∫Vindt
The negative sign confirms signal inversion, a result of the inverting configuration.

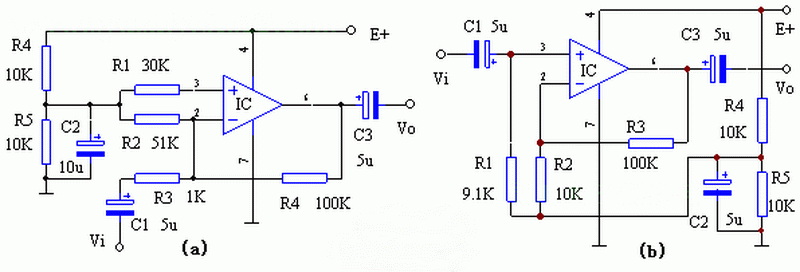

The input signal connects to the op-amp's inverting terminal. Current flows through R₁ into the virtual ground, forcing an equal but opposite current through C₁ to maintain equilibrium. This feedback current generates an output voltage with reversed polarity.
For a positive DC input, the capacitor charges linearly, producing a negative ramp output. Conversely, a negative input creates a positive ramp.
Using Kirchhoff's Current Law at the inverting node:
Vin/R1=−C1dVout/dt
Rearranging and integrating both sides:
Vout=−1/R1C1∫Vindt
This equation highlights the inversion and the dependence on R₁ and C₁.
Ideal Integrators assume infinite op-amp gain and no parasitic effects. In reality, limitations arise:
- DC Offset: Even tiny input offsets accumulate, saturating the output.
- Capacitor Leakage: Real capacitors have leakage resistance, causing output drift.
- Bandwidth Limitations: Op-amp slew rates and gain-bandwidth products restrict high-frequency performance.
To address these issues, engineers use:
- Resistive Feedback Parallel to C₁: A large resistor (R₂) in parallel with C₁ limits low-frequency gain, preventing saturation (Fig 1B).
- Reset Mechanisms: Switches or relays discharge C₁ periodically in measurement systems.
- Precision Components: Low-leakage capacitors and low-offset op-amps improve accuracy.
Vout=−1/R1C1∫Vindt−Vin/R2C1
The added term introduces a low-frequency roll-off, converting the integrator into a first-order low-pass filter.
- Waveform Generation: Producing triangular waves from square wave inputs.
- Active Filters: Integrating signals in phase-locked loops or noise reduction circuits.
- PID Controllers: The integral term eliminates steady-state errors by accumulating past deviations.
- Motor Control: Integrating speed signals to determine position.
- Charge Amplifiers: Converting current from piezoelectric sensors into measurable voltages.
- Energy Calculation: Integrating power over time to compute energy consumption.
The ideal integrator's transfer function is:
H(s)=−1/R1C1s
This results in a -20 dB/decade slope on a Bode plot.
Adding R₂ modifies the transfer function to:
H(s)=−R2/R1(1+R2C1s)
This introduces a pole at fc=1/2πR2C1, limiting integration to frequencies above fc.
| Parameter | Integrator | Differentiator |
|---|---|---|
| Feedback Component | Capacitor | Resistor |
| Input Component | Resistor | Capacitor |
| Function | Output ∝ ∫(Input) | Output ∝ d(Input)/dt |
| Stability | Requires stabilization (e.g., R₂) | Prone to noise amplification |
| Phase Shift | -90° | +90° |
Integrator amplifiers inherently invert input signals due to their inverting op-amp configuration. They excel in applications requiring time-domain signal integration but require careful design to overcome real-world limitations like DC drift and saturation. By incorporating resistive feedback and high-quality components, engineers optimize these circuits for precision and stability in systems ranging from analog computers to industrial controllers.
While both use RC networks, integrators emphasize time-domain integration, whereas low-pass filters attenuate high frequencies. Integrators with added feedback resistors behave like filters but retain integration capabilities above their cutoff frequency.
No. Integration relies on the capacitive feedback path, which is inherently tied to the inverting configuration. Non-inverting designs cannot replicate this behavior.
The output becomes a cosine wave (phase-shifted by -90°), scaled by 1/ωR1C1. This property is exploited in phase-shifting oscillators.
Choose values based on the desired time constant (τ = R1C1) and the frequency range. Smaller τ values suit high-frequency integration.
DC inputs create a constant charging current, causing the capacitor voltage to rise linearly until the op-amp reaches its supply voltage limit. A feedback resistor resolves this by limiting DC gain.
