When setting up a home theater system, one common question that arises is whether passing an HDMI signal through a sound amplifier can affect picture quality. This concern is valid, especially for those who want to ensure that their viewing experience is not compromised by the equipment used. In this article, we will delve into the details of HDMI signal transmission, the role of sound amplifiers, and how they might impact picture quality.

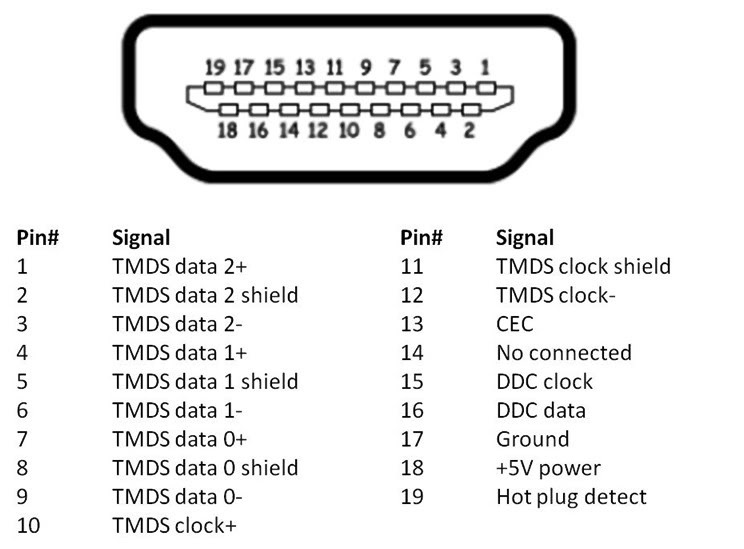

HDMI (High-Definition Multimedia Interface) is a digital interface used to transmit audio and video signals between devices. It is capable of carrying a wide range of resolutions, from standard definition to 8K, along with various audio formats like Dolby Atmos and DTS:X. The HDMI signal includes not only video and audio but also additional data such as EDID (Extended Display Identification Data) and HDCP (High-Bandwidth Digital Content Protection), which are crucial for ensuring compatibility and security between devices.
HDMI signals are transmitted digitally, which means they are less prone to degradation compared to analog signals. However, the quality of the HDMI cable and the compatibility of the devices can still affect the signal's integrity.

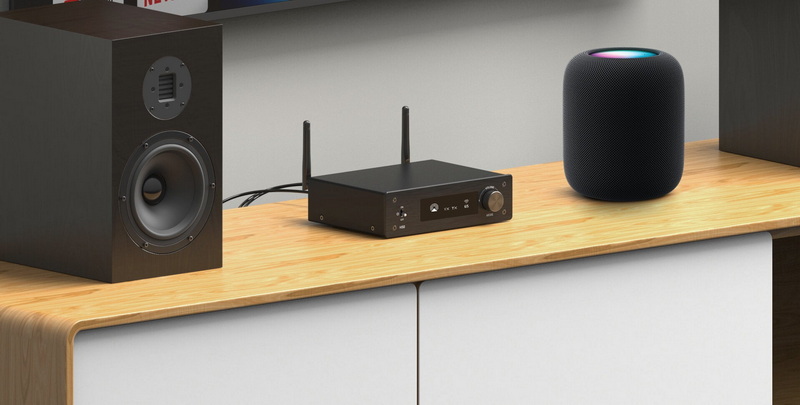

Sound amplifiers, often part of an AV receiver (AVR), play a crucial role in enhancing the audio experience of a home theater system. They process audio signals from various sources and send them to speakers for playback. When it comes to HDMI signals, these amplifiers can either process the audio while passing the video signal through unchanged or handle both audio and video if they have the necessary capabilities.
The HDMI pass-through feature allows an amplifier to forward the HDMI signal from a source device to a display without altering it. This means that the video signal is not processed by the amplifier; it simply passes through to the TV. This feature is particularly useful when the amplifier is not capable of handling high-resolution video signals, such as 4K or 8K, ensuring that the full quality of the video is maintained.
In general, passing an HDMI signal through a sound amplifier should not degrade picture quality if the amplifier is set to pass-through mode. This mode ensures that the video signal is transmitted without any processing or alteration, preserving its original quality. However, if the amplifier is not set correctly or if it has video processing capabilities that are enabled, there might be some degradation in picture quality.
1. Video Processing: Some amplifiers may have built-in video processing capabilities that can alter the video signal. If these features are enabled, they might degrade picture quality. To avoid this, ensure that any video processing options are disabled in the amplifier's settings.
2. HDMI Version Compatibility: The HDMI version supported by the amplifier and other devices can impact picture quality. For example, if an amplifier only supports HDMI 1.4, it may not handle 4K resolutions as well as an HDMI 2.0 or higher device.

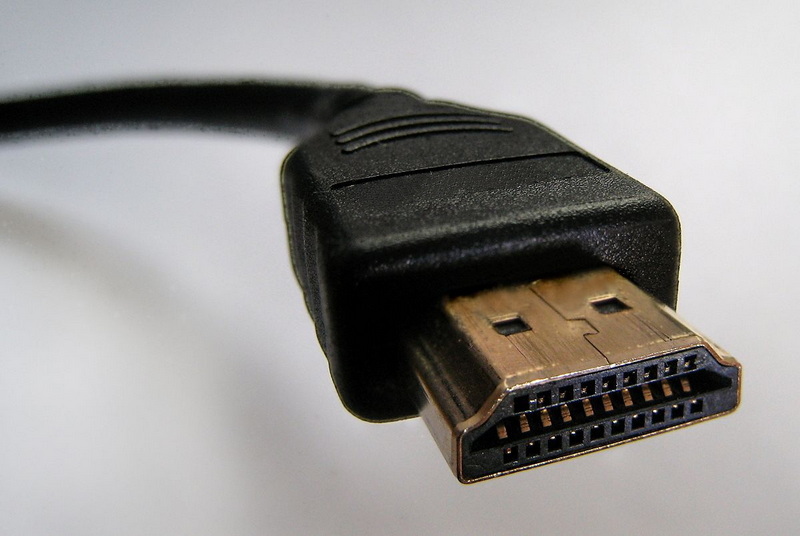

3. Cable Quality: The quality of the HDMI cables used can also affect picture quality. Cheap or poorly shielded cables may cause signal loss or interference, leading to a degraded picture.
4. Signal Attenuation: Long HDMI cables can cause signal attenuation, which might result in a weaker signal reaching the display. This can be mitigated by using high-quality cables or signal boosters.
5. Interference: External interference from other electronic devices can affect HDMI signal quality. Keeping HDMI cables away from power cords and other sources of interference can help maintain signal integrity.
To ensure that picture quality is not compromised when passing HDMI signals through a sound amplifier:
- Use High-Quality HDMI Cables: Invest in cables that support the highest resolution you need (e.g., HDMI 2.1 for 8K).
- Disable Video Processing: Ensure that any video processing features on the amplifier are turned off.
- Check HDMI Version Compatibility: Ensure all devices support the same HDMI version.
- Use Pass-Through Mode: Enable HDMI pass-through on the amplifier to prevent any unnecessary processing of the video signal.
- Regularly Update Firmware: Keep your devices updated with the latest firmware to ensure compatibility and optimal performance.
Modern sound amplifiers often come with advanced features that can enhance both audio and video experiences. For instance, some amplifiers support HDMI ARC (Audio Return Channel), which allows audio signals to be sent from a TV back to the amplifier, simplifying the setup and reducing the need for additional cables. However, these features require compatible devices and settings to be enabled on both the TV and the amplifier.
Additionally, with the advent of newer HDMI versions like HDMI 2.1, features such as eARC (enhanced Audio Return Channel) and VRR (Variable Refresh Rate) are becoming more prevalent. These features can significantly enhance the viewing experience by providing better audio and smoother video playback.
If you encounter issues with picture quality while using an HDMI pass-through, here are some steps to troubleshoot:
1. Check Connections: Ensure all HDMI connections are secure and not loose.
2. Verify HDMI Input: Make sure the correct HDMI input is selected on the TV.
3. Check Resolution Compatibility: Ensure the source device's resolution matches the TV's capabilities.
4. Update Firmware: Ensure all devices are updated with the latest firmware.
5. Replace Cables: Consider replacing HDMI cables if they are old or of poor quality.
Passing an HDMI signal through a sound amplifier should not spoil picture quality if done correctly. By understanding how HDMI signals work, using the right equipment, and following best practices, you can maintain the highest possible picture quality in your home theater setup.
HDMI pass-through is a feature that allows an HDMI signal to be forwarded from a source device to a display without any alteration. This ensures that the video signal reaches the display in its original form, maintaining its quality.
Yes, HDMI cables can affect picture quality if they are of poor quality or not designed to handle high resolutions. Investing in high-quality cables that support the necessary HDMI version is crucial for maintaining picture quality.
HDMI ARC (Audio Return Channel) allows audio signals to be sent from a TV back to an amplifier or soundbar, simplifying the setup and reducing the need for additional cables. It requires compatible devices and settings to be enabled on both the TV and the amplifier.
Different HDMI versions support different resolutions and features. For example, HDMI 2.1 supports up to 8K resolution at 60 Hz, while earlier versions may only support up to 4K. Choosing the right HDMI version for your devices is important for optimal performance.
To troubleshoot HDMI signal dropouts, check for loose connections, ensure that the HDMI input on the TV is correct, and verify that the source device's resolution matches the TV's capabilities. Also, consider changing the HDMI cable if it is old or of poor quality.
