Terminating unused ports on cable signal amplifiers is a crucial step in maintaining the integrity and performance of your cable TV or satellite system. This process involves using a coaxial terminator to ensure that signals are properly absorbed and do not reflect back into the system, causing interference or signal loss. In this article, we will explore the importance of terminating unused ports, how terminators work, and why they are essential for optimal system performance.

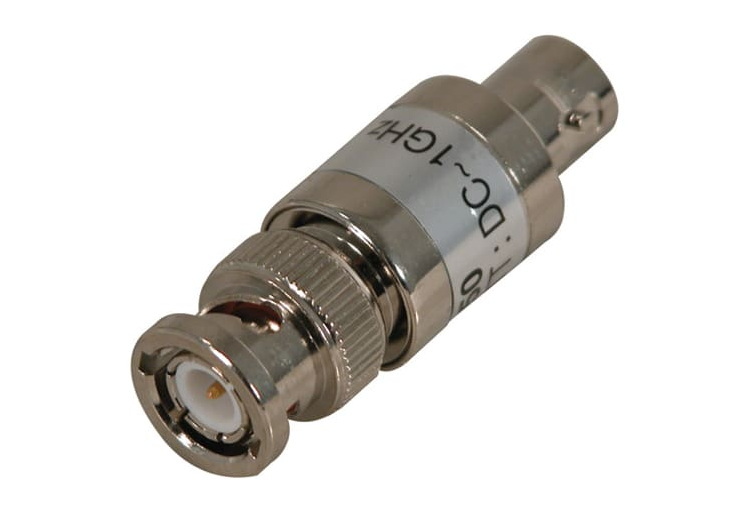

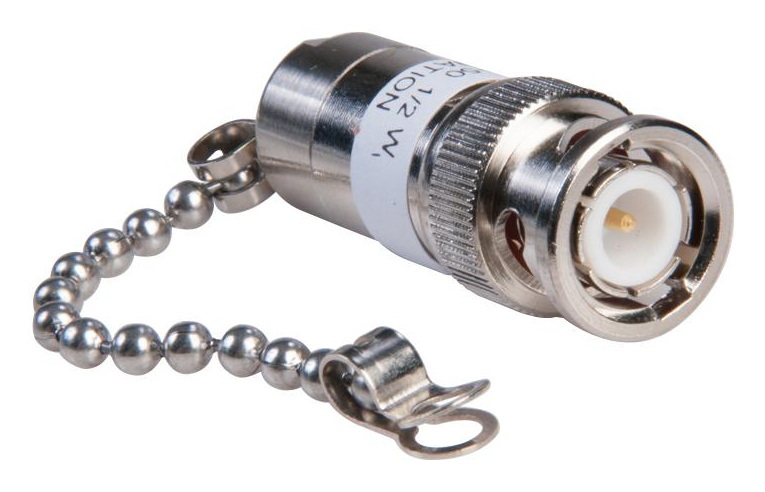

Coaxial terminators are small devices designed to be attached to the end of unused coaxial cables or ports. Their primary function is to absorb signals that might otherwise be reflected back into the system, which can cause interference, signal loss, and even damage to equipment[2]. These terminators ensure that the system operates with the correct impedance, typically 75 ohms for most cable systems, maintaining signal quality and preventing unwanted reflections[1].
Coaxial terminators work by providing a matched load to the coaxial cable, ensuring that signals are absorbed rather than reflected. This is crucial because reflections can lead to ghosting in analog signals and noise in digital signals[6]. The terminator essentially acts as a "sink" for the signal, preventing it from bouncing back and causing interference.
Terminating unused ports is important for several reasons:
1. Prevents Signal Reflections: When a port is left unterminated, the signal can reflect back into the system, causing interference and signal degradation[2].
2. Maintains System Balance: Proper termination ensures that the system operates at the correct impedance, maintaining signal quality and preventing imbalances that can lead to performance issues[1].
3. Reduces External Noise: Terminators block external noise from entering the system through unused ports, improving overall signal clarity[2].
4. Protects Equipment: By controlling signal flow, terminators help protect equipment from potential damage caused by reflected signals[2].
Watch this video to understand why termination caps are important for your cable TV setup: Why Use CATV Termination Caps
Cable companies often leave unused ports unterminated, especially in prewired homes. However, this practice is not recommended for optimal system performance. Cable systems typically have stronger signals than satellite systems, which can tolerate some signal loss, but it's still beneficial to terminate unused ports to ensure the best possible signal quality[1].
Dust caps are often confused with terminators but serve a different purpose. Dust caps are used to protect ports from dust and moisture, while terminators are designed to absorb signals and maintain impedance matching[1]. Using a dust cap instead of a terminator will not improve signal quality or prevent reflections.
Terminating a coaxial cable involves attaching a terminator to the end of the cable. Here's a step-by-step guide:
1. Strip the Cable: Use a stripping tool to remove the outer jacket and expose the inner conductor.
2. Attach the Terminator: Screw the terminator onto the stripped end of the cable.
Watch this video for a hands-on guide on terminating a coaxial cable: How to Terminate a Coaxial Cable
Terminating unused ports on cable signal amplifiers is essential for maintaining optimal system performance. It prevents signal reflections, maintains system balance, reduces external noise, and protects equipment. While cable companies may not always terminate unused ports, doing so is a simple and cost-effective way to ensure the best possible signal quality.
A coaxial terminator is used to absorb signals at the end of a coaxial cable, preventing reflections that can cause interference and signal loss.
Cable companies may leave unused ports unterminated because their systems typically have stronger signals that can tolerate some loss. However, terminating ports is still recommended for optimal performance.
A dust cap protects ports from dust and moisture, while a terminator absorbs signals to prevent reflections and maintain impedance matching.
Terminating unused ports can improve signal strength by preventing reflections that can cause interference and signal degradation.
Terminators are beneficial for all types of cable systems, especially those using higher frequencies, as they help maintain signal integrity and prevent interference.
