Building a GPS signal amplifier can be a rewarding project for those interested in electronics and navigation systems. GPS amplifiers are crucial for enhancing weak GPS signals, especially in environments where signal strength is compromised due to physical barriers or long cable runs. This article will guide you through the process of building a GPS signal amplifier, including the necessary components, design considerations, and installation tips.
GPS signal amplifiers are devices designed to boost the weak signals received from GPS satellites. These amplifiers are essential in scenarios where the GPS signal is attenuated, such as in vehicles with thick roofs, underground parking, or buildings with dense construction materials. They work by amplifying the signal before it reaches the GPS receiver, ensuring a stronger and more reliable connection.

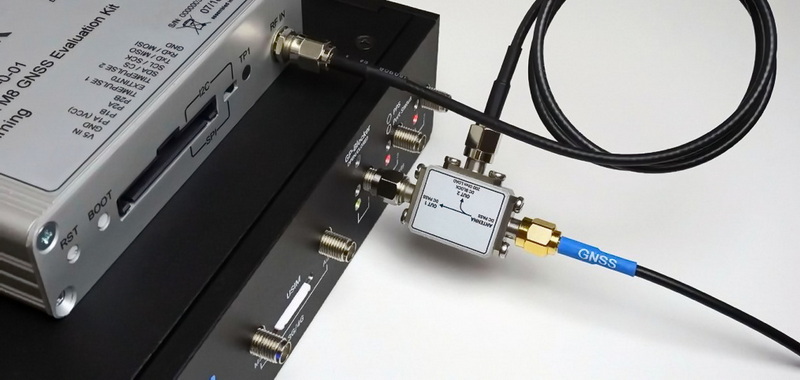

1. In-Line Amplifiers: These are placed directly in the signal path between the antenna and the receiver. They are compact and can be powered by the receiver itself or an external power source. For example, the A11 GPS amplifier provides 30dB of gain and can be powered by the GPS receiver's antenna voltage output.
2. Repeater Systems: These systems use an external antenna to capture the GPS signal, amplify it, and then rebroadcast it indoors. They are ideal for providing GPS coverage in large indoor areas.
To build a simple GPS amplifier, you will need the following components:
- Amplifier IC: A low-noise amplifier (LNA) specifically designed for GPS frequencies (e.g., L1 band at 1575.42 MHz).
- Power Supply: Typically a DC voltage source (e.g., 5V or 12V).
- Input and Output Connectors: SMA or N-type connectors for connecting antennas and receivers.
- Band-Pass Filter: To filter out unwanted frequencies and noise.
- PCB or Breadboard: For assembling the circuit.
- Amplifier IC: The MAX2654 is a popular choice for GPS amplifiers due to its low noise figure and high gain.
- Power Supply: A 5V DC power supply is common for many GPS amplifiers.
- Band-Pass Filter: A ceramic filter tuned to the GPS L1 frequency.
First, design the circuit using a schematic tool like KiCad or Eagle. Ensure that the amplifier IC is correctly connected with the input and output connectors, power supply, and band-pass filter. It's important to follow the datasheet specifications for the amplifier IC to ensure proper operation.
Use a breadboard or PCB to assemble the circuit. If using a breadboard, jumper wires can be used to connect components without soldering. However, for a more permanent solution, soldering components onto a PCB is recommended.
Connect the power supply and test the amplifier using a signal generator or a GPS signal simulator. Ensure the output signal is amplified correctly and free from noise. This step is critical to verify that the amplifier is functioning as expected.

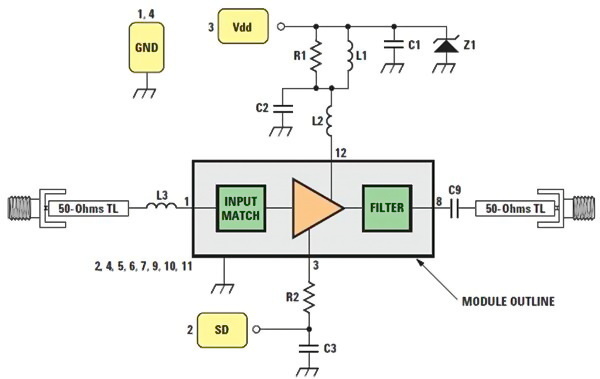

The circuit typically consists of the following components connected in series:
- GPS Signal Input: Connected to the input connector.
- Band-Pass Filter: Filters out unwanted frequencies.
- Amplifier IC: Amplifies the filtered signal.
- Output Connector: Connects to the GPS receiver.
For indoor GPS coverage, a repeater system is often more effective than a simple amplifier.
- Outdoor Donor Antenna: Captures the GPS signal from satellites.
- Indoor Coverage Antenna: Rebroadcasts the amplified signal indoors.
- Repeater Unit: Amplifies the signal from the donor antenna and transmits it via the coverage antenna.
1. Mount the Outdoor Donor Antenna: Ensure it has a clear view of the sky. This is crucial for capturing strong GPS signals.
2. Connect to the Repeater Unit: Use coaxial cable to connect the donor antenna to the repeater. Ensure the cable is shielded to minimize signal loss.
3. Install the Indoor Coverage Antenna: Place it in a central location to maximize coverage. The antenna should be positioned to provide uniform signal distribution throughout the area.
In a large warehouse, a GPS repeater system can be installed to provide continuous GPS coverage for inventory tracking and logistics operations. The outdoor donor antenna is mounted on the roof, while the indoor coverage antenna is placed near the center of the warehouse.
When designing a GPS amplifier or repeater system, several factors must be considered:
- Noise Reduction: Use components with low noise figures to minimize signal degradation.
- Frequency Matching: Ensure all components are tuned to the GPS L1 frequency for optimal performance.
- Power Consumption: Choose components that are energy-efficient to minimize power consumption.
GPS amplifiers and repeater systems have a wide range of applications:
- Vehicle Tracking: Enhancing GPS signals in vehicles with thick roofs or in areas with poor satellite visibility.
- Indoor Navigation: Providing GPS coverage in shopping malls, airports, and other large indoor spaces.
- Emergency Services: Ensuring reliable GPS signals for emergency responders in challenging environments.
When building or installing GPS amplifiers, common issues may arise:
- Signal Overload: Ensure the amplifier is not overdriving the receiver, which can cause signal distortion.
- Noise Interference: Use shielding and filters to minimize electromagnetic interference (EMI) from other devices.
- Power Supply Issues: Verify that the power supply is stable and meets the requirements of the amplifier.
Building a GPS signal amplifier or installing a repeater system can significantly enhance GPS signal strength in challenging environments. By understanding the components and design considerations, you can create effective solutions for both personal and professional applications.
A GPS signal amplifier is used to boost weak GPS signals, ensuring a stronger and more reliable connection to GPS receivers. This is particularly useful in environments where physical barriers or long cable runs attenuate the signal.
There are primarily two types: in-line amplifiers, which are placed between the antenna and receiver, and repeater systems, which capture, amplify, and rebroadcast GPS signals indoors.
Key components include an amplifier IC, power supply, input and output connectors, and a band-pass filter. A PCB or breadboard is also necessary for assembling the circuit.
GPS repeater systems use an outdoor antenna to capture GPS signals, which are then amplified and rebroadcast indoors by a coverage antenna. This ensures continuous GPS coverage in indoor environments.
Common applications include enhancing GPS signals in vehicles, providing indoor coverage for emergency services, and supporting GPS device testing in manufacturing facilities.
