Tire Pressure Monitoring Systems (TPMS) are an essential safety feature in modern vehicles, alerting drivers to under-inflated tires and helping to prevent accidents, improve fuel efficiency, and extend tire life. As technology advances, TPMS sensors have become more sophisticated, but so too has the process of programming and maintaining them. Whether you're a car enthusiast, a professional mechanic, or a DIYer, understanding how to program a tire pressure sensor is vital for ensuring your vehicle's TPMS operates correctly.
This comprehensive guide will walk you through everything you need to know about programming tire pressure sensors, from the basics to advanced troubleshooting. We'll cover the types of TPMS sensors, tools required, step-by-step programming instructions, brand-specific procedures, common issues, and tips for success. By the end, you'll have the confidence and knowledge to handle TPMS sensor programming like a pro.
TPMS is an electronic system designed to monitor the air pressure inside pneumatic tires on vehicles. The system reports real-time tire pressure information to the driver, typically via a dashboard display or warning light. There are two main types of TPMS:
- Direct TPMS: Uses sensors mounted inside each tire to directly measure pressure and transmit data wirelessly to the vehicle's computer.
- Indirect TPMS: Uses the vehicle's ABS wheel speed sensors to estimate tire pressure based on rotational differences.
Most modern vehicles use direct TPMS due to its accuracy and reliability.

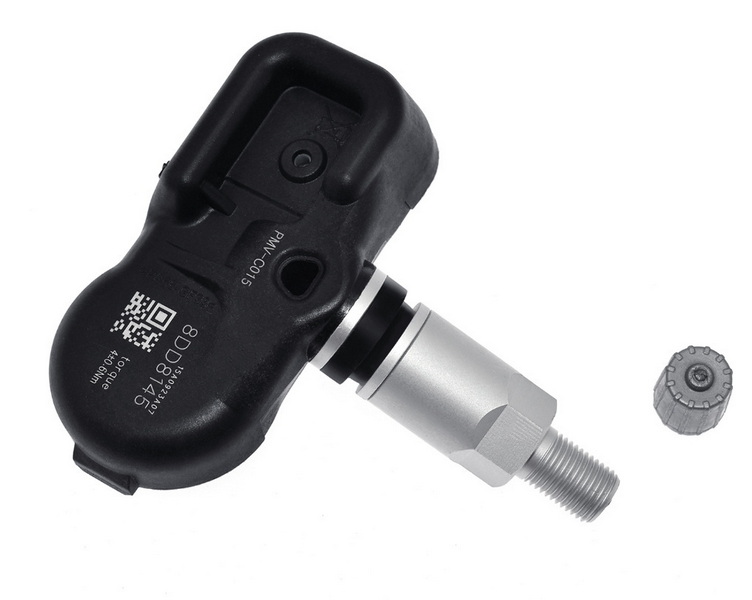

Each direct TPMS sensor contains a pressure sensor, a temperature sensor, a battery, and a radio transmitter. When the tire pressure drops below a preset threshold, the sensor sends a signal to the vehicle's control module, triggering a warning light on the dashboard.
Each sensor has a unique identification code, which the vehicle's TPMS module must recognize. This is why programming is necessary when sensors are replaced or new wheels are installed.
Programming a tire pressure sensor ensures the vehicle's TPMS module can identify and communicate with the new sensor. This process is required in several scenarios:
- Replacing a failed or dead sensor: Sensor batteries typically last 5-10 years. When they die, the sensor must be replaced and programmed.
- Installing new wheels or tires: New wheels often come with new sensors that need to be programmed to the vehicle.
- Seasonal tire changes: Swapping between summer and winter wheels may require reprogramming if each set has its own sensors.
- Sensor damage: If a sensor is damaged during tire service, a replacement must be programmed.
Failing to program a new sensor will result in a persistent TPMS warning light and a loss of real-time tire pressure monitoring, compromising safety and possibly affecting vehicle inspection compliance.
- OEM Sensors: Original Equipment Manufacturer sensors are designed specifically for your vehicle. They usually come pre-programmed and may only require a relearn procedure.

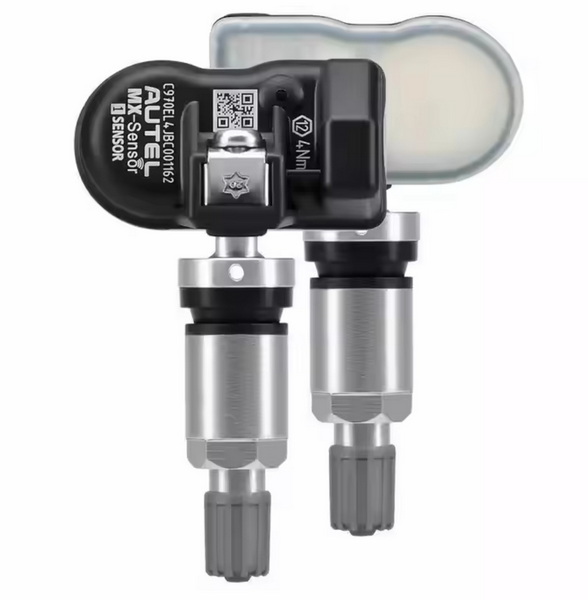

- Aftermarket Sensors: Universal or programmable sensors can be used on a wide range of vehicles but must be programmed with the correct ID and protocol before installation.
- Programming: Involves writing a unique sensor ID and vehicle protocol to a blank or universal sensor using a TPMS programming tool.
- Relearning: Instructs the vehicle's TPMS module to recognize the location and ID of each sensor. Some vehicles require both steps, while others only need a relearn.
- TPMS Programming Tool: Essential for programming universal or blank sensors. Popular brands include Autel, Bartec, and Launch.
- OBD-II Scanner: Some vehicles require an OBD-II connection to complete the relearn process.
- Torque Wrench: For properly installing sensors to manufacturer specifications.
- Tire Changing Tools: If you need to access or replace the sensor inside the tire.
- Vehicle Owner's Manual: Contains vehicle-specific TPMS procedures and specifications.
- Park the vehicle on a level surface and engage the parking brake.
- Ensure you have the correct replacement sensors and a compatible TPMS programming tool.
- If replacing sensors, safely lift the vehicle and remove the wheels as needed.
- Deflate the tire and break the bead to access the sensor.
- Remove the sensor from the valve stem or wheel.
- Inspect the sensor and valve stem for damage or corrosion.
- Install the new sensor according to the manufacturer's instructions.
- Use a torque wrench to tighten the sensor nut to the specified torque (usually 4-7 Nm).
- Re-seat the tire bead and inflate the tire to the recommended pressure.
1. Select Vehicle Make, Model, and Year: Follow the tool's prompts to choose the correct vehicle.
2. Read or Clone Existing Sensor ID: If you have the old sensor, some tools allow you to clone its ID to the new sensor.
3. Write New ID to Sensor: For blank or universal sensors, use the tool to program the correct ID and protocol.
4. Trigger the Sensor: Place the tool near the valve stem and activate the sensor to ensure it's transmitting.
- Some tools require connecting to the vehicle's OBD-II port to write sensor IDs directly to the TPMS module.
- Follow the tool's instructions to complete the process.
Some vehicles support a manual relearn process:
1. Inflate all tires to the recommended pressure.
2. Turn the ignition to “on” (engine off).
3. Press and hold the TPMS reset button (if equipped) or follow a specific sequence (e.g., pressing the hazard light button six times).
4. The vehicle may prompt you to let air out of each tire in a specific order until the horn sounds.
5. Reinflate all tires and confirm the TPMS light turns off.
- Use the TPMS tool to check that each sensor is transmitting the correct pressure and temperature data.
- Start the vehicle and check that the TPMS warning light is off.
- Some vehicles require driving at a certain speed for a few minutes to complete the relearn.
- GM vehicles often use a “relearn” mode accessible via the dashboard menu.
- The process typically involves deflating each tire in a specific order until the horn sounds.
- Some models require an OBD-II tool for programming new sensor IDs.
- Ford vehicles usually have a TPMS reset button or a dashboard menu option.
- The relearn process may involve cycling the ignition and pressing the brake pedal, then triggering each sensor with a TPMS tool.
- Many Toyota and Lexus models require an OBD-II TPMS tool to write new sensor IDs to the ECU.
- Manual relearn is not always possible.
- Some Honda models allow for manual relearn, while others require a scan tool.
- Check the owner's manual for specific instructions.
- European vehicles often require specialized TPMS tools and OBD-II programming.
- Universal sensors must be programmed with the correct protocol before installation.
- Write down or photograph the sensor IDs before installation.
- This can save time if troubleshooting is needed later.
- Cheap aftermarket sensors may not communicate reliably with your vehicle.
- Always choose sensors compatible with your car's make, model, and year.
- If one sensor's battery dies, others may soon follow. Replacing all sensors at once can save labor costs.
- Use proper tire changing techniques to avoid damaging sensors during installation or removal.
- Manufacturers frequently update TPMS protocols. Keep your tool's software up to date for maximum compatibility.
- Check that all sensors are programmed with the correct IDs.
- Verify tire pressures are within the recommended range.
- Ensure the vehicle's TPMS module supports the installed sensors.
- Make sure the sensor battery is not depleted.
- Hold the TPMS tool directly next to the valve stem during programming.
- Try reprogramming or resetting the sensor.
- Confirm the sensor is compatible with your vehicle.
- Double-check the selected vehicle make, model, and year in the tool.
- Try a different TPMS tool if available.
- Some vehicles require a relearn procedure after rotating tires to update sensor locations.
As vehicle technology evolves, so do TPMS systems. Some trends include:
- Bluetooth TPMS Sensors: Allow direct monitoring via smartphone apps, simplifying installation and monitoring.
- Longer-Lasting Batteries: Newer sensors offer up to 10 years of battery life.
- Self-Learning Systems: Some vehicles can automatically detect new sensors without manual programming.
- Integration with Vehicle Telematics: Advanced systems provide real-time tire data to fleet managers and drivers.
Staying current with these advancements ensures you can maintain and program TPMS sensors efficiently as technology changes.
Programming a tire pressure sensor is a crucial task for maintaining vehicle safety, performance, and compliance with regulations. Whether you're replacing a failed sensor, installing new wheels, or simply rotating tires, understanding the programming process helps ensure your TPMS operates flawlessly.
With the right tools, quality sensors, and a step-by-step approach, both professionals and skilled DIYers can successfully program TPMS sensors. Always consult your vehicle's manual, use compatible equipment, and follow best practices for installation and programming. As TPMS technology continues to evolve, staying informed will help you keep your vehicle's tire monitoring system in top condition.
If a new sensor isn't programmed, your vehicle's TPMS will not recognize it. This results in a persistent TPMS warning light and loss of real-time tire pressure monitoring, which can compromise safety and may cause you to fail vehicle inspections.
Many TPMS sensors can be programmed at home using a compatible TPMS tool. Some vehicles allow sensor relearning without any special tools. However, for blank or universal sensors, a professional-grade tool is often required for proper programming.
Only new or replacement sensors need programming. If you rotate your tires or swap wheels with pre-programmed sensors, some vehicles may require a relearn procedure, but not full programming.
Programming assigns a unique ID and protocol to a new sensor and registers it with the vehicle. Relearning teaches the vehicle's TPMS system the location of each sensor (e.g., after a tire rotation). Some vehicles combine these steps, while others treat them separately.
With the right tools, programming a sensor typically takes a few minutes per wheel. The entire process, including removal, installation, and verification, can be completed in under an hour for most vehicles.
