The Wheatstone bridge is a fundamental electrical circuit used to measure small changes in resistance, commonly employed in applications such as strain gauges and resistance thermometers. However, the output voltage from a Wheatstone bridge is typically very small, often in the range of millivolts, which can be challenging to measure accurately without amplification. This is where amplifiers come into play, particularly differential amplifiers and instrumentation amplifiers, which are designed to amplify these small differential signals while rejecting common-mode noise. In this article, we will explore how amplifiers affect the signal from a Wheatstone bridge and discuss the different types of amplifiers used in these applications.

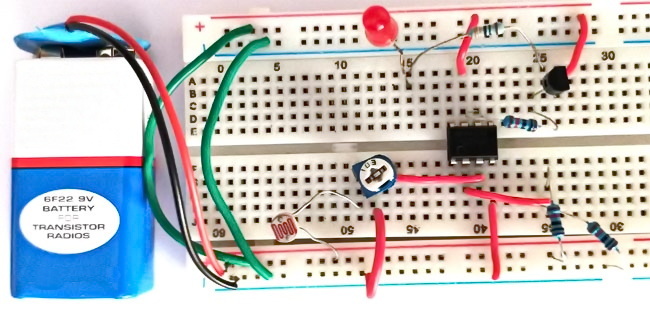

A Wheatstone bridge consists of four resistors connected in a diamond configuration. When all resistors are equal, the bridge is balanced, and the output voltage is zero. However, when one of the resistors changes (e.g., due to strain in a strain gauge), the bridge becomes unbalanced, producing a small differential voltage between its output terminals.
Wheatstone bridges can be configured in several ways:
- Quarter Bridge: One resistor is the sensor (e.g., strain gauge).
- Half Bridge: Two resistors are sensors.
- Full Bridge: All four resistors are sensors.
Each configuration offers different advantages in terms of sensitivity and noise rejection. For instance, a full bridge configuration provides the highest sensitivity but requires all four resistors to be sensors, which can be more expensive and complex to implement.

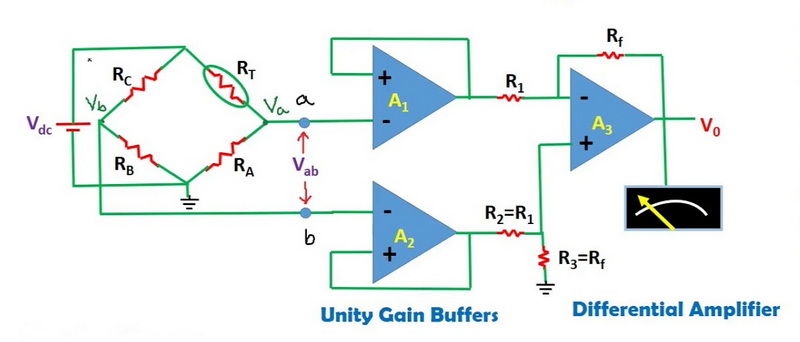

Differential amplifiers are commonly used to amplify the small differential signals from a Wheatstone bridge. These amplifiers have two inputs and amplify the difference between them while rejecting any common-mode voltage (noise that affects both inputs equally).
A simple differential amplifier can be built using an op-amp like the LM358. The gain of the amplifier is determined by the ratio of the feedback resistors to the input resistors. For example, if the feedback resistors are 490 kΩ and the input resistors are 10 kΩ, the gain of the amplifier would be 49.
The circuit typically involves connecting the Wheatstone bridge outputs directly to the inputs of the differential amplifier. This setup allows for the amplification of the differential voltage while rejecting common-mode noise, which is essential for accurate measurements.
Instrumentation amplifiers are specialized differential amplifiers designed for high precision and low noise. They offer better common-mode rejection and are ideal for applications requiring high accuracy, such as medical devices and industrial sensors.
Instrumentation amplifiers like the INA128 can be used directly with a Wheatstone bridge. They often have a reference pin for setting a DC bias and can be configured for high gain. The INA128, for instance, provides a high common-mode rejection ratio (CMRR), which is crucial for rejecting noise in environments where the signal-to-noise ratio is low.
In some designs, additional resistors are used to adjust the gain or to provide feedback between the amplifier output and the Wheatstone bridge. For example, adding a resistor between one output terminal of the Wheatstone bridge and the amplifier output can allow for gain adjustment by affecting the relationship between the output voltage and the resistance being measured. This technique is useful when the required gain is not fixed and needs to be adjusted based on the application.
When amplifying signals from a Wheatstone bridge, it's crucial to minimize noise. Using twisted pair cables for the bridge outputs and keeping them separate from power lines can help reduce electromagnetic interference. Additionally, shielding the cables can further protect against external noise sources.
Using a dual power supply (+/- V) can improve the performance of the amplifier by allowing it to operate around a zero-volt reference point, which enhances noise rejection and signal resolution. This setup is particularly beneficial when dealing with low-level signals where even small offsets can significantly affect the measurement accuracy.
Choosing low-drift, low-noise op-amps and ensuring that all components are matched closely can significantly improve the accuracy of the measurement system. For instance, using resistors with tight tolerances and low temperature coefficients can reduce errors due to component variations.
In advanced applications, Wheatstone bridges are often used in conjunction with microcontrollers or other digital systems to provide real-time data processing and feedback control. For example, in robotics, strain gauges connected in a Wheatstone bridge configuration can provide feedback on the force applied by a robotic arm, allowing for precise control and adjustment.
For high-accuracy applications, several design considerations must be taken into account:
- Thermal Management: Ensuring that the Wheatstone bridge and amplifier are thermally stable is crucial. Changes in temperature can affect the resistance of the bridge resistors, leading to measurement errors.
- Shielding: Proper shielding of the circuitry can protect against electromagnetic interference, which is particularly important in noisy environments.
- Calibration: Regular calibration of the system is necessary to ensure accuracy over time. This involves adjusting the system to match known reference values.
Amplifiers play a critical role in extracting useful signals from Wheatstone bridges by amplifying the small differential voltages produced when the bridge is unbalanced. Differential and instrumentation amplifiers are particularly suited for this task due to their ability to reject common-mode noise and provide high gain. By understanding how these amplifiers work and how they can be configured, engineers can design more accurate and reliable measurement systems for applications ranging from strain gauges to temperature sensors.
A Wheatstone bridge is used to measure small changes in resistance by converting these changes into a voltage signal. It is particularly useful in applications like strain gauges and thermistors.
Differential amplifiers are used because they can amplify the small differential voltage produced by the Wheatstone bridge while rejecting common-mode noise, which is essential for accurate measurements.
Instrumentation amplifiers offer higher precision, better common-mode rejection, and often include features like a reference pin for setting a DC bias, making them ideal for high-accuracy applications.
Using a dual power supply allows the amplifier to operate around a zero-volt reference point, improving noise rejection and signal resolution.
Noise can be minimized by using twisted pair cables for the bridge outputs, keeping them separate from power lines, and ensuring that all components are matched closely.
