Tire pressure sensors are an essential safety feature in modern vehicles, designed to monitor the air pressure inside each tire and alert drivers if the pressure falls below a safe level. This article will delve into the workings of tire pressure sensors, exploring their types, components, and functionality, as well as their importance in ensuring vehicle safety and efficiency.
Tire pressure sensors are part of a system known as the Tire Pressure Monitoring System (TPMS). TPMS is broadly categorized into two types: Direct TPMS and Indirect TPMS.

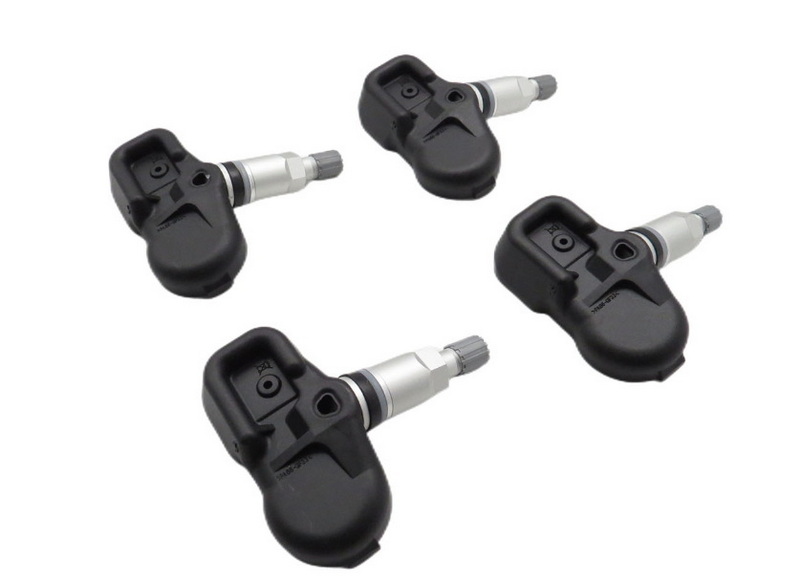

- Direct TPMS: This system uses sensors mounted inside each tire to directly measure the air pressure. These sensors are typically attached to the valve stem or the rim of the wheel and transmit data wirelessly to a central control module in the vehicle.
- Indirect TPMS: This system uses the vehicle's anti-lock braking system (ABS) and wheel speed sensors to estimate tire pressure by comparing the rotational speed of each wheel. If a tire is underinflated, it will rotate faster than a properly inflated tire, triggering an alert.
A direct TPMS sensor includes several key components:
1. Pressure Sensor: This is the core component that measures the air pressure inside the tire. Common pressure sensors include piezoresistive or capacitive sensors that convert pressure changes into electrical signals.
2. Analog-Digital Converter (ADC): Converts the analog signal from the pressure sensor into a digital format that can be processed by the microcontroller.
3. Microcontroller: This small computer processes the digital signal, performs calculations, and controls the transmission of data to the vehicle's onboard computer.
4. Transmitter: Sends the processed data wirelessly to the vehicle's receiver module.
5. Battery: Powers the sensor. Since these are sealed units, the battery cannot be replaced once it runs out, which typically happens after several years of use.
Indirect TPMS relies on existing vehicle systems:
1. Wheel Speed Sensors: These are part of the ABS system and measure how fast each wheel is rotating.
2. ABS Control Module: Processes data from wheel speed sensors to detect differences in wheel rotation speeds, which could indicate underinflation.
1. Measurement: The pressure sensor inside each tire measures the air pressure and converts it into an electrical signal.
2. Processing: The microcontroller processes this signal and prepares it for transmission.
3. Transmission: The transmitter sends the data wirelessly to the vehicle's onboard computer.
4. Alert System: If the pressure is below the set threshold (usually 25% below the recommended pressure), the system triggers a warning light on the dashboard.
1. Wheel Speed Monitoring: Wheel speed sensors monitor the rotation speed of each wheel.
2. Comparison: The ABS control module compares these speeds to detect any discrepancies that might indicate underinflation.
3. Alert System: If a discrepancy is detected, the system alerts the driver via a dashboard warning light.
Tire pressure sensors play a crucial role in vehicle safety and efficiency:
- Safety: Properly inflated tires reduce the risk of tire blowouts, improve handling, and enhance braking performance.
- Fuel Efficiency: Underinflated tires increase fuel consumption. Maintaining optimal tire pressure can improve fuel efficiency by up to 3%.
- Tire Longevity: Proper inflation extends the lifespan of tires by preventing uneven wear.
Recent innovations in TPMS technology include:
- Automatic Tire Inflation Systems: Some systems can automatically inflate tires to the correct pressure if they are underinflated.
- Real-Time Monitoring: Advanced systems provide real-time pressure and temperature data, enhancing safety and efficiency.
- Event-Based Reporting: Some sensors report changes in pressure only when significant, reducing unnecessary transmissions and prolonging battery life.
Despite their benefits, tire pressure sensors have some challenges:
- Battery Life: Direct TPMS sensors have limited battery life, typically requiring replacement every 5 to 10 years.
- Interference: Wireless signals can be affected by external interference, potentially disrupting data transmission.
- Cost: Direct TPMS systems are generally more expensive than indirect systems.
As technology advances, TPMS systems are becoming more sophisticated. Future developments may include:
- Integration with Other Vehicle Systems: TPMS data could be integrated with other vehicle systems, such as adaptive cruise control or lane departure warning systems, to enhance overall vehicle safety and performance.
- Smart Tires: The development of smart tires with embedded sensors could provide more detailed information about tire condition and performance.
- Autonomous Vehicles: In autonomous vehicles, TPMS will play a critical role in ensuring continuous safety and efficiency without human intervention.
Maintaining and troubleshooting TPMS systems is crucial for their effectiveness:
- Sensor Calibration: After tire rotations or replacements, TPMS sensors may need to be recalibrated to ensure accurate readings.
- Battery Replacement: Regularly checking the battery life of direct TPMS sensors can prevent system failures.
- Signal Interference: Identifying and mitigating sources of signal interference can improve system reliability.Legal Requirements
In many countries, TPMS is mandated by law for new vehicles. This requirement underscores the importance of these systems in enhancing road safety. Compliance with these regulations ensures that vehicles are equipped with functional TPMS systems.
Properly functioning TPMS systems can significantly impact vehicle performance:
- Handling and Stability: Properly inflated tires improve vehicle handling and stability, especially during cornering or braking.
- Fuel Consumption: Maintaining optimal tire pressure reduces fuel consumption, which can lead to cost savings over time.
- Environmental Impact: By reducing fuel consumption, TPMS indirectly contributes to lowering greenhouse gas emissions.
TPMS can be integrated with other safety features to enhance overall vehicle safety:
- Electronic Stability Control (ESC): TPMS data can be used to improve the effectiveness of ESC systems by ensuring that tires are properly inflated for optimal traction.
- Lane Departure Warning Systems: Proper tire inflation can improve the accuracy of these systems by maintaining consistent vehicle handling.
Tire pressure sensors are a vital component of modern vehicle safety systems, ensuring that tires are properly inflated to enhance safety, efficiency, and performance. Understanding how these sensors work and their importance can help drivers maintain their vehicles effectively and safely.
Direct TPMS uses sensors inside each tire to measure pressure directly, while Indirect TPMS uses wheel speed sensors to estimate pressure by comparing wheel rotation speeds.
Direct TPMS sensors transmit data wirelessly to a central control module in the vehicle.
Proper tire pressure improves safety by reducing the risk of blowouts, enhances fuel efficiency, and extends tire lifespan.
No, indirect TPMS requires the vehicle to be moving to detect changes in tire pressure.
Direct TPMS sensor batteries typically need to be replaced every 5 to 10 years.
