Adding a turn signal indicator light to your vehicle is an essential safety feature that helps communicate your intentions to other drivers on the road. Whether you're upgrading from older models or installing turn signals on a classic vehicle, this guide will walk you through the process step by step. Below, you'll find detailed instructions, along with images and videos to help illustrate each step.
Turn signal indicator lights are crucial for road safety. They are typically located on the dashboard and illuminate when you activate your turn signals. This feature helps ensure that you're aware of whether your turn signals are functioning correctly, especially in situations where you might not be able to see the external lights.
- Safety: They provide a visual confirmation that your turn signals are working, which is vital for safe driving.
- Legal Compliance: In many jurisdictions, vehicles are required to have functional turn signal indicators.
- Convenience: They help prevent accidental prolonged use of turn signals, which can confuse other drivers.
Before you start, ensure you have all the necessary tools and components. Here's a checklist:
- Turn Signal Indicator Light Unit: This is the light itself that will be mounted on your dashboard.
- Wiring Harness: Includes the necessary wires to connect the indicator light to your vehicle's electrical system.
- Soldering Iron and Solder: For connecting wires securely.
- Wire Strippers: To strip insulation from the ends of wires.
- Electrical Tape or Heat Shrink Tubing: For insulating connections.
- Drill and Drill Bits: If you need to make holes for mounting the light.
Identify the wires that control your turn signals. These are usually part of a larger wiring harness under the dashboard or near the steering column. Consult your vehicle's manual or online resources for specific locations.

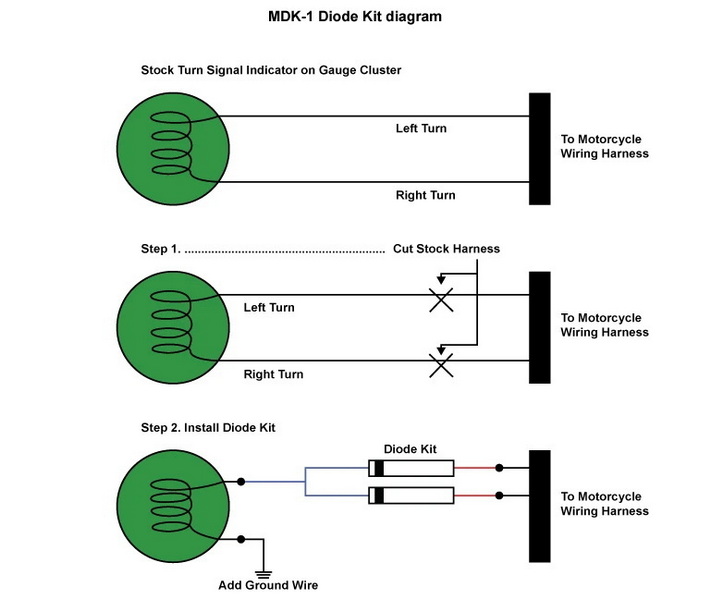

Once you've located the turn signal wires, you'll need to connect them to your new indicator light. Typically, you'll have two wires for each turn signal (left and right). Connect these wires to the corresponding terminals on your indicator light.
graph LR
A[Turn Signal Wires] -->|Connect to|> B[Indicator Light Terminals]
B -->|Left Signal|> C[Left Indicator Light]
B -->|Right Signal|> D[Right Indicator Light]
Choose a suitable location on your dashboard for the indicator light. Ensure it's visible but not obstructive. Use screws or adhesive mounts to secure it in place.
After connecting and mounting the indicator light, test it by activating your turn signals. Ensure the light illuminates correctly for both left and right turns.

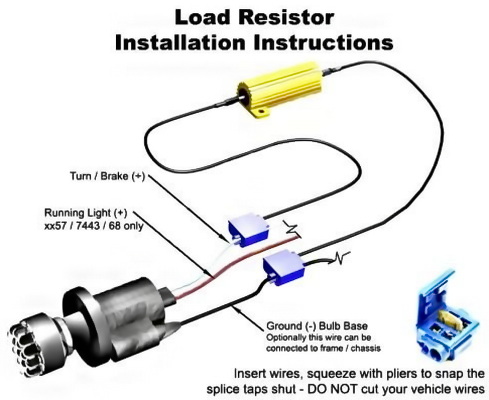

If your turn signals hyper flash after installing LED bulbs, you may need to install load resistors. These resistors simulate the load of incandescent bulbs, preventing the hyper flashing issue.
Adding a turn signal indicator light is a straightforward process that enhances safety and convenience. By following these steps and consulting the resources provided, you can successfully install this feature on your vehicle.
The turn signal indicator light provides a visual confirmation that your turn signals are activated, ensuring you're aware of their status even when you can't see the external lights.
Consult your vehicle's manual or online resources for specific locations. Typically, these wires are found under the dashboard or near the steering column.
LED turn signals hyper flash because they draw less power than incandescent bulbs, causing the flasher unit to flash faster. Installing load resistors can resolve this issue.
Yes, but ensure compatibility with your vehicle's electrical system. Some vehicles may require additional components like load resistors for LED bulbs.
You'll need a soldering iron, wire strippers, electrical tape or heat shrink tubing, and possibly a drill for mounting the light.
