Amplifying low noisy signals is a critical task in various fields, including telecommunications, medical devices, and electronic test equipment. The goal is to enhance the signal while minimizing the introduction of additional noise. This article will guide you through the process of amplifying low noisy signals using amplifiers, focusing on key concepts, design considerations, and practical implementation.

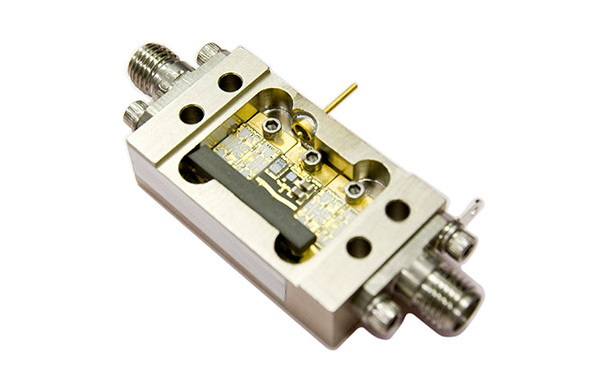

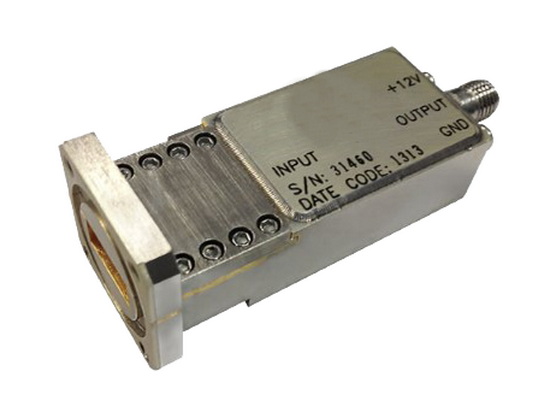

A low noise amplifier (LNA) is an electronic component designed to amplify weak signals without significantly degrading the signal-to-noise ratio (SNR). LNAs are crucial in radio communications systems, amateur radio stations, medical instruments, and electronic test equipment. They typically provide a power gain of 100 (20 dB) while maintaining a low noise figure (NF), which is a measure of how much an amplifier degrades the SNR of a signal.
- Gain: The amount of amplification provided by the LNA. Higher gain can amplify weak signals but may also increase noise.
- Noise Figure (NF): A measure of how much an amplifier degrades the SNR. Lower NF values indicate better performance.
- Linearity: The ability of the amplifier to handle large signals without distortion.
- Maximum RF Input: The maximum signal strength the amplifier can handle without saturation.
When designing an LNA, several factors must be considered:
1. Component Selection: Choose components with low noise characteristics, such as junction field-effect transistors (JFETs) or high-electron-mobility transistors (HEMTs).
2. Operating Points: Optimize the bias voltage for linearity and low power consumption.
3. Impedance Matching: Ensure proper input and output impedance matching to maximize power transfer efficiency.
4. Feedback Techniques: Use negative feedback to stabilize gain and improve input-output matching.
To illustrate these concepts, consider a simple LNA circuit using a JFET:
The circuit typically includes a JFET with a feedback resistor to stabilize the gain and ensure linearity. The input signal is applied to the gate of the JFET, and the output is taken from the drain. Proper impedance matching is achieved using LC circuits or transformers to ensure maximum power transfer.
Building a low noise amplifier involves several steps:
1. Selecting the Op-Amp: Choose an op-amp with low noise characteristics, such as the LM324 or OP07.
2. Circuit Design: Use a non-inverting amplifier configuration for simplicity and stability.
3. Filtering: Implement high-pass and low-pass filters to define the bandwidth and reduce noise.
Here's a basic circuit for a low noise amplifier with filtering:
The circuit starts with a high-pass filter to remove low-frequency noise, followed by a non-inverting amplifier stage to boost the signal. Finally, a low-pass filter is used to remove high-frequency noise and define the output bandwidth.
Differential amplifiers are particularly effective in reducing common-mode noise. They amplify the difference between two input signals, which helps eliminate external electrical noise.
- Principle: Amplify the difference between two input signals.
- Noise Reduction: Common-mode noise is subtracted, resulting in a cleaner output.
Differential amplifiers are commonly used in medical devices, such as ECG machines, where they help isolate the weak biological signals from external interference.
Recent research has introduced innovative methods for amplifying weak signals while reducing noise. One such technique uses the Talbot effect to passively amplify optical signals without distorting their waveforms.
- Principle: Exploits the self-imaging effect in optical fibers to stack pulses.
- Application: Amplifies weak optical signals while reducing noise.
This technique is promising for applications in optical communication systems where signal amplification is critical for maintaining data integrity over long distances.
In addition to using low noise amplifiers and differential amplifiers, several noise reduction techniques can be employed:
1. Shielding: Use metal enclosures to shield the circuit from external electromagnetic interference (EMI).
2. Grounding: Ensure proper grounding to prevent ground loops that can introduce noise.
3. Component Placement: Strategically place components to minimize electromagnetic coupling between them.
Amplifying low noisy signals requires careful consideration of amplifier design, component selection, and filtering techniques. By understanding the principles of low noise amplifiers and implementing advanced techniques like differential amplification and passive amplification methods, you can effectively enhance weak signals while minimizing noise.
A low noise amplifier aims to amplify weak signals without significantly degrading the signal-to-noise ratio (SNR).
Differential amplifiers reduce noise by amplifying the difference between two input signals, effectively subtracting common-mode noise.
The Talbot effect is used to passively amplify weak optical signals by stacking pulses without distorting their waveforms.
Key specifications include gain, noise figure, linearity, and maximum RF input.
Impedance matching is crucial for maximizing power transfer efficiency and minimizing reflections that can degrade the signal.
