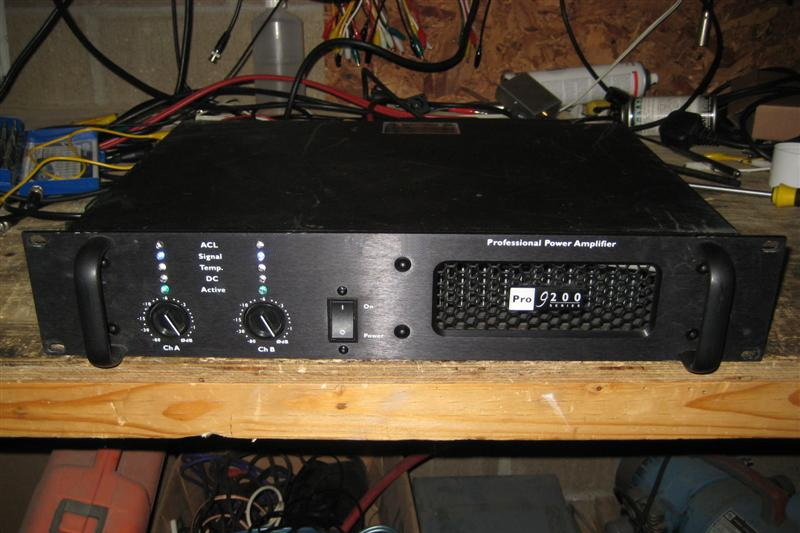

Crest Audio has built a reputation for manufacturing high-quality, robust amplifiers that are trusted in professional audio environments worldwide. Their digital signal amplifiers, such as the CPX, CA, and Pro series, are engineered to deliver clean, powerful sound with advanced protection features and flexible connectivity. Whether you are setting up a live sound system, a recording studio, or an installed commercial audio system, understanding how to connect and configure your Crest amplifier is crucial for achieving optimal performance and reliability.
When your Crest amplifier arrives, begin by carefully unboxing the unit. Check for any signs of shipping damage and ensure that all accessories, such as the IEC power cord, rack-mounting hardware, and user manual, are present. It is advisable to keep the original packaging in case you need to transport or return the amplifier in the future. Before proceeding, read the safety instructions in the manual thoroughly to familiarize yourself with the amplifier's features and requirements.

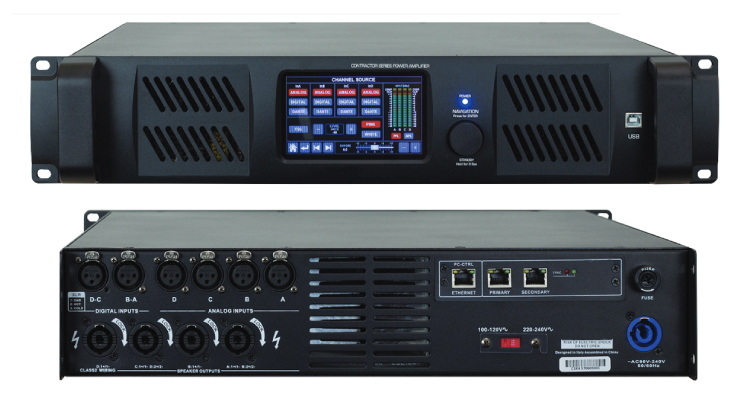

Crest amplifiers are designed with a variety of input and output options to accommodate different audio setups. On the rear panel, you will typically find balanced XLR and TRS combo input jacks, barrier strips for permanent installations, and multiple output options, including binding posts and twist-lock connectors. Some models also include additional features such as thru outputs, high and low outs for bi-amping, and mode selection switches for stereo, bridge, or parallel operation. Understanding these connections is essential for a successful setup.
Begin by selecting a suitable location for your amplifier. Crest amplifiers are designed for standard 19-inch racks, and proper ventilation is critical for reliable operation. Leave at least one rack space above and below the amplifier to allow for adequate airflow. Secure the amplifier using the provided rack ears and screws. For permanent installations, rear mounting ears can provide additional support and stability, especially for heavier models.
Before connecting the amplifier to power, check the line voltage selector on the rear panel. This selector must match your local mains voltage (typically 115V or 220V). Using the incorrect voltage setting can result in severe damage to the amplifier. Once the voltage is set correctly, ensure the power switch is in the OFF position before plugging in the IEC power cord.
For most applications, balanced XLR or TRS cables are recommended for connecting your audio source (such as a mixer, audio interface, or processor) to the amplifier's input jacks. Balanced connections help minimize noise and interference, especially in environments with long cable runs or high levels of electromagnetic interference. If you are installing the amplifier in a permanent setup, you may prefer to use the barrier strip inputs for a more secure, screw-down connection.
Crest amplifiers offer several output options to connect to your loudspeakers:

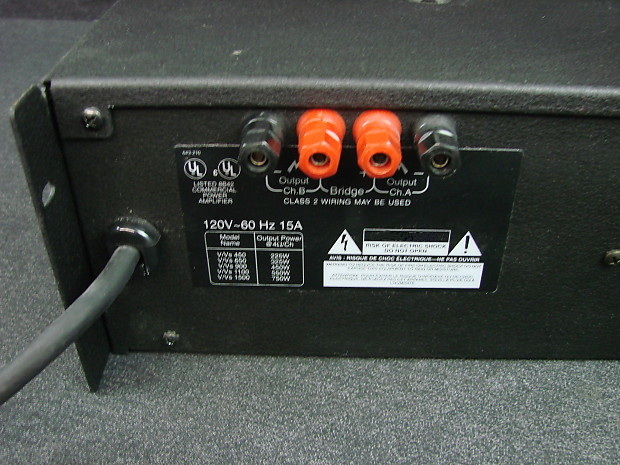

- Binding Posts: These accept banana plugs or bare wire. Ensure you connect the positive (red) and negative (black) terminals correctly to maintain proper speaker polarity.
- Twist-Lock Connectors: These provide a secure, quick-connect solution, especially useful for portable systems. Follow the pinout diagram to ensure correct wiring—typically, pins 1+ and 2+ carry the signal, while pins 1- and 2- are ground.
Take care to use speaker cables of sufficient gauge for the power output and cable length. Thinner cables can result in power loss and degraded sound quality.
In stereo mode, each channel of the amplifier operates independently, driving its own speaker. Connect the left and right outputs from your mixer to the corresponding amplifier inputs, and connect each amplifier output to its respective speaker. This is the most common configuration for live sound and studio monitoring.
Bridge mode combines both amplifier channels to deliver higher power to a single speaker. To use bridge mode, set the mode switch to BRIDGE and connect your speaker between the red binding posts of channels A and B. Only use this mode with speakers rated for the higher output, and ensure the load impedance does not fall below the minimum specified by the amplifier (usually 4 Ohms in bridge mode).
Once all connections are made, double-check that the amplifier's gain controls are turned fully counterclockwise. Power on your audio source first, then the amplifier. Gradually increase the gain controls to achieve the desired output level. Monitor the amplifier's front panel LEDs for signal, clipping, and protection status. If the clip or protect LEDs illuminate, reduce the gain or check your speaker wiring and load impedance.
Stereo mode is the default and most commonly used configuration. Each channel receives its own input signal and drives a separate speaker. This mode is ideal for stereo music playback, live sound reinforcement, and most general-purpose applications. To select stereo mode, set the mode switch to the STEREO position. Ensure that each input is connected to the appropriate channel and that speakers are wired to the corresponding outputs.
Bridge mode is used when you need to deliver maximum power to a single speaker, such as a subwoofer. In this mode, the amplifier combines both channels into one, effectively doubling the output voltage. To engage bridge mode, move the mode switch to the BRIDGE position and connect your speaker between the two red binding posts. Only use this mode with compatible speakers and ensure the load impedance is not below the amplifier's minimum rating.
Some Crest amplifiers feature an internal crossover, allowing you to split the audio signal into high and low frequencies for bi-amping. This is particularly useful in systems with separate subwoofers and full-range speakers. To enable the crossover, set the crossover switch to the IN position. The amplifier will route low frequencies to the main outputs and high frequencies to the HIGH OUT jack. Connect the HIGH OUT to another amplifier channel or a separate amplifier to complete the bi-amped system.
- Ventilation: Always ensure the amplifier has adequate airflow. Do not block the cooling fan or ventilation openings.
- Load Impedance: Never connect speaker loads below 2 Ohms per channel in stereo mode or 4 Ohms in bridge mode. Doing so can cause the amplifier to overheat or shut down.
- Polarity: Double-check that all speaker connections maintain correct polarity to prevent phase cancellation and degraded sound quality.
- Limiter: Engage the GCL (Gain Comparator Limiter) if available to protect your speakers from clipping and distortion.
- Power Sequencing: Always power on audio sources before the amplifier and power down the amplifier before turning off sources to avoid loud pops and potential speaker damage.
Use high-quality cables for both input and output connections. Avoid running signal cables parallel to power cables, as this can introduce hum and noise. For long cable runs, balanced connections are essential to maintain signal integrity.
Proper grounding is critical in large audio systems. If you encounter hum or buzz, check for ground loops and consider using ground lift switches if available. In some cases, isolating the audio ground from the chassis ground can resolve persistent noise issues.
When integrating your Crest amplifier into a larger system with processors, crossovers, or digital audio networks, ensure all devices share a common ground and are powered from the same electrical phase when possible. This minimizes the risk of ground loops and interference.
Many Crest amplifiers include advanced protection circuits for thermal overload, short circuits, and DC faults. Familiarize yourself with the meaning of each front panel LED and refer to the manual for troubleshooting guidance. Regularly inspect your amplifier for dust buildup and clean the fan and vents to prevent overheating.
Even with careful setup, issues can arise. Here are some common problems and their solutions:
- No Sound Output: Check all connections, ensure the amplifier is powered on, and verify that the gain controls are set appropriately. Confirm that the input source is active and sending signal.
- Distorted Sound: This may indicate the amplifier is being overdriven. Reduce the input gain, check for proper load impedance, and inspect cables for damage.
- Amplifier Shuts Down: Overheating or a short circuit can cause the amplifier to enter protection mode. Ensure adequate ventilation and check speaker wiring for shorts.
- Persistent Clip or Protect LEDs: These indicators suggest a fault condition. If basic troubleshooting does not resolve the issue, the amplifier may require professional servicing.
To ensure your Crest amplifier provides years of reliable service, perform regular maintenance:
- Dust Removal: Periodically clean the amplifier's exterior and cooling vents with compressed air to prevent dust buildup.
- Connection Checks: Inspect all input and output connections for signs of wear or corrosion. Tighten any loose connections.
- Fan Inspection: Ensure the cooling fan operates smoothly and quietly. Replace it if you notice excessive noise or reduced airflow.
- Firmware Updates: For digital models, check the manufacturer's website for firmware updates that may improve performance or add features.
By following these maintenance steps and adhering to best practices, you can maximize the lifespan and performance of your Crest digital signal amplifier.
Connecting and configuring a Crest digital signal amplifier is a process that, when done correctly, ensures exceptional audio performance and system reliability. By carefully unpacking and preparing your amplifier, understanding its various connection options, following a methodical setup process, and adhering to best practices for safety and maintenance, you can achieve professional results in any audio environment. Whether you are a live sound engineer, studio technician, or installer, mastering these steps will help you get the most out of your Crest amplifier and deliver outstanding sound to your audience or clients.
To select between stereo and bridge mode, locate the mode switch on the rear panel of your amplifier. Set the switch to STEREO for independent channel operation or to BRIDGE for combined output. Always make this adjustment with the amplifier powered off to avoid damage.
The minimum load is 2 Ohms per channel in stereo mode and 4 Ohms in bridge mode. Connecting a lower impedance load can cause the amplifier to overheat, shut down, or sustain permanent damage.
Insert your four-conductor speaker cable into the twist-lock output, ensuring that pins 1+ and 2+ carry the signal and pins 1- and 2- are ground. In bridge mode, connect the speaker between the red binding posts of channels A and B.
If the clip or protect LEDs remain illuminated, first check your input and output connections, ensure the load impedance is correct, and verify that there are no short circuits. If the problem persists, the amplifier may require professional servicing.
Yes, you can use the internal crossover by setting the crossover switch to the IN position. The amplifier will route low frequencies to the main outputs and high frequencies to the HIGH OUT jack. Connect the HIGH OUT to another channel or amplifier to complete your bi-amped system.
