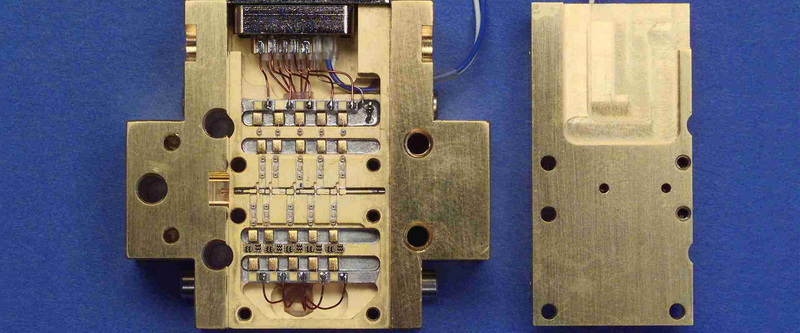

How To Control The Gain of A Small Signal Amplifier?

Content Menu

● 1. Variable Resistor-Based Gain Control

● 2. Automatic Gain Control (AGC)

● 3. Digital Gain Control

● 4. Feedback Networks for Gain Stabilization

● 5. Current-Controlled Gain

● Conclusion

● FAQ

>> 1. How does temperature affect gain stability in resistor-based control?

>> 2. Can AGC be used in audio applications without causing distortion?

>> 3. What is the typical resolution of a digital potentiometer?

>> 4. Why is emitter degeneration rarely used in RF amplifiers?

>> 5. How does gain control impact noise performance?

● Citations:

Small signal amplifiers are essential components in electronic systems, amplifying weak signals while maintaining fidelity across applications like audio processing, wireless communication, and sensor interfaces. Precise gain control ensures optimal performance by preventing distortion, managing dynamic range, and adapting to varying input conditions. Below, we explore five proven methods for adjusting amplifier gain, including their operational principles, implementation strategies, and practical trade-offs.

1. Variable Resistor-Based Gain Control

Principle of Operation

The voltage gain of a common-emitter bipolar junction transistor (BJT) amplifier is governed by the ratio of the collector load resistor (R_C) to the total emitter resistance (r_e+R_E), where r_e is the transistor's intrinsic emitter resistance. By replacing R_E with a variable resistor, the gain becomes adjustable.

Implementation Techniques

- Potentiometers in Feedback Paths: A mechanical or digital potentiometer in the emitter or feedback loop allows manual or automated gain tuning. For example, in audio preamplifiers, a 10 kΩ potentiometer adjusts the feedback ratio in an op-amp non-inverting configuration.

- Voltage-Controlled Resistors (VCRs): Components like junction field-effect transistors (JFETs) or PIN diodes act as voltage-dependent resistors. A JFET's drain-source resistance (R_DS) varies inversely with its gate-source voltage (V_GS), enabling smooth gain modulation.

Advantages and Limitations

- Pros: Simple circuitry, low cost, and compatibility with analog systems.

- Cons: JFETs exhibit non-linear R_DS-vs-V_GS characteristics, and mechanical potentiometers suffer from wear and tear.

Design Considerations

- Use temperature-stable components like metal-film resistors to minimize drift.

- For high-frequency applications, ensure the control element's parasitic capacitance does not degrade bandwidth.

2. Automatic Gain Control (AGC)

Core Mechanism

AGC systems dynamically adjust amplifier gain to maintain a consistent output amplitude, even with fluctuating input signals. This is critical in radio receivers, where signal strength varies due to fading or distance changes.

Key Components

1. Variable Gain Amplifier (VGA): Adjusts gain based on a control voltage (V_C).

2. Detector Circuit: Measures output amplitude (e.g., peak, RMS, or envelope detector).

3. Feedback Comparator: Compares the detected signal to a reference voltage and generates V_C.

Types of AGC

- Feedforward AGC: The input signal is monitored, and gain is adjusted preemptively.

- Feedback AGC: The output signal is measured, and corrections are applied retroactively.

Practical Example

In a superheterodyne radio receiver, AGC ensures that the intermediate frequency (IF) amplifier remains unsaturated. A diode detector at the IF output generates V_C, which reduces the gain of earlier RF stages as the signal strengthens.

Challenges

- Delay in response time can cause transient overshoot.

- Over-compression may distort signals with wide dynamic ranges, such as music.

3. Digital Gain Control

Modern Approaches

Digital interfaces enable precise, programmable gain adjustment using microcontrollers or dedicated ICs.

Implementation Strategies

- Digital Potentiometers: Replace mechanical pots with I⊃2;C- or SPI-controlled devices (e.g., AD5241). These offer 256 or more tap points for fine adjustments.

- Programmable Gain Amplifiers (PGAs): Integrated circuits like the MCP6S21 provide selectable gain steps (1x to 32x) via digital commands.

- DAC-Controlled Feedback: A digital-to-analog converter (DAC) sets the reference voltage for a VGA's control pin.

Case Study: Microcontroller-Based Audio Mixer

A Teensy 4.0 microcontroller adjusts the gain of an op-amp stage by sending a 12-bit DAC output to a JFET's gate. This setup achieves 0.1 dB resolution, ideal for studio-grade equipment.

Pros and Cons

- Pros: High precision, remote configurability, and immunity to mechanical degradation.

- Cons: Quantization noise in low-resolution systems and increased PCB complexity.

4. Feedback Networks for Gain Stabilization

Emitter/Source Degeneration

Adding a resistor (R_E) to the emitter (BJT) or source (FET) path introduces negative feedback, stabilizing gain and linearizing the amplifier.

Gain Equation

For a BJT amplifier with emitter degeneration:

A_v≈R_C/R_E+r_e

Here, r_e=I_E/V_T, where V_T is the thermal voltage (~26 mV at 25°C).

Bypass Capacitors

A capacitor (C_E) parallel to R_E shorts the resistor at high frequencies, restoring maximum gain while retaining DC stability.

Trade-offs

- Improved Linearity: Negative feedback reduces harmonic distortion.

- Reduced Gain: R_E lowers the overall voltage gain.

- Bandwidth Limitations: The Miller effect may limit high-frequency performance.

5. Current-Controlled Gain

Transconductance Adjustment

In differential amplifiers, gain is proportional to the transconductance (g_m) of the input pair, which depends on the tail current (I_SS).

Implementation

- Current Mirrors: Adjusting I_SS via a current mirror changes g_m and, consequently, the gain.

- Gilbert Cell Mixers: Used in RF applications, these ICs vary gain by modulating the bias current of differential pairs.

Example: THS7530 VGA

Texas Instruments' THS7530 uses a differential control voltage to adjust gain linearly from 11.6 dB to 46.5 dB, making it suitable for ultrasound imaging systems.

Advantages

- Wide dynamic range (up to 80 dB in some ICs).

- Low distortion due to balanced differential paths.

Conclusion

Controlling the gain of a small-signal amplifier involves balancing precision, bandwidth, and complexity. Analog methods like variable resistors and AGC offer simplicity, while digital techniques provide programmability. Engineers must evaluate factors such as thermal stability, distortion, and application-specific requirements when selecting a gain-control strategy.

FAQ

1. How does temperature affect gain stability in resistor-based control?

Variable resistors and active components like JFETs exhibit temperature-dependent resistance. For example, a JFET's R_DS increases with temperature, reducing gain. Using temperature-compensated networks or ICs with built-in thermal regulation mitigates this issue.

2. Can AGC be used in audio applications without causing distortion?

Yes, but the attack and release times of the AGC loop must be carefully tuned. Fast attack times may cause "pumping" artifacts, while slow responses fail to track dynamic audio signals.

3. What is the typical resolution of a digital potentiometer?

Most digital pots offer 8-bit (256 steps) to 10-bit (1024 steps) resolution. High-end models like the AD7376 provide 14-bit resolution for ultra-fine adjustments.

4. Why is emitter degeneration rarely used in RF amplifiers?

The added resistor R_E increases noise and reduces gain, which is undesirable in low-noise RF stages. Instead, RF designs often rely on AGC or current-steering techniques.

5. How does gain control impact noise performance?

Increasing gain amplifies both the signal and the amplifier's inherent noise. For optimal noise figure, the first amplifier stage (e.g., an LNA) should operate at its maximum gain with minimal attenuation.
