Small signal amplifiers are foundational components in modern electronics, enabling the amplification of weak signals without distortion. This guide provides a comprehensive, step-by-step approach to designing a small signal amplifier, integrating theoretical principles, practical calculations, and real-world optimization strategies.

Understanding Small Signal Amplifiers

Small signal amplifiers operate in the linear region of transistors to amplify low-voltage AC signals (e.g., audio, sensor outputs, or RF signals). Unlike power amplifiers, they prioritize signal fidelity over raw power output. Key characteristics include:

Operating Principles

- Active Region Bias: Transistors are biased to operate midway between cutoff and saturation.

- Linearity: Output voltage remains proportional to input voltage.

- Low Noise: Minimizes interference from thermal or external sources.

Key Parameters

- Voltage Gain (Av): Ratio of output to input voltage (typically 10–100).

- Bandwidth: Frequency range where gain remains consistent (e.g., 20Hz–20kHz for audio).

- Input/Output Impedance: Matches source and load for maximum power transfer.

Components and Their Roles

1. Transistor Selection

- Bipolar Junction Transistors (BJTs): Ideal for low-cost, general-purpose designs (e.g., BC547, 2N3904).

- Field-Effect Transistors (FETs): Preferred for high-input impedance applications (e.g., J310 JFET).

- Biasing Requirements: Stable Q-point ensures linear operation across temperature changes.

2. Passive Components

- Resistors:

a. Voltage Divider Network: Sets base bias voltage.

b. Emitter Resistor (R3): Stabilizes DC operating point via negative feedback.

- Capacitors:

a. Coupling Capacitors (C1/C2): Block DC while passing AC signals.

b. Bypass Capacitor (C3): Short-circuits AC at the emitter to boost AC gain.

3. Power Supply

- Voltage (VCC): Typically 5–15V DC.

- Decoupling: A 100nF capacitor parallel to VCC reduces power supply noise.

Step-by-Step Design Process

1. Define Specifications

Example Requirements:

- Input Signal: 30mV peak-to-peak (1kHz sine wave).

- Desired Output: 500mV peak-to-peak (Voltage Gain ≈ 16.7).

- Bandwidth: 100Hz–10kHz (±3dB).

- Power Supply: 12V DC.

2. Transistor Selection

BC549 NPN Transistor:

- hFE (β): 110–800 (design for minimum β = 100).

- Max Collector Current (IC): 100mA.

- Transition Frequency (fT): 300MHz (sufficient for audio and RF).

3. DC Biasing Calculations

Objective: Set Q-point at IC = 2mA, VCE = 6V (midway in 12V supply).

a. Emitter Resistor (R3)

R3=V_E/I_E=1V/2mA=500Ω(Standard value: 470Ω)

b. Collector Resistor (R2)

R2=V_CC−V_C/I_C=12V−7V/2mA=2.5kΩ(Standard value: 2.4kΩ)

c. Voltage Divider (R1/R4)

- Base Voltage (VB): V_E+V_BE=1V+0.7V=1.7V.

- Divider Current (I_{div}): 0.1×I_C=0.2mA.

R4=V_B/I_div=1.7V/0.2mA=8.5kΩ(Standard value: 8.2kΩ)

R1=V_CC−V_B/I_div=12V−1.7V/0.2mA=51.5kΩ(Standard value: 47kΩ)

d. Stability Check

- Q-point: V_C=12V−(2mA×2.4kΩ)=7.2V.

- Emitter Voltage: V_E=2mA×470Ω=0.94V.

4. AC Analysis and Gain Optimization

Voltage Gain:

Av=−R2∥RL/R3=−2.4kΩ/470Ω≈−5.1

Two-Stage Design:

To achieve a total gain of 16.7, cascade two stages with gains of -4.1 each:

A_v(total)=(−4.1)²=16.8

Frequency Response:

- Lower Cutoff (f_L): Determined by coupling capacitors.

fL=1/2π(R_in+R_source)C1

For C1 = 10μF and R_in = 47kΩ∥ 8.2kΩ ≈7kΩ:

fL=1/2π(7kΩ)(10μF)≈2.3Hz

- Upper Cutoff (f_H): Limited by transistor capacitance and Miller effect.

5. Stability Enhancements

- Bypass Capacitor (C3): A 100μF capacitor across R3 boosts AC gain to Av=−R2/R3∥X_C3.

- Negative Feedback: Add a 100pF capacitor between collector and base to suppress high-frequency oscillations.

Advanced Design Techniques

1. Thermal Stability Analysis

Stability Factor (S):

S=1+R_th/1+β(R₃/R3+R_th)

Where R_th is the Thevenin resistance of the base divider.

2. Noise Reduction Strategies

- Low-Noise Transistors: Use FETs or specialized BJTs (e.g., 2N5089).

- Star Grounding: Separate signal and power ground paths.

- Shielding: Enclose input stages in a metal casing.

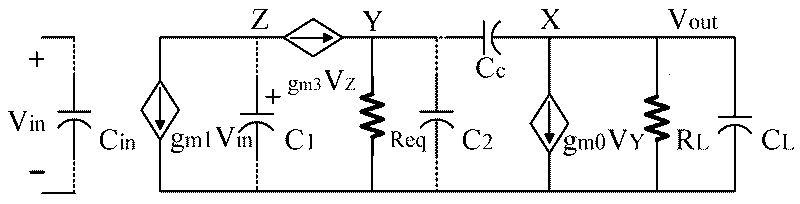

3. Frequency Compensation

- Dominant Pole Compensation: Add a capacitor (C4) across the collector-base junction.

- Peaking Inductors: Small inductors in series with R2 improve RF response.

Practical Testing and Troubleshooting

1. Bench Testing Procedure

1. DC Bias Check: Measure V_C, V_E, and V_B without input signal.

2. AC Signal Injection: Apply a 30mVp-p sine wave and verify output on an oscilloscope.

3. Distortion Analysis: Use a spectrum analyzer to measure THD (<5% acceptable).

2. Common Issues and Fixes

- Low Gain:

a. Increase R2 or reduce R3.

b. Add a bypass capacitor across R3.

- Oscillations:

a. Insert a 100Ω resistor in series with the base.

b. Reduce lead lengths on the breadboard.

Applications

1. Audio Preamplifiers

- Microphone Amplifiers: Boost signals from dynamic microphones (2mV) to line level (1V).

- Equalization Circuits: Integrate with tone-control networks.

2. Sensor Signal Conditioning

- Thermocouple Amplifiers: Amplify 10μV/°C signals for Arduino/Raspberry Pi.

- Photodiode Circuits: Convert nA-level currents to measurable voltages.

3. RF Receivers

- IF Amplifiers: Boost 455kHz intermediate frequency in AM radios.

- LNA (Low-Noise Amplifiers): Improve SNR in satellite communication.

Conclusion

Designing a small signal amplifier demands careful selection of components, precise DC biasing, and iterative testing. By balancing gain, bandwidth, and stability, engineers can create robust amplifiers for diverse applications. Future designs may leverage integrated circuits (e.g., op-amps) for improved performance, but discrete transistor amplifiers remain vital for educational and high-frequency contexts.

FAQ

1. How does temperature affect amplifier performance?

Temperature increases cause V_BE to decrease and β to rise, shifting the Q-point. Emitter feedback resistors and silicon transistors mitigate this.

2. Can I use a potentiometer for biasing?

Yes, a 10kΩ trimmer in place of R1 allows manual Q-point adjustment during testing.

3. What is the role of coupling capacitors?

They block DC voltages between stages while allowing AC signals to pass, preventing bias voltage interference.

4. Why does my amplifier clip at high input levels?

The input exceeds the linear range—reduce the input signal or increase VCC.

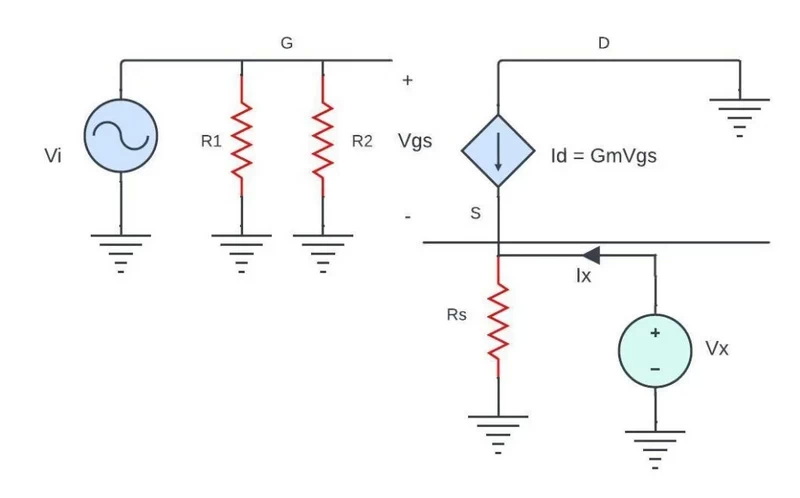

5. How do I measure input/output impedance?

- Input Impedance: Connect a potentiometer in series with the input; adjust until output drops by 50%.

- Output Impedance: Measure open-circuit voltage, then connect a load; calculate using voltage division.
