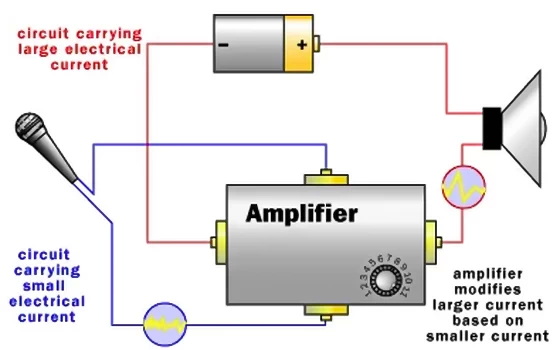

Class AB amplifiers strike a balance between efficiency and audio fidelity, making them ideal for audio systems, RF circuits, and communication devices. Small signal gain (Av), defined as the ratio of output voltage to input voltage in the linear operating region, is critical for preserving signal integrity. This guide provides actionable strategies to boost Av through circuit modifications, biasing adjustments, and component selection, ensuring optimal performance without compromising stability.

1. Eliminate Unwanted AC Negative Feedback

Problem: AC negative feedback reduces gain by opposing the input signal. This occurs when a portion of the output signal is fed back to the input through resistive or capacitive coupling, counteracting the original input.

Solution:

- Split Feedback Resistor with Bypass Capacitor

Replace the single feedback resistor (R1) with two resistors (R1a and R1b) of equal value and insert a bypass capacitor (C) at their junction.

- Example Circuit Modification:

a. Original configuration: A 240kΩ resistor connects the output to the input stage.

b. Modified setup: Split the 240kΩ resistor into two 120kΩ resistors (R1a and R1b). Connect a 10 µF capacitor between their midpoint and ground.

- Mechanism: The capacitor acts as a short circuit for AC signals, diverting them to ground. This eliminates AC feedback while preserving DC biasing conditions.

- Result: Gain typically doubles (e.g., from 42 to 80) without introducing distortion.

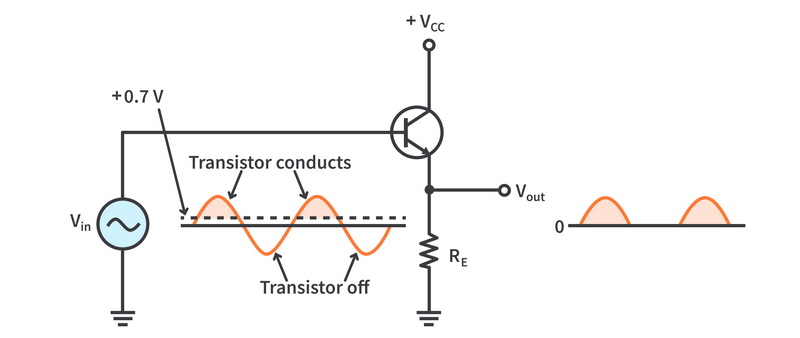

2. Optimize Biasing for Linear Operation

Biasing ensures transistors remain active during signal transitions, preventing crossover distortion.

2.1 Diode-Based Bias Networks

- Implementation: Place diodes (D1 and D2) between the bases of the NPN and PNP transistors.

- Function: Diodes provide a fixed voltage drop (~1.4V for silicon diodes), ensuring both transistors conduct slightly even at zero input.

- Advantage: Reduces dead zones in the output waveform, improving linearity and gain.

- Component Selection: Fast-switching diodes like 1N4148 are preferred over rectifier diodes (e.g., 1N4007) for quicker response.

2.2 Adjustable Resistor Biasing

- Procedure: Replace fixed biasing resistors with potentiometers (e.g., 500Ω trimmers) to fine-tune the quiescent current (Iq).

- Target Iq: 10–20 mA for minimal distortion.

- Calibration: Use a multimeter to measure voltage across emitter resistors and adjust the potentiometer until Iq reaches the desired range.

3. Bypass Emitter Resistors

Problem: Emitter resistors (RE) stabilize bias but introduce local negative feedback, reducing gain.

Solution:

- Add a Bypass Capacitor (CE): Connect a capacitor in parallel with RE.

- Capacitor Value: Select CE such that its reactance (X_C=1/2πfC) is negligible at the lowest operating frequency. For audio applications (20 Hz–20 kHz), a 10–100 µF capacitor is typical.

- Effect: CE shorts AC signals around RE, reducing emitter impedance and increasing Av by up to 80%.

4. Enhance Current Gain in the Output Stage

Challenge: Low current gain (β) limits the amplifier's ability to drive low-impedance loads (e.g., 8Ω speakers).

Solutions:

- Darlington Pairs: Connect two transistors in a Darlington configuration to multiply β (β_total=β₁×β₂).

- Example: Pair a TIP31 (β=50) with a BC547 (β=150) for a combined β_total = 7,500.

- High-$$β$$ Transistors: Use transistors like TIP31C/TIP32C (β>75) for improved current delivery.

5. Implement Temperature Compensation

Issue: Gain decreases as temperature rises due to reduced carrier mobility (μn) in transistors.

Compensation Technique:

- Thermal Tracking Circuit: Add two diodes (D3, D4) and a resistor network to adjust the bias voltage inversely with temperature.

- Design:

a. Connect diodes in series with resistors to form a voltage divider.

b. Mount diodes close to the output transistors for accurate thermal tracking.

- Outcome: As temperature increases, the diodes' forward voltage drop decreases, raising the bias voltage (V_BE) and compensating for gain loss.

6. Increase Supply Voltage (VCC)

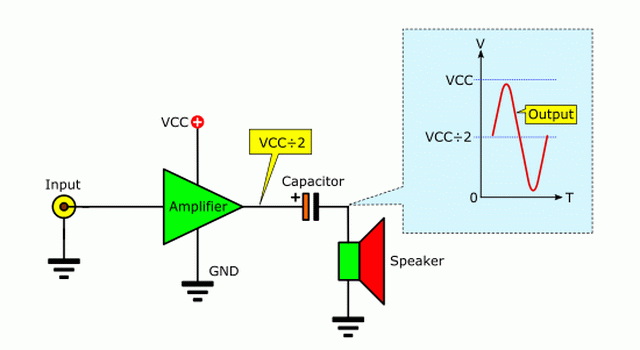

Principle: Higher V_CC expands the linear operating region, allowing larger output swings.

- Trade-Off: Power dissipation (P_D=I_C×V_CE) increases, requiring robust heat sinks.

- Guideline: Stay within 75% of the transistor's maximum V_CE rating to avoid breakdown.

7. Multi-Stage Amplification

For Extreme Gain Requirements: Cascade a preamplifier with the Class AB stage.

- Preamplifier Options:

a. Op-amp (e.g., NE5532): Configured in non-inverting mode with gain Av1=1+R2/R1R2.

b. Differential Pair: Provides high input impedance and common-mode noise rejection.

- Total Gain: A_v(total)=A_v1×A_v2, where A_v2 is the Class AB stage's gain.

8. Select High-Frequency Transistors

For RF Applications (>20 kHz):

- Key Parameter: Transition frequency (fT), the frequency at which current gain drops to 1.

- Recommended Transistors: 2N5109 (fT=1.2 GHz) or MRF237 (fT=500 MHz).

9. Minimize Parasitic Capacitance

Problem: Stray capacitance at the base or collector nodes limits high-frequency gain.

Mitigation Strategies:

- Use surface-mount components to reduce lead lengths.

- Route high-impedance traces away from ground planes.

- Add ferrite beads to suppress RF oscillations.

10. Test and Validate Modifications

Critical Steps:

1. Measure Baseline Gain: Apply a 1 kHz sine wave and calculate Av=V_out/V_in.

2. Check Stability: Use a square wave input to identify ringing or oscillation.

3. Thermal Testing: Monitor output distortion as the amplifier heats up.

Conclusion

Boosting small signal gain in Class AB amplifiers requires a systematic approach: eliminating AC feedback, optimizing biasing, and selecting components for high β and thermal stability. By implementing these strategies—such as bypassing emitter resistors, using Darlington pairs, and cascading stages—you can achieve significant gains while maintaining linearity and efficiency.

FAQ

1. How do bypass capacitors improve gain?

Bypass capacitors short-circuit AC signals around resistive elements (e.g., emitter resistors), reducing impedance and minimizing negative feedback. This increases the effective gain by allowing more signal current to reach the output.

2. Why does temperature affect transistor gain?

Rising temperature reduces carrier mobility in the transistor's base region, lowering current gain (β). Temperature compensation circuits adjust bias voltages to counteract this effect.

3. Can I use Darlington pairs in RF amplifiers?

Yes, but ensure the transistors have a high transition frequency (fT) to maintain gain at RF ranges. Darlington configurations may introduce additional phase lag, requiring careful stability analysis.

4. What causes oscillations in high-gain amplifiers?

Parasitic capacitance and inductance can create unintended feedback paths, leading to oscillations. Mitigate this by minimizing trace lengths, adding decoupling capacitors, and using ferrite beads.

5. How do I choose the right supply voltage?

Select V_CC based on the desired output swing and transistor ratings. Ensure V_CC is at least double the peak output voltage to avoid clipping.
