A 4-way signal amplifier is a specialized electronic device designed to enhance and distribute a single input signal, such as a television antenna or cable feed, to four separate outputs. This process ensures that each connected device receives a strong, clear signal, minimizing the degradation that typically occurs when splitting a signal multiple times. These amplifiers are commonly used in both residential and commercial settings where multiple televisions or radios require a reliable signal source.
The core function of a 4-way signal amplifier is to compensate for the inherent loss that occurs when a signal is split among several outputs. Without amplification, each split reduces the signal strength, potentially leading to poor picture quality, pixelation, or complete signal loss. The amplifier boosts the signal before distributing it, ensuring consistent performance across all connected devices.
Modern 4-way amplifiers are equipped with features such as built-in filters to block interference from mobile networks, adjustable gain controls for fine-tuning signal strength, and robust housings for installation in various environments. They are compatible with a range of signal types, including analog and digital television (DVB-T/T2), FM radio, and digital audio broadcasting (DAB/DAB+).
Installing a 4-way signal amplifier offers several significant advantages:
- Enhanced Signal Quality: By amplifying the signal before distribution, you maintain high-quality reception on all connected devices, even over long cable runs.
- Multiple Device Support: Easily connect up to four televisions or radios to a single antenna or cable feed without sacrificing performance.
- Future-Proofing: As your entertainment needs grow, a 4-way amplifier provides the flexibility to add more devices without additional infrastructure.
- Reduced Interference: Many amplifiers include filters to block unwanted signals from mobile phones or other electronic devices, ensuring cleaner reception.
- Cost-Effective Solution: Instead of installing multiple antennas or cable feeds, a single amplifier allows for efficient signal distribution throughout your home or office.
Before beginning the installation, gather the following tools and materials:
Tools:
- Coaxial cable stripper or utility knife for preparing cables
- Side cutters for trimming excess wire
- 11mm spanner or pliers for tightening F-connectors
- Screwdriver and wall plugs for mounting the amplifier
- Voltage tester (optional, for safety checks)
Materials:
- 4-way signal amplifier (distribution amplifier)
- Power supply unit (if not integrated with the amplifier)
- High-quality coaxial cables (preferably RG-6 for optimal signal transmission)
- F-connectors or other compatible coaxial connectors
- Insulating tape (optional, for added protection)
- Wall mounting screws and anchors
- 75-ohm dummy loads for terminating unused outputs
Selecting the optimal location for your amplifier is crucial to achieving the best performance. Ideally, install the amplifier as close to the signal source (antenna or cable feed) as possible. This minimizes the length of unamplified cable, reducing the risk of signal loss. Common installation sites include attics, utility rooms, or centrally located cupboards.
Ensure the chosen location is dry, well-ventilated, and easily accessible for future maintenance. Avoid areas exposed to extreme temperatures, moisture, or direct sunlight, as these conditions can shorten the amplifier's lifespan.
Carefully measure and cut the coaxial cables needed to connect the signal source, amplifier, and each output device. Use a coaxial cable stripper or utility knife to remove the outer insulation, exposing the inner conductor and shielding. Attach F-connectors securely to each cable end, ensuring a tight fit to prevent signal leakage or interference.
Double-check that all cables are free from kinks, sharp bends, or damage, as these can degrade signal quality. For best results, use high-quality RG-6 cables, which offer superior shielding and conductivity compared to older RG-59 cables.
Secure the amplifier to a wall or other stable surface using the provided mounting hardware. Most amplifiers feature keyhole slots for easy installation. Allow at least 25mm of clearance around the unit for proper ventilation. If mounting in an enclosed space, ensure adequate airflow to prevent overheating.
Position the amplifier so that all cables can be routed neatly and without excessive tension. Use cable clips or ties to organize and secure the cables, reducing the risk of accidental disconnection or damage.

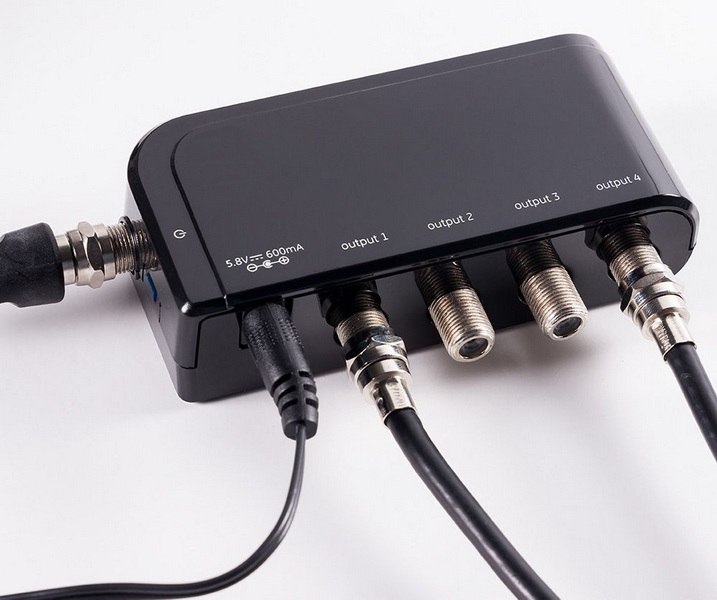

Begin by connecting the incoming signal cable from your antenna or cable feed to the amplifier's input port. Next, attach up to four coaxial cables to the output ports, running each cable to a different television or radio point. If you are not using all four outputs, terminate the unused ports with 75-ohm dummy loads to prevent signal reflection and maintain optimal performance.
Ensure all connections are tight and secure. Loose connectors can introduce noise, cause signal loss, or even damage the amplifier over time.
Plug the amplifier's power adapter into a nearby mains socket. Some amplifiers feature integrated power supplies, while others require a separate unit. For masthead amplifiers, the power supply may be located at one of the TV outlets, sending power up the coaxial cable to the amplifier itself.
Once powered, check the amplifier's LED indicator. A steady light typically signals normal operation, while a flashing or unlit LED may indicate a power issue or a short circuit in the coaxial network.
Turn on each connected device and assess the signal quality. Perform a channel scan on your televisions or radios to ensure all available channels are detected. If you notice any issues, such as missing channels or poor picture quality, revisit your connections and settings to identify and resolve the problem.
Proper planning is essential for a successful signal amplifier installation. Consider the following factors when designing your distribution network:
- Cable Lengths: Keep cable runs as short as possible to minimize signal loss. Use high-quality cables for longer distances.
- Device Placement: Strategically locate televisions and radios to reduce the need for long or convoluted cable paths.
- Future Expansion: Plan for potential future devices by installing additional coaxial outlets or leaving spare cables in place.
- Signal Source Quality: Ensure your antenna or cable feed provides a strong, stable signal before amplification. Amplifiers cannot compensate for extremely weak or poor-quality input signals.
To maximize the performance and reliability of your 4-way signal amplifier, consider these advanced tips:
- Use Adjustable Gain Amplifiers: Some models allow you to fine-tune the amplification level. Adjust the gain to suit your specific signal conditions, avoiding both under- and over-amplification.
- Install Surge Protection: Protect your amplifier and connected devices from power surges by using surge-protected outlets or inline surge protectors.
- Label Cables and Outlets: Clearly label each cable and outlet to simplify troubleshooting and future upgrades.
- Ground the System: Proper grounding can reduce the risk of electrical interference and enhance safety. Consult local electrical codes or a professional installer for guidance.
- Avoid Daisy-Chaining Amplifiers: Using multiple amplifiers in series can lead to signal distortion or overload. If additional amplification is needed, use distribution amplifiers designed for cascading.
Even with careful installation, issues can occasionally arise. Here are common problems and solutions:
- No Signal or Poor Reception: Check all cable connections, ensure the amplifier is powered, and verify the input signal quality. Replace damaged cables or connectors as needed.
- Interference or Noise: Use amplifiers with built-in LTE or GSM filters to block unwanted signals from mobile devices. Ensure cables are properly shielded and routed away from sources of electrical interference.
- Over-Amplification: If the signal is too strong, it can overload your televisions or radios, causing distortion or loss of channels. Reduce the gain if your amplifier allows, or consider using an attenuator.
- Uneven Signal Distribution: If some devices receive a weaker signal than others, check for cable length discrepancies or faulty connectors. Balancing cable lengths and using high-quality materials can help ensure uniform performance.
To keep your 4-way signal amplifier functioning optimally for years to come, follow these maintenance tips:
- Periodic Inspection: Regularly check all connections for signs of corrosion, wear, or loosening. Tighten or replace connectors as needed.
- Dust and Debris Removal: Keep the amplifier and surrounding area clean and free from dust, which can accumulate and impede ventilation.
- Monitor Signal Quality: Occasionally test the signal strength and quality at each output device. Address any decline in performance promptly to prevent further issues.
- Firmware Updates: Some advanced amplifiers may offer firmware updates to enhance performance or add features. Consult the manufacturer's website for information.
- Disconnect Power: Always unplug the amplifier and any connected devices before working on the installation to prevent electrical shock.
- Avoid Moisture: Do not install the amplifier in damp or wet locations. Use weatherproof enclosures for outdoor installations.
- Use Proper Tools: Employ the correct tools for stripping and connecting cables to avoid damaging the conductors or shielding.
- Follow Manufacturer Instructions: Adhere to the guidelines provided by the amplifier manufacturer to ensure safe and effective installation.
- Seek Professional Help if Needed: If you encounter complex wiring scenarios or are unsure about any aspect of the installation, consult a qualified technician.
Installing a 4-way signal amplifier is a practical and effective solution for distributing high-quality TV and radio signals throughout your home or office. By carefully planning your installation, using the right tools and materials, and following best practices, you can enjoy clear, reliable reception on multiple devices. Regular maintenance and attention to detail will ensure your amplifier continues to perform at its best for years to come. Whether you're upgrading your entertainment setup or addressing signal issues, a 4-way amplifier is a valuable addition to any modern signal distribution network.
A 4-way signal amplifier boosts and splits a single input signal into four outputs, ensuring each connected device receives a strong, clear signal without the typical loss associated with splitting.
Yes, a 4-way amplifier can help improve weak signals, but it works best when the input signal is of reasonable quality. If your source signal is extremely weak, consider upgrading your antenna or consulting a professional.
Many modern amplifiers include built-in filters to block interference from mobile networks. Using high-quality, shielded cables and proper grounding can also minimize interference.
Yes, terminating unused outputs with 75-ohm dummy loads helps prevent signal reflection and maintains optimal performance for the connected devices.
If over-amplification occurs, reduce the gain if your amplifier has adjustable settings, or use an attenuator to decrease the signal strength to appropriate levels for your devices.
