Creating a signal indicator can be a fun and rewarding DIY project, whether you're looking to enhance your vehicle's visibility or add a unique feature to your bicycle. In this article, we'll explore various methods and materials you can use to make a signal indicator, including flashing LED arrays and sequential turn signals.
Signal indicators are essential for safe and effective communication on the road. They help drivers and cyclists signal their intentions to turn or change lanes, reducing the risk of accidents. Traditional signal indicators use bulbs or LEDs, but with modern electronics, you can create custom indicators that are more efficient and visually appealing.
A basic signal indicator consists of several key components:
- Light Source: This is typically an LED or bulb that provides the visual signal.
- Switch: A switch is used to activate the indicator.
- Circuit: The circuit connects the switch to the light source and may include additional components like resistors or timers for flashing effects.
- Mounting: The indicator needs to be securely mounted on the vehicle.
For cyclists, a simple turn signal can be made using LEDs and a basic circuit. Here's a step-by-step guide:
- LEDs: Use bright, colored LEDs for visibility.
- Resistors: To limit current to the LEDs.
- Switch: A simple SPDT toggle switch works well.
- Arduino or Timer IC: Optional for more complex flashing patterns.
- Wood or Acrylic Panel: For mounting the LEDs.
1. Design the LED Array: Arrange LEDs in a pattern that is visible from the side and rear.
2. Solder the LEDs: Connect LEDs in series or parallel depending on your design.
3. Add Resistors: Use resistors to protect the LEDs from excessive current.
4. Connect the Switch: Wire the switch to activate the LEDs.
5. Mount the Indicator: Attach the LED array to a wooden or acrylic panel and mount it on your bike.
This project is relatively simple and can be completed with basic electronics knowledge. It's a great way to enhance safety while cycling, especially in low-light conditions.

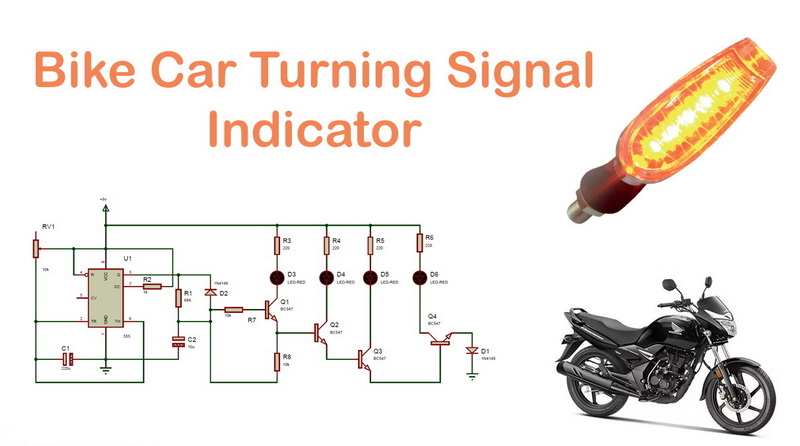

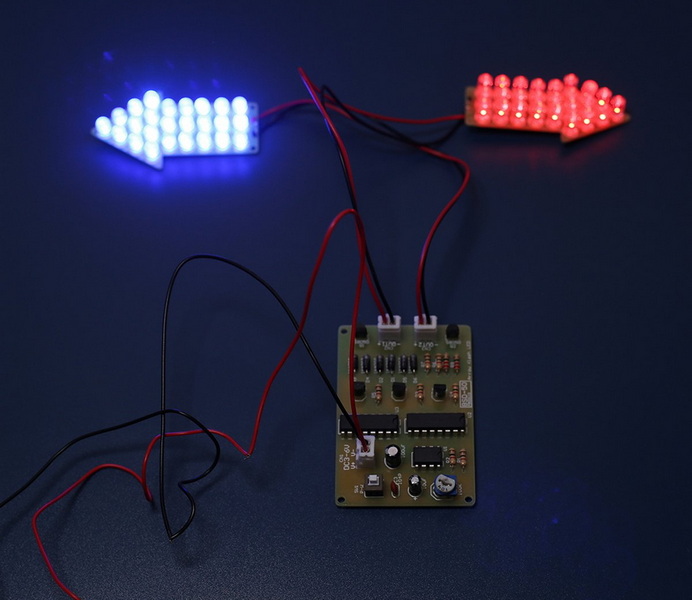

For a more advanced project, you can create a sequential turn signal indicator using a CD4094 IC and a 555 timer. This setup allows the LEDs to light up in sequence, creating a sweeping effect.
- CD4094 IC: For sequential logic.
- 555 Timer IC: For timing the sequence.
- BC547 Transistor: To amplify the signal.
- LEDs: Eight LEDs for the sequential effect.
- Resistors: Various resistors for current limiting and voltage division.
1. Connect the LEDs: Wire the LEDs in a sequence with resistors.
2. Configure the CD4094 IC: Connect the IC to control the sequence.
3. Add the 555 Timer: Use the timer to set the timing of the sequence.
4. Mount the Circuit: Secure the circuit on a PCB or breadboard.
This project requires more advanced electronics knowledge but offers a unique visual effect that can enhance your vehicle's style and visibility.

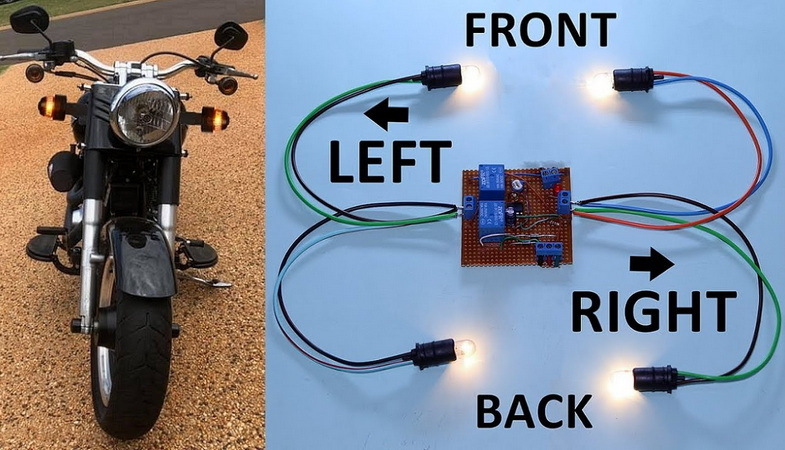

For vehicles, a 12V relay can be used to create a robust turn signal system. This method is simpler and more reliable for high-power applications.
- 12V Relay: To handle the high current.
- 12V Bulb or LED: As the light source.
- Switch: A simple on/off switch.
- Resistors: Optional for LED protection.
1. Connect the Relay: Wire the relay to the switch and light source.
2. Add Resistors: If using LEDs, add resistors to limit current.
3. Mount the Relay: Secure the relay in a safe location.
Relays are particularly useful in automotive applications because they can handle high currents without overheating or failing prematurely.
When designing custom signal indicators, consider both functionality and aesthetics. Here are some tips:
- Choose Bright LEDs: Brighter LEDs are more visible from a distance.
- Select Appropriate Colors: Use colors that are legal and visible in your region.
- Consider Power Efficiency: Use low-power components to reduce battery drain.
- Ensure Durability: Use materials that can withstand weather conditions.
Custom designs can also incorporate additional features like flashing patterns or sequential lighting, which can enhance visibility and style.
When building a signal indicator, you might encounter a few common issues:
- LEDs Not Lighting Up: Check connections and ensure the circuit is complete.
- LEDs Burning Out: Verify that resistors are correctly sized to limit current.
- Relay Not Triggering: Check the relay's voltage and ensure it matches your circuit.
Troubleshooting involves checking each component and connection to identify where the issue lies.
Safety is paramount when working with electronics. Always follow these guidelines:
- Use Protective Gear: Wear gloves and safety glasses to prevent injury.
- Work in a Well-Ventilated Area: Avoid inhaling solder fumes.
- Keep Children Away: Electrical components can be hazardous if mishandled.
By taking these precautions, you can ensure a safe and successful DIY experience.
Creating a signal indicator can be a fun and rewarding DIY project. Whether you're enhancing your bicycle or vehicle, these indicators improve safety and visibility. With a little creativity and some basic electronics knowledge, you can create custom signal indicators that are both functional and visually appealing.
Indicator lights are typically made from plastic, metal, or a combination of both. Plastic is lightweight and cost-effective, while metal offers greater durability and heat resistance.
Choose LEDs based on brightness, color, and power requirements. Brighter LEDs are more visible, and colored LEDs can match your vehicle's style. Ensure the LEDs are compatible with your circuit's voltage and current.
A relay acts as a switch for high-current devices like bulbs or high-power LEDs. It isolates the control circuit from the load, ensuring reliability and reducing wear on the switch.
Check local regulations regarding indicator brightness, color, and visibility. Ensure your indicator is visible from required angles and does not obstruct other safety features.
Always use protective gear like gloves and safety glasses. Ensure your workspace is well-ventilated, and avoid touching electrical components with wet hands. Use a soldering iron safely, keeping it away from flammable materials.
