Replacing a fuel tank pressure sensor is a crucial maintenance task that ensures your vehicle's evaporative emission system functions correctly. This sensor monitors the pressure inside the fuel tank and helps detect leaks, which is vital for both vehicle performance and environmental compliance. This comprehensive guide will walk you through the process of replacing a fuel tank pressure sensor, including tools needed, step-by-step instructions, testing, troubleshooting tips, and additional insights to deepen your understanding of this essential component.

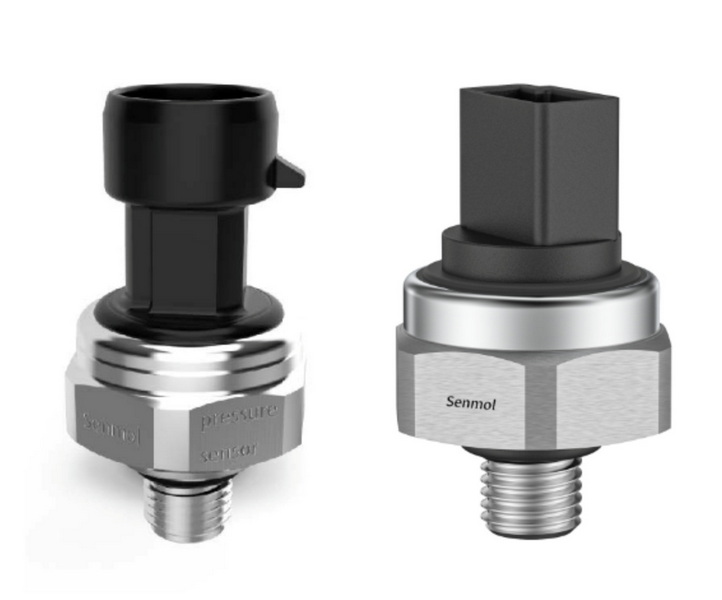

The fuel tank pressure sensor (FTP sensor) measures the absolute pressure inside the fuel tank and sends this data to the vehicle's engine control module (ECM). It is a key component of the Evaporative Emission Control (EVAP) system, which prevents fuel vapors from escaping into the atmosphere. When the sensor malfunctions, it can trigger diagnostic trouble codes (DTCs) such as P0451, P0452, or P0453, leading to poor fuel efficiency, trouble starting, or stalling.
The sensor essentially acts as the "nose" of the EVAP system, sniffing out pressure changes that indicate leaks or blockages. By monitoring pressure fluctuations during refueling, engine operation, and vehicle shutdown, it helps maintain the integrity of the fuel system and ensures compliance with emissions regulations.
Understanding how the sensor works will help you appreciate why it's important to replace it when faulty. The sensor contains a pressure-sensitive element that detects changes in the pressure inside the fuel tank. This pressure is affected by fuel vapor expansion, temperature changes, and fuel level.
- Normal Operation: When the fuel tank is sealed and intact, the sensor reads stable pressure values that correspond to atmospheric pressure or slight vacuum conditions.
- Leak Detection: If there is a leak in the EVAP system, the sensor detects abnormal pressure drops or increases, signaling the ECM to trigger a fault code.
- During Refueling: The sensor monitors pressure changes to prevent fuel vapor release and ensure proper vapor recovery.
- During Engine Off: The sensor helps confirm the system is sealed by monitoring pressure over time.
If the sensor fails or gives inaccurate readings, the ECM cannot properly monitor the EVAP system, leading to emissions failures and potential drivability issues.
Before starting the replacement process, gather the following tools and materials:
- New fuel tank pressure sensor compatible with your vehicle model
- Screwdrivers (flathead and Phillips)
- Needle-nose pliers
- Pry bar or trim removal tool
- Socket set and ratchet
- Vehicle jack and jack stands (if needed)
- Diagnostic scan tool or OBD-II reader
- Multimeter (for sensor testing)
- Safety gloves and glasses
- Fuel system cleaner (optional, for cleaning sensor port)
- Shop towels or rags
Having all tools ready before you begin will make the process smoother and safer.
- Park your vehicle on a flat surface and engage the parking brake.
- Disconnect the negative battery terminal to prevent electrical shorts or shocks.
- Wear safety glasses and gloves to protect yourself from fuel vapors and debris.
- Work in a well-ventilated area to avoid inhaling fuel vapors.
The sensor is usually located on or near the fuel tank or fuel rail. In many vehicles, it is mounted on the fuel tank shield or attached directly to the tank itself. You may need to lift the vehicle using a jack and secure it with jack stands to access the sensor safely.
Tip: Consult your vehicle's service manual or online resources for the exact location of the sensor on your model.
Before removing the sensor, it's critical to relieve the fuel system pressure to avoid fuel spray and potential injury. This can be done by:
- Removing the fuel pump fuse or relay and starting the engine. The engine will run until it stalls, indicating pressure is relieved.
- Alternatively, use the fuel pressure relief valve on the fuel rail if your vehicle has one.
Always wear gloves and eye protection during this step.
Unplug the electrical connector from the sensor carefully. Use needle-nose pliers if needed to release clips without damaging the wiring. Inspect the connector for corrosion, dirt, or bent pins and clean if necessary.
Depending on the design, the sensor may be secured with clips, screws, or simply press-fitted. Gently pry the sensor out of its mounting hole using a pry bar or your hands. Be cautious not to damage the sensor housing or surrounding components.
Note: Some sensors have a rubber grommet or seal that may remain in the tank or sensor housing when removed.
If the old grommet or seal did not come out with the sensor, use pliers to carefully remove it. Inspect the grommet for cracks or damage. Replacing the grommet is essential to ensure a proper seal for the new sensor.
Before installing the new sensor, clean the sensor mounting hole or port with a shop towel or fuel system cleaner to remove dirt, debris, or corrosion. This ensures a tight seal and accurate sensor readings.
Insert the new sensor into the mounting hole, ensuring it fits snugly and the grommet or seal is properly seated. Press it down firmly but gently until it is fully seated. Avoid forcing it, which could damage the sensor or grommet.
Attach the electrical connector to the new sensor until you hear or feel a click, indicating a secure connection. Double-check that the connector is firmly attached and the wiring is not pinched or stressed.
If you lifted the vehicle, safely lower it back to the ground. Reinstall any shields or straps you removed during the process. Reconnect the negative battery terminal.
Turn the ignition to the "ON" position without starting the engine. Use a diagnostic scan tool to check the sensor readings and clear any existing trouble codes. Verify the sensor outputs are within the expected range (usually around 1.3 to 1.7 volts for atmospheric pressure).
Start the engine and monitor the sensor readings with the scan tool to ensure proper operation. Take the vehicle for a short test drive to confirm the check engine light remains off and the vehicle runs smoothly.
- Use OEM Parts: Always use original equipment manufacturer (OEM) sensors or high-quality aftermarket parts to ensure compatibility and durability.
- Inspect Wiring Harness: While replacing the sensor, inspect the wiring harness for damage or corrosion. Repair or replace damaged wiring to avoid future sensor faults.
- Avoid Fuel Vapor Exposure: Fuel vapors are hazardous. Keep a fire extinguisher nearby and avoid sparks or open flames during the replacement process.
- Handle Sensor Carefully: The fuel tank pressure sensor is a sensitive electronic component. Avoid dropping or exposing it to moisture.
- Clear Codes After Replacement: Always clear diagnostic trouble codes after replacing the sensor to reset the ECM and monitor for new faults.
Testing the sensor before or after replacement can save time and money. Here's how:
- Connect the scan tool to the OBD-II port.
- Access live data and locate the fuel tank pressure sensor reading.
- At atmospheric pressure, the sensor voltage should be approximately 1.3 to 1.7 volts.
- Apply vacuum or pressure (if possible) and observe sensor response; it should change smoothly and proportionally.
- Disconnect the sensor connector.
- Set the multimeter to measure resistance or voltage as per sensor specifications.
- Check for continuity and compare readings against the vehicle's service manual.
- Abnormal readings indicate a faulty sensor needing replacement.
- Sensor Won't Fit Properly: Check if the old grommet was removed; sometimes it stays stuck in the tank. Replace or reposition the grommet as needed.
- Electrical Connector Won't Click: Inspect for bent pins or debris inside the connector. Clean and realign pins before reconnecting.
- Check Engine Light Remains On: Use a scan tool to clear codes. If the light returns, verify sensor wiring and sensor functionality.
- Fuel Odor or Leak: Ensure the sensor and grommet are properly sealed to prevent vapor leaks.
- Sensor Reading Out of Range: Test sensor voltage with a multimeter and compare with manufacturer specifications.
Knowing when to replace the sensor can prevent costly repairs and emissions failures. Consider replacement if you experience:
- Persistent check engine light with EVAP-related trouble codes (P0451, P0452, P0453).
- Noticeable drop in fuel economy or engine performance issues.
- Difficulty starting or stalling after refueling.
- Failed emissions test due to EVAP system leaks.
- Physical damage or corrosion on the sensor or connector.
Replacing the fuel tank pressure sensor is a manageable DIY task with the right tools and precautions. This sensor plays a vital role in monitoring fuel tank pressure and maintaining the integrity of the EVAP system. Proper replacement and testing will restore your vehicle's performance and reduce emissions. Always follow safety guidelines and consult your vehicle's service manual for model-specific instructions. By maintaining this sensor, you help ensure your vehicle runs efficiently, cleanly, and reliably.
Common symptoms include the check engine light turning on, trouble starting the engine, poor fuel economy, and sometimes stalling. Diagnostic trouble codes like P0451, P0452, or P0453 may be stored.
The typical cost ranges around $150 to $330, including parts and labor. Parts usually cost about $158, and labor can be up to $170 depending on the vehicle and location.
While you can drive for a short time, a faulty sensor may cause poor engine performance and increased emissions. It is advisable to replace it promptly to avoid further issues.
If you have basic mechanical skills and tools, replacing the sensor is straightforward. Accessing the sensor may require lifting the vehicle and careful handling of fuel system components.
Use a diagnostic scan tool to read sensor voltage output. Typical atmospheric pressure readings are between 1.3 to 1.7 volts. You can also use a multimeter to check sensor resistance and voltage.
