An in line USB signal indicator is a device or component integrated within a USB cable or connection path that visually or audibly signals the status of the USB connection, data transmission, or power flow. This article explores the purpose, types, working principles, applications, and benefits of in line USB signal indicators, supported by detailed explanations to enhance understanding.

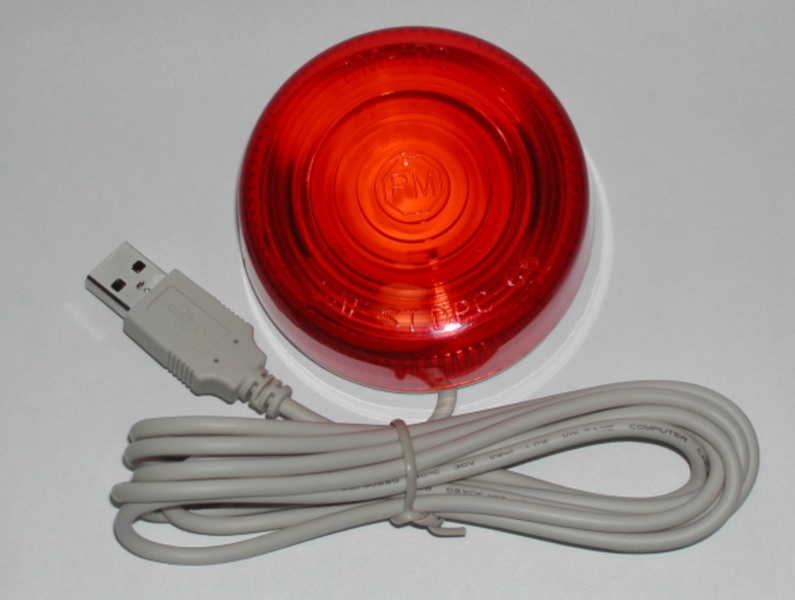

An in line USB signal indicator is typically a small LED or multi-color LED device embedded within or attached to a USB cable or connector. It provides real-time feedback on the USB connection status, such as power availability, data transmission activity, or device connection status. These indicators help users quickly identify whether a USB device is properly connected, powered, or actively communicating with the host device.
The term "in line" refers to the fact that the indicator is placed directly within the USB cable or connection path, rather than being a separate external device. This integration allows for immediate and convenient status monitoring without additional equipment.
The in line USB signal indicator works by monitoring the electrical signals on the USB cable lines:
- Power Line Monitoring: The indicator detects the presence of 5V power on the USB cable's power line (usually the red wire). When power is present, the LED lights up, indicating the cable is energized. This is the most basic and common function of these indicators.
- Data Line Activity: Some advanced indicators monitor the data lines (D+ and D-) for data transmission activity. The LED may blink or change color to show data transfer, providing a dynamic indication that communication is occurring between the host and the device.
- Device Connection Status: Certain indicators can detect when a USB device is plugged in or removed, providing a visual cue of connection status. This is particularly useful in environments where multiple devices are connected and disconnected frequently.
The indicator is powered directly from the USB bus, requiring no external power source, making it a self-contained diagnostic tool. This design ensures that the indicator does not interfere with the normal operation of the USB connection.
There are several types of in line USB signal indicators, each designed for specific purposes:
| Type | Description | Features |
|---|---|---|
| Single Color LED Indicator | Shows basic power presence with a single LED color (usually green or red). | Simple, low cost, power-only indication. |
| Multi-Color LED Indicator | Uses multiple LED colors to indicate power, data activity, or errors. | More informative, can show multiple states. |
| Audible Signal Indicator | Includes a piezo buzzer for sound alerts in addition to LEDs. | Useful for noisy environments or alerts. |
| Field Calibratable Signal Conditioner | Converts analog sensor signals to USB digital output with visual feedback. | Used in industrial or measurement applications. |
These are the most common and simplest form of in line USB signal indicators. They typically use a single LED that lights up when power is detected on the USB cable. This type is ideal for basic troubleshooting, such as confirming that a USB port is supplying power or that a cable is properly connected.
Multi-color LED indicators provide more detailed information by using different colors or blinking patterns. For example, a green light might indicate power presence, a blue light might indicate data transfer, and a red light could signal an error or fault condition. These indicators are often programmable and can be customized to suit specific applications.
In some cases, visual indicators are supplemented with audible alerts. These devices include a small buzzer or speaker that emits sounds to notify users of connection status changes, errors, or data activity. Audible indicators are particularly useful in environments where visual monitoring is difficult or when immediate attention is required.

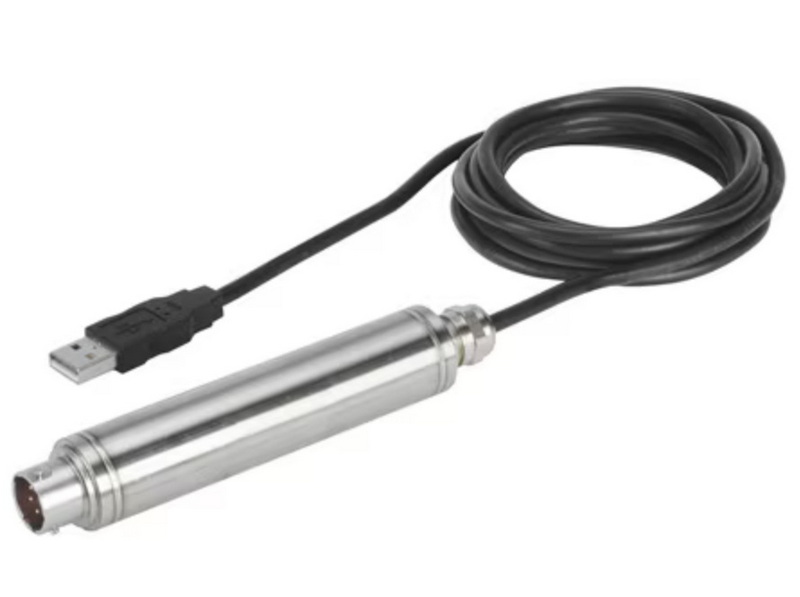

These are specialized devices used in industrial and scientific applications. They convert analog sensor signals into USB digital signals and provide visual feedback through in line indicators. Such devices are essential for precise measurement and calibration tasks, ensuring accurate data transmission and device operation.
In line USB signal indicators are used in various fields and devices:
- Consumer Electronics: To show power and data activity on USB charging cables, hubs, and peripherals. For example, a smartphone charging cable with an in line LED indicator can show whether the device is charging or if data is being transferred.
- Industrial Measurement: Devices like the IN-USBH signal conditioner convert sensor outputs to USB signals with visual feedback for calibration and monitoring. This application is critical in environments where precise data acquisition is necessary.
- Computer Peripherals: Indicate connection status of USB devices such as flash drives, keyboards, and mice. This helps users quickly identify if a device is recognized and functioning properly.
- Remote Recording Systems: Visual indicators help operators know recording status without looking at the screen, which is especially useful in live broadcast or field recording scenarios.
- DIY Electronics Projects: Hobbyists add LED indicators to USB cables to troubleshoot power and data issues, enhancing their ability to diagnose problems quickly.
Additionally, in line USB signal indicators are increasingly used in automotive USB charging systems, medical devices, and embedded systems where reliable USB communication is critical.
Using an in line USB signal indicator offers several advantages:
- Instant Visual Feedback: Users can immediately confirm if power is supplied or data is being transmitted without needing to open software or check device settings.
- Troubleshooting Aid: Helps identify faulty cables, adapters, or USB ports by showing whether power or data signals are present.
- User Convenience: Reduces guesswork in device connection and operation, making USB devices more user-friendly.
- Enhanced Safety: Prevents damage by alerting users to improper connections or power issues, such as overcurrent or short circuits.
- Programmability: Advanced indicators can be customized for specific signaling needs, allowing integration into complex systems.
- Cost-Effective: Adding a simple LED indicator is a low-cost way to improve device usability and reliability.
- Non-Intrusive: Since these indicators draw power from the USB bus and do not interfere with data lines, they maintain the integrity of the USB connection.
- When adding an in line USB signal indicator to a cable, ensure correct wiring to the power and data lines. Incorrect wiring can cause the indicator to malfunction or interfere with USB operation.
- Use indicators compatible with USB 2.0 or USB 3.0 standards depending on your device. USB 3.0 cables have additional data lines and different wiring, so ensure the indicator supports the correct standard.
- For DIY projects, soldering skills and multimeter testing are recommended to verify connections. Proper insulation and strain relief should be applied to prevent damage.
- Use software tools provided by manufacturers (e.g., OMEGA PC software for IN-USBH) to calibrate and monitor signal indicators, especially in industrial applications.
- Avoid placing indicators where they may interfere with cable flexibility or connector fit. Compact and low-profile indicators are preferable for portable devices.
- Regularly inspect the indicator and cable for wear or damage, especially in high-use environments.
An in line USB signal indicator is a valuable tool for monitoring USB cable and device status. Whether used for simple power indication or complex data activity signaling, these indicators enhance user experience by providing immediate visual or audible feedback. They are widely applicable in consumer electronics, industrial measurement, and DIY electronics, offering benefits such as troubleshooting ease, safety, and convenience. With the increasing reliance on USB connections in everyday technology, integrating or using in line USB signal indicators is a practical approach to ensure reliable device operation and user confidence.
An in line USB signal indicator typically shows power presence, data transmission activity, and device connection status through LED lights or sounds.
Yes, but it requires basic knowledge of USB wiring and soldering. The indicator must be connected correctly to the power and/or data lines to function properly.
Many indicators are designed for USB 2.0 but can work with USB 3.0 cables if connected to the appropriate lines. Always check the product specifications for compatibility before use.
No, they are powered directly from the USB bus and do not require an external power source, making them convenient and self-contained.
They are used in consumer electronics, industrial sensors, computer peripherals, remote recording systems, automotive USB chargers, medical devices, and DIY electronics projects.
