The Rosemount 751 Field Signal Indicator remains a significant device in industrial process measurement and control. This article explores its current usage, features, applications, and relevance in modern industrial environments. We will provide a comprehensive overview of the device's design, operation, and practical applications, followed by a conclusion and a FAQ section addressing common questions about the 751 Field Signal Indicator.

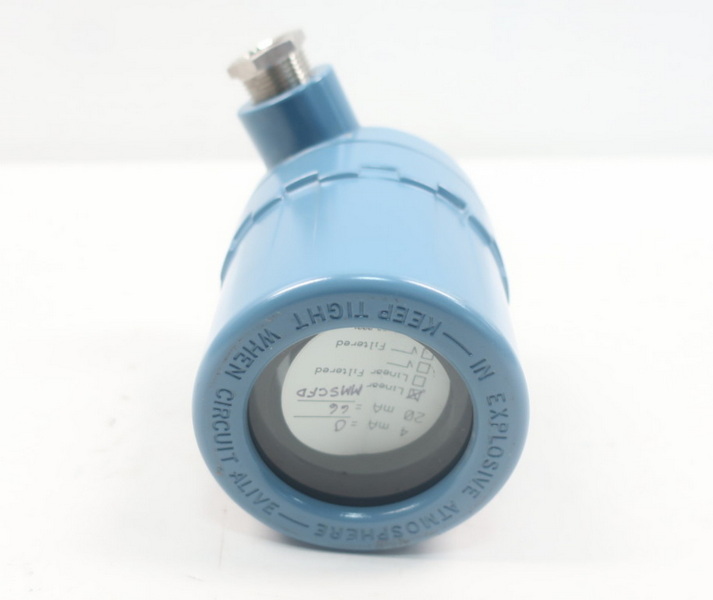

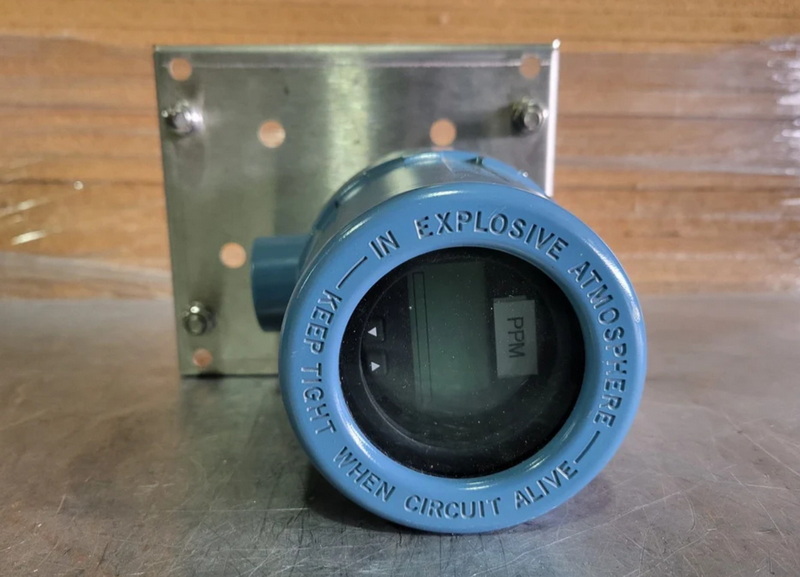

The 751 Field Signal Indicator is a rugged, compact device designed to display critical process variables such as pressure, flow, liquid level, and temperature. It operates with any two-wire transmitter that outputs a 4–20 mA signal, making it versatile for various industrial applications. The device is known for its durability, corrosion resistance, and availability in explosion-proof and intrinsically safe versions, suitable for harsh environments.
Originally introduced decades ago by Rosemount (now part of Emerson), the 751 has become a staple in many industrial plants worldwide. Its straightforward design and reliable performance have made it a trusted instrument for operators who need immediate, local indication of process variables without relying on centralized control systems.
The 751 Field Signal Indicator offers a range of features that have contributed to its longevity and continued use:
- Compatibility: Works with any two-wire transmitter measuring pressure, flow, liquid level, or temperature. This universal compatibility means it can be integrated into a wide variety of process control systems.
- Display Options: Available with an LCD display or an analog meter. The LCD version provides a clear digital readout, while the analog meter offers a traditional needle display for quick visual assessment.
- Configurable Range: The LCD display can be configured from a 4 mA point of –999 to 20 mA point of 9999, with linear or square-root response. This flexibility allows it to accurately represent different types of measurements, including flow rates that require square-root extraction.
- Bar Graph Display: A 20-segment bar graph visually represents the 4–20 mA signal, providing an intuitive, at-a-glance indication of process status.
- Mounting Flexibility: The meter can be rotated in 90-degree increments for optimal viewing, whether mounted on panels, walls, or pipes.
- Durability: Vibration and corrosion-resistant, suitable for all-weather industrial environments. The housing is designed to withstand harsh conditions, including exposure to chemicals, moisture, and extreme temperatures.
- Safety Certifications: Explosion-proof and intrinsically safe models are available for hazardous locations, ensuring compliance with industry safety standards.
The device receives a 4–20 mA current signal from a two-wire transmitter. This signal corresponds to a measured process variable such as pressure or temperature. The indicator converts this signal into a readable value on its display, allowing operators to monitor process conditions directly in the field without needing to access a control room.
The LCD version allows for easy calibration using zero and span buttons on the meter faceplate. The display can show values with decimal points and engineering units, enhancing readability and precision. The analog version provides a continuous needle movement that is easy to interpret for quick status checks.
The 4–20 mA signal is a standard in industrial instrumentation because it is less susceptible to electrical noise and signal degradation over long cable runs. The 751 Field Signal Indicator leverages this standard to provide accurate, real-time local indication of process variables.
The 751 Field Signal Indicator is widely used in industries such as:
- Oil and Gas: Monitoring pressure and flow in pipelines and processing plants. The explosion-proof versions are particularly valuable in these environments where flammable gases and liquids are present.
- Water and Wastewater: Measuring liquid levels and flow rates in treatment facilities. The corrosion-resistant housing ensures longevity even in wet and chemically aggressive environments.
- Chemical Processing: Tracking temperature and pressure in reactors and storage tanks. The ability to configure the display for square-root extraction is useful for flow measurement in chemical processes.
- Power Generation: Monitoring steam pressure and temperature in boilers and turbines. The rugged design withstands vibration and temperature extremes common in power plants.
In addition to these industries, the 751 Field Signal Indicator is also found in food and beverage processing, pharmaceuticals, and manufacturing plants where reliable local indication is essential.
Installation involves mounting the indicator near the transmitter or process equipment. The device can be mounted on panels, walls, or pipes, with flexible orientation options for optimal visibility. The compact size and robust enclosure simplify installation in tight or harsh locations.
Configuration is straightforward:
1. Remove the housing and meter covers.
2. Use the faceplate buttons to set the 4 mA and 20 mA points according to the transmitter's output range.
3. Adjust the decimal point and engineering units as needed.
4. Secure the covers and verify the display readings.
The device's design allows for quick field calibration without specialized tools, reducing downtime and maintenance costs. Detailed manuals and approval drawings are provided by the manufacturer to ensure compliance with safety and installation standards.
The 751 Field Signal Indicator requires minimal maintenance due to its solid-state electronics and rugged construction. Periodic checks should include:
- Verifying the display accuracy against known reference signals.
- Inspecting the enclosure for signs of corrosion or damage.
- Ensuring the mounting hardware remains secure.
- Checking wiring connections for corrosion or looseness.
Common troubleshooting steps include:
- Confirming the transmitter is outputting the correct 4–20 mA signal.
- Resetting the zero and span calibration if the display is inaccurate.
- Replacing the indicator if the display or electronics fail, as the device is designed for easy replacement.
With the rise of digital communication protocols such as HART, Foundation Fieldbus, and wireless instrumentation, many plants are upgrading to smart transmitters and digital indicators. These modern devices offer enhanced diagnostics, remote configuration, and integration with plant-wide control systems.
However, the 751 Field Signal Indicator still holds a niche for several reasons:
- Simplicity: It provides a straightforward, no-frills local indication that does not require complex setup or network integration.
- Reliability: Its proven track record and rugged design make it dependable in environments where digital devices may be vulnerable.
- Cost: It is often more economical than upgrading to smart instrumentation, especially in plants with legacy systems.
- Safety: Explosion-proof and intrinsically safe models remain essential in hazardous areas where wireless or digital devices may not yet be approved or practical.
Many plants continue to use the 751 alongside newer technologies, leveraging its strengths for local indication while employing digital systems for centralized control and monitoring.
- Proven Reliability: Decades of field use with minimal maintenance.
- Cost-Effectiveness: Lower cost compared to some modern digital systems.
- Simplicity: Easy to install, configure, and read without complex interfaces.
- Safety: Certified for hazardous environments.
- Compatibility: Works with a wide range of two-wire transmitters.
- Visual Clarity: The bar graph and digital or analog display provide clear, immediate process feedback.
- Limited Digital Integration: Lacks advanced communication protocols like HART or wireless connectivity.
- Display Size: The LCD or analog display may be less informative than modern graphical interfaces.
- Manual Configuration: Requires physical access for calibration and setup.
- No Data Logging: Does not store historical data or provide trend analysis.
- Obsolescence Risk: As technology advances, replacement parts and support may become limited over time.
The Rosemount 751 Field Signal Indicator remains a valuable tool in industrial process monitoring. Its rugged design, safety certifications, and compatibility with standard two-wire transmitters ensure it continues to serve industries where reliability and simplicity are paramount. While newer technologies offer enhanced features, the 751's proven performance and cost-effectiveness keep it relevant in many applications today. For plants requiring dependable local indication in harsh or hazardous environments, the 751 Field Signal Indicator is still a trusted choice.
The 751 Field Signal Indicator displays process variables such as pressure, flow, liquid level, or temperature by interpreting the 4–20 mA signal from two-wire transmitters.
Yes, it is available with explosion-proof and intrinsically safe certifications, making it suitable for hazardous locations.
Configuration is done via buttons on the meter faceplate after removing the housing covers, allowing setting of the 4 mA and 20 mA points, decimal placement, and engineering units.
It operates with any two-wire transmitter that outputs a 4–20 mA signal measuring pressure, flow, liquid level, or temperature.
No, it primarily supports analog 4–20 mA signals and does not have built-in digital communication capabilities like HART or wireless.
