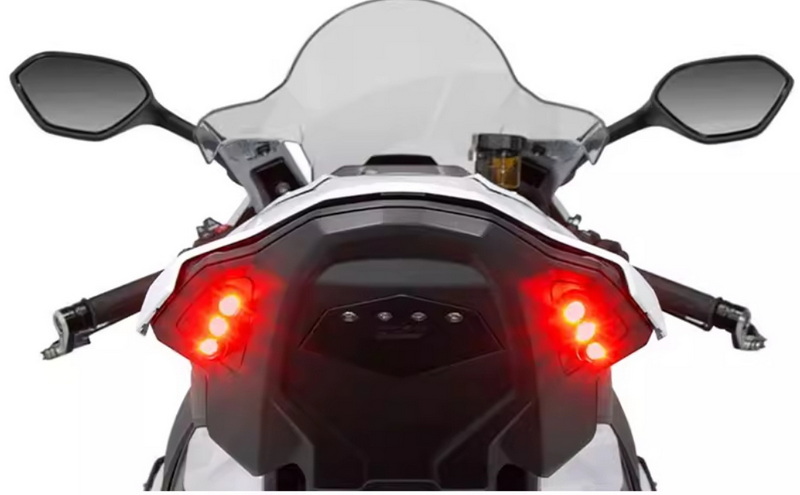

Replacing the turn signal indicator light on a Suzuki GSXR 1000 is a practical maintenance task that can be done at home with some basic tools and a bit of patience. This comprehensive guide will walk you through the entire process, from preparation to installation, including tips on choosing the right replacement parts and troubleshooting common issues. Throughout the article, we will focus on the Turn Signal Indicator Light for Suzuki GSXR 1000 and provide detailed instructions, accompanied by clear explanations to make the process easier to follow.
Before starting the replacement, gather the following tools and materials:
- Replacement turn signal indicator light compatible with Suzuki GSXR 1000 (LED or OEM style)
- Screwdrivers (Phillips and flathead)
- Socket wrench set
- Wire cutters/strippers
- Electrical tape or heat shrink tubing
- Soldering iron and solder (optional but recommended for secure wiring)
- Motorcycle stand or rear spools for stability
- Clean cloth or towel to protect fairings
Having all these tools ready before you begin will save time and reduce frustration during the replacement process.
1. Stabilize the Motorcycle
Use a motorcycle stand or rear spools to keep your Suzuki GSXR 1000 upright and stable during the replacement process. This will make it easier and safer to work on the bike, especially when removing fairings or handling wiring.
2. Turn Off the Ignition
Ensure the motorcycle is turned off and the key is removed to prevent any electrical shorts or accidental activation of the signals. Disconnecting the battery is optional but recommended if you want to be extra cautious.
3. Remove the Fairings
To access the turn signal indicator light wiring and mounting bolts, you will need to remove the relevant fairings. On the GSXR 1000, this typically involves removing the front and side fairings near the turn signals. Use a screwdriver or socket wrench to carefully remove the screws and clips holding the fairings in place. Keep all screws and clips organized to avoid losing them.
Removing the fairings carefully is crucial to avoid cracking or scratching the plastic panels. Use a clean cloth or towel to protect the fairings when setting them aside.
1. Identify the Turn Signal Connectors
The wiring harness for the turn signals is usually color-coded. On the Suzuki GSXR 1000, the right and left signals often have different colored connectors (e.g., black for right, gray for left) to avoid confusion. Consult your motorcycle's service manual for exact wire colors and connector locations.
2. Unclip the Connectors
Carefully unclip the connectors by pressing the release tabs. If your replacement signals do not come with plug-and-play connectors, you may need to cut and solder the wires. Take note of the wire colors and their corresponding terminals before disconnecting to ensure correct reconnection.
3. Inspect the Wiring
While the connectors are exposed, inspect the wiring for any signs of wear, corrosion, or damage. Repair or replace any damaged wiring to prevent future electrical issues.
1. Locate the Mounting Bolts
The turn signal indicator light is secured by bolts or screws, often accessible once the fairings are removed. These are usually located at the base of the turn signal housing.
2. Unscrew the Mounting Hardware
Use the appropriate screwdriver or socket wrench to remove the bolts holding the turn signal in place. Keep the bolts in a safe place as you may need them for the new installation.
3. Remove the Turn Signal
Gently pull the turn signal light away from the mounting point, taking care not to damage the wiring or the mounting bracket. If the turn signal is stuck, gently wiggle it free rather than forcing it.
1. Prepare the New Turn Signal
If your new turn signal indicator light for Suzuki GSXR 1000 is LED style, note that it may require a flasher relay to prevent hyper-flashing (rapid blinking). Some aftermarket kits include this relay, while others require you to purchase it separately.
2. Connect the Wiring
- If your new signals have plug-and-play connectors, simply connect them to the bike's wiring harness.
- If not, strip the wire ends, solder the connections, and cover them with heat shrink tubing or electrical tape to prevent corrosion. Make sure to match the wire colors correctly: typically, black or brown is ground, and colored wires are positive.
3. Mount the New Turn Signal
Secure the new turn signal in place using the original mounting bolts or screws. Ensure the signal is firmly attached and properly aligned for visibility.
4. Check for Proper Fitment
Before fully tightening the bolts, check that the turn signal does not interfere with any moving parts or fairings. Adjust as necessary.
1. Turn on the Ignition
Without starting the engine, turn the ignition key to the "on" position.
2. Activate the Turn Signals
Test both left and right turn signals to ensure they blink correctly and at the proper speed. Observe the brightness and angle of the new signals to confirm they are visible from the front and side.
3. Check for Hyper-Flashing
If the signals flash too quickly, you may need to install an LED-compatible flasher relay. Hyper-flashing occurs because LED bulbs draw less current than incandescent bulbs, causing the stock relay to think a bulb is out.
4. Reassemble the Fairings
Once confirmed that the signals work properly, reattach the fairings and secure all screws and clips. Double-check that no wires are pinched or exposed.
Aftermarket LED flush mount turn signals are popular upgrades for the GSXR 1000, offering a sleek look and brighter illumination. Brands like TST Industries and Hotbodies Racing provide high-quality options designed specifically for Suzuki GSXR models. When selecting your replacement, consider:
- Brightness and Visibility: LED signals are generally brighter and more visible in daylight.
- Durability: Look for waterproof and vibration-resistant models.
- Compatibility: Ensure the signals fit your model year and mounting points.
- Legal Compliance: Check local regulations regarding turn signal color and placement.
Some LED turn signals require wiring harness converters for plug-and-play installation. These converters do not add running lights but simplify the wiring process and prevent electrical issues. They are especially useful if you want to avoid cutting the factory wiring harness.
Incorrect wiring that combines running lights and turn signal circuits can cause malfunction of the entire signaling system. Always follow wiring diagrams and manufacturer instructions carefully.
Soldering wires and sealing with heat shrink tubing is recommended for durability and corrosion resistance, although crimp connectors can be used for quicker installation. Properly sealed connections will last longer and reduce the risk of electrical faults.
- Turn Signal Not Lighting Up: Check the bulb or LED module, wiring connections, and fuses.
- Hyper-Flashing: Install an LED flasher relay or add load resistors.
- Signal Flickering: Inspect for loose wiring or poor ground connections.
- Physical Fitment Problems: Verify the model compatibility and mounting hardware.
Replacing the Turn Signal Indicator Light for Suzuki GSXR 1000 is a straightforward task that can be completed with basic tools and some mechanical aptitude. Whether upgrading to LED flush mount signals or replacing a faulty OEM bulb, following the proper steps ensures a safe and professional result. Remember to handle wiring carefully, test the signals before reassembly, and consider using quality aftermarket parts for improved visibility and style. Properly functioning turn signals are essential for your safety and legal compliance on the road, so maintaining them in good condition is always worthwhile.
Most LED turn signals require an LED-compatible flasher relay to prevent hyper-flashing. Check the product specifications or consult your dealer to confirm compatibility.
Removing the fairings is recommended to access wiring and mounting bolts safely. Attempting to replace signals without removing fairings may risk damage to the bike or improper installation.
Basic tools include screwdrivers, socket wrenches, wire cutters/strippers, and optionally a soldering iron for secure wiring connections.
Soldering the wires and covering the joints with heat shrink tubing provides the best protection against moisture and corrosion. Electrical tape can be used as a secondary option.
This is usually caused by the lower resistance of LED bulbs. Installing an LED flasher relay designed for your Suzuki GSXR 1000 will correct the flash rate.
