The Rosemount Field Signal Indicator is a robust and reliable device designed to display process variables such as pressure, flow, liquid level, and temperature in harsh industrial environments. Installing this device correctly is crucial to ensure accurate readings, safe operation, and long-term durability. This article provides a comprehensive, step-by-step guide on how to install the Rosemount 751 Field Signal Indicator, complete with detailed explanations, wiring configurations, and safety considerations.

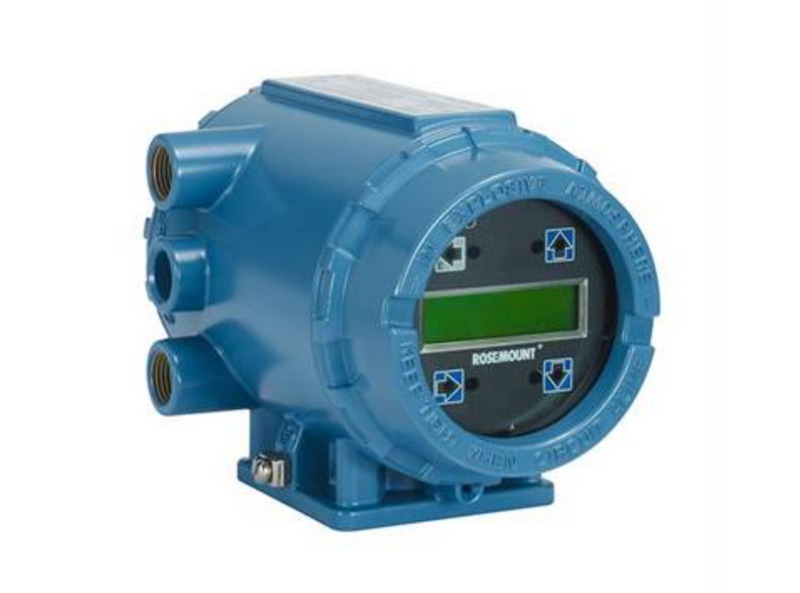

The Rosemount 751 Field Signal Indicator is engineered to work with any 2-wire transmitter and display real-time process data on a clear LCD or analog meter. It is corrosion-resistant and certified for explosion-proof and intrinsically safe installations, making it ideal for challenging industrial settings such as oil and gas, chemical plants, and power generation facilities. The device provides a local, easy-to-read indication of process variables, reducing the need for operators to access control rooms or remote monitoring stations.
The Rosemount 751 is designed to withstand harsh environmental conditions, including extreme temperatures, moisture, dust, and vibration. Its rugged housing and robust internal components ensure reliable operation over extended periods, minimizing maintenance needs.
Before installation, it is important to familiarize yourself with the main components of the Rosemount 751 Field Signal Indicator:
| Component | Description |
|---|---|
| Terminal screws | Connect wiring to the device |
| Housing O-ring | Provides a seal to prevent moisture ingress |
| Field wiring terminals | For connecting field wires |
| Loop protection diode | Protects the loop circuit from reverse polarity |
| Tapped mounting boss | For mounting the device securely |
| Optional mounting bracket | For pipe or panel mounting |
| Housing | Protective enclosure for internal components |
| Meter (LCD or analog) | Displays the process variable |
| Housing cover | Protects internal components and provides sealing |
The meter subassembly includes retaining straps, mounting screws, an LCD display, configuration buttons, and spacers to ensure secure installation inside the housing. Understanding the layout of these components helps during disassembly and reassembly, especially when performing wiring or maintenance.
- Installation must comply with local and international safety standards, especially in explosive environments.
- Do not remove the indicator cover when power is applied to avoid electric shock or explosion hazards.
- Use appropriate personal protective equipment (PPE) such as gloves, safety glasses, and flame-resistant clothing.
- Ensure the power supply is disconnected before starting installation or maintenance.
- Restrict physical access to authorized personnel only to prevent damage or misconfiguration.
- Screwdrivers (flathead and Phillips)
- Shielded wiring cable (recommended for noise immunity)
- Mounting hardware (bolts, washers, U-bolts)
- Multimeter for electrical testing
- Conduit and conduit reducing bushings if required
- Torque wrench (to ensure proper screw tightness)
- Choose a mounting location that is easily visible and accessible for routine inspection and maintenance.
- Avoid locations exposed to direct sunlight or extreme weather conditions if possible, or use sunshields and protective enclosures.
- Ensure the mounting surface is sturdy and vibration-free to maintain accurate readings.
- Verify that the installation site has adequate clearance for wiring and servicing.
- Select a mounting location that is visible and accessible for maintenance.
- Use the tapped mounting boss or optional mounting bracket to secure the indicator to a 2-inch pipe or panel using the U-bolt and mounting bolts provided.
- Tighten mounting bolts to the manufacturer's recommended torque to avoid loosening due to vibration.
- Ensure the housing cover is oriented properly, preferably downward or with a drip loop in wiring to prevent moisture accumulation inside the enclosure.
- Use shielded, twisted-pair cable for the 4-20 mA loop wiring to minimize electrical noise interference.
- Strip the cable ends carefully without damaging the conductor strands.
- Label wires clearly to avoid confusion during connection.
- Route cables through appropriate conduit or cable trays to protect against mechanical damage.
- Remove the housing cover on the terminal compartment side carefully, using appropriate tools.
- Connect field wiring to the terminal screws labeled for field wiring terminals.
- The Rosemount 751 can be wired in series or parallel with the 4-20 mA transmitter loop, depending on the application and transmitter type.
- Recommended when the transmitter does not have a quick disconnect or terminal block.
- Connect the positive lead from the power supply to the transmitter positive terminal, then from the transmitter negative terminal to the indicator positive terminal, and finally from the indicator negative terminal back to the power supply negative terminal.
- Used when the transmitter has a terminal block or quick disconnect.
- Connect the indicator in parallel to the transmitter loop, ensuring correct polarity and shielding.
- Parallel wiring allows for easier maintenance and replacement without interrupting the transmitter loop.
- The loop protection diode is pre-installed inside the housing to protect the device from reverse polarity wiring.
- Verify the diode is present and correctly oriented before powering up.
- The diode prevents damage to the indicator and transmitter if wiring polarity is accidentally reversed.
- After wiring, insert the meter subassembly into the housing terminal screws and secure with retaining straps and screws.
- Replace the housing cover with the O-ring seal to ensure moisture protection.
- Use a torque screwdriver to tighten cover screws evenly to the recommended torque to maintain the explosion-proof seal.
- Seal any unused conduit entries with plugs to prevent moisture ingress and maintain certification integrity.
- Use the configuration buttons on the meter subassembly to set measurement units, scaling, and alarms as needed.
- The indicator supports multiple engineering units and can be customized to display the process variable in the desired format.
- Refer to the Rosemount 751 Reference Manual for detailed configuration instructions, including zero/span adjustments and alarm setup.
- Power up the loop and verify the indicator displays the expected process variable.
- Use a calibrated multimeter to check the 4-20 mA signal integrity and loop current.
- Confirm no error messages or abnormal readings appear on the display.
- Perform a functional test by simulating process variable changes and observing the indicator response.
- Document the installation and test results for future reference and compliance.
- The Rosemount 751 Field Signal Indicator is certified for explosion-proof and intrinsically safe installations.
- Always confirm the product certifications and installation requirements in the product documentation before installation in hazardous areas.
- Use only manufacturer-approved accessories and replacement parts to maintain certification compliance.
- Do not remove covers or perform maintenance on live circuits in explosive atmospheres.
- Follow lockout/tagout procedures to ensure safe working conditions during installation and maintenance.
Installing the Rosemount 751 Field Signal Indicator involves careful preparation, proper mechanical mounting, precise wiring, and thorough testing. Following the manufacturer's guidelines ensures reliable operation and safety in industrial environments. The device's rugged design and certifications make it suitable for demanding applications, providing clear and accurate process variable readings at the field level. Proper installation not only enhances measurement accuracy but also extends the service life of the indicator, reducing downtime and maintenance costs.
The Rosemount 751 works with any 2-wire 4-20 mA transmitter measuring variables such as pressure, flow, liquid level, or temperature.
Yes, it is certified for explosion-proof and intrinsically safe installations, but installation must follow local and international safety standards.
Use shielded cables and ensure proper grounding to minimize electrical noise interference. Twisted-pair wiring is recommended.
Check wiring polarity, loop current, and configuration settings. Use a calibrated multimeter to verify the 4-20 mA signal. Also, inspect for loose connections or damaged cables.
No, removing the cover while powered can cause electrical shock or explosion hazards. Always power down before opening the housing.
