The manifold absolute pressure (MAP) sensor is a crucial component in modern vehicle engines, playing a pivotal role in ensuring efficient engine performance, fuel efficiency, and emissions control. This article delves into the working principles, types, and applications of MAP sensors, providing a comprehensive overview of their importance in vehicle engine management systems.

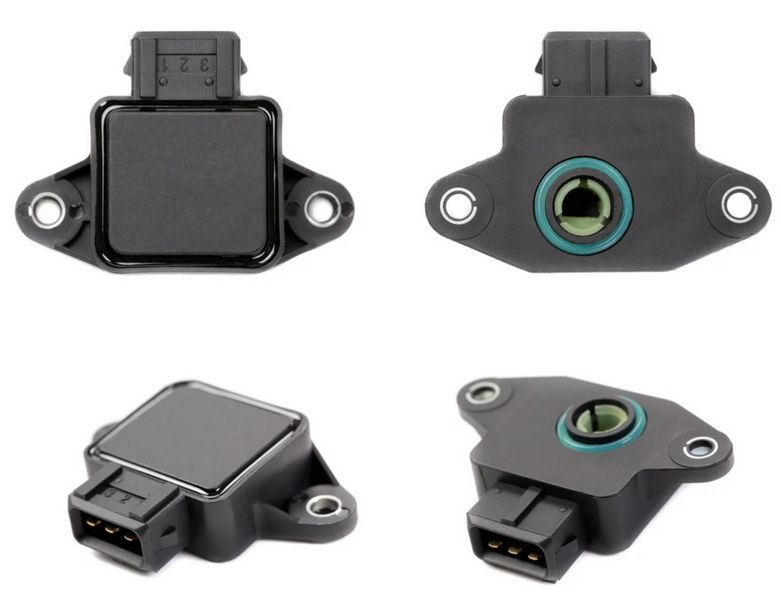

A MAP sensor is an electronic device designed to measure the absolute pressure inside the intake manifold of an internal combustion engine. It provides vital information to the engine control module (ECM) about engine load, which is essential for determining the air-fuel ratio and ignition timing. The sensor works by detecting the difference between atmospheric pressure and the pressure inside the intake manifold, using this data to generate an electrical signal that the ECM can interpret.
The MAP sensor typically consists of a sensing element, an amplifier circuit, and a signal output. The sensing element is usually a thin diaphragm made of silicon or ceramic, which is exposed to the intake manifold pressure through a small port. As the pressure in the intake manifold changes, the diaphragm deflects, causing a change in resistance or capacitance that is proportional to the pressure. This mechanical change is converted into an electrical signal by the amplifier circuit and sent to the ECM for processing.
There are several types of MAP sensors, including:
- Varistor Type: These sensors use a strain-gauge-based Wheatstone bridge bonded to a silicon diaphragm. They are widely used due to their fast response time, high accuracy, and compact design.
- Capacitive Type: These sensors utilize an aluminum oxide diaphragm and a hollow insulating medium to form a capacitive pressure-sensitive element. The capacitance changes as the diaphragm deforms under pressure, generating an electrical signal.
The varistor MAP sensor structure includes a silicon diaphragm with strain gauges (resistors) bonded to it. These resistors form a Wheatstone bridge circuit, which changes resistance as the diaphragm deforms under pressure. This resistance change is converted into a voltage signal that reflects the manifold pressure.
The capacitive MAP sensor uses an aluminum oxide diaphragm and a vacuum-sealed chamber to create a capacitive element. As the diaphragm deforms due to pressure changes, the capacitance changes, generating an electrical signal that corresponds to the pressure.
MAP sensors are integral to various engine management functions:
- Fuel Injection Control: By providing real-time data on manifold pressure, MAP sensors help the ECM adjust the air-fuel mixture for optimal combustion efficiency.
- Ignition Timing Adjustment: The sensor's data is used to optimize spark timing based on engine load, ensuring efficient combustion.
- Turbocharger/Supercharger Regulation: MAP sensors monitor boost pressure to prevent over-boosting and ensure safe engine operation.
- EGR Valve Control: They assist in emission reduction by regulating exhaust gas recirculation.
- Transmission Shift Control: MAP sensors provide intake pressure data to help adjust automatic transmission shift points.
- Altitude Compensation: They adjust engine parameters to maintain performance at different elevations.
The MAP sensor is crucial for maintaining engine efficiency and performance. A faulty MAP sensor can lead to issues such as poor acceleration, increased fuel consumption, and rough idling. Regular maintenance and inspection of the MAP sensor are essential to prevent these problems.
Common symptoms of a faulty MAP sensor include unstable acceleration, decreased gas mileage, and engine stalling. Causes of failure often involve contamination or electrical shorts. For instance, if the vacuum hose connecting the MAP sensor to the intake manifold is clogged or damaged, it can lead to inaccurate pressure readings.
Troubleshooting a MAP sensor involves checking for any blockages in the vacuum hose, ensuring proper electrical connections, and using a multimeter to verify the sensor's output voltage. If the sensor is faulty, it may need to be replaced.
Modern MAP sensors often incorporate advanced technologies such as microelectromechanical systems (MEMS) and digital signal processing. These advancements improve accuracy, reduce size, and enhance durability. For example, MEMS-based sensors offer faster response times and higher precision, allowing for more precise engine control.
While MAP sensors are primarily associated with internal combustion engines, similar pressure-sensing technologies are used in hybrid and electric vehicles for different applications. For instance, pressure sensors may be used to monitor battery pressure or cooling system pressure in electric vehicles.
As vehicle technology evolves, MAP sensors are likely to become even more sophisticated. Future developments may include integration with other sensors to provide real-time data on engine conditions, further optimizing performance and efficiency. Additionally, advancements in sensor materials and designs could lead to improved reliability and lifespan.
The impact of MAP sensors on vehicle performance cannot be overstated. They play a critical role in ensuring that engines operate within optimal parameters, which affects fuel efficiency, power output, and emissions. In high-performance vehicles, accurate MAP sensor readings are essential for maintaining peak performance under varying driving conditions.
Calibration and maintenance of MAP sensors are important to ensure accurate readings and prevent premature wear. Regular cleaning of the sensor and its connections, as well as periodic checks for vacuum leaks, can help maintain optimal performance.
Environmental factors such as extreme temperatures and humidity can affect the accuracy and lifespan of MAP sensors. Manufacturers often design MAP sensors with protective coatings or enclosures to mitigate these effects. However, exposure to harsh conditions over time can still impact sensor performance.
In conclusion, the manifold absolute pressure sensor is a vital component in modern vehicle engines, ensuring efficient engine operation by providing critical data on intake manifold pressure. Understanding its working principles and applications is essential for maintaining optimal engine performance and addressing potential issues.
The primary function of a MAP sensor is to measure the absolute pressure inside the intake manifold and provide this information to the engine control module (ECM) to adjust fuel injection and ignition timing.
A MAP sensor works by detecting changes in the intake manifold pressure, which causes a diaphragm to deflect. This deflection changes the resistance or capacitance of the sensor, generating an electrical signal that corresponds to the pressure.
Common types of MAP sensors include varistor-based and capacitive models. Varistor sensors use a strain-gauge-based Wheatstone bridge, while capacitive sensors utilize changes in capacitance due to diaphragm deformation.
Symptoms of a faulty MAP sensor include unstable acceleration, decreased gas mileage, and engine stalling. These issues arise from incorrect air-fuel mixture and ignition timing.
A MAP sensor is typically connected to the intake manifold using a vacuum hose. It is often located directly on the manifold or high in the engine compartment.
