Video signal amplifiers are essential devices in the realm of video technology, designed to enhance the quality and strength of video signals. As video content becomes increasingly integral to communication, entertainment, and security systems, understanding the function and importance of video signal amplifiers is crucial for both consumers and professionals in the industry.
Video signals are electrical representations of visual images. These signals can be analog or digital, with analog signals typically being continuous waveforms and digital signals being discrete packets of data. The quality of a video signal can degrade due to various factors, including cable length, interference, and the number of splits in the signal path. This is where video signal amplifiers come into play.
A video signal amplifier is a device that boosts the strength of video signals to ensure they maintain quality over long distances or when distributed to multiple outputs. By amplifying the signal, these devices help prevent loss of detail and clarity, which can occur due to attenuation (signal loss) as the signal travels through cables.
There are several types of video signal amplifiers, each suited for different applications:

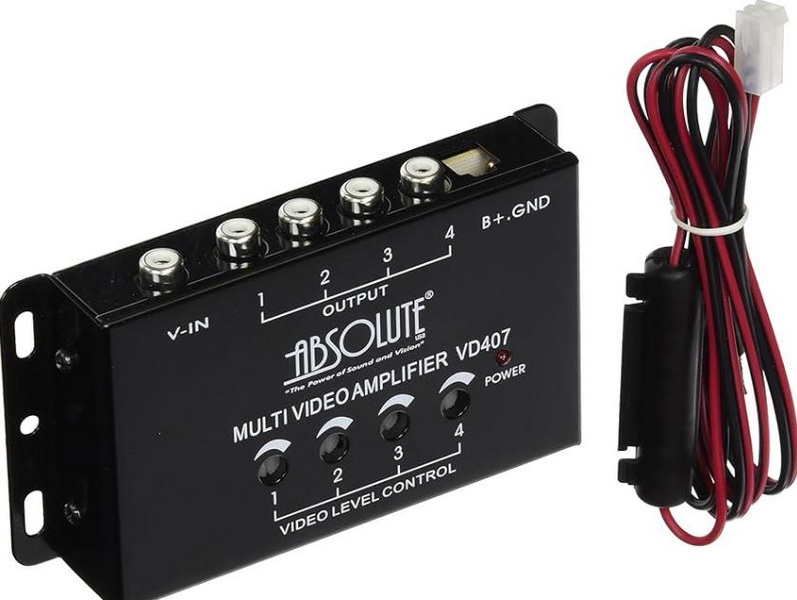

- Distribution Amplifiers: These amplifiers take a single input signal and distribute it to multiple outputs while maintaining signal integrity. They are commonly used in broadcasting and multimedia setups.

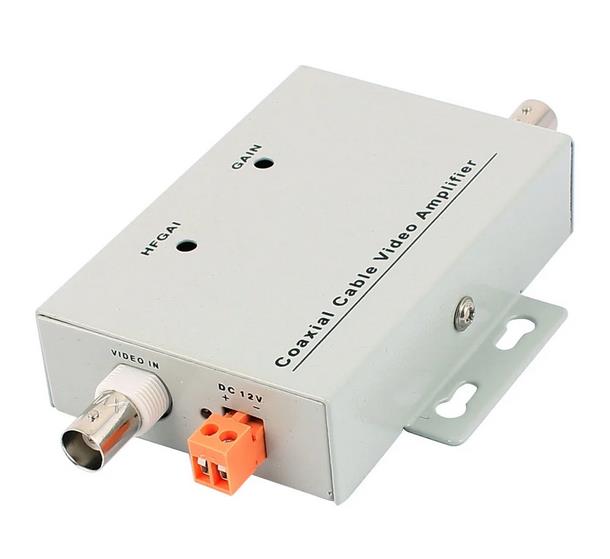

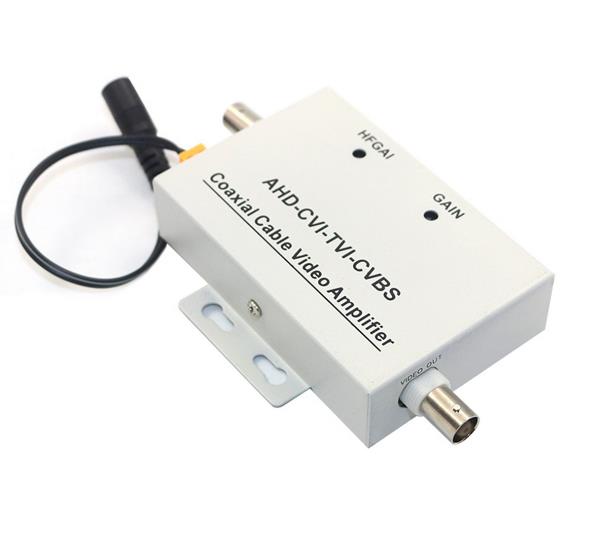

- Line Amplifiers: These are used to boost signals over long cable runs, ensuring that the video quality remains high even at extended distances.
- Pre-Amplifiers: Positioned close to the source (like a camera), these amplifiers boost weak signals before they travel through long cables.
- Inline Amplifiers: Installed along the cable path, inline amplifiers boost the signal at various points to counteract attenuation.
Video signal amplifiers operate by increasing the amplitude of video signals. They achieve this through various components:
1. Input Stage: This stage receives the incoming video signal.
2. Amplification Stage: Here, the actual amplification occurs. This can involve transistors or operational amplifiers that increase the voltage level of the incoming signal.
3. Output Stage: The amplified signal is then sent out to its destination, whether that be a display device or another piece of equipment.
The effectiveness of an amplifier is often measured in terms of gain (the ratio of output to input voltage) and bandwidth (the range of frequencies it can amplify without distortion).
Video signal amplifiers are widely used across various industries:
- Television Broadcasting: Ensuring high-quality transmission over long distances.
- Surveillance Systems: Boosting signals from cameras to monitors or recording devices.
- Home Theater Systems: Distributing high-definition signals from a single source to multiple displays.
- Video Conferencing: Enhancing clarity in professional settings where visual communication is key.
Using video signal amplifiers provides several advantages:
- Improved Signal Quality: By boosting weak signals, amplifiers help maintain clarity and detail in video feeds.
- Extended Cable Lengths: Amplifiers allow for longer cable runs without significant loss in quality.
- Multiple Outputs: They enable one source to be distributed across multiple devices without degradation.
- Reduced Interference: Quality amplifiers can help mitigate noise and interference that may affect video signals.
When selecting a video signal amplifier, consider the following factors:
- Gain Requirements: Determine how much amplification is needed based on cable length and number of splits.
- Bandwidth Needs: Ensure the amplifier can handle the frequency range required for your specific application (e.g., standard definition vs. high definition).
- Type of Signal: Make sure the amplifier is compatible with either analog or digital signals as needed.
- Installation Environment: Consider whether it will be used indoors or outdoors, as this may affect your choice regarding housing and durability.
While video signal amplifiers are beneficial, they can also present challenges:
- Over-Amplification: Too much gain can lead to distortion and noise in the output signal.
- Compatibility Issues: Not all amplifiers work with every type of video format; ensure compatibility with your existing equipment.
- Power Supply Requirements: Some amplifiers require external power sources, which may complicate installation.
To understand how video amplifiers function at a technical level, it's important to delve into some specifics about their design and operation.
The bandwidth of a video amplifier is crucial because it determines how well it can handle different frequencies within a video signal. For example, standard television signals have bandwidths that typically range from 30 Hz up to 4 MHz. A good amplifier must maintain fidelity across this entire range without introducing distortion or noise.
Gain is defined as the ratio between output voltage and input voltage. For instance, if an amplifier has an input voltage of 1V and an output voltage of 3V, its gain would be calculated as follows:
Gain=Output Voltage /Input Voltage=3V/1V=3
This means that the amplifier increases the input voltage by three times. Selecting an amplifier with appropriate gain is essential for ensuring that your output remains within acceptable levels for subsequent devices in your setup.
Many modern video amplifiers utilize operational amplifiers (op-amps) due to their versatility and performance characteristics. A simple circuit might involve using an op-amp configured as a non-inverting amplifier which allows for easy adjustment of gain via feedback resistors.
For example:
+V | R1 | Input ---R2---|--- Op-Amp | GND
In this configuration, R1 and R2 set the gain according to:
Gain=1+R1/R2
This allows users to fine-tune their amplification needs based on specific application requirements.
As technology advances, so too do video signal amplification techniques. Emerging trends include:
- Digital Signal Processing (DSP): Incorporating DSP technology allows for more sophisticated manipulation of video signals, improving clarity and reducing noise.
- Integration with Smart Technology: With smart home technology on the rise, future amplifiers may integrate seamlessly with home automation systems for enhanced control and monitoring.
- Higher Bandwidth Capabilities: As high-definition (HD) and ultra-high-definition (UHD) content becomes more prevalent, there will be a growing demand for amplifiers capable of handling greater bandwidths without sacrificing quality.
In conclusion, video signal amplifiers play a crucial role in maintaining and enhancing video quality across various applications. Whether for home entertainment systems, surveillance setups, or broadcasting needs, these devices ensure that signals remain strong and clear over distances and through multiple outputs. Understanding their types, functions, technical specifications, and applications enables users to make informed decisions about their use in any setup.
Inline amplifiers boost signals along a cable run, while distribution amplifiers take one input and send it to multiple outputs without losing quality.
If you experience poor picture quality over long cable runs or when splitting a single source to multiple displays, an amplifier may be necessary.
Some amplifiers are designed specifically for either analog or digital signals; ensure you choose one compatible with your specific needs.
Key factors include gain settings, bandwidth capabilities, installation environment, and compatibility with existing equipment.
Installation typically involves connecting it between your source device (like a camera) and your display or recording device; refer to specific manufacturer instructions for detailed guidance.
