Turn signals are essential safety features in vehicles, allowing drivers to communicate their intentions to turn or change lanes to other road users. Understanding where the turn signal indicator is located in a car and how it functions is crucial for safe driving. This comprehensive article explores the location, operation, and importance of the turn signal indicator, supplemented with detailed explanations to enhance understanding.
A turn signal indicator is a visual cue inside the vehicle that shows the driver which direction the turn signals are activated—left or right. It typically appears as a flashing green arrow on the vehicle's instrument panel or dashboard. This indicator helps the driver confirm that the turn signals are working correctly and alerts them when the signal is active.
The turn signal indicator is not just a convenience; it is a critical feedback mechanism. Without it, drivers might forget to turn off their signals or may not realize that the signals are malfunctioning, which can lead to dangerous situations on the road.
The most common location for the turn signal indicator is on the instrument panel or dashboard, directly in front of the driver. It usually consists of two green arrows pointing left and right. When the driver activates the turn signal lever, the corresponding arrow flashes to indicate the direction of the intended turn or lane change.
- The indicator is often positioned near the speedometer or tachometer for easy visibility.
- Some vehicles have the indicator lights integrated into the digital display screen, especially in modern cars with fully digital instrument clusters.
- In some luxury or high-tech vehicles, the turn signal indicator may also appear on a heads-up display (HUD) projected onto the windshield, allowing the driver to keep their eyes on the road.

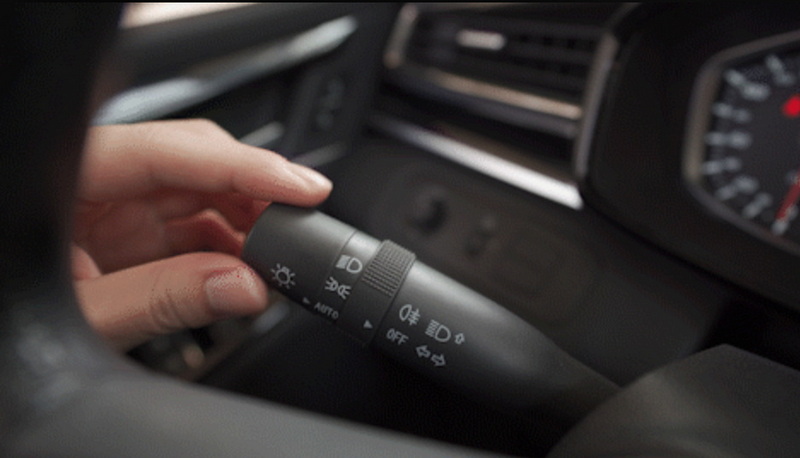

The turn signal lever itself is typically located on the left side of the steering column, just behind the steering wheel. This lever is used to activate the turn signals:
- Pushing the lever up activates the right turn signal.
- Pushing the lever down activates the left turn signal.
This lever also controls the turn signal indicator on the dashboard, causing the corresponding arrow to flash when engaged. In some vehicles, the lever may have additional functions such as controlling the high beams, lane change assist, or even windshield wipers.
The turn signal indicator is part of the vehicle's electrical system. When the driver moves the turn signal lever, it completes an electrical circuit that powers the turn signal lights on the exterior of the vehicle and the indicator light on the dashboard.
A key component in this system is the turn signal relay or flasher unit, which causes the lights and the indicator to blink on and off. The relay is usually located in the fuse box or junction box under the dashboard or near the steering column.
- The relay controls the timing of the blinking.
- Different types of relays exist, including DOT flashers, bimetal flashers, hybrid flashers, and solid-state flashers, each with varying durability and operation characteristics.
- The relay ensures that the turn signal indicator and the external lights flash at a consistent rate, typically around 60 to 120 flashes per minute.
- The turn signal indicator flashes in sync with the exterior turn signal lights.
- Many vehicles also produce a clicking sound when the turn signals are active, generated by the flasher relay mechanism. This audible feedback helps drivers who may not be looking directly at the dashboard to know that their signals are on.
- Some modern vehicles allow customization of the clicking sound or volume through the vehicle's settings menu.
While the dashboard is the primary location for the turn signal indicator, some vehicles incorporate additional indicators to improve visibility and safety.
Many modern cars feature turn signal lights integrated into the side mirrors. These lights flash in sync with the main turn signals and provide additional visual cues to other drivers, especially those in adjacent lanes.
In some vehicles, the center high-mounted stop lamp (the third brake light) may also flash in coordination with the turn signals during lane changes or turns, providing an extra layer of signaling.
As mentioned earlier, some advanced vehicles project the turn signal indicator onto the windshield via a heads-up display. This allows the driver to see the indicator without looking down at the dashboard, enhancing safety by keeping their eyes on the road.
- Safety: The turn signal indicator ensures the driver knows the signals are active, reducing the risk of accidents caused by unexpected lane changes or turns.
- Communication: It helps communicate driving intentions to other road users, including pedestrians, cyclists, and other drivers.
- Legal Requirement: Using turn signals is legally required in most regions, and the indicator helps ensure compliance by providing feedback to the driver.
- Prevention of Signal Forgetfulness: The indicator reminds drivers to turn off their signals after completing a turn or lane change, preventing confusion for other road users.
Despite their simplicity, turn signal indicators can experience problems that affect their functionality.
If the turn signal indicator does not flash when the lever is activated, possible causes include:
- Burnt-out turn signal bulbs.
- A faulty turn signal relay.
- Wiring issues or blown fuses.
- A malfunctioning turn signal switch.
If the indicator light remains on continuously without flashing, it may indicate:
- A stuck or defective relay.
- A short circuit in the wiring.
- A problem with the turn signal switch.
A fast-flashing turn signal indicator is a common symptom that one of the turn signal bulbs is burnt out or not functioning properly. The system detects the change in electrical resistance and increases the flash rate as a warning.
Modern vehicles often come equipped with enhanced turn signal systems that improve safety and usability.
Sequential turn signals light up in a progressive sequence from the inside to the outside of the turn signal cluster. This feature is popular in some American and European cars and provides a clearer indication of the turning direction.
Some vehicles use adaptive turn signals that adjust the flashing pattern based on steering input and vehicle speed. For example, the signals may flash longer or more rapidly during sharp turns or lane changes.
Certain cars allow a quick tap of the turn signal lever to flash the turn signals three times, signaling a lane change without fully engaging the turn signal. The turn signal indicator on the dashboard will flash accordingly.
Using the turn signal indicator correctly is vital for safe driving. Here are some tips:
- Activate Early: Turn on your signal at least 100 feet before turning or changing lanes to give other drivers ample notice.
- Cancel After Use: Ensure the turn signal lever returns to the neutral position after completing the maneuver. Most vehicles have an automatic cancel feature, but if it fails, manually turn off the signal.
- Check Indicator: Always glance at the turn signal indicator to confirm it is flashing when you activate the lever.
- Use for All Turns and Lane Changes: Even for minor lane adjustments, use your turn signals to communicate your intentions.
The turn signal indicator is a vital component located on the vehicle's dashboard, providing visual confirmation of the turn signals' operation. It works in conjunction with the turn signal lever and the flasher relay to ensure safe and effective communication of driving intentions. Understanding its location and function helps drivers use turn signals correctly, enhancing road safety for everyone. Modern advancements have further improved the visibility and functionality of turn signal indicators, making them more intuitive and reliable. Proper use and maintenance of the turn signal system are essential for safe driving and legal compliance.
The turn signal indicator is usually located on the instrument panel or dashboard, near the speedometer, and shows flashing green arrows indicating the direction of the turn signal.
You activate the turn signal indicator by moving the turn signal lever, typically located on the left side of the steering wheel, up for right signals and down for left signals.
The flashing is controlled by the turn signal relay or flasher unit, which intermittently completes the electrical circuit to the indicator and exterior lights.
A faster flashing turn signal indicator usually means one of the turn signal bulbs is burnt out or there is a problem with the electrical circuit.
While the dashboard is the most common location, some vehicles may have additional indicators on digital displays or heads-up displays, but the primary indicator is almost always on the instrument panel.
