The A/C pressure sensor is a critical component in a car's air conditioning system. It plays a vital role in monitoring and maintaining the correct refrigerant pressure within the system to ensure efficient cooling, protect the compressor, and prevent damage to the A/C components. This article explores in detail what an A/C pressure sensor does, how it works, its types, symptoms of failure, troubleshooting, and replacement procedures. Throughout, we will provide a comprehensive explanation to help you understand the importance of this small yet essential sensor.
Before diving into the role of the A/C pressure sensor, it's important to understand the basic operation of a car's air conditioning system.
The A/C system cools the air inside the vehicle by circulating a refrigerant through several components:
- Compressor: Compresses the refrigerant gas, raising its pressure and temperature.
- Condenser: Acts as a heat exchanger, cooling the refrigerant and turning it into a liquid.
- Dehumidifier/Drier: Removes moisture and impurities from the refrigerant.
- Expansion Valve: Causes a sudden drop in pressure, cooling the refrigerant significantly.
- Evaporator: Absorbs heat from the cabin air, cooling it before it enters the passenger compartment.
The refrigerant cycles through these components, changing pressure and state to absorb heat from inside the car and release it outside. This cycle depends heavily on maintaining the correct refrigerant pressure for optimal performance.

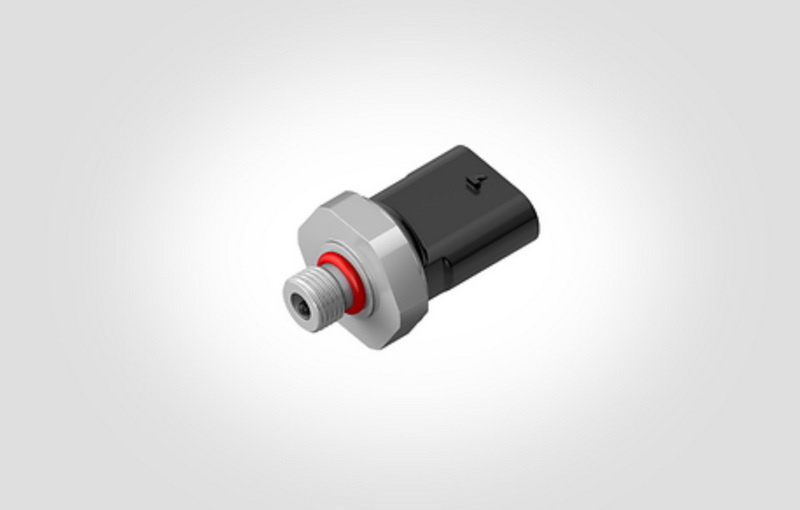

An A/C pressure sensor, also known as a pressure switch or pressure transducer, is a device installed in the air conditioning system to monitor the refrigerant pressure in real time. It is typically located on the high-pressure line between the compressor and the condenser in the engine compartment.
Its main functions include:
- Monitoring refrigerant pressure to ensure it stays within safe and optimal limits.
- Controlling the compressor operation by enabling or disabling it based on pressure thresholds.
- Protecting the A/C system from damage caused by excessively high or low pressure.
- Assisting in controlling the radiator fan to enhance the condensation process.
- Detecting refrigerant leaks by monitoring abnormal pressure drops.
Because the A/C system operates under high pressure and extreme temperature changes, the sensor's ability to provide accurate pressure readings is essential for the system's longevity and performance.
The A/C pressure sensor continuously measures the pressure of the refrigerant inside the system. When the pressure reaches certain preset thresholds, the sensor sends electrical signals to the vehicle's control module (ECM, PCM, or BCM), which then takes appropriate action.
- Low Pressure Threshold: If the pressure falls below a minimum safe level (e.g., 2 bars or about 29 psi), the sensor prevents the compressor from engaging to avoid damage due to insufficient refrigerant or lubrication. Running the compressor without enough refrigerant can cause overheating and premature failure.
- High Pressure Threshold: If the pressure exceeds a maximum safe level (e.g., 27 to 32 bars or about 391 to 464 psi), the sensor disables the compressor to prevent damage to hoses, pipes, or the compressor itself. Excessive pressure can cause leaks or burst components.
- Fan Control Threshold: Some sensors have an additional threshold (e.g., above 16 bars or 232 psi) to trigger maximum cooling fan speed to improve the condenser's heat dissipation. This helps maintain the refrigerant pressure within the desired range by increasing airflow over the condenser.
This control mechanism ensures the A/C system operates efficiently and safely under varying conditions, such as changes in ambient temperature, engine load, and refrigerant charge.

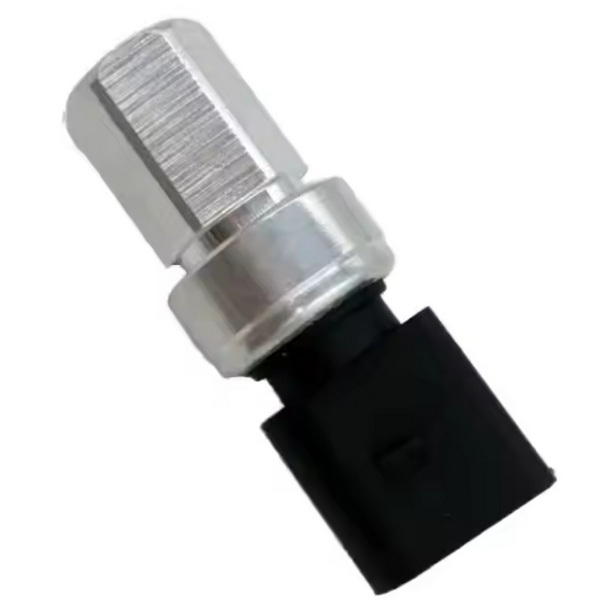

There are two main types of A/C pressure sensors used in modern vehicles:
- Uses a membrane or diaphragm that opens or closes an electrical circuit depending on the refrigerant pressure.
- Provides an on/off signal to control the compressor and fans.
- Simpler and often used in older or basic A/C systems.
- Typically has two or three pressure switches for low, medium, and high pressure cutoffs.
- Usually a piezoelectric or strain gauge sensor that converts pressure into a variable voltage or digital signal.
- Sends precise pressure data (e.g., 0.1 V for low pressure to 4.9 V for high pressure) to the vehicle's computer.
- Allows for more accurate and dynamic control of the A/C system.
- Enables advanced diagnostics and adaptive control strategies.
Digital sensors are becoming more common as vehicles incorporate more sophisticated climate control systems and onboard diagnostics.

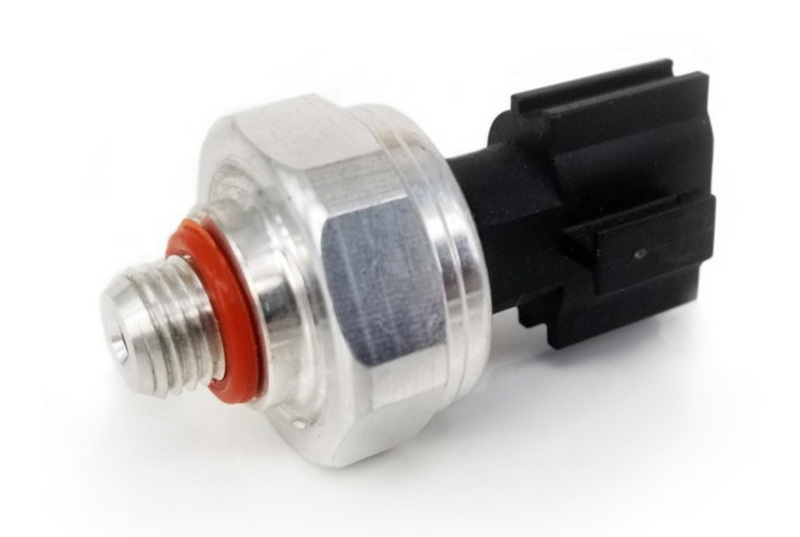

A malfunctioning A/C pressure sensor can cause various issues, including:
- Poor or inconsistent cooling performance: The sensor may incorrectly signal that pressure is too low or too high, causing the compressor to shut off prematurely or not engage at all.
- The A/C system not producing enough chilled air: Without proper pressure readings, the system cannot maintain the correct refrigerant flow.
- Compressor not engaging or cycling on and off frequently: This can lead to increased wear and tear on the compressor.
- Strange noises from the A/C unit: Erratic compressor operation may cause unusual sounds.
- Dashboard warning lights related to the A/C system: Many modern vehicles will illuminate a check engine or A/C warning light if the sensor detects abnormal pressure.
- Sudden shutdowns of the A/C system to protect it from damage: The sensor may shut down the system as a safety measure.
If you experience any of these symptoms, it is important to have your A/C system inspected promptly to avoid further damage.
Testing the A/C pressure sensor requires some tools and knowledge:
- OBD II Scanner (for reading diagnostic trouble codes)
- Multimeter (for electrical testing)
- A/C manifold gauge set or low-pressure gauge (for measuring refrigerant pressure)
- Vehicle service manual or wiring diagram (for sensor specifications)
1. Turn on the vehicle's A/C with the engine running and doors open to keep the system active.
2. Locate the evaporator and pressure sensor in the engine bay.
3. Check refrigerant pressure using a gauge; low pressure may indicate leaks or sensor issues.
4. Connect an OBD II scanner to read any diagnostic trouble codes related to the A/C pressure sensor.
5. Use a multimeter to test the sensor's electrical connections and voltage output against manufacturer specifications.
6. Observe compressor operation; if the compressor does not engage despite correct pressure, the sensor may be faulty.
7. Compare sensor readings with expected values at various operating conditions (engine off, A/C on, engine running, etc.).
Proper testing can help distinguish between sensor failure and other A/C system problems such as refrigerant leaks or compressor faults.
- Sensor wiring damage or corrosion: Exposure to heat, moisture, and vibration can cause wiring faults.
- Refrigerant leaks causing abnormal pressure: Low refrigerant levels can trigger sensor warnings.
- Sensor failure due to wear or contamination: Over time, sensors can degrade or become clogged with debris.
- Faulty compressor or related components affecting pressure readings: Mechanical failures may cause pressure fluctuations.
- Perform a visual inspection of the sensor and wiring for obvious damage or corrosion.
- Use diagnostic tools to confirm sensor output and check for trouble codes.
- Check refrigerant levels and system pressure using manifold gauges.
- Replace the sensor if it fails electrical or pressure tests.
- Inspect the compressor clutch and belt for proper operation.
- Ensure the condenser and radiator fans are functioning correctly.
By following these steps, you can accurately diagnose A/C pressure sensor issues and related system faults.
Replacing an A/C pressure sensor involves the following steps:
1. Locate the sensor on the high-pressure line or compressor. Refer to your vehicle's service manual for the exact location.
2. Depressurize the A/C system safely to avoid refrigerant release. This step usually requires professional equipment and certification due to environmental regulations.
3. Disconnect the electrical connector from the sensor carefully.
4. Unscrew the sensor from its mounting point using the appropriate tools.
5. Install the new sensor by screwing it in place and reconnecting the electrical wiring.
6. Recharge the A/C system with refrigerant as needed, following manufacturer specifications.
7. Test the system to ensure proper operation, checking for leaks and verifying pressure readings.
Replacing the A/C pressure sensor is generally straightforward but must be done carefully to avoid damaging the system or releasing refrigerant into the atmosphere.
Modern vehicles are designed to minimize environmental impact by using sensors like the A/C pressure sensor to optimize refrigerant use and compressor operation. Accurate pressure sensing helps reduce refrigerant leaks and unnecessary compressor cycling, which in turn lowers fuel consumption and emissions.
In many newer cars, the A/C pressure sensor is integrated with other sensors and the vehicle's climate control system. This integration allows for adaptive cooling strategies, such as adjusting compressor speed and fan operation based on real-time pressure data, ambient temperature, and cabin conditions.
- Regularly check A/C system pressure during routine vehicle maintenance.
- Keep the engine bay clean to prevent dirt and debris from affecting sensor operation.
- Address any refrigerant leaks promptly to avoid sensor damage.
- Use manufacturer-approved refrigerants and lubricants to maintain sensor and system health.
The A/C pressure sensor is an indispensable part of a car's air conditioning system. It ensures the refrigerant pressure remains within safe limits, protecting the compressor and other components from damage while maintaining optimal cooling performance. Understanding its function, recognizing symptoms of failure, and knowing how to test and replace it can help maintain your vehicle's comfort and prevent costly repairs. Proper maintenance and timely replacement of a faulty A/C pressure sensor contribute significantly to the longevity and efficiency of your car's air conditioning system.
If the sensor fails, the compressor may not engage or may shut off frequently, leading to poor cooling or no cooling at all. It can also cause system shutdowns to prevent damage, resulting in discomfort and potential costly repairs if ignored.
You can drive, but the A/C system may not function properly, causing discomfort during hot weather. Prolonged operation with a faulty sensor can damage the compressor and other components, leading to more expensive repairs.
There is no fixed interval for replacement. The sensor should be replaced only when it malfunctions or fails diagnostic tests. Regular system checks can help identify sensor issues early.
Yes, with the right tools such as an OBD II scanner, multimeter, and pressure gauges, you can perform basic tests. However, professional diagnosis is recommended for accurate results and safe refrigerant handling.
Signs include the compressor not engaging, warm air from the vents, and possible warning lights on the dashboard. The sensor prevents compressor operation to avoid damage when pressure is too low, signaling a need for system inspection.
