FA340
FIBOS
60t
≤0.05
L:158mm;H:520mm;W:87mm
Alloy steel

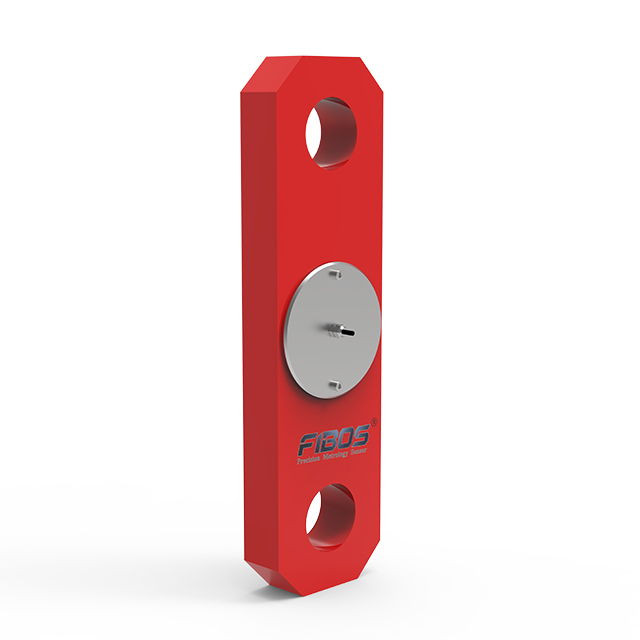

Wire Rope 60t Tension Load Cell Product Description |
The FIBOS FA340 is a high-capacity alloy steel load cell designed for heavy-duty weighing and force measurement applications. With a rated capacity of 60 tons, it delivers accurate and stable performance with excellent linearity, low hysteresis, and reliable repeatability. Its robust construction ensures durability under harsh industrial conditions, while the optimized strain gauge design provides consistent results under both static and dynamic loads. Featuring a high overload capacity (150% safe load) and wide operating temperature range, it is ideal for applications such as truck scales, industrial weighing systems, and heavy load monitoring.

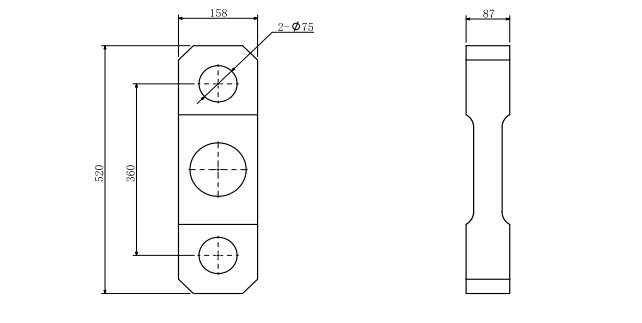

Load Cell Dimensions（Unit:mm） |
We provide 3D model files of our products.Support |
Load Direction | Load Cell Wiring |
|  |
Wire Rope 60t Tension Load Cell Specifications |
Sensor Physical Parameters | |
Nominal Capacity | 60t |
Deflection at Full Scale | |
Fundamental resonance frequency (f_G) | |
Safe Overload | 150%F.S. |
Operating Temperature | -20~80℃ |
Ingress Protection (IP) | IP65 |
Cable | φ4x3m |
Spring Element Material | Alloy Steel |
weight | |
Loading Direction | Tension |
Sensor Accuracy Parameters | |
Combined Error | ≤0.05%F.S. |
Non-linearity | ≤0.05%F.S. |
Hysteresis | ≤0.1%F.S. |
Repeatability | ≤0.05%F.S. |
Creep(30min) | ≤0.1%F.S. |
Temperature Effect on Output | 0.05%F.S./10℃ |
Electrical Parameters | |
Rated Output | 1.5±10%mV/V |
Excitation Voltage | 5~12V DC |
| Insulation Resistance | ≥5000MΩ/100V(DC) |
Recommended force sensor combinations |
 |
Force sensor manufacturing process |
Load Cell Non-standard customisation process |
|
| Fibos possesses a professional technical team capable of developing customized products to meet specific client requirements. Our R&D cycle is seamlessly integrated with our in-house production lines, enabling us to deliver relevant products within a short timeframe. |
Force Sensor Case Studies |
Frequently Asked Questions about Force Sensors |
A: The FA340 Tension typ load cell is widely used in industrial force measurement applications such as crane scales, Wire rope pulling application, tensile testing etc.
A: The FA340 is made of high-quality Alloy steel offering excellent corrosion resistance and mechanical strength, ensuring stable performance in harsh environments such as humid or dusty conditions.
A:Yes, the FA340 is a load cell that can measure tension force only, making it suitable for various force testing applications.
A:The FA340 offers excellent linearity, repeatability, and long-term stability. It also provides strong resistance to interference, ensuring reliable measurement results.
A:Yes, FIBOS offers customization options including capacity range, dimensions, thread specifications, output signals, and adaptations for special environments.
