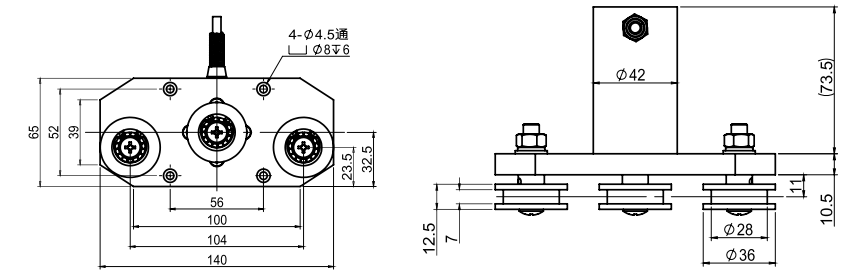

3 Roller Tension Sensor

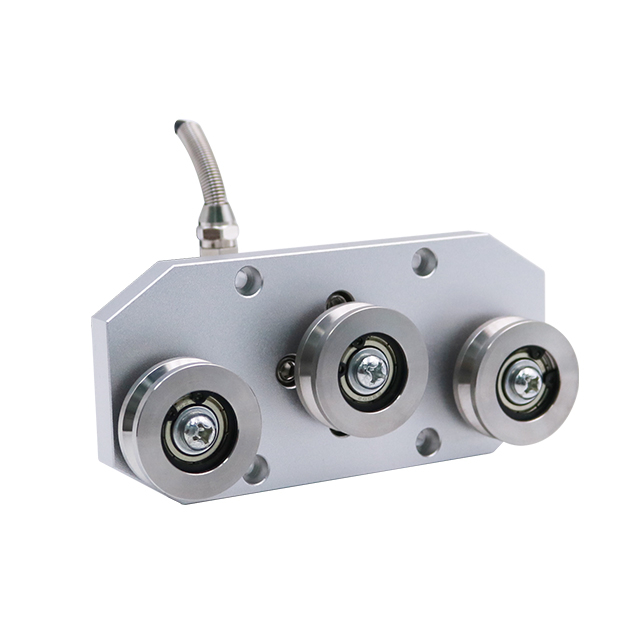

FA9133 Tension Sensor, IP65-rated, high-precision measurement of rope/wire rope tension, range 5–50 kg, stable and durable, compatible with multi-pulley systems, compliant with CE and RoHS standards.

• High precision, excellent stability, compact structure and integrated design

• High torsional and bending resistance

• High sealing performance and environmental adaptability

• Diverse output signals

• Primarily suitable for: lifting machinery, ports and terminals, industrial automation, aerospace and marine applications, electronic crane scales, etc.

Sensor Physical Parameters
Nominal Capacity	5~50kg
Deflection at Full Scale	-
Fundamental resonance frequency (f_G)	-
Safe Overload	150%F.S.
Operating Temperature	-20~60℃
Ingress Protection (IP)	IP65
Cable	φ5x2m
Spring Element Material	Steel/aluminum alloy
weight	-
Loading Direction	-
Sensor Accuracy Parameters
Combined Error	≤0.03%F.S.
Non-linearity	≤0.03%F.S.
Hysteresis	≤0.03%F.S.
Repeatability	≤0.03%F.S.
Creep(30min)	≤0.03%F.S.
Temperature Effect on Output	0.1%F.S./10℃
Electrical Parameters
Rated Output	1.5±2.0
Excitation Voltage	5-10V DC
Insulation Resistance	≥2000MΩ/50V(DC)

Sensor Styling Suggestions

Force sensor manufacturing process

Sensor Non-standard customisation process

Fibos possesses a professional technical team capable of developing customized products to meet specific client requirements. Our R&D cycle is seamlessly integrated with our in-house production lines, enabling us to deliver relevant products within a short timeframe.

Customer case studies for the Torque series

Frequently Asked Questions about Force Sensors

Q1：What is a shaft pin sensor and where is FA9133 used?

A: A shaft pin sensor replaces traditional pins in mechanical structures to directly measure force. The FA9133 is widely used in cranes, port machinery, industrial automation, marine, and aerospace applications.

Q2：Does FA9133 support unidirectional or bidirectional measurement?

A:The FA9133 supports bidirectional force measurement, allowing detection of both tension and compression.

Q3：What is the accuracy of FA9133?

A:The combined accuracy is ≤0.03%, with excellent linearity (≤0.03%), repeatability (≤0.03%), and hysteresis performance.

Q4：What is the protection rating and environmental capability?

A: The FA9133 has an IP65 rating and operates reliably in temperatures from -20°C to 60°C, suitable for harsh environments.

Q5：What should be considered during installation?

A:

• Ensure proper alignment with mounting holes

• Avoid side loads and impact forces

• Install according to load direction

• Secure properly to prevent loosening
