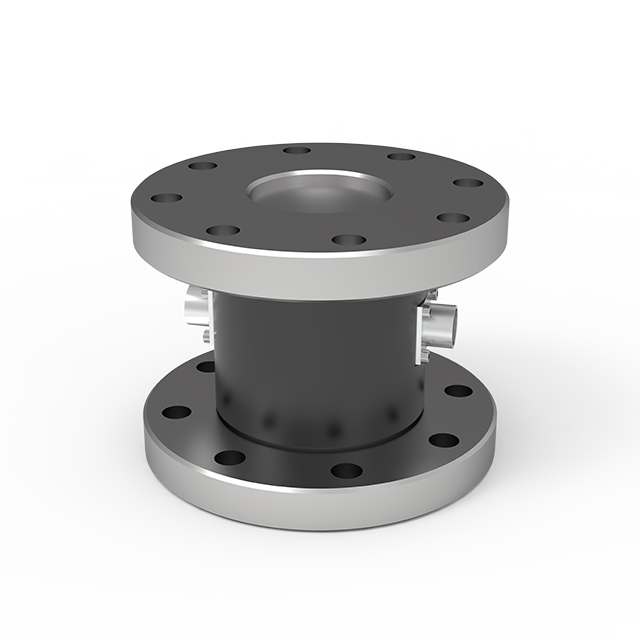

FA778-5600 Series
FIBOS
Compression-torsion composite multi-axis force sensor Product Description |
Integrated design to measure both axial compression/tension force (Fz) and rotational torque (Mz) in one compact unit, eliminating the need for multiple separate sensors.
Industry-leading ≤±0.1%F.S. nonlinearity, hysteresis, and repeatability, with ultra-low temperature drift (≤±0.02%F.S./10℃ for both zero and sensitivity), ensuring long-term measurement accuracy.
Flange-to-flange mounting structure for easy integration, 150% safe overload capacity, and wide operating temperature range, suitable for harsh industrial environments.
Universal 350Ω input resistance, compatible with standard strain gauge amplifiers, data acquisition systems, and industrial controllers.
5 standard models with varying ranges and dimensions, from small-scale testing to heavy-duty industrial applications, with custom ranges available.

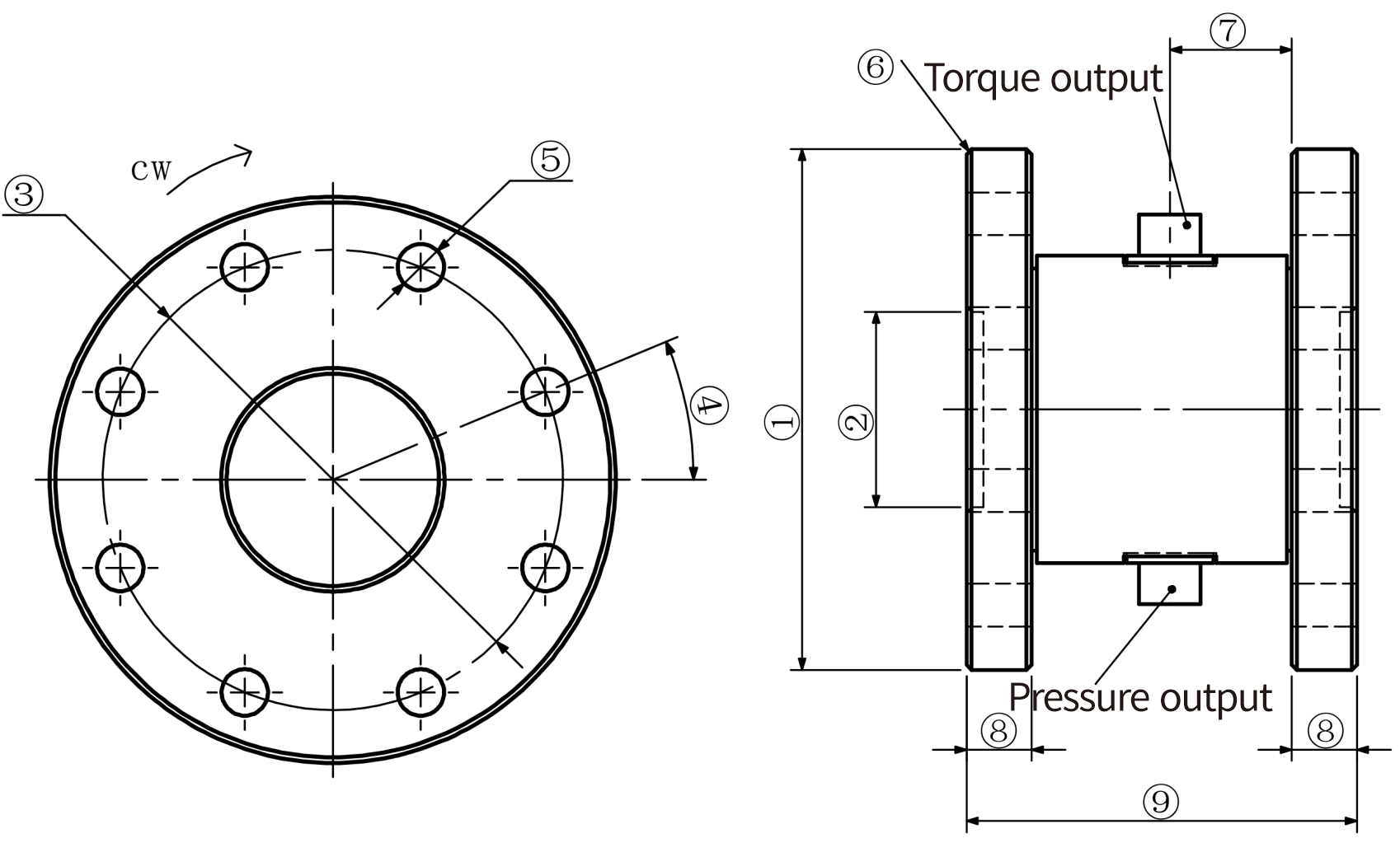

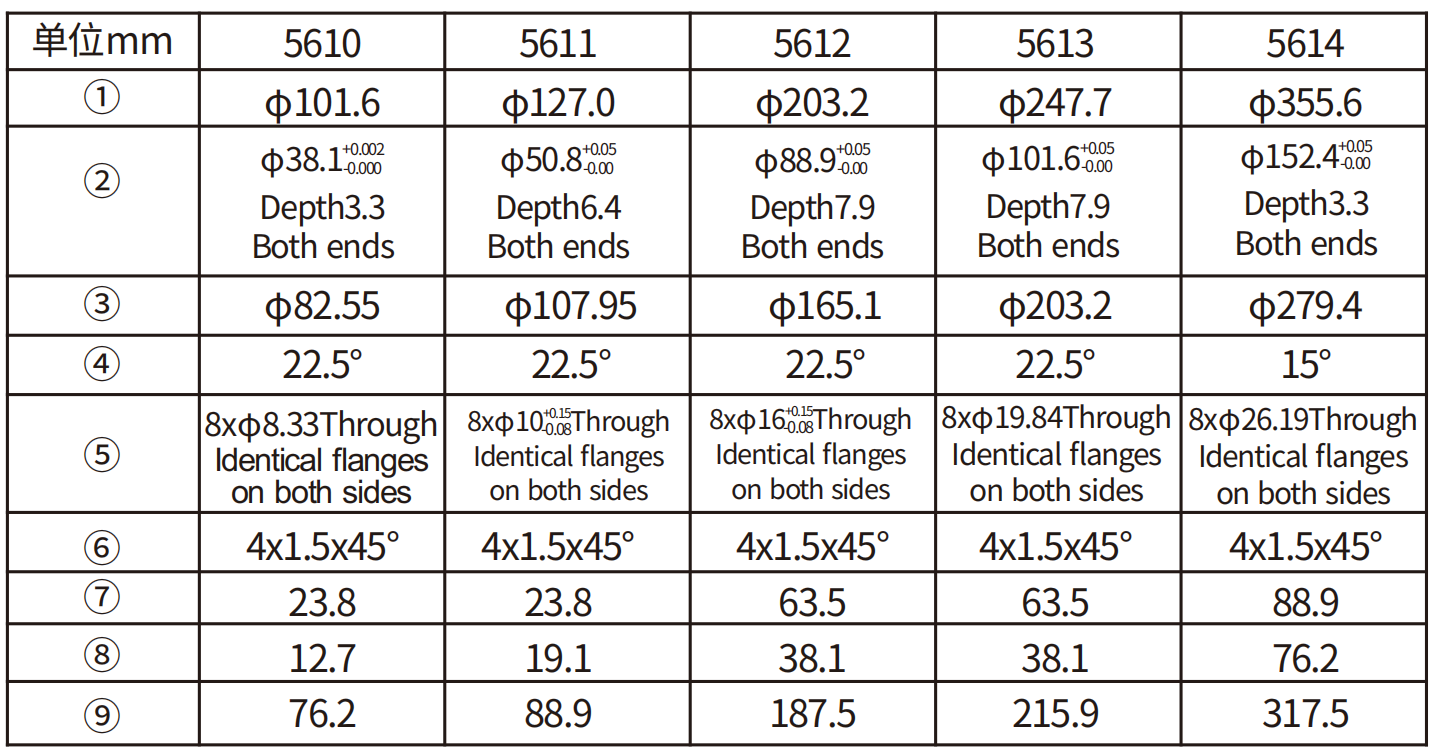

Compression-torsion composite multi-axis force sensor Dimensions（Unit:mm） |
We provide 3D model files of our products.Support |

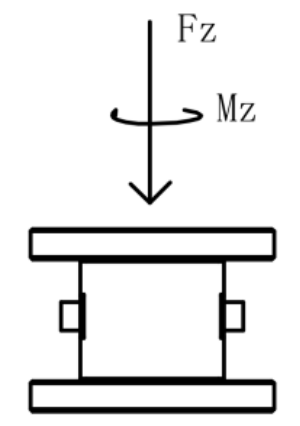

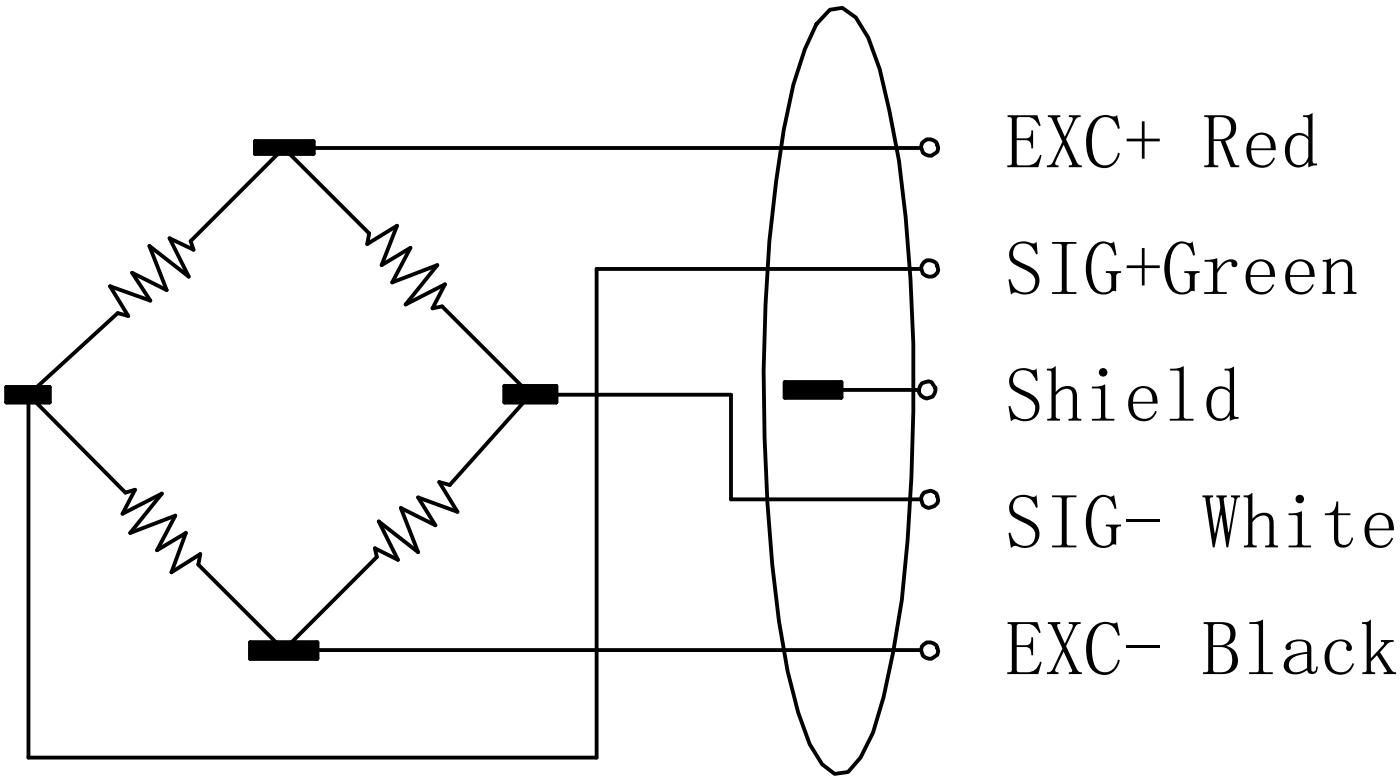

Compression-torsion composite multi-axis force sensor Load Direction | Compression-torsion composite multi-axis force sensor Wiring |
 |  |
Compression-torsion composite multi-axis force sensor Specifications |
Model | 5610 | 5611 | 5612 | 5613 | 5614 | |
| Nominal Capacity | N.m/kN | MZ:560 | MZ:2.2K | MZ:11K | MZ:22K | MZ:33K |
| FZ:27 | FZ:130 | FZ:450 | FZ:670 | FZ:800 | ||
| Rated Output | mV/V | MZ:2 | MZ:2 | MZ:2 | MZ:2 | MZ:2 |
| FZ:0.25 | FZ:0.5 | FZ:0.5 | FZ:0.5 | FZ:0.5 | ||
| Non-linearity | %F.S. | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Hysteresis | %F.S. | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Repeatability | %F.S. | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 |
| Temp. Coeff. of Sens. | %F.S./10°C | ±0.05 | ±0.05 | ±0.05 | ±0.05 | ±0.05 |
| Temp. Coeff. of Zero | %F.S./10°C | ±0.05 | ±0.05 | ±0.05 | ±0.05 | ±0.05 |
| Input Resistance | Ω | 350 | 350 | 350 | 350 | 350 |
| Excitation Voltage | VDC | 5~20 | 5~20 | 5~20 | 5~20 | 5~20 |
| Compensated Temp. Range | °C | -10~60 | -10~60 | -10~60 | -10~60 | -10~60 |
| Operating Temp.Range | °C | -20~80 | -20~80 | -20~80 | -20~80 | -20~80 |
| Safe Overload | %F.S. | ±150 | ±150 | ±150 | ±150 | ±150 |
| Ultimate Overload | 1bf | 2K | 7K | 20K | 30K | 55K |
Sensor Styling Suggestions |
 |
Force sensor manufacturing process |
Sensor Non-standard customisation process |
|
| Fibos possesses a professional technical team capable of developing customized products to meet specific client requirements. Our R&D cycle is seamlessly integrated with our in-house production lines, enabling us to deliver relevant products within a short timeframe. |
Force Sensor Case Studies |
Frequently Asked Questions about Force Sensors |
A: It is a 2-axis sensor that simultaneously measures axial force (Fz) and torque (Mz) in a single device.
A: Ultra-high precision with ≤±0.1%F.S. nonlinearity, hysteresis, and repeatability, plus ultra-low temperature drift for stable readings.
A: Ranges from Fz: 2kN~80kN and Mz: 560N·m~33kN·m, with 5 model options to suit different applications.
A: Yes. It features a standard flange-to-flange mounting structure for straightforward integration into machinery and test setups.
A: It accepts a wide 5~20VDC input and has a 350Ω bridge resistance, compatible with standard strain gauge equipment.
A: Yes. It offers a -20~80℃ operating temperature range and 150% safe overload capacity for robust industrial performance.
A: Yes. It is compatible with strain gauge amplifiers, data acquisition systems, PLCs, and industrial robots.
