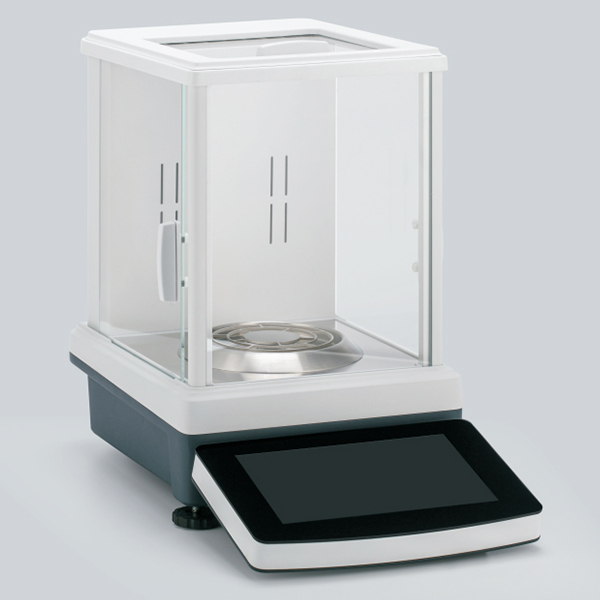

FEB-C Series Electronic Balance Product Overview |
The FEB-C Series Electronic Balance is a high-precision laboratory weighing instrument designed for scientific research, industrial quality control, pharmaceutical laboratories, universities, jewelry weighing, and precision manufacturing applications. Featuring a 7-inch full-touch graphic display, intelligent operating system, and high-resolution weighing performance, the CEB-C series delivers fast, stable, and reliable measurement results.
Manufactured with a robust aluminum alloy base and high-strength engineering materials, the balance provides excellent long-term stability while supporting multiple weighing modes and customized communication interfaces.
FEB-C Series Electronic Balance Technical Features |
Durable Construction
Adopt aluminum alloy base + high-strength PBT material
Full-range Multi-point Temperature Compensation
With multi-point temperature compensation covering 0 to full scale, it ensures long-termstable data output after a single calibration.
Multi-function
It provides functions such as Dynamic weighing, Density determination, etc.
Custom Solutions
Custom solutions including counterweight configuration, communication protocol,unit setting, etc.
）

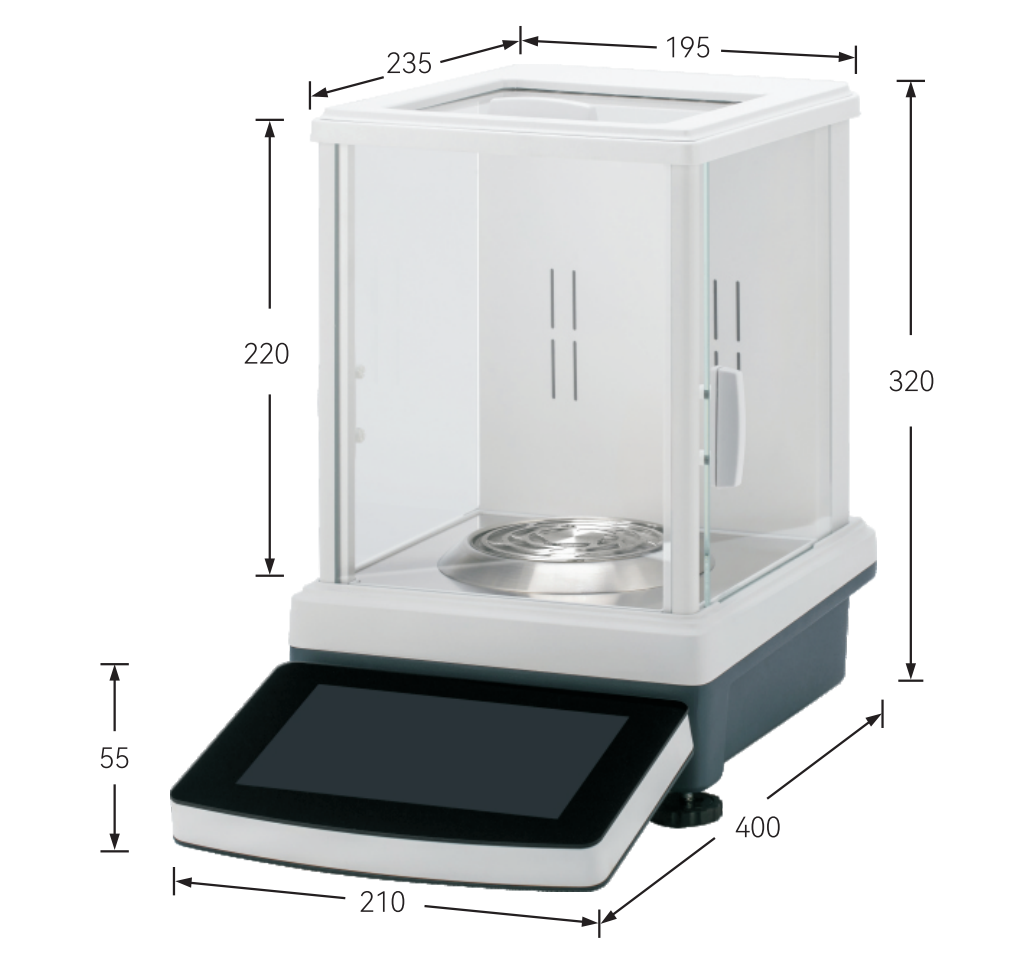

FEB-C Series Electronic Balance Dimensions（Unit:mm） |
![FEB-C 尺寸]()
FEB-C Series Electronic Balance Technical parameters |
FEB-C series 0.01mg specification |
IN-Cal T-Screen | FEB1035C | FEB1055C | FEB1085C | FEB2035C | FEB2055C | FEB2085C | FEB105C | FEB125C |
| Capacity | 120g/31g | 120g/51g | 120g/81g | 220g/31g | 220g/51g | 220g/81g | 100g | 120g |
| Readability | 0.1mg/0.01mg | 0.01mg |
| Stable time | 2s/3s | 3s |
| Preheating | 30-60Mins | 30-60Mins |
| Weighing Units | g/oz/ct/mg | g/oz/ct/mg |
| Min weight | 10mg/1mg | 1mg |
| Repeatability | ±0.1mg/±0.03mg | ±0.03mg |
| Linearity | ±0.2mg/±0.05mg | ±0.05mg |
| Interface | RS232/USB optional |
| Pan size | φ90mm | φ90mm | φ90mm | φ90mm | φ90mm | φ90mm | φ90mm | φ90mm |
| Product size | Inner carton:43x32x41.5cm Master carton:49x38x48.5cm |
| N.W. | 6280g |
| Power | AC110V-240V |
FEB-C series 0.1mg specification |
IN-Cal T-Screen | FEB124C | FEB224C | FE324C | FEB424C | FEB524C |
| Capacity | 0-120g
| 0-220g | 0-320g | 0-420g | 0-520g |
| Readability | 0.1mg |
| Stable time | 1.5s | 2s |
| Preheating | 30-60Mins |
| Weighing Units | g/oz/ct/mg |
| Min weight | 10mg |
| Repeatability | ±0.1mg | ±0.2mg |
| Linearity | ±0.2mg | ±0.3mg |
| Interface | RS232/USB |
| Pan size | φ90mm | φ90mm | φ90mm | φ90mm | φ90mm |
| Product size | Inner carton:43x32x41.5cm Master carton:49x38x48.5cm |
| N.W. | 6280g |
| Power | AC110V-240V |
FEB-C series 1mg specification |
IN-Cal T-Screen | FEB503C | FEB603C | FEB1003C | FEB2003C |
| Capacity | 0-520g
| 0-620g | 0-1000g | 0-2000g |
| Readability | 1mg |
| Stable time | 2s |
| Preheating | 30-60Mins |
| Weighing Units | g/oz/ct/mg |
| Min weight | 20mg |
| Repeatability | ±1mg |
| Linearity | ±2mg |
| Interface | RS232/USB |
| Pan size | φ90mm | φ90mm | φ110mm | φ90mm |
| Product size | Inner carton:43x32x41.5cm Master carton:49x38x48.5cm |
| N.W. | 6280g |
| Power | AC110V-240V |
Force sensor manufacturing process |
![Incoming Material Inspection]()
01 Incoming Material Inspection
![Laser Marking]()
02 Laser Marking
![Cleaning and Placement]()
03 Cleaning and Placement
![Pressure curing]()
04 Pressure curing
![Bridge Assembly Welding]()
05 Bridge Assembly Welding
![Test Compensation]()
06 Test Compensation
![Adhesive application and curing]()
07 Adhesive application and curing
![Laser welding]()
08 Laser welding
![Finished Product Re-testing]()
09 Finished Product Re-testing
![Cleaning and packaging]()
10 Cleaning and packaging
Non-standard customisation process |
![Non-Standard Customization Process]()
|
| Fibos possesses a professional technical team capable of developing customized products to meet specific client requirements. Our R&D cycle is seamlessly integrated with our in-house production lines, enabling us to deliver relevant products within a short timeframe. |
FEB-C Series Electronic Balance Applications |
![Pharmaceutical Laboratories]()
Pharmaceutical Laboratories
![Chemical Analysis]()
Chemical Analysis
![Jewelry Industry]()
Jewelry Industry
![Food Laboratories]()
Food Laboratories
![Industrial Quality Control]()
Industrial Quality Control
![Environmental Laboratories]()
Environmental Laboratories
Frequently Asked Questions about FEB-C Series Electronic Balance |
Q1：What weighing capacities are available?
A: The FEB-C series covers capacities from 31 g up to 2000 g, depending on the model selected.
Q2：What accuracy options are available?
A:
Q3：Does the balance support RS232 communication?
A: Yes. Standard models support RS232 and USB communication for easy data transfer.
Q4：Can you provide customized functions?
A: Yes. We support OEM/ODM customization, including communication protocols, software functions, weighing units, and special application requirements.
Q5：What industries use this balance?
A:It is widely used in pharmaceutical, chemical, laboratory, education, electronics, jewelry, food, and research applications.
