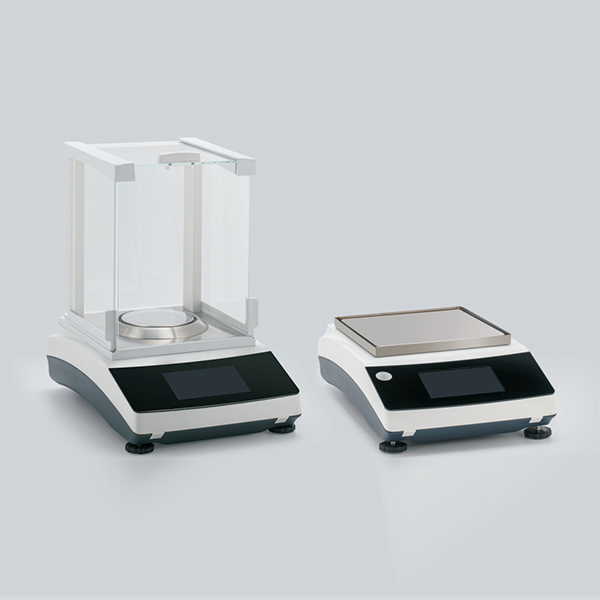

FE Series Electronic Balance Product Overview |
Featuring advanced electromagnetic force compensation technology, the FE Series delivers exceptional weighing accuracy, fast stabilization, and reliable long-term performance. Multiple readability options from 0.01mg to 0.01g allow users to select the most suitable model for different laboratory applications.
Its durable aluminum alloy structure, intelligent temperature compensation system, and user-friendly touchscreen interface ensure accurate measurements even under demanding laboratory conditions.
FE Series Electronic Balance Technical Features |
Durable Construction
Adopt aluminum alloy base + high-strength PBT material
Full-range Multi-point Temperature Compensation
With multi-point temperature compensation covering 0 to full scale, it ensures long-termstable data output after a single calibration.
Multi-function
It provides functions such as Dynamic weighing, Density determination, etc.
Custom Solutions
Custom solutions including counterweight configuration, communication protocol,unit setting, etc.
）

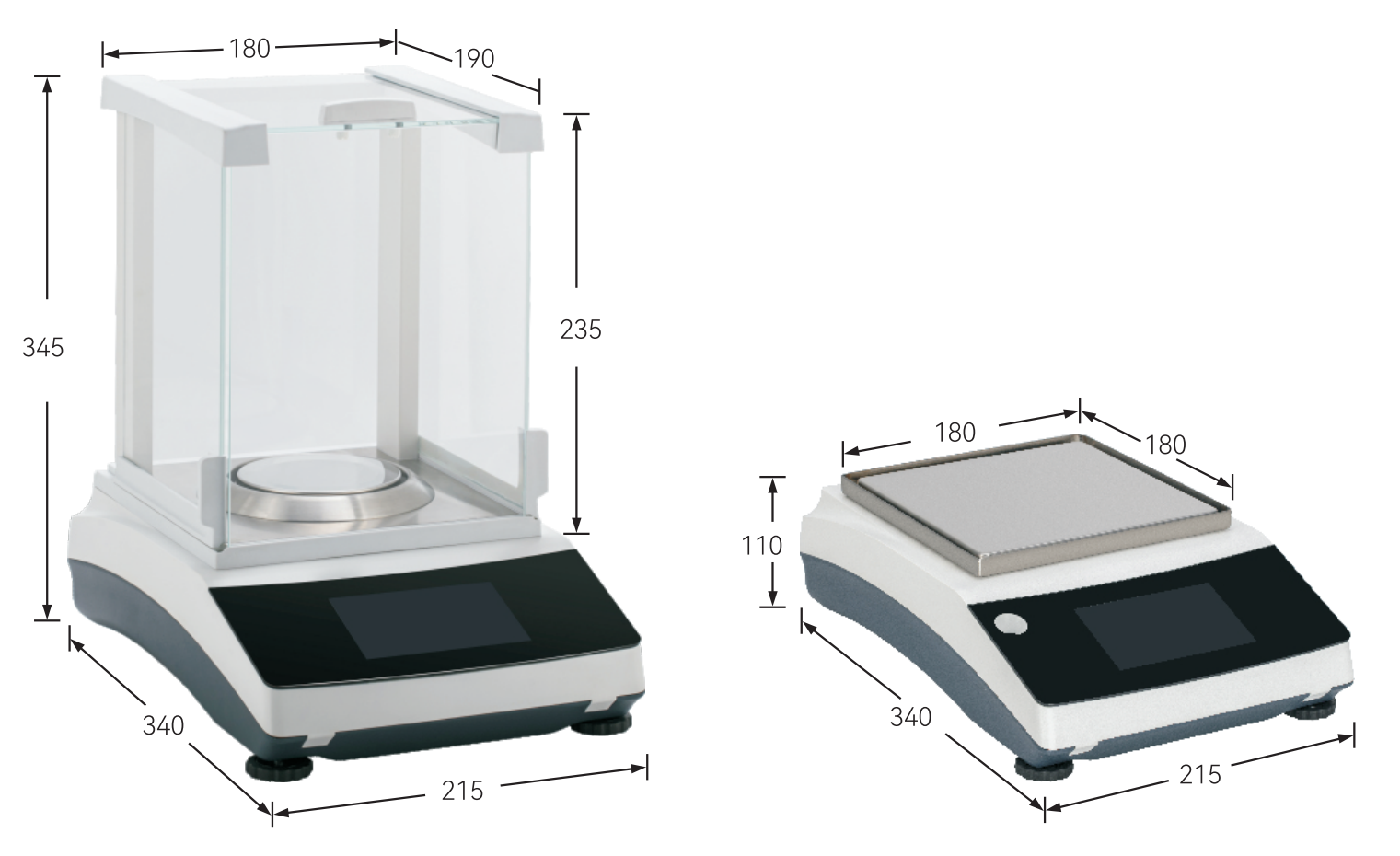

FE Series Electronic Balance Dimensions（Unit:mm） |
![FE 尺寸]()
FE Series Electronic Balance Technical parameters |
FE series 0.01mg specification |
External Cal. | FE1035 | FE1055 | FE1085 | FE2035 | FE2055 | FE2085 |
| Internal Cal. | FE1035N | FE1055N | FE1085N | FE2035N | FE2055N | FE2085N |
| Capacity | 120g/31g | 120g/51g | 120g/81g | 220g/31g | 220g/51g | 220g/81g |
| Readability | 0.1mg/0.01mg |
| Stable time | 2s/3s |
| Preheating | 30-60Min |
| Units | g/oz/ct/mg |
| Min weight | 10mg/1mg |
| Repeatability | ±0.1mg/±0.03mg |
| Linearity | ±0.2mg/±0.05mg |
| Output | RS232/USB optional |
| Pan size | φ90mm | φ90mm | φ90mm | φ90mm | φ90mm | φ90mm |
| Product size | 33x21.5x34.5mm |
| N.W. | 5500g |
| Power | AC110V-240V 50-60HZ |
FE series 0.1mg specification |
| External Cal. | FE124 | FE224 | FE324 | FE424 | FE524 |
| Internal Cal. | FE124N | FE224N | FE324N | FE424N | FE524N |
| Capacity | 0-120g | 0-220g | 0-320g | 0-420g | 0-520g |
| Readability | 0.1mg |
| Stable time | 1.5s | 2s |
| Preheating | 30-60Min |
| Units | g/oz/ct/mg |
| Min weight | 10mg |
| Repeatability | ±0.1mg | ±0.2mg |
| Linearity | ±0.2mg | ±0.3mg |
| Output | RS232/USB optional |
| Pan size | φ90mm | φ90mm | φ90mm | φ90mm | φ90mm |
| Product size | 33x21.5x34.5mm |
| N.W. | 5500g |
| Power | AC110V-240V 50-60HZ |
FE series 1mg specification |
| External Cal. | FE123 | FE223 | FE323 | FE523 | FE1003 |
| Internal Cal. | FE123N | FE223N | FE323N | FE523N | FE1003N |
| Capacity | 0-120g | 0-220g | 0-320g | 0-520g | 0-1000g |
| Readability | 1mg |
| Stable time | ＜3s |
| Preheating | 30-60Min |
| Units | g/oz/ct/mg |
| Min weight | 20mg |
| Repeatability | ±0.002g |
| Linearity | ±0.002g
|
| Output | RS232/USB optional |
| Pan size | φ90mm | φ90mm | φ90mm | φ90mm | φ90mm |
| Product size | 33x21.5x34.5mm |
| N.W. | 5500g |
| Power | AC110V-240V 50-60HZ |
FE series 0.01g specification |
| External Cal. | FE1002 | FE2002 | FE3002 | FE4002 | FE5002 | FE6002 |
| Capacity | 0-1000g | 0-2000g | 0-3000g | 0-4000g | 0-5000g | 0-6000g |
| Readability | 0.01g |
| Stable time | 2s |
| Preheating | 30-60Min |
| Units | g/oz/ct/mg |
| Min weight | 0.2g0 | 0.5g |
| Repeatability | ±0.02g |
| Linearity | ±0.02g
|
| Output | RS232/USB optional |
| Pan size | 180x180mm | 180x180mm | 180x180mm | 180x180mm | 180x180mm | 180x180mm |
| Product size | 33x21.5x10.5mm |
| N.W. | 5000g |
| Power | AC110V-240V 50-60HZ |
Force sensor manufacturing process |
![Incoming Material Inspection]()
01 Incoming Material Inspection
![Laser Marking]()
02 Laser Marking
![Cleaning and Placement]()
03 Cleaning and Placement
![Pressure curing]()
04 Pressure curing
![Bridge Assembly Welding]()
05 Bridge Assembly Welding
![Test Compensation]()
06 Test Compensation
![Adhesive application and curing]()
07 Adhesive application and curing
![Laser welding]()
08 Laser welding
![Finished Product Re-testing]()
09 Finished Product Re-testing
![Cleaning and packaging]()
10 Cleaning and packaging
Non-standard customisation process |
![Non-Standard Customization Process]()
|
| Fibos possesses a professional technical team capable of developing customized products to meet specific client requirements. Our R&D cycle is seamlessly integrated with our in-house production lines, enabling us to deliver relevant products within a short timeframe. |
FE Series Electronic Balance Applications |
![Pharmaceutical Laboratories]()
Pharmaceutical Laboratories
![Chemical Analysis]()
Chemical Analysis
![Jewelry Industry]()
Jewelry Industry
![Food Laboratories]()
Food Laboratories
![Industrial Quality Control]()
Industrial Quality Control
![Environmental Laboratories]()
Environmental Laboratories
Frequently Asked Questions about FE Series Electronic Balance |
Q1：What is the difference between internal and external calibration?
A: Internal calibration models feature a built-in calibration weight for automatic calibration, while external calibration models require an external standard weight..
Q2：Which accuracy should I choose?
A:
0.01mg: Ultra-high precision laboratory analysis
0.1mg: Analytical laboratories
1mg: General laboratory weighing
0.01g: Industrial and routine weighing
Q3：Does the balance support computer connection?
A: Yes. Optional RS232 and USB interfaces are available for data transmission and printing.
Q4：Can the balance be customized?
A: Yes. We offer customized communication interfaces, software integration, calibration options, and OEM branding services.
Q5：What industries commonly use this balance?
A:Pharmaceuticals, chemicals, universities, research institutes, food laboratories, jewelry testing, environmental monitoring, and industrial quality control.
