The Common Gate (CG) amplifier is a fundamental building block in analog electronics, particularly in applications requiring high-frequency operations. This article will delve into the intricacies of CG amplifiers, focusing on their characteristics when fed with a signal source. We will explore their operational principles, advantages, disadvantages, and practical applications, supported by diagrams and videos to enhance understanding.
The CG amplifier is one of the three basic configurations of MOSFET amplifiers, alongside the Common Source (CS) and Common Drain (CD) configurations. In a CG amplifier, the input signal is applied to the source terminal, while the gate terminal is connected to a fixed DC bias voltage. The output is taken from the drain terminal.
- Input Terminal: Source
- Output Terminal: Drain
- Gate Connection: Grounded or connected to DC bias
Basic Structure of a CG Amplifier

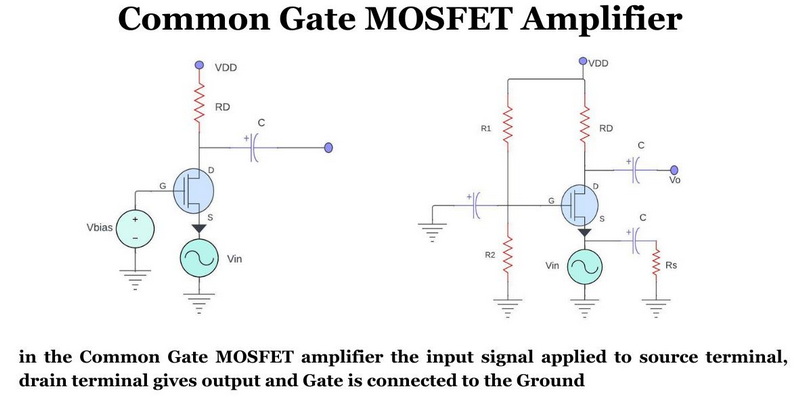

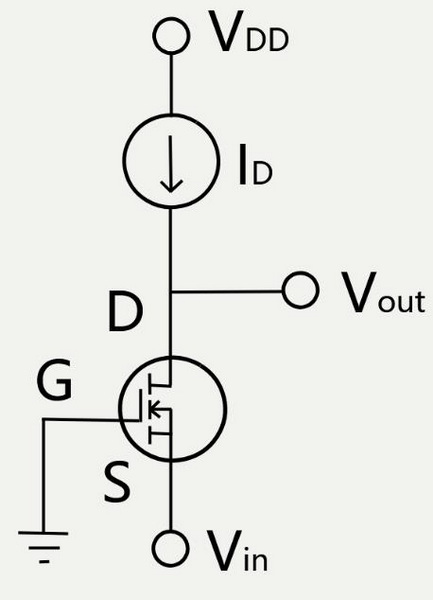

Basic Structure of a CG Amplifier
The operation of a CG amplifier can be understood through its small-signal model, which allows for analyzing its performance under varying conditions. The key parameters include:
- Voltage Gain: The voltage gain Av of a CG amplifier can be expressed as:
Av=gmRD
where gm is the transconductance andRD is the load resistance.
- Input Impedance: One notable characteristic of CG amplifiers is their low input impedance, typically given by:
Zin≈1/gm
This low input impedance makes them suitable for impedance matching applications.
- Output Impedance: The output impedance of a CG amplifier is relatively high, allowing it to drive loads effectively.
- High Bandwidth: CG amplifiers are known for their wide bandwidth capabilities, making them ideal for high-frequency applications.
- Low Noise: They exhibit lower noise figures compared to other configurations, enhancing sensitivity in signal amplification.
- Phase Response: The output signal maintains a 0-degree phase shift relative to the input, which is advantageous in RF applications.
- Lower Voltage Gain: Compared to other configurations like CS amplifiers, CG amplifiers typically offer lower voltage gain.
- Limited Applications: While useful in specific scenarios, their application range is narrower compared to CS and CD configurations.
CG amplifiers find use in various fields due to their unique characteristics:
- Radio Frequency (RF) Applications: They are commonly used in RF circuits for impedance matching with antennas.
- Low-Noise Amplification: In sensitive instruments like medical devices, CG amplifiers help minimize noise interference.
- Audio Applications: Although less common than CS amplifiers, they are employed in certain audio applications where high input impedance is required.
- Sensor Interfacing: They are utilized in interfacing with sensors that require signal amplification and conditioning.
When fed with a signal source having specific characteristics (e.g., resistance Rsig), the performance of the CG amplifier can vary significantly. For instance:
1. If Rsig=100Ω, the overall voltage gain can be calculated based on the load conditions.
2. The interaction between Rsig and the input impedance influences the overall gain and performance metrics.
To illustrate how a CG amplifier behaves when fed with a signal source having certain properties, we can analyze specific scenarios:
1. Given Rsig=200Ω and an overall voltage gain of 10 V/V.
2. The relationship between load resistance and voltage gain can be expressed mathematically.
Assuming Rsig=200Ω:
Av=Vout/Vin=10
This indicates that for every 1V at the input, there will be 10V at the output under ideal conditions.
Understanding the key characteristics of common gate amplifiers is essential for optimal design implementation.
| Parameter | Characteristics |
|---|---|
| Voltage Gain | High |
| Current Gain | Low |
| Power Gain | Low |
| Input/Output Phase Relationship | 0° |
| Input Resistance | Low |
| Output Resistance | High |
The voltage gain of a common gate amplifier can be expressed as:
Av=−gm(rd∣∣RL)
where rd represents the drain-to-source resistance and RLRL is the load resistance. This configuration typically provides moderate voltage gain while maintaining excellent frequency response characteristics.
One of the most significant advantages of the common gate configuration is its superior high-frequency performance. The absence of the Miller effect, which typically limits frequency response in common source configurations, allows common gate amplifiers to operate effectively at much higher frequencies. This characteristic makes them particularly valuable in RF and microwave applications.
The frequency response extends well into the gigahertz range, limited primarily by the parasitic capacitances of the device. The input capacitance, typically dominated by gate-to-source capacitance, has minimal impact on high-frequency performance due to the configuration's inherent characteristics.
The noise performance of common gate amplifiers deserves special attention in many applications. The input-referred noise is influenced by several factors including channel thermal noise and flicker noise characteristics. Advanced MOSFET technology incorporates special design features that minimize both thermal and flicker noise contributions resulting in superior signal-to-noise ratio performance.
In modern electronic systems, power efficiency remains critical. Common gate amplifiers can be designed for optimal power efficiency through careful selection of operating points and load conditions. Advanced MOSFETs feature enhanced thermal management capabilities ensuring reliable operation even in demanding applications.
The Common Gate amplifier is a versatile component in analog electronics that excels in high-frequency applications due to its unique operational characteristics. Its ability to maintain low noise levels while providing adequate voltage gain makes it suitable for various applications ranging from RF amplification to sensor interfacing. Understanding its behavior when fed with different signal sources enhances its practical implementation in electronic designs.
A Common Gate amplifier is an electronic amplifier configuration where the input signal is applied to the source terminal while the gate terminal is grounded or connected to a fixed DC voltage.
Common Gate amplifiers offer high bandwidth, low noise figures, and maintain phase integrity between input and output signals making them ideal for RF applications.
The low input impedance of a Common Gate amplifier allows it to effectively match with low-resistance sources enhancing its performance in specific applications like RF circuits.
Common Gate amplifiers are commonly used in RF amplification, low-noise amplification for sensitive devices, audio amplification where necessary, and sensor interfacing requiring signal conditioning.
The resistance of the signal source affects overall voltage gain; lower source resistance typically results in higher gain due to better loading conditions on the amplifier's input stage.
