In the world of cable television and internet services, signal integrity is paramount. One of the essential components in maintaining this integrity is the cable signal amplifier. However, a common question arises: Are cable signal amplifier ports isolated? This article delves into the intricacies of cable signal amplifiers, their design, functionality, and the significance of port isolation.

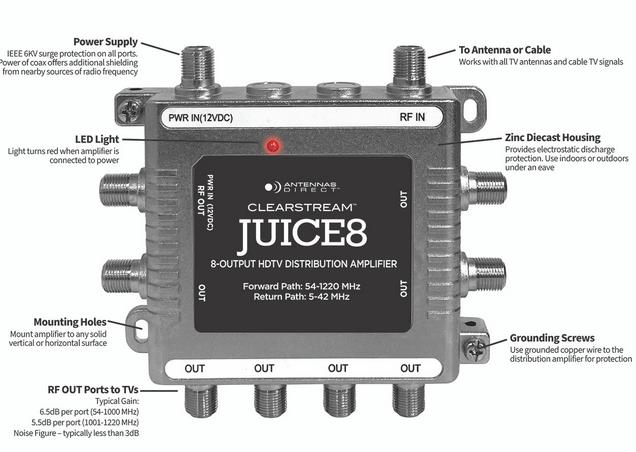

Cable signal amplifiers are devices designed to boost the strength of incoming signals from cable providers. They are particularly useful in scenarios where signals need to be split among multiple devices, such as TVs and modems.
- Signal Boosting: Amplifiers increase the strength of weak signals to ensure that they can effectively reach all connected devices without degradation.
- Frequency Range: Most amplifiers operate within a specific frequency range, typically from 54 MHz to 1 GHz, making them suitable for both TV and internet signals.
- Types of Amplifiers:
- Single-Port Amplifiers: Boost signals for one output.
- Multi-Port Amplifiers: Distribute boosted signals to multiple outputs.
Isolation in amplifiers refers to the ability of an amplifier to prevent unwanted signals from one port affecting another. This is crucial for maintaining signal integrity and preventing interference.
Port isolation measures how effectively an amplifier can prevent feedback or signal leakage between its input and output ports. In simpler terms, it quantifies how well the amplifier keeps the amplified signal from interfering with the incoming signal.
Reverse isolation is a specific type of port isolation that is particularly relevant in RF (radio frequency) amplifiers. It measures how well an amplifier prevents signals from leaking back into its input port from its output port.
- Measurement: Reverse isolation is typically expressed in decibels (dB). A higher negative dB value indicates better isolation. For example, a reverse isolation of -30 dB means that any signal leaking back into the input is significantly attenuated.
- Significance:
- Signal Integrity: High reverse isolation helps maintain the purity of input signals by preventing contamination from output signals.
- Stability: Adequate reverse isolation prevents feedback loops that could lead to instability or oscillation within the amplifier circuit.
To achieve high levels of isolation in cable signal amplifiers, several design techniques are employed:
- Decoupling Networks: These networks use capacitors and inductors to block unwanted signals while allowing desired frequencies to pass through.
- Shielding and Grounding: Proper shielding reduces electromagnetic interference (EMI), enhancing overall performance.
- Balanced Amplifier Designs: Such designs naturally provide better isolation due to their symmetrical nature.
When ports are not adequately isolated, several issues can arise:
- Signal Degradation: Unwanted feedback can lead to reduced signal quality and strength.
- Interference: Signals from one port may interfere with those on another, leading to poor performance across devices.
Isolated amplifiers are particularly beneficial in environments where multiple devices are connected, such as:
- Home Entertainment Systems: To prevent interference between various audio/video components.
- Data Acquisition Systems: Where accurate measurements are critical, isolated amplifiers help maintain data integrity.
Installing a cable signal amplifier requires careful planning to ensure optimal performance. Here are some key steps:
1. Location Selection: Choose a location close to the antenna or source of the weak signal to minimize loss.
2. Gather Necessary Tools: Common tools include coaxial cables, a screwdriver, and possibly a power source if required by the amplifier.
3. Connection Setup:
- Connect the incoming antenna cable to the amplifier's input.
- Use a coaxial cable to connect the amplifier's output port to your TV or modem.
4. Powering Up: If your amplifier requires power, plug it into an outlet and turn it on.
5. Testing Signal Quality: After installation, check for improved signal quality on your devices. Adjust settings if available for optimal performance.
6. Regular Maintenance: Periodically check connections and performance to ensure long-term reliability[4][9].
Using isolated amplifiers offers several advantages:
- Enhanced Signal Quality: By eliminating interference between ports, isolated amplifiers maintain clearer audio and video signals.
- Protection Against Damage: Isolation protects sensitive components from voltage spikes and ground loops that can cause damage or erroneous readings in measurement systems[2][6].
- Improved System Reliability: Isolated designs contribute to overall system stability by ensuring that changes in one part do not adversely affect others[1][2].
Non-isolated systems can face several challenges:
- Ground Loops: These occur when there are multiple grounding points in a system, leading to potential differences that create noise and interference.
- Signal Losses: Without proper isolation, signals can degrade significantly due to reflections and crosstalk between channels[10].
As technology advances, so do cable signal amplifiers. Future trends may include:
- Smart Amplification Technologies: Integrating AI algorithms that automatically adjust gain based on real-time signal conditions could optimize performance dynamically.
- Enhanced Isolation Techniques: Continued research into advanced materials and designs will likely yield even better isolation properties, further improving signal integrity[2][6].
In conclusion, cable signal amplifier ports can be isolated depending on their design and application. High levels of port isolation are crucial for maintaining signal integrity and preventing interference between devices. By understanding the importance of isolation and employing appropriate design techniques, users can enhance their cable TV and internet experiences significantly.
A cable signal amplifier boosts weak incoming signals from a cable provider to ensure they can effectively reach all connected devices without degradation.
Port isolation prevents unwanted feedback and interference between different ports, ensuring that each connected device receives a clean and strong signal.
Common types include single-port amplifiers for one output and multi-port amplifiers for distributing boosted signals to multiple outputs.
Reverse isolation helps maintain the integrity of input signals by preventing contamination from output signals, which is crucial for stability and performance.
To improve cable signal quality, consider using high-quality amplifiers with good port isolation, proper shielding, and minimizing unnecessary splits in your cabling system.
