Washer load cells, also known as load washer sensors, are specialized devices designed to measure force, particularly in applications involving clamping and fastening. Their unique design allows them to fit seamlessly into existing mechanical assemblies, making them an attractive choice for engineers and manufacturers seeking precision in force measurement. This article explores the reliability of washer load cells for high-precision measurement, focusing on their construction, accuracy, applications, and advantages over traditional load cells.

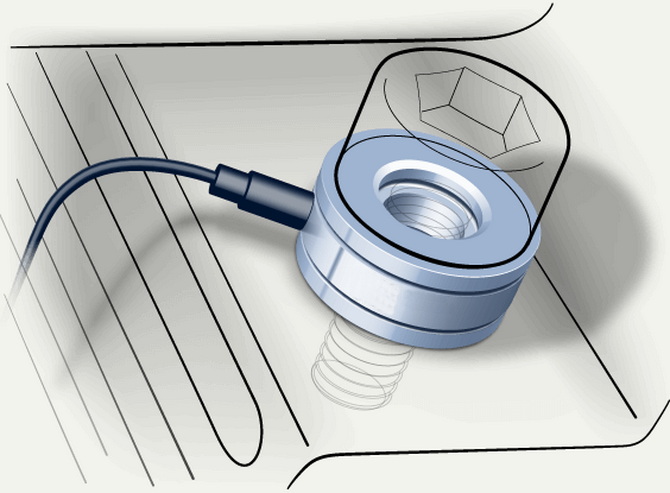

Washer load cells are essentially force transducers shaped like washers. They convert mechanical force into an electrical signal, which can be measured and recorded. This conversion is typically achieved through various technologies, including strain gauges and magnetoelastic sensors.
- Compact Design: Their low-profile nature allows them to fit into tight spaces where traditional load cells cannot.
- High Accuracy: Many washer load cells offer precision measurements within a range of ±0.5% to ±1% of full scale.
- Durability: Constructed from robust materials like stainless steel, they can withstand harsh environments.
Washer load cells come in various designs to suit different applications:
- Compression Load Cells: Designed to measure compressive forces directly.

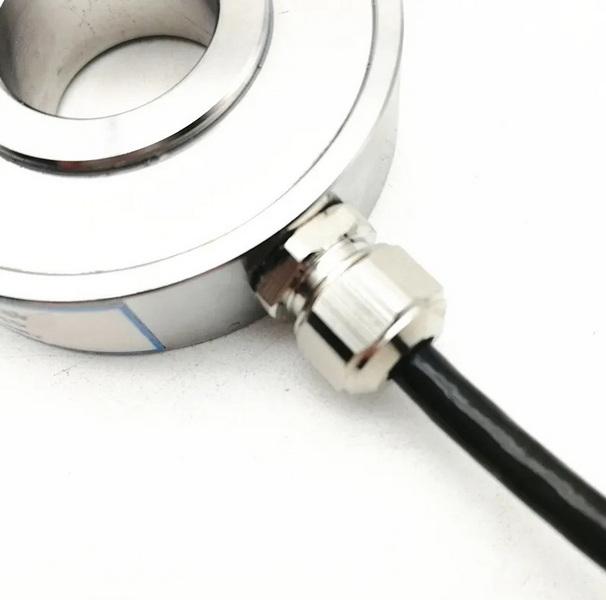

- Thru-Hole Load Cells: Allow a bolt or rod to pass through the center, ideal for measuring bolt tension.

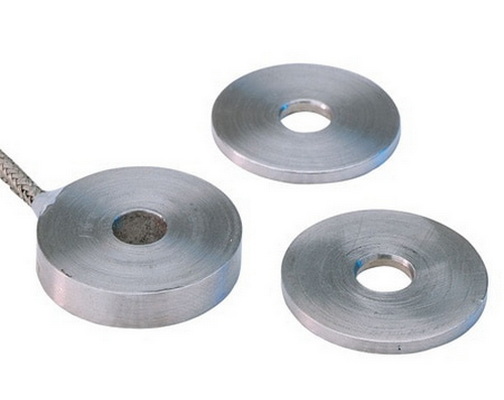

- Low Profile Load Cells: Specifically designed for applications with height restrictions.
Washer load cells are utilized across numerous industries due to their versatility and reliability. Some common applications include:
- Automotive Manufacturing: Measuring clamping forces during assembly.
- Aerospace Engineering: Monitoring bolt tension in critical components.
- Medical Devices: Ensuring accurate force measurements in precision tools.
Washer load cells offer several advantages over traditional load cells:
- Space Efficiency: Their compact design allows for integration into existing assemblies without requiring significant modifications.
- Cost-Effectiveness: By reducing the need for additional mounting hardware and space, they can lower overall project costs.
- Ease of Installation: Their design simplifies installation processes compared to bulkier alternatives.
While washer load cells provide many benefits, there are challenges that users should consider:
- Calibration Needs: Proper calibration is essential for maintaining accuracy over time.
- Environmental Factors: Depending on the application, exposure to extreme temperatures or corrosive substances can affect performance.
To assess the reliability of washer load cells against other types of load cells, it is essential to consider factors such as:
| Feature | Washer Load Cells | Traditional Load Cells |
|---|---|---|
| Size | Compact | Varies |
| Accuracy | ±0.5% to ±1% | Typically better |
| Installation Ease | High | Moderate |
| Cost | Lower | Higher |
In a recent project involving aircraft assembly, engineers implemented washer load cells to monitor bolt tension during the fastening process. The results showed improved accuracy in measuring clamping forces compared to traditional methods. This led to enhanced safety and reliability in structural integrity assessments.
An automotive manufacturer adopted washer load cells for measuring the clamping forces on engine components. The compact design allowed for easy integration into existing machinery without significant redesigns. The outcome was a more efficient assembly line with reduced errors in torque specifications.
Washer load cells are reliable tools for high-precision measurement across various industries. Their compact design, high accuracy, and ease of installation make them an excellent choice for applications where space and precision are critical. While challenges such as calibration and environmental factors exist, the advantages often outweigh these concerns. As technology advances, the role of washer load cells will likely expand further into new applications requiring precise force measurements.
A washer load cell is a type of force sensor shaped like a washer that measures compressive loads by converting mechanical force into an electrical signal.
Washer load cells typically offer accuracy within ±0.5% to ±1% of full scale, making them suitable for high-precision applications.
Industries such as automotive manufacturing, aerospace engineering, and medical device production frequently utilize washer load cells for their reliability and compact design.
Yes, many washer load cells are constructed from durable materials like stainless steel and are rated for environmental protection (e.g., IP65 or IP66), allowing them to operate effectively in harsh conditions.
Installation typically involves placing the washer load cell between two flat surfaces where force will be applied. Proper alignment and calibration are essential for accurate measurements.
