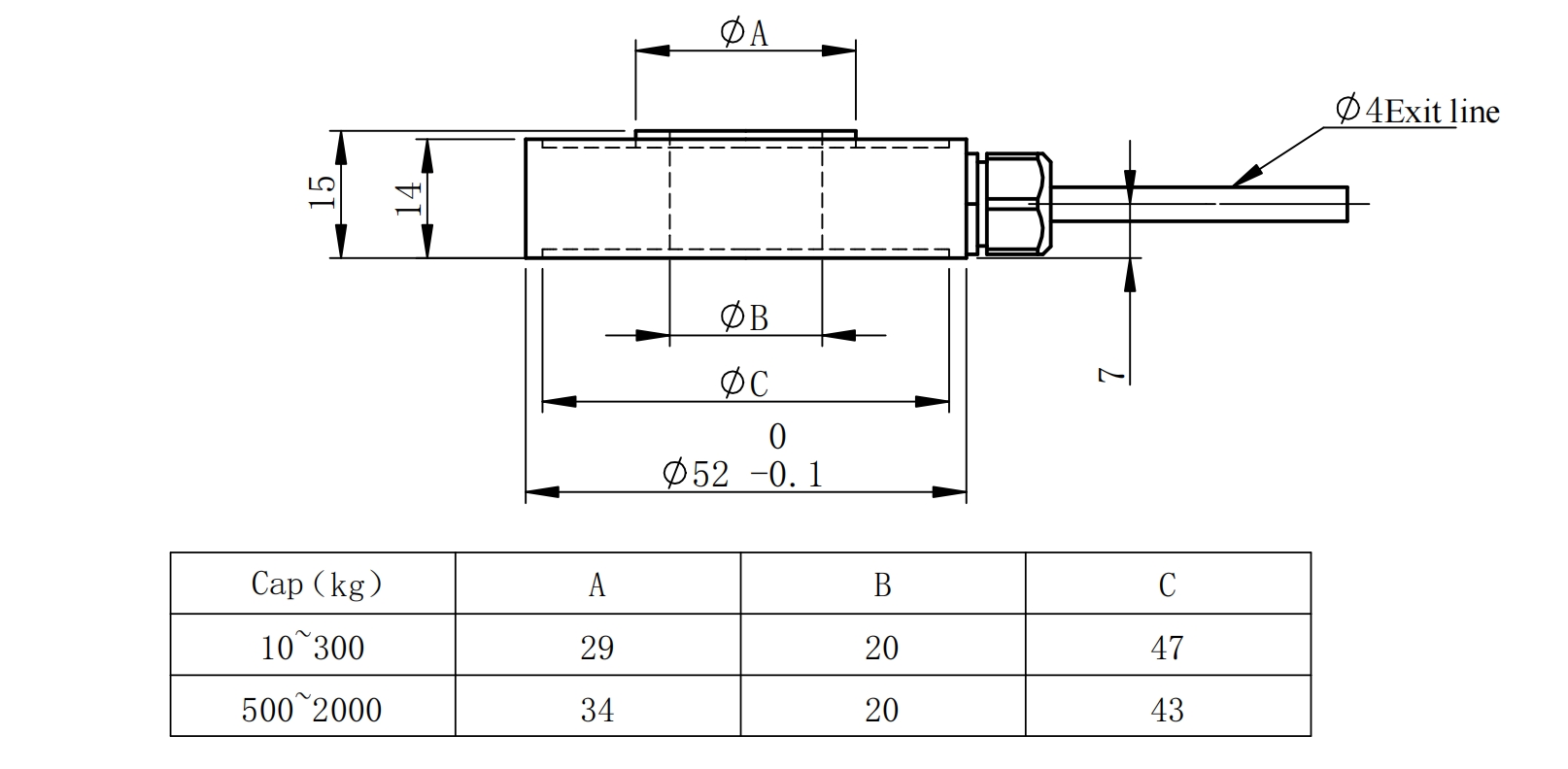

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |

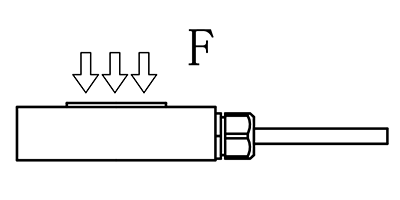

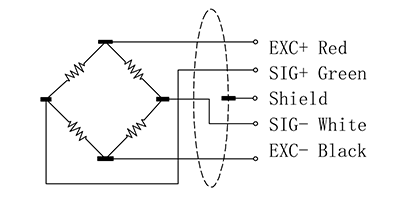

| Load Direction | Wiring |
 |  |
| Specifications |
Specifications | Technique |
Capacity | 10,20,50,100,200,300,500,1000,2000kg |
Sensitivity | 1.5±30%mV/V |
Zero balance | ±5%mV/V |
Creep | ≤0.1%F.S. |
Non-linearity | ≤0.3%F.S. |
Hysteresis | ≤0.2%F.S. |
Repeatability | ≤0.2%F.S. |
Input impedance | 780±20Ω |
Output impedance | 700±10Ω |
Temp. effect on output | 0.1%F.S./10℃ |
Temp. effect on zero | 0.1%F.S./10℃ |
Insulation resistance | ≥5000MΩ/100V(DC) |
Recommended excitation | 5~12V |
Maximum excitation | 15V |
Compensated temp. range | -10~60℃ |
Operating temp. range | -20~80℃ |
Safe overload | 150%F.S. |
Ultimate overload | 200%F.S. |
Cable size | Φ4X3m |
Material | Stainless Steel |

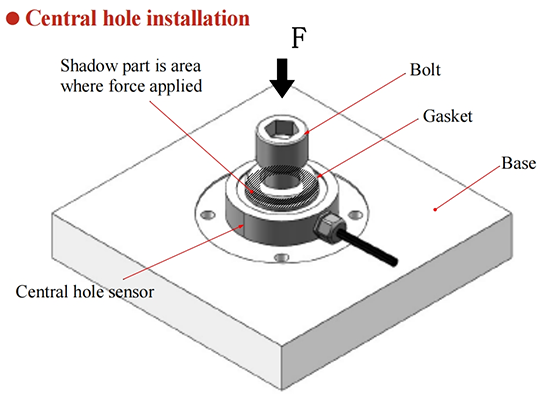

| Installation |

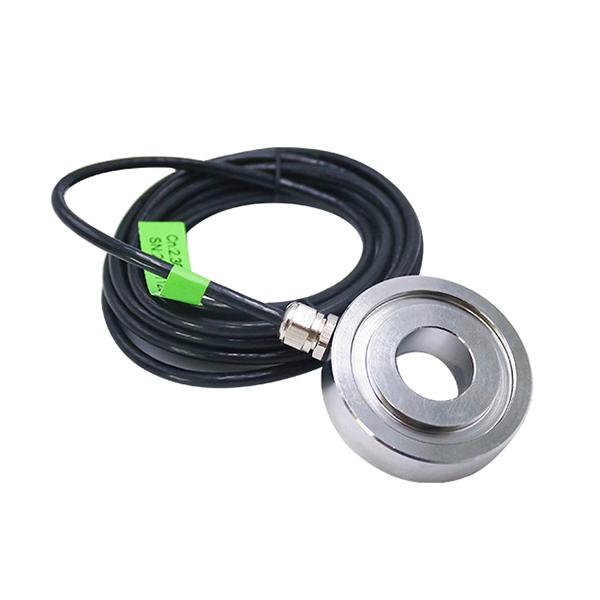

| Delivery Configurations |
