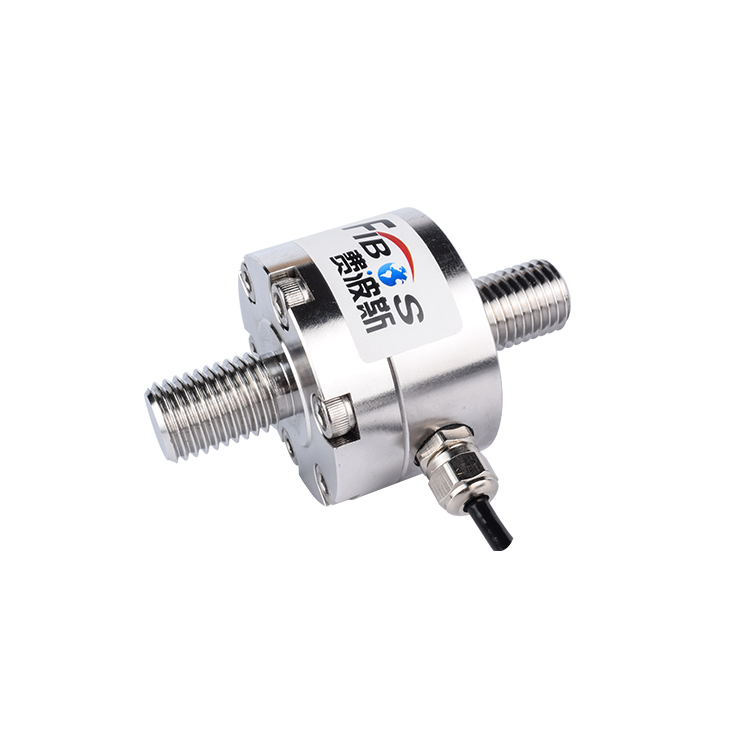

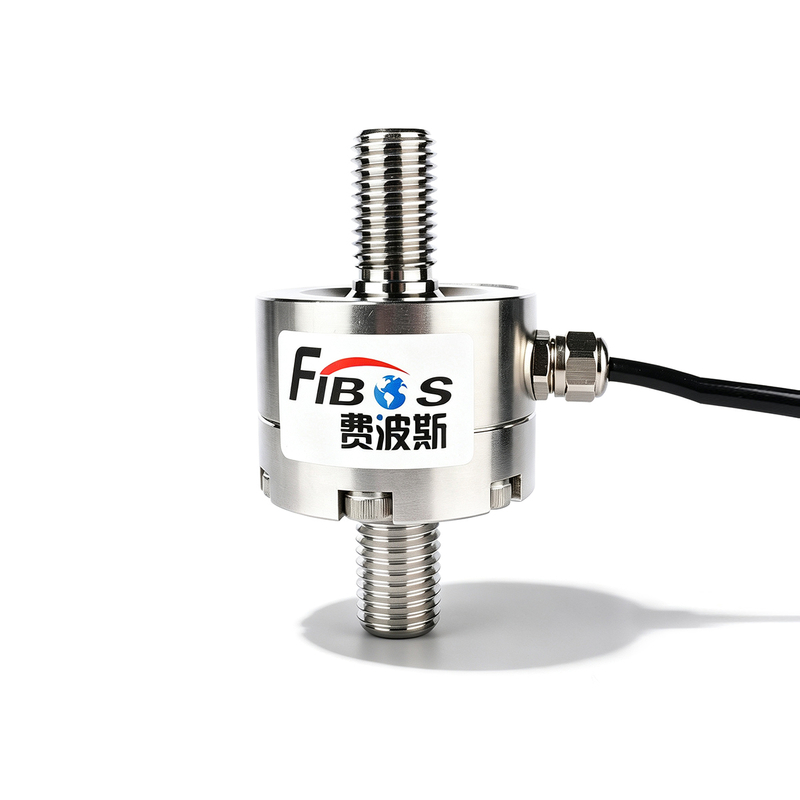

FA206
FIBOS
0.1,0.2,0.5,1,2,5t
≤0.2%F.S.
See the detailed dimensions table
＜0.058mm
＞5KHz
Stainless steel

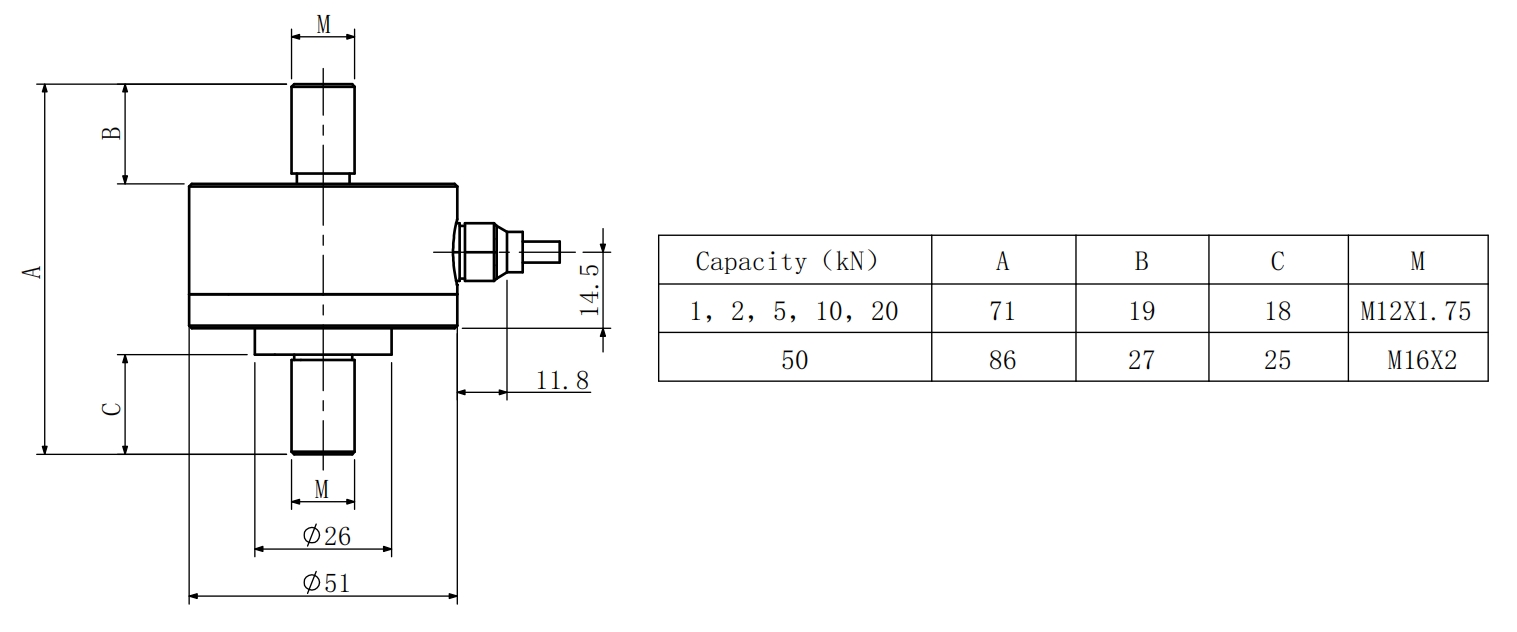

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |

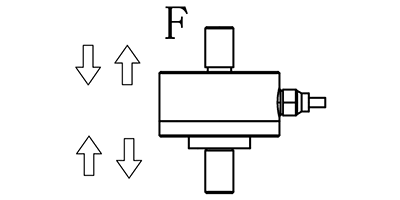

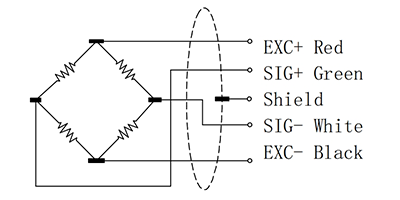

| Load Direction | Wiring |
 |
 |
| Specifications |
Specifications |
Technique |
Capacity |
0.1,0.2,0.5,1,2,3,5t |
Sensitivity |
1.5±10%mV/V |
Zero balance |
±0.03%mV/V |
Creep |
≤0.1%F.S. |
Non-linearity |
≤0.2%F.S. |
Hysteresis |
≤0.1%F.S. |
Repeatability |
≤0.1%F.S. |
Input impedance |
780±20Ω |
Output impedance |
700±10Ω |
Temp. effect on output |
0.1%F.S./10℃ |
Temp. effect on zero |
0.1%F.S./10℃ |
Insulation resistance |
≥5000MΩ/100V(DC) |
Recommended excitation |
5~12V |
Maximum excitation |
15V |
Compensated temp. range |
-10~60℃ |
Operating temp. range |
-20~80℃ |
Safe overload |
150%F.S. |
Ultimate overload |
200%F.S. |
Cable size |
Φ4x3000mm |
| Material | Stainless Steel |

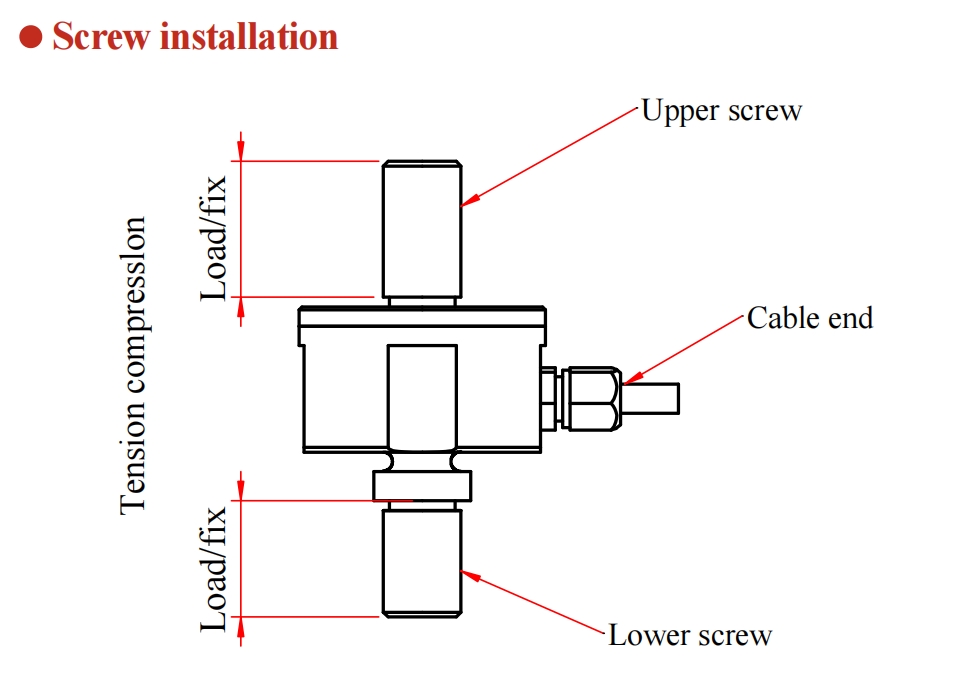

| Installation |
| Delivery Configurations |
Russia
to facilitate your design of workpiece.
