FA384
FIBOS
70t
≤0.5
L:245mm;H:500mm;W:54mm
Alloy steel

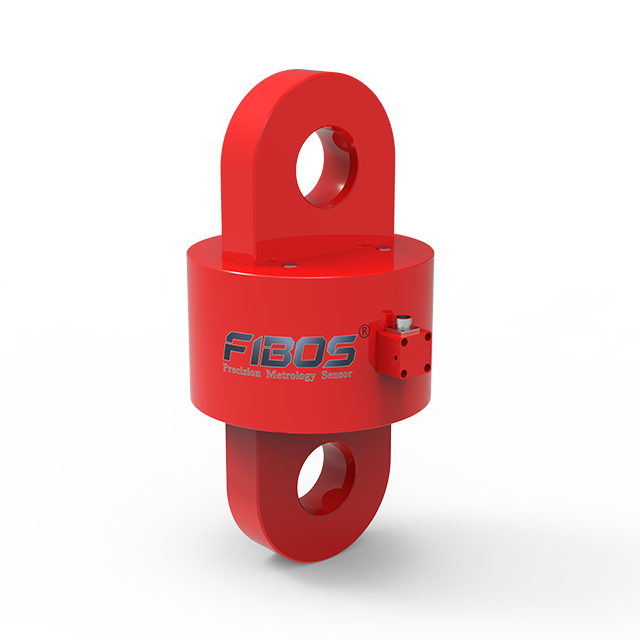

Heavy Duty Tension Load Cell 70t Product Description |
The FIBOS FA384 is a high-precision alloy steel tension and compression load cell designed for reliable force measurement in industrial and testing applications. With a rated capacity of 70 kg, it provides accurate bidirectional measurement with excellent linearity, low hysteresis, and high repeatability. Its robust eye-bolt (S-type) design ensures stable performance under both static and dynamic loads, while the durable construction with IP65 protection makes it suitable for harsh environments. The optimized strain gauge technology delivers consistent and precise results, and the compact design allows easy installation in lifting systems, weighing equipment, and force monitoring applications.

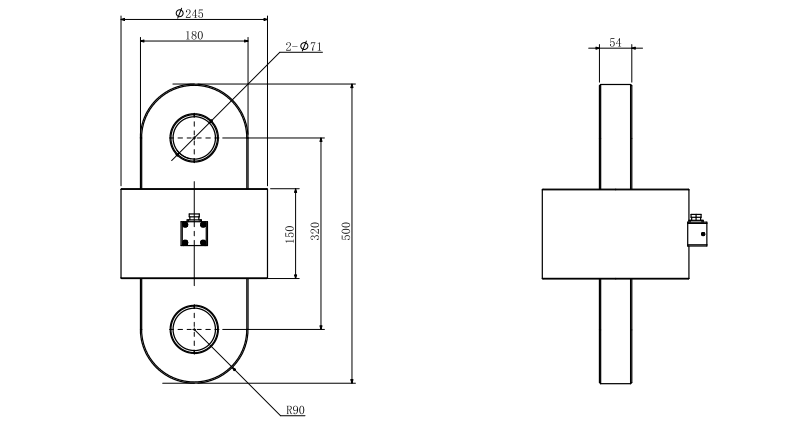

Load Cell Dimensions（Unit:mm） |
We provide 3D model files of our products.Support |

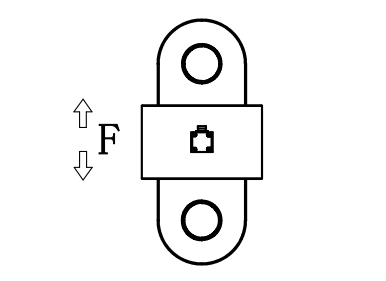

Load Direction | Load Cell Wiring |
|  |
Heavy Duty Tension Load Cell 70t FA384 Specifications |
Sensor Physical Parameters | |
Nominal Capacity | 70t |
Deflection at Full Scale | |
Fundamental resonance frequency (f_G) | |
Safe Overload | 120%F.S. |
Operating Temperature | -20~80℃ |
Ingress Protection (IP) | IP65 |
Cable | 3m |
Spring Element Material | Alloy Steel |
weight | |
Loading Direction | Tension |
Sensor Accuracy Parameters | |
Combined Error | ≤0.5%F.S. |
Non-linearity | ≤0.5%F.S. |
Hysteresis | ≤0.5%F.S. |
Repeatability | ≤0.3%F.S. |
Creep(30min) | ≤0.1%F.S. |
Temperature Effect on Output | 0.1%F.S./10℃ |
Electrical Parameters | |
Rated Output | 2.0±20%mV/V |
Excitation Voltage | 5~10V DC |
| Insulation Resistance | ≥5000MΩ/100V(DC) |
Recommended force sensor combinations |
 |
Force sensor manufacturing process |
Load Cell Non-standard customisation process |
|
| Fibos possesses a professional technical team capable of developing customized products to meet specific client requirements. Our R&D cycle is seamlessly integrated with our in-house production lines, enabling us to deliver relevant products within a short timeframe. |
Force Sensor Case Studies |
Frequently Asked Questions about Force Sensors |
A: The FA384 Tension type load cell is widely used in industrial force measurement applications such as crane scales, Wire rope pulling application, tensile testing etc.
A: The FA384 is made of high-quality Alloy steel offering excellent corrosion resistance and mechanical strength, ensuring stable performance in harsh environments such as humid or dusty conditions.
A:Yes, the FA384 is a load cell that can measure tension force only, making it suitable for various force testing applications.
A:The FA384 offers excellent linearity, repeatability, and long-term stability. It also provides strong resistance to interference, ensuring reliable measurement results.
A:Yes, FIBOS offers customization options including capacity range, dimensions, thread specifications, output signals, and adaptations for special environments.
