Amplifiers are fundamental components in modern electronics, playing a vital role in enhancing signals for various applications. This article explores the mechanics of how a signal travels through an amplifier, the different types of amplifiers, their applications, and the principles behind signal amplification.
Signal amplification is the process of increasing the amplitude of a signal without altering its original shape. This capability is essential in many electronic devices where signals need to be boosted for effective processing or transmission.
When a signal travels through an amplifier, it undergoes several transformations that enhance its strength. The basic function of an amplifier is to take a weak input signal and produce a stronger output signal. This is achieved through various electronic components that manipulate the input signal.
An amplifier operates based on specific principles that govern its functionality:
1. Input Stage: The weak input signal enters the amplifier.
2. Gain Stage: The amplifier increases the amplitude of the input signal using active components like transistors or operational amplifiers.
3. Output Stage: The amplified signal is then sent out of the amplifier.

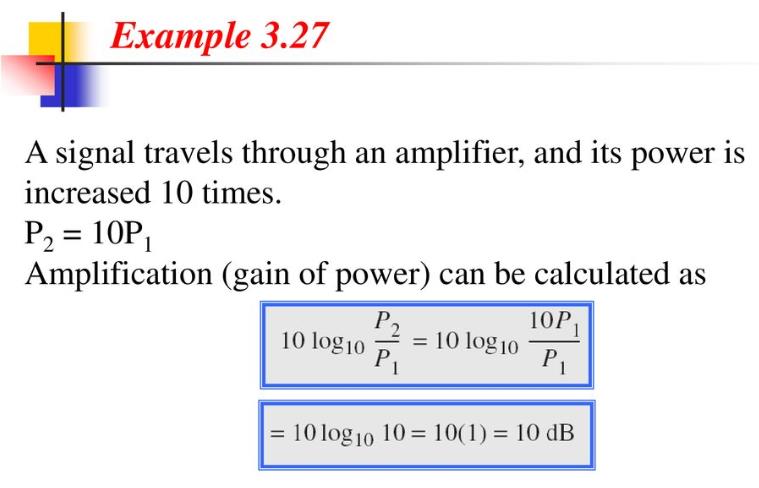

The gain of an amplifier is defined as the ratio of output power to input power, often expressed in decibels (dB). For example, if an amplifier has a gain of 20 dB, it means that the output power is 100 times greater than the input power.
When a signal travels through an amplifier, it follows a specific path that can be broken down into several stages:
1. Input Coupling: The input stage may include capacitors that block DC components while allowing AC signals to pass through. This ensures that only the desired AC signal is amplified.
2. Amplification Stage: Here, transistors or operational amplifiers increase the amplitude of the incoming signal. The gain is determined by feedback mechanisms within the circuit.
3. Output Coupling: Similar to input coupling, output stages may use capacitors to prevent DC offset from affecting downstream components.
4. Filtering: Many amplifiers include filtering capabilities to remove unwanted frequencies from the amplified signal, ensuring clarity and quality.
Several factors can influence how effectively a signal is amplified:
- Gain Settings: Adjusting gain settings can optimize performance for different types of signals.
- Bandwidth: The frequency range over which an amplifier operates affects its ability to amplify signals accurately without distortion.
- Noise Levels: Background noise can interfere with the quality of the amplified signal, making noise reduction techniques essential.
- Temperature Variations: Changes in temperature can affect electronic components within an amplifier, potentially altering performance.
Amplifiers can be categorized based on their application and design. Here are some common types:
- Voltage Amplifiers: These increase the voltage level of an input signal and are widely used in audio systems.
- Current Amplifiers: Designed to boost current levels, these amplifiers are employed in power electronics.
- Power Amplifiers: These amplify both voltage and current to increase overall power output and are crucial in broadcasting and audio applications.
- Operational Amplifiers (Op-Amps): Highly versatile, Op-Amps can perform various functions including filtering and signal conditioning.
- RF Amplifiers: Used for radio frequency signals, these amplifiers are essential in communication devices.
Signal amplification finds applications across various fields:
- Audio Systems: Amplifiers boost sound signals for speakers and headphones.
- Telecommunications: RF amplifiers enhance signals for transmission over long distances.
- Medical Equipment: In devices like ECG machines, amplifiers strengthen weak biological signals for accurate readings.
- Data Acquisition Systems: Signal amplifiers ensure low-level sensor outputs are compatible with analog-to-digital converters (ADCs).
To understand how a signal travels through an amplifier more deeply, we need to look at specific components and their roles:
Transistors are often used as the main amplifying elements in many types of amplifiers. They operate by controlling a larger current flowing from collector to emitter based on a smaller current entering through the base terminal. When a small input AC voltage is applied at the base-emitter junction, it modulates this larger collector-emitter current, effectively amplifying the input signal.
Feedback plays a critical role in maintaining stability and linearity in amplification. There are two types of feedback:
- Negative Feedback: This reduces distortion and stabilizes gain by feeding back a portion of the output to the input out-of-phase with the original input signal.
- Positive Feedback: This can increase gain but may lead to instability if not carefully controlled; it's often used in oscillators rather than linear amplifiers.
Amplifiers require external power supplies to function effectively. The power supply converts AC mains electricity into DC voltage suitable for powering transistors or operational amplifiers within circuits. The amount of current drawn from this supply directly impacts how much amplification can be achieved without distortion or clipping.
One important aspect when discussing how a signal travels through an amplifier is understanding distortion and clipping:
- Distortion occurs when an amplified output does not accurately represent its input due to non-linearities within the amplifier circuit.
- Clipping happens when an input signal exceeds the maximum limit that an amplifier can handle; this results in parts of the waveform being cut off or "clipped," leading to significant distortion.
To mitigate these issues, designers must ensure that amplifiers are operated within their specified limits and utilize appropriate feedback mechanisms.

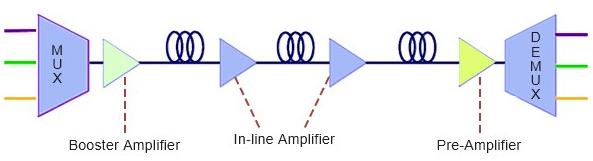

In many applications where significant amplification is required, multiple stages of amplification are used:
1. Each stage receives an output from the previous stage and further boosts it.
2. By cascading several amplifying stages, designers can achieve substantial overall gain while maintaining linearity across each stage.
3. Multistage designs help manage issues like bandwidth limitations and noise reduction more effectively than single-stage designs could alone.
Understanding how a signal travels through an amplifier is essential for anyone working with electronic devices. From audio systems to telecommunications and medical equipment, amplifiers play a vital role in ensuring signals are strong enough for effective processing and transmission. By grasping the principles behind amplification and recognizing various types and applications of amplifiers, one can appreciate their importance in modern technology.
An amplifier is an electronic device that increases the amplitude of a signal without changing its shape, allowing for better processing and transmission.
A signal travels through an amplifier by entering through the input stage, being amplified in the gain stage using active components like transistors, and then exiting through the output stage.
Common types include voltage amplifiers, current amplifiers, power amplifiers, operational amplifiers (Op-Amps), and RF amplifiers.
Factors include gain settings, bandwidth, noise levels, and temperature variations which can all impact how effectively a signal is amplified.
Amplifiers are used in audio systems, telecommunications, medical equipment, data acquisition systems among other applications.
