Choosing the right AM modulation signal amplifier is crucial for achieving clear audio in various applications, from broadcasting to amateur radio. This guide will walk you through the essential factors to consider when selecting an amplifier, ensuring optimal performance for your AM modulation needs.
What is Amplitude Modulation?

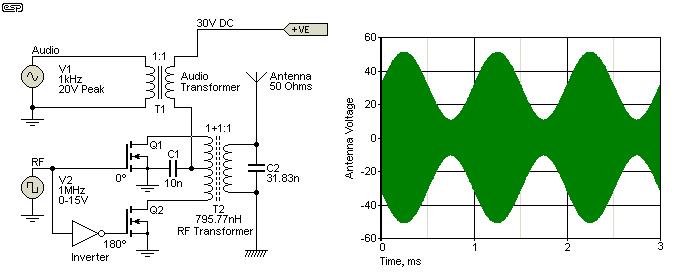

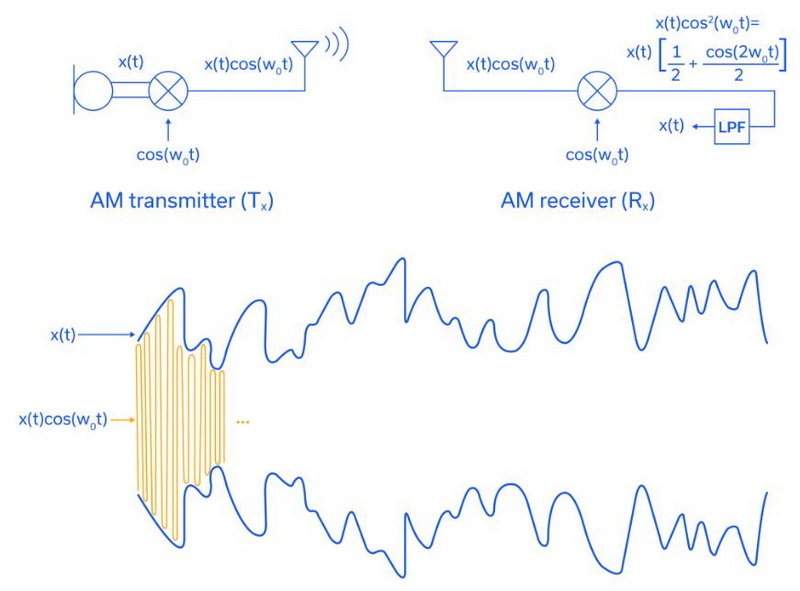

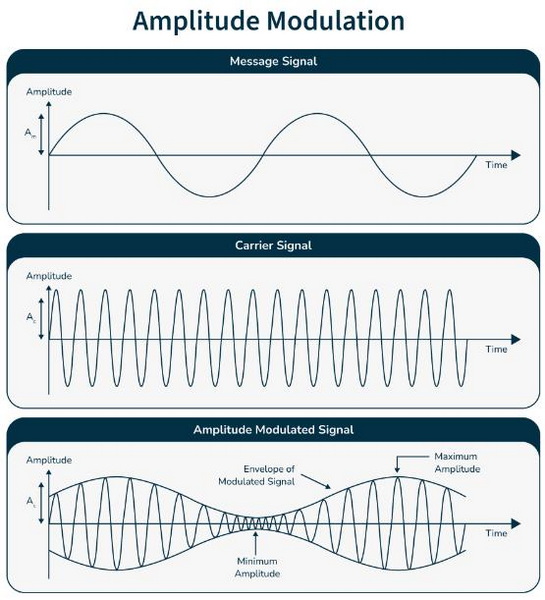

Amplitude Modulation (AM) is a technique used to encode information in a carrier wave by varying its amplitude. This method is widely used in radio broadcasting and involves the combination of a carrier signal and a modulating signal. The resulting waveform contains the original audio signal's information, allowing it to be transmitted over long distances.
The mathematical representation of an AM signal can be expressed as:
y(t)=[1+m(t)/A]c(t)
where c(t) is the carrier wave, m(t) is the modulating signal, and A is the amplitude sensitivity.
When selecting an AM modulation signal amplifier, several critical factors must be taken into account:
Understanding the characteristics of your signal is paramount. You need to know:
- Type of Modulation: Ensure that the amplifier you choose supports AM modulation.
- Peak Power Requirements: Calculate the peak power needed based on your modulation depth. For example, if you are using 100% modulation, your peak power will be four times your carrier power.
Amplifiers are classified into different types based on their operation:
- Class A: Known for high linearity and low distortion, making them suitable for high-fidelity audio applications.
- Class B and Class C: Generally more efficient but may introduce distortion, which can affect audio quality.
Choosing the right class depends on your specific application requirements and acceptable distortion levels.
The gain of the amplifier determines how much it can amplify the input signal. Ensure that the amplifier provides adequate gain without pushing it into compression or distortion.
- Calculating Gain: Use the formula:
Gain dB =10log10(Pout/Pin)
where Poutis the output power and Pinis the input power.
Ensure that the amplifier operates within the frequency range of your application. Different amplifiers are designed for specific frequency bands, so it's essential to select one that matches your requirements.
- Look for amplifiers with low harmonic distortion levels (measured in dBc). A good quality amplifier should have harmonic levels lower than -40 dBc to ensure clear audio output.
Now that you understand what to look for, here are practical steps to help you choose the best AM modulation signal amplifier:
- Determine your application (broadcasting, amateur radio, etc.).
- Specify your desired output power and frequency range.
- Look for amplifiers specifically designed for AM modulation.
- Compare specifications across different brands and models.
- Check reviews and performance metrics from other users.
- If possible, test amplifiers in real-world scenarios to assess their performance.
Some amplifiers come with additional features such as:
- Variable Gain Control: Useful for adjusting output levels without distortion.
- Built-in Filters: Helps reduce unwanted harmonics and improve audio clarity.
As you delve deeper into selecting an AM modulation signal amplifier, consider these advanced factors:
Modulation depth refers to how much the amplitude of the carrier wave varies with respect to the modulating signal. It's crucial to maintain an optimal modulation depth (typically between 60% and 80%) to avoid distortion while ensuring clarity in audio transmission.
The relationship between average power and modulation depth can be expressed as follows:
Average Power Increase=(1+M2/2)
where M is the modulation index.
Overmodulation occurs when the modulating signal exceeds a certain threshold, leading to distortion in the transmitted audio. This can create unwanted artifacts in your broadcast or communication system. It's essential to monitor levels carefully during operation and adjust gain settings accordingly.
Testing your chosen amplifier with actual signals can provide insights into its performance under real-world conditions. Use an oscilloscope or spectrum analyzer to observe how well it handles various frequencies and modulation depths.
AM modulation is used in various fields, including:
- Broadcasting: AM radio stations transmit music, news, and talk shows using amplitude modulation techniques.
- Amateur Radio: Many ham operators utilize AM for voice communications over shortwave frequencies.
- Audio Processing: In synthesizers, amplitude modulation can create unique sound textures by varying audio signals dynamically.
Selecting the right AM modulation signal amplifier is vital for achieving clear audio transmission. By understanding your signal characteristics, choosing the appropriate amplifier class, ensuring sufficient gain and power output, evaluating linearity, and considering advanced factors like modulation depth and overmodulation risks, you can make an informed decision that meets your needs effectively.
An AM modulation signal amplifier is a device used to amplify amplitude-modulated signals while preserving audio quality and minimizing distortion.
Peak power can be calculated using the formula:
AM Peak Power Watts =CW Power Watts ×4
for 100% modulation.
Class A amplifiers provide higher linearity and lower distortion but are less efficient than Class B amplifiers, which are more efficient but may introduce distortion during operation.
The frequency range is crucial because using an amplifier outside its specified range can lead to poor performance or even damage to the equipment.
Aim for amplifiers with harmonic distortion levels lower than -40 dBc to ensure high-quality audio output without significant interference from harmonics.
