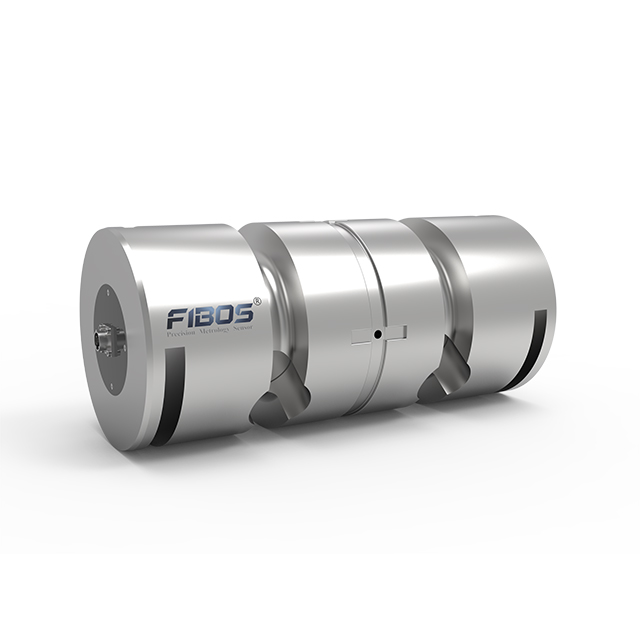

Load Pin Load Cell FA9205

FA9205 shaft pin sensor, with a measurement range of 0 - 100t, outputs a standard 4 - 20mA signal. The comprehensive accuracy is ≤ 0.1%. Made of alloy steel elastic body, with IP65 protection, operating temperature range of -20 to 80℃, bidirectional measurement, suitable for process control fields such as cranes, ports and industrial automation.

• High precision, excellent stability, compact structure and integrated design

• High torsional and bending resistance

• High sealing performance and environmental adaptability

• Diverse output signals

• Primarily suitable for: lifting machinery, ports and terminals, industrial automation, aerospace and marine applications, electronic crane scales, etc.

Sensor Physical Parameters
Nominal Capacity	0~100t
Deflection at Full Scale	-
Fundamental resonance frequency (f_G)	-
Safe Overload	125%F.S.
Operating Temperature	-20~80℃
Ingress Protection (IP)	IP65
Cable	φ6x4m
Spring Element Material	Alloy steel
weight	-
Loading Direction	Two-way
Sensor Accuracy Parameters
Combined Error	≤3%F.S.
Non-linearity	≤3%F.S.
Hysteresis	≤3%F.S.
Repeatability	≤1%F.S.
Creep(30min)	≤0.1%F.S.
Temperature Effect on Output	0.1%F.S./10℃
Electrical Parameters
Rated Output	4-20mA
Excitation Voltage	24V DC
Insulation Resistance	≥5000MΩ/100V(DC)

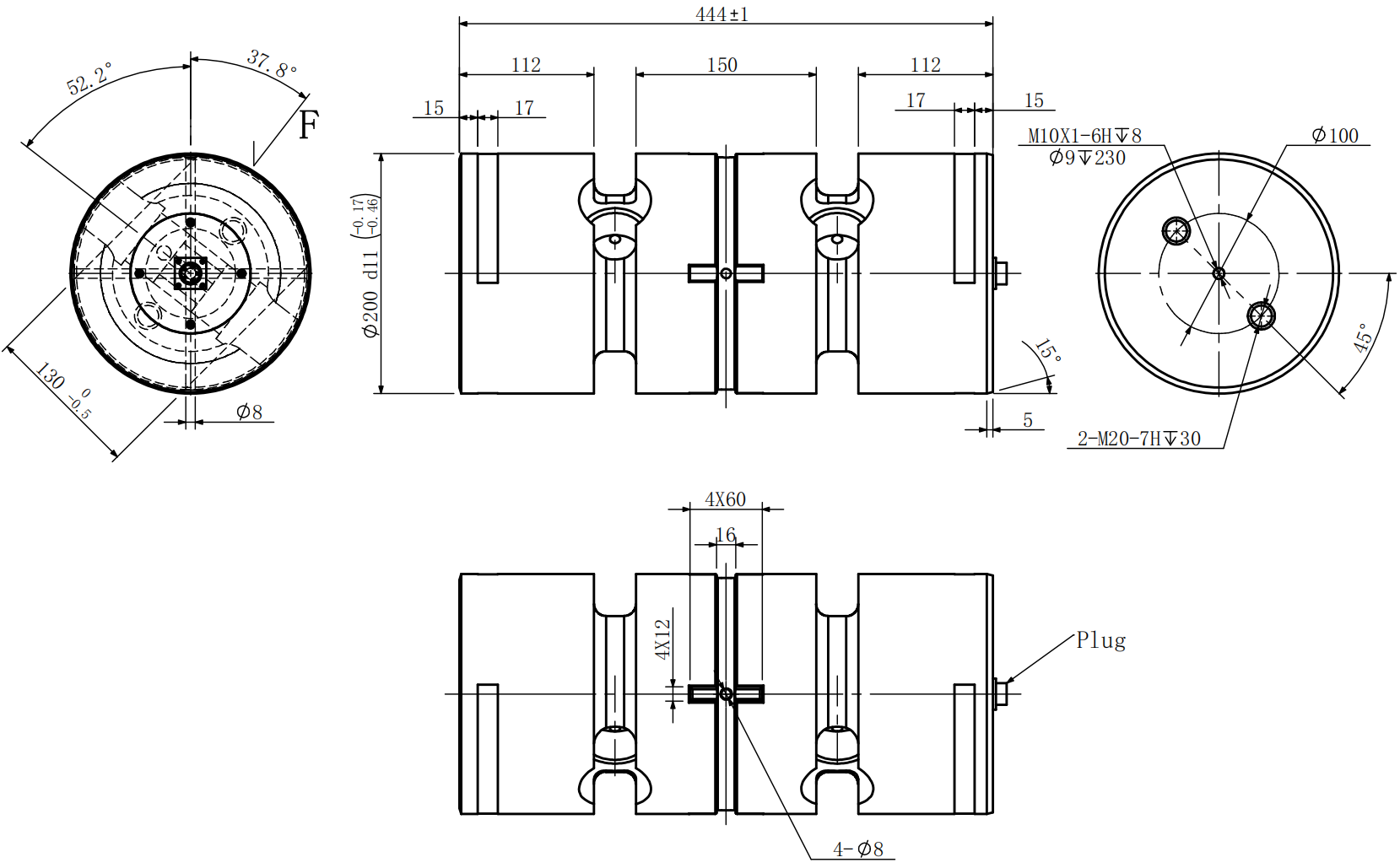

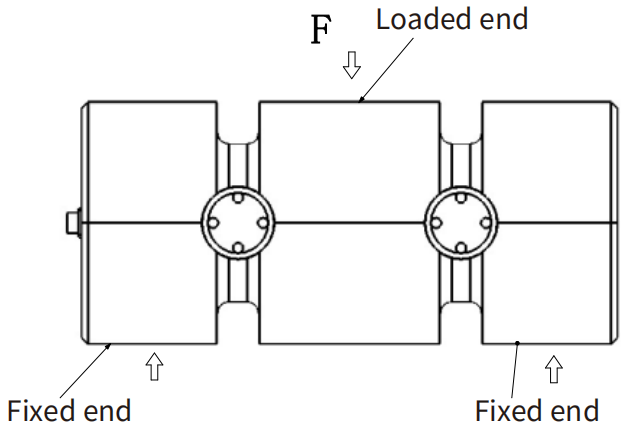

Sensor Styling Suggestions

Force sensor manufacturing process

Sensor Non-standard customisation process

Fibos possesses a professional technical team capable of developing customized products to meet specific client requirements. Our R&D cycle is seamlessly integrated with our in-house production lines, enabling us to deliver relevant products within a short timeframe.

Customer case studies for the Torque series

Frequently Asked Questions about Force Sensors

Q1：What is a shaft pin sensor and where is FA9205 used?

A: A shaft pin sensor replaces traditional pins in mechanical structures to directly measure force. The FA9205 is widely used in cranes, port machinery, industrial automation, marine, and aerospace applications.

Q2：Does FA9205 support unidirectional or bidirectional measurement?

A:The FA9205 supports bidirectional force measurement, allowing detection of both tension and compression.

Q3：What is the accuracy of FA9205?

A:The combined accuracy is ≤3%, with excellent linearity (≤3%), repeatability (≤1%), and hysteresis performance.

Q4：What is the protection rating and environmental capability?

A: The FA9205 has an IP65 rating and operates reliably in temperatures from -20°C to +80°C, suitable for harsh environments.

Q5：What should be considered during installation?

A:

• Ensure proper alignment with mounting holes

• Avoid side loads and impact forces

• Install according to load direction

• Secure properly to prevent loosening
