Inline load cells are crucial components in various industrial applications, providing accurate measurements of force, weight, and load. Their unique design allows them to be integrated seamlessly into machinery and systems, making them ideal for monitoring and controlling processes across multiple sectors. This article explores the uses of inline load cells, their advantages, and their applications in different industries.

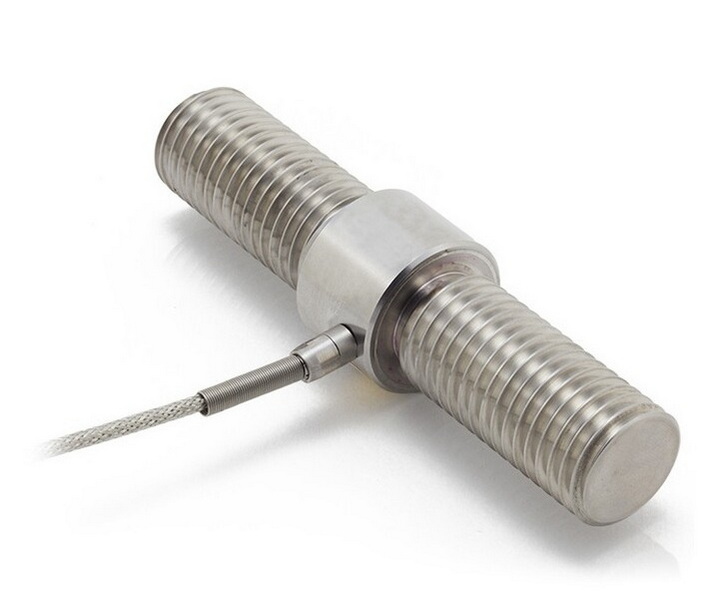

Inline load cells are specialized sensors designed to measure tension or compression forces directly. They typically consist of a cylindrical body with male threads on both ends, allowing them to be easily integrated into existing systems. The primary function of inline load cells is to provide precise measurements while minimizing the effects of off-axis loads and bending moments.
- Compact Design: Inline load cells are often compact, making them suitable for installations where space is limited.
- High Accuracy: These load cells offer high precision in measurements, ensuring reliable data for industrial processes.
- Robust Construction: Built to withstand harsh industrial environments, inline load cells are often made from durable materials like stainless steel.
- Versatile Applications: They can be used in various applications, from weighing systems to force measurement in manufacturing processes.
Inline load cells find usage across several industries due to their versatility and reliability. Here are some common applications:
- Manufacturing: In manufacturing processes, inline load cells are used to monitor the force applied during assembly, ensuring quality control and consistency.
- Material Testing: These load cells are essential in testing materials for tensile strength and other mechanical properties.
- Automotive Industry: Inline load cells are utilized in vehicle brake testing and monitoring the loads on components during assembly.
- Aerospace: They play a critical role in aircraft component testing and ensuring safety standards are met.
- Food and Beverage: In this industry, inline load cells help in accurately measuring ingredients during processing to maintain product quality.
The adoption of inline load cells offers several benefits:
- Precision Measurement: They provide accurate readings essential for quality control.
- Ease of Integration: Their design allows for straightforward installation into existing systems without significant modifications.
- Reduced Maintenance: With fewer moving parts compared to traditional weighing systems, inline load cells require less maintenance.
- Cost-Effective Solutions: Their durability and reliability can lead to lower operational costs over time due to reduced downtime and maintenance needs.
Inline load cells operate based on the principle of strain gauges. When a force is applied, the strain gauge deforms slightly, changing its electrical resistance. This change is proportional to the amount of force applied, allowing for precise measurement. The output signal can be analog or digital, depending on the system's requirements.
There are several types of inline load cells available, each designed for specific applications:
- Miniature Inline Load Cells: Ideal for tight spaces, these small sensors provide high accuracy without taking up much room.
- Tension and Compression Load Cells: These versatile sensors can measure forces in both directions, making them suitable for various applications.
- High-Capacity Load Cells: Designed for heavy-duty applications, these load cells can handle significant loads while maintaining accuracy.
When installing inline load cells, several factors should be considered:
- Alignment: Proper alignment is crucial to ensure accurate measurements. Misalignment can lead to erroneous readings.
- Mounting Options: Various mounting accessories such as rod end bearings or clevises may be required based on the application.
- Calibration: Regular calibration is necessary to maintain accuracy over time. This involves adjusting the sensor's output to match known weights or forces.
1. Automotive Assembly Line: An automotive manufacturer integrated inline load cells into their assembly line to monitor the torque applied during bolt fastening. This ensured that each bolt was tightened correctly, reducing the risk of mechanical failure.
2. Food Processing Plant: A food processing company used inline load cells to measure ingredient quantities accurately during mixing. This led to improved product consistency and reduced waste due to overuse of ingredients.
3. Aerospace Component Testing: An aerospace company employed inline load cells in testing rigs to measure the forces experienced by aircraft components under various conditions. This data was vital for ensuring safety and compliance with industry standards.
As technology advances, inline load cells will continue evolving:
- Wireless Technology: The integration of wireless communication will allow for remote monitoring and data collection without physical connections.
- Smart Sensors: Future inline load cells may incorporate smart technology that enables self-calibration and predictive maintenance alerts based on usage patterns.
- Enhanced Data Analytics: With advancements in data analytics software, inline load cell systems will provide more detailed insights into operational efficiency and performance metrics.
Inline load cells play a vital role in modern industrial applications by providing accurate measurements that enhance quality control and operational efficiency. Their compact design, high accuracy, and robust construction make them suitable for various sectors including manufacturing, automotive, aerospace, and food processing. As technology continues to advance, we can expect further innovations that will enhance their capabilities and applications even more.
An inline load cell is a type of sensor designed to measure tension or compression forces directly within a system. It features a compact design with male threads on both ends for easy integration into existing machinery.
To install an inline load cell, ensure proper alignment with minimal bending or off-axis loads. Use appropriate mounting accessories as needed and calibrate the sensor after installation for accurate readings.
Inline load cells are commonly used in industries such as manufacturing, automotive, aerospace, food processing, and material testing due to their versatility and reliability in measuring force accurately.
Inline load cells should be calibrated regularly based on usage frequency and application requirements. Typically, calibration should occur at least once a year or more frequently if used in critical applications where precision is essential.
Yes, many inline load cell models are designed to measure both tension and compression forces effectively, making them versatile for various applications.
