Large signal amplifiers, commonly referred to as power amplifiers, are essential components in various electronic applications, as they amplify signals to levels sufficient for driving loads such as loudspeakers, motors, and other devices that require significant power. This article delves into the fundamentals of large signal amplifiers, their operation, classifications, applications, design considerations, and more.
Amplifiers are electronic devices designed to increase the amplitude of signals. They can be classified based on their input signal levels and the type of application they serve. The two primary categories are:
- Small Signal Amplifiers: These amplify weak signals without significantly altering their characteristics.
- Large Signal Amplifiers: These are designed to handle larger input signals and provide substantial output power.

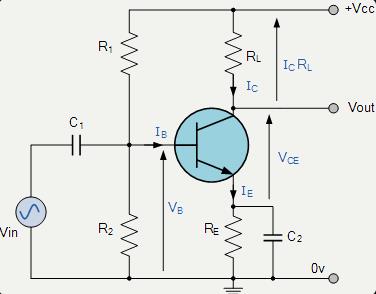

A large signal amplifier is specifically engineered to amplify high-level signals while maintaining fidelity. Unlike small signal amplifiers, large signal amplifiers operate in a non-linear region where the gain can vary based on the input level. This non-linearity is essential for applications that require substantial power output.
- High Power Output: Capable of delivering significant voltage and current swings.
- Non-linear Operation: The gain decreases as the input signal approaches saturation.
- Efficiency: While efficiency can vary across different classes of amplifiers, large signal amplifiers are designed to maximize power transfer to the load.
The operation of large signal amplifiers involves several critical concepts:
1. Input and Output Signals: The input can be a low-level audio signal, while the output must be a high-power signal capable of driving speakers or motors.
2. Biasing: Proper biasing is essential to ensure that the amplifier operates in its desired region (active region) for optimal performance.
3. Load Matching: Impedance matching is crucial for maximizing power transfer from the amplifier to the load.
Large signal amplifiers can be classified into several types based on their conduction angle and efficiency:
| Class | Conduction Angle | Efficiency | Characteristics |
|---|---|---|---|
| A | 360° | Low (25-30%) | Linear operation; high fidelity but low efficiency due to constant current flow. |
| B | 180° | Moderate (50-70%) | Each transistor conducts for half of the input cycle; better efficiency but may introduce distortion. |
| AB | 180° to 360° | Moderate to High (50-70%) | Combines features of Class A and B; reduces crossover distortion while improving efficiency. |
| C | Less than 180° | High (up to 90%) | Used primarily in RF applications; high efficiency but significant distortion. |
Large signal amplifiers find wide-ranging applications across various fields:
- Audio Systems: Driving loudspeakers in public address systems and home theaters.
- Radio Frequency Applications: Used in transmitters and receivers to amplify RF signals.
- Industrial Control Systems: Driving motors and actuators in automation processes.
- Television Transmitters: Amplifying video signals for broadcasting.
When designing large signal amplifiers, several factors must be considered:
- Thermal Management: High power levels generate heat; thus, adequate heat dissipation mechanisms must be implemented.
- Power Supply Requirements: A stable power supply is essential for consistent performance.
- Component Selection: Choosing appropriate transistors and other components that can handle high currents and voltages is critical.
Class A amplifiers conduct over the entire range of the input cycle (360 degrees). They provide excellent linearity and low distortion but are inefficient due to continuous current flow even when no input signal is present. This results in significant heat generation, necessitating robust thermal management solutions.
Class B amplifiers only conduct during half of the input cycle (180 degrees). They are more efficient than Class A amplifiers but can introduce crossover distortion at the point where one transistor turns off and another turns on. This class is often used in push-pull configurations to mitigate distortion issues.
Class AB amplifiers combine characteristics from both Class A and Class B designs. They conduct for more than half but less than a full cycle (between 180° and 360°). This configuration helps reduce crossover distortion while maintaining better efficiency than Class A designs. Class AB amplifiers are widely used in audio amplification due to their balance between fidelity and efficiency.
Class C amplifiers are biased so that they conduct for less than half of the input cycle (less than 180 degrees). They are highly efficient but produce significant distortion, making them unsuitable for audio applications. However, they excel in RF applications where linearity is less critical than efficiency.
A deeper understanding of amplifier classes reveals their distinct advantages and disadvantages:
| Class | Advantages | Disadvantages |
|---|---|---|
| A | Excellent linearity; low distortion | Low efficiency; high heat generation |
| B | Higher efficiency; reduced heat | Crossover distortion; requires careful biasing |
| AB | Balanced performance; lower distortion than B | Slightly lower efficiency than B |
| C | Very efficient; compact design | High distortion; unsuitable for audio |
Effective thermal management is crucial for maintaining amplifier performance and reliability. Common techniques include:
- Heat Sinks: Attached to transistors or other heat-generating components to dissipate heat into the surrounding air.
- Active Cooling: Utilizing fans or liquid cooling systems to enhance heat dissipation in high-power applications.
- Thermal Pads or Compound: Improving thermal conductivity between components and heat sinks.
The choice of power supply significantly impacts amplifier performance:
- Voltage Levels: Ensure that the power supply voltage matches the amplifier's requirements for optimal operation without risking damage.
- Current Capacity: The power supply must provide sufficient current to meet peak demands during operation without sagging or causing instability.
Large signal amplifiers are vital components in modern electronics, enabling devices to operate effectively by providing necessary power for various applications. Understanding their operation, classifications, design considerations, and thermal management techniques is essential for anyone involved in electronics engineering or related fields. As technology advances, new amplifier designs continue to emerge, offering improved performance characteristics tailored for specific applications.
Small signal amplifiers are designed for low-level signals with linear operation, while large signal amplifiers handle high-level signals and operate in a non-linear region.
Biasing ensures that the amplifier operates within its active region, allowing it to amplify signals effectively without distortion.
Common applications include audio amplification in public address systems, RF amplification in transmitters, driving motors in industrial control systems, and television broadcasting.
Impedance matching can be achieved using transformers or specific circuit configurations that match the output impedance of the amplifier with the load impedance.
The main classes include Class A, Class B, Class AB, and Class C, each with distinct characteristics regarding conduction angles and efficiencies.
